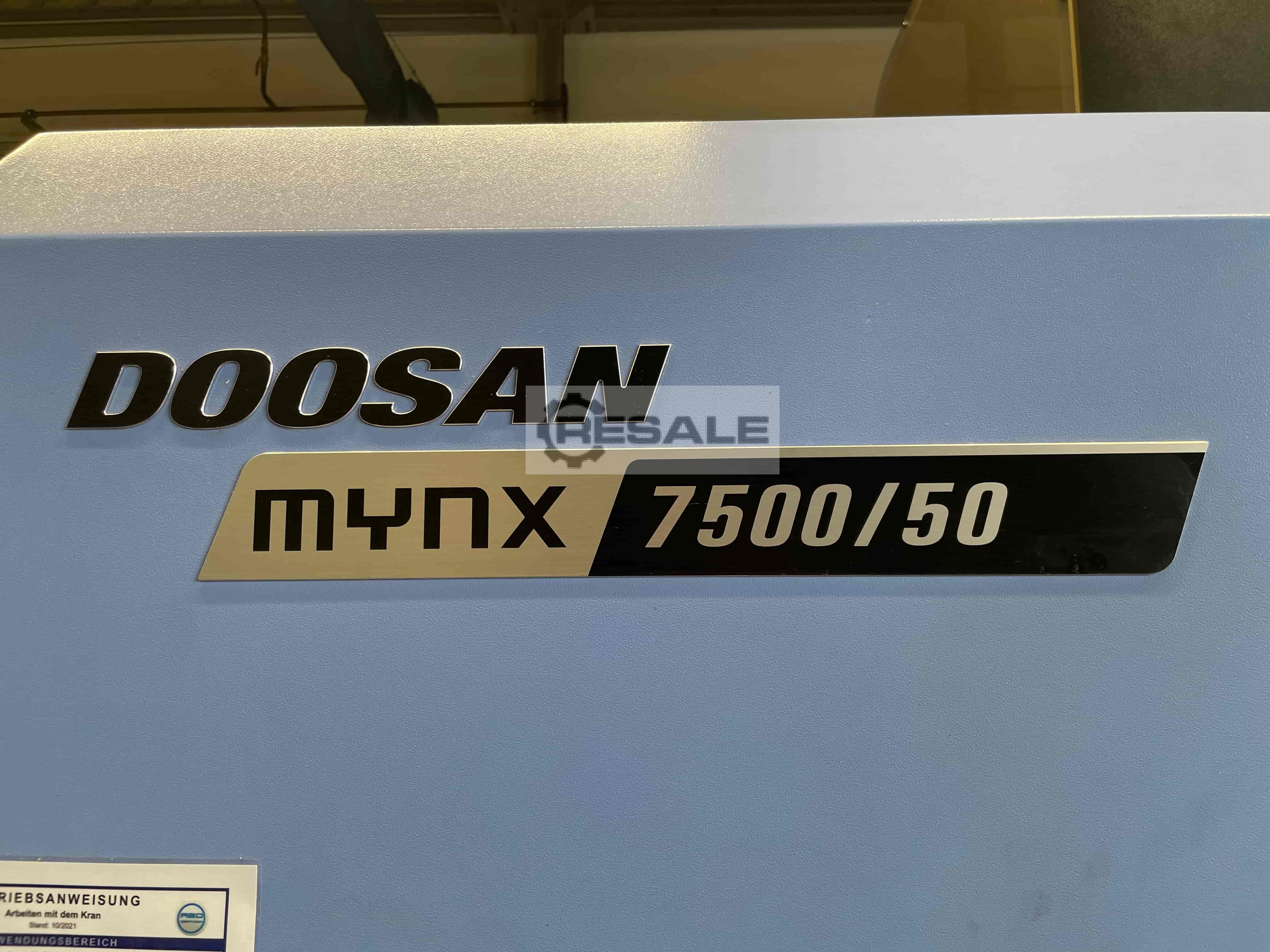

Centri di Lavorazione Verticale DOOSAN Mynx 7500/50

Doosan 3-Axis CNC Vertical Machining Center

Heavy-Duty 3-Axis Vertical Machining Center

Built for aggressive cutting capacity, this 2018 Doosan Mynx 7500/50 is a robust 3-axis CNC vertical center ideal for heavy part machining and high-productivity workflows.




Technical Details
‍

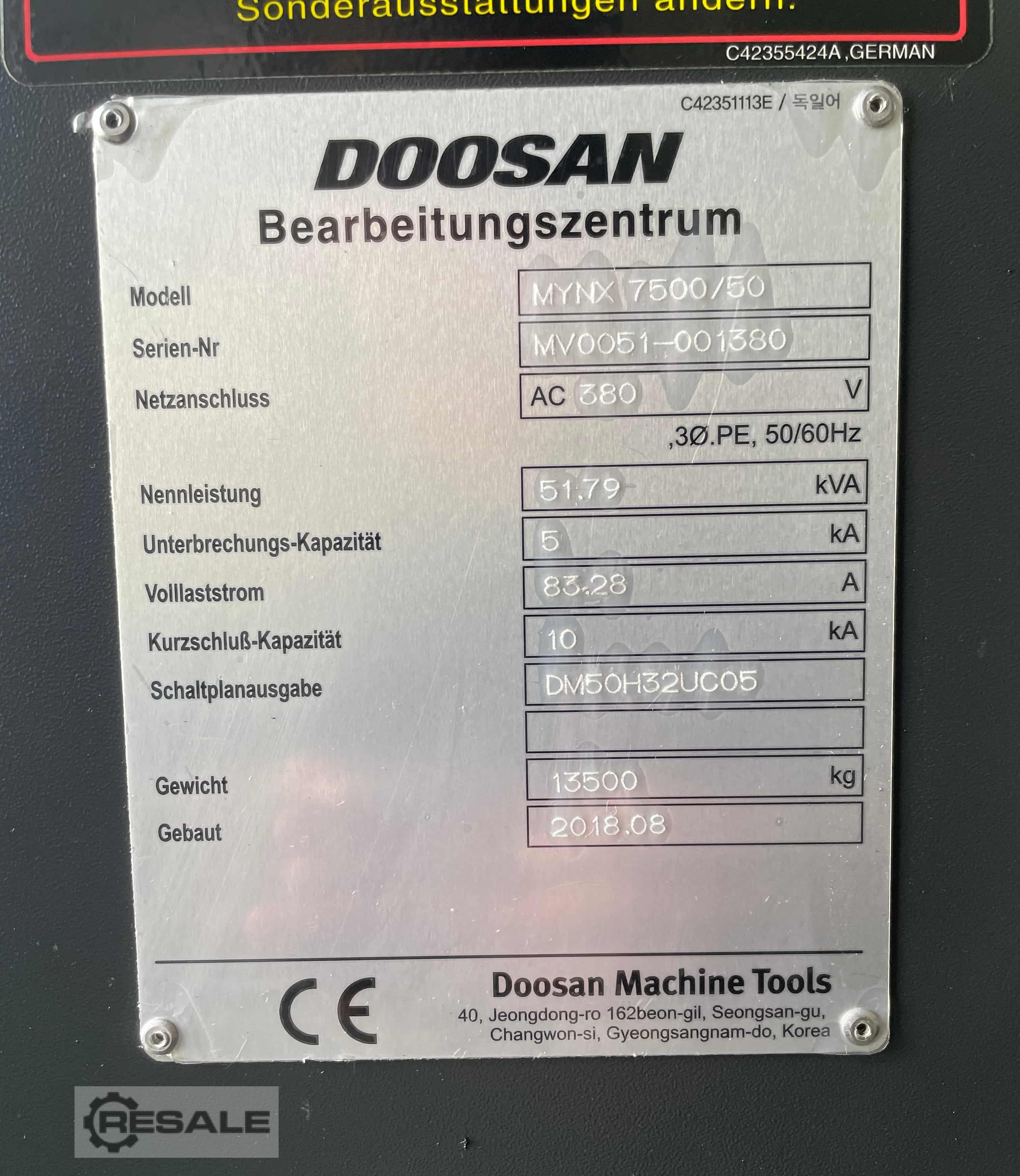

1. Machine identification data

Name: CNC Vertical Machining Center
Manufacturer: Doosan
Model: Mynx 7500/50
Year of manufacture: 2018

2. Operational parameters

Travel (X / Y / Z): 1525 mm / 762 mm / 625 mm

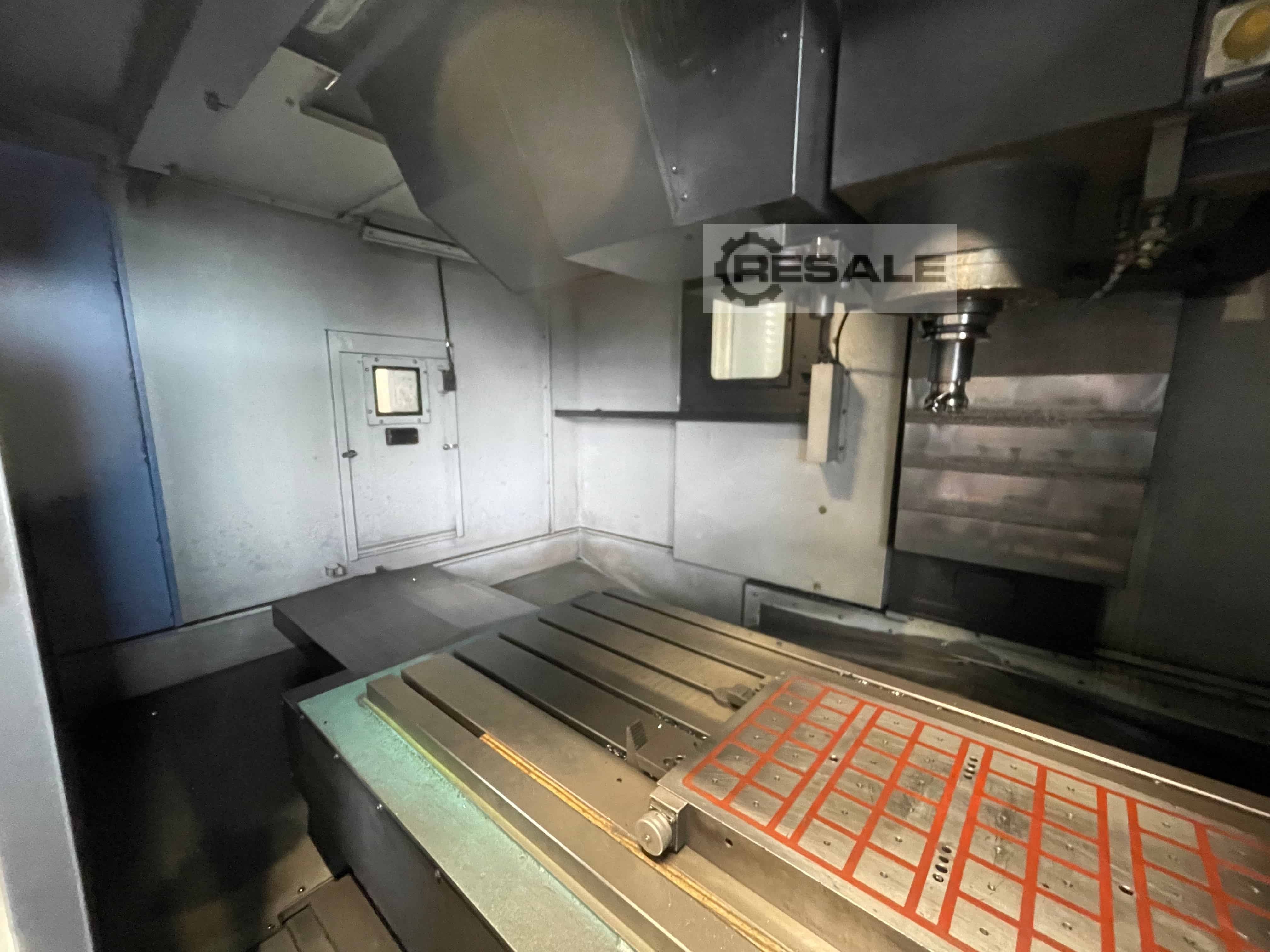

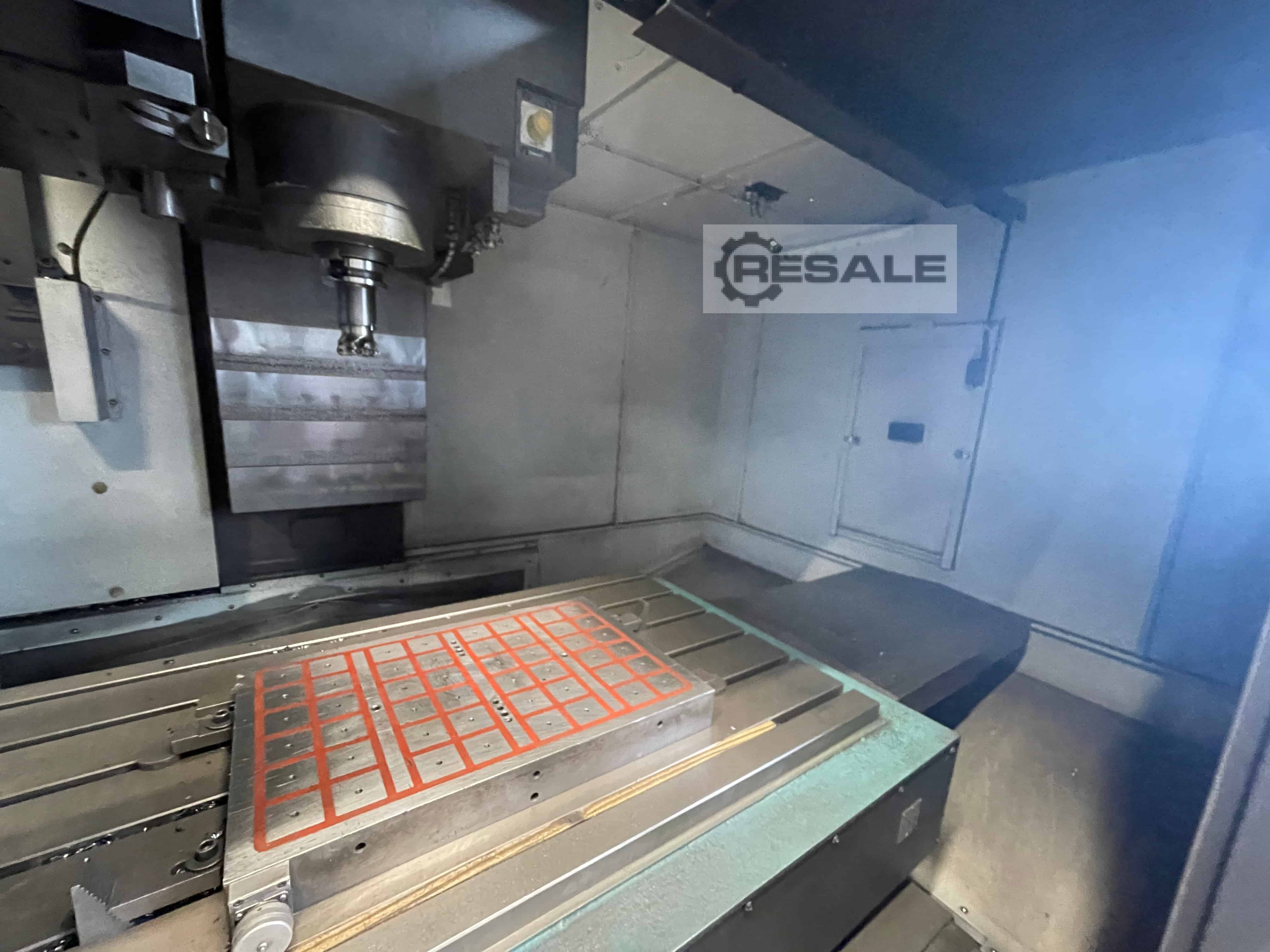

Table size: 1600 x 750 mm
Max. workpiece weight: 1500 kg
Spindle speed: 60 – 6000 rpm
Spindle motor power: 18.5 / 22 kW
Max. torque: 452 Nm

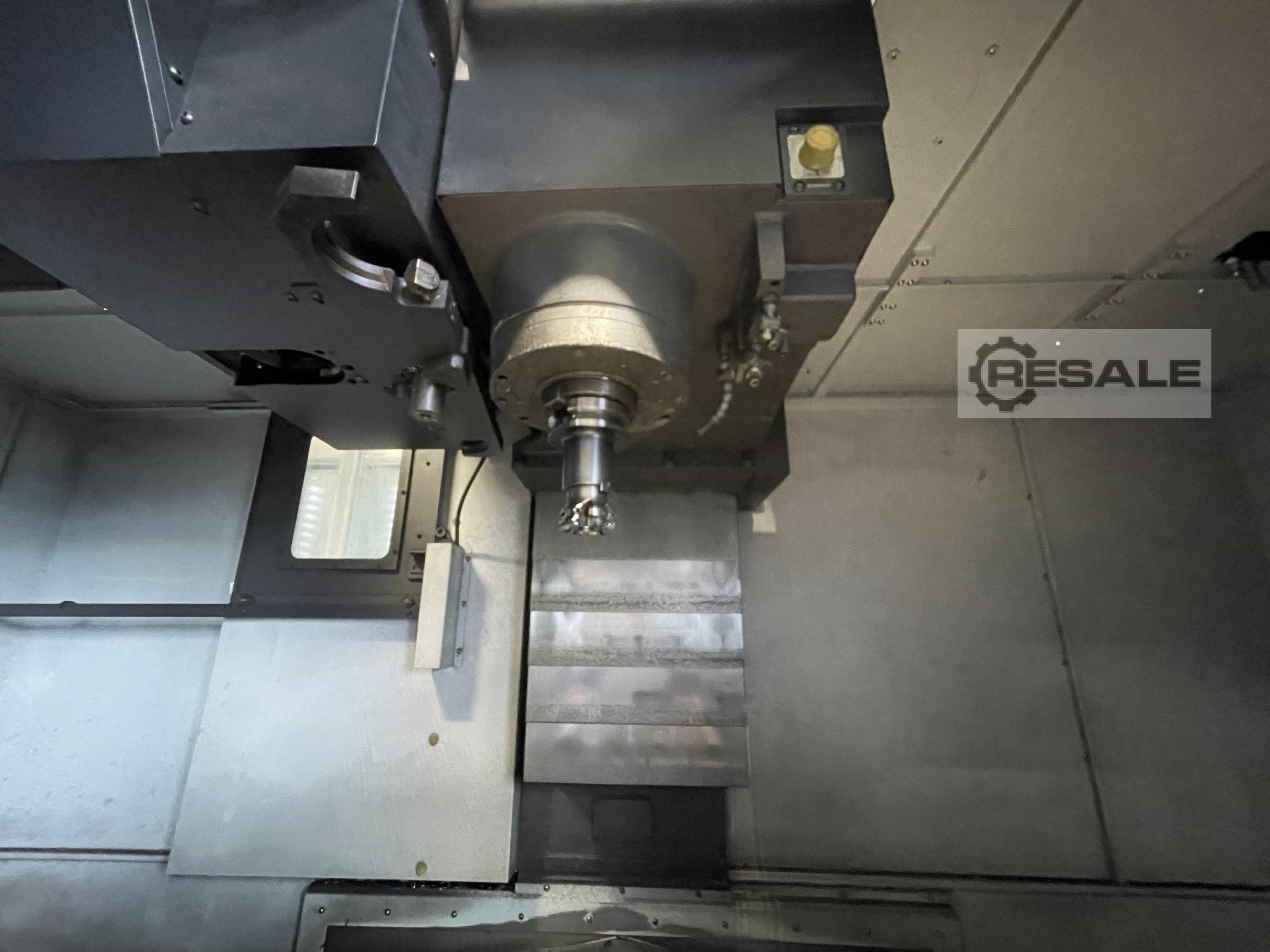

Spindle taper: DIN 69871 B SK 50
Distance spindle nose to table: 200 – 825 mm
Distance spindle center to column: 785 mm
Rapid traverse (X, Y / Z): 30 m/min / 24 m/min
Feed rate (X, Y, Z): 1 – 12,000 mm/min
Tool magazine: 24 positions
Max. tool weight: 15 kg
Max. tool length: 350 mm
Max. tool diameter: 125 mm (230 mm with empty adjacent pockets)
Tool change time: 2.5 sec / 6.0 sec

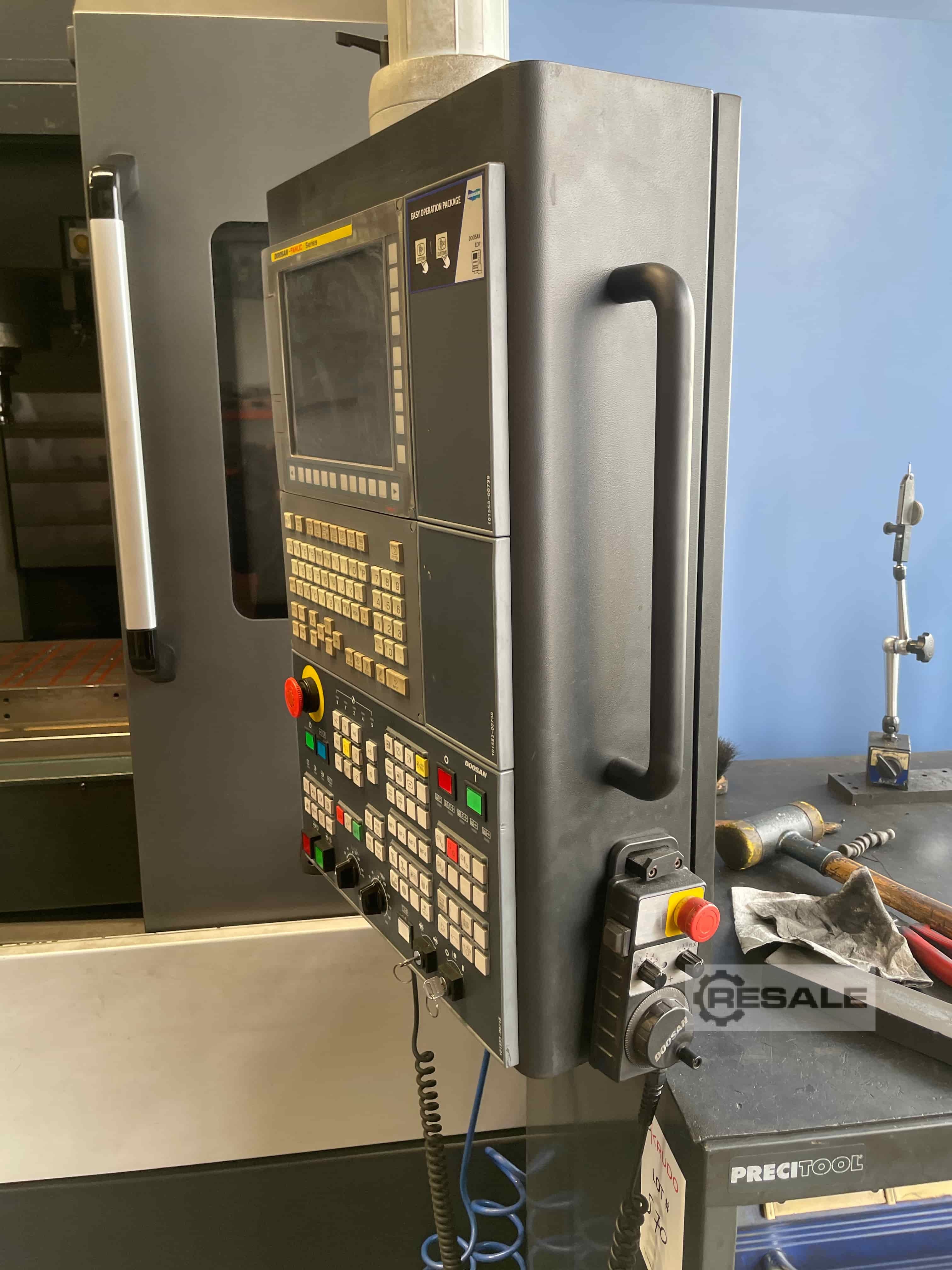

Control: Fanuc αP30
Coolant tank capacity: 380 L
Air pressure requirement: 6.0 bar
Power requirement: 47.3 kVA

3. Weights

Total machine weight: approx. 13500 kg

4. Dimensions

Overall dimensions (Width x Length x Height): 4050 x 3900 x 3235 mm
