Cesoie a ghigliottina idrauliche EHT ECOCUT I / 10-31

sheet width: 3050 mm
plate thickness: 10.0 mm
thickness at Niro-steel: 6.0 - 8.0 mm
down holder: 13 Stück
distance between columns: 3070 mm
cutting angle: 1.0 - 4.0 °
no. of strokes: ~ 22 Hub/min
Control: ELGO P8511
oil volume: 240 l
voltage: 400 V
total power requirement: 15.0 kW
weight: 8000 kg
range L-W-H: 3550 x 2350 x 1900 mm
good condition ()
from a maintenance workshop

Equipment:
- NC electro-hydraulic guillotine shears
- heavy / stable welded construction (machine body)

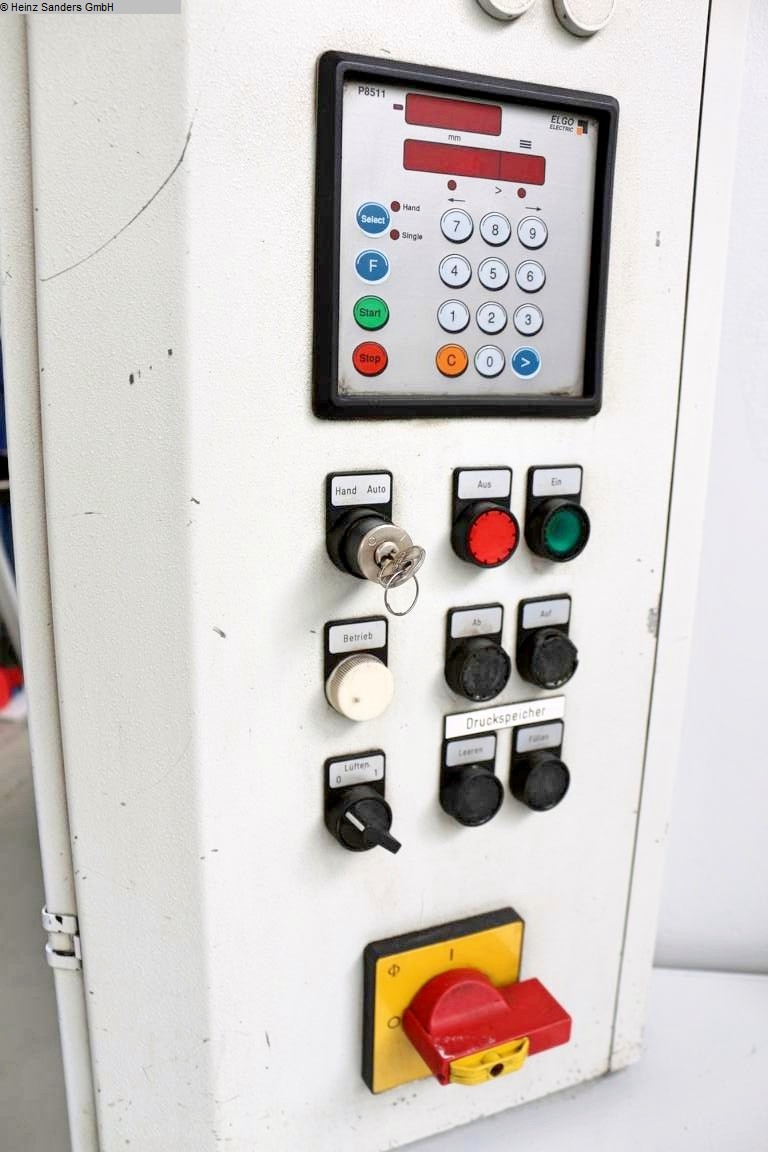

- NC ELGO digital control unit P8511
- NC electro-motorized backgauge on ball screws
- electro-hydraulic cutting angle adjustment
Front analog cutting angle display
- 1x stable side fence, with T-slot and mm scale

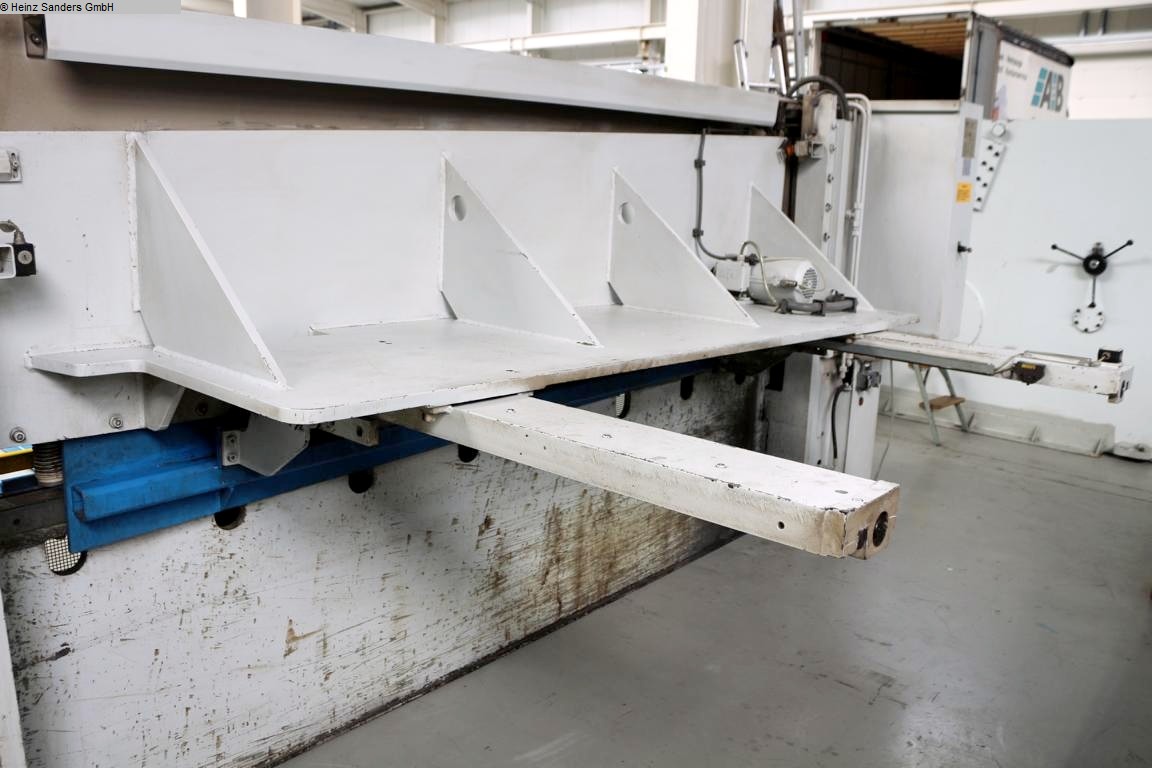

- 3x stable support arms, with T-slot and mm scale

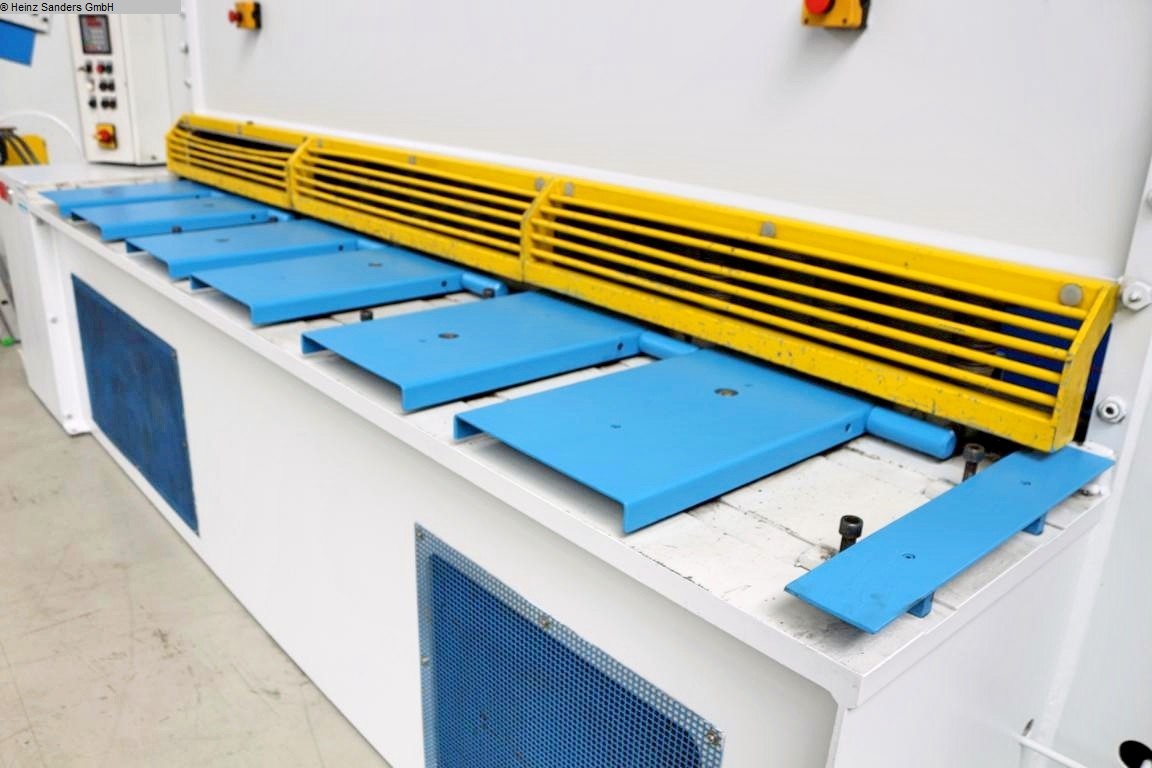

- Ball castors in the work table incl. recessed grips
- Front finger guard - can be folded up at the front
- 1x freely movable foot switch
- 2x front emergency stop button
- Rear safety guard (protective grille)
- original operating instructions



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1125-9325447
