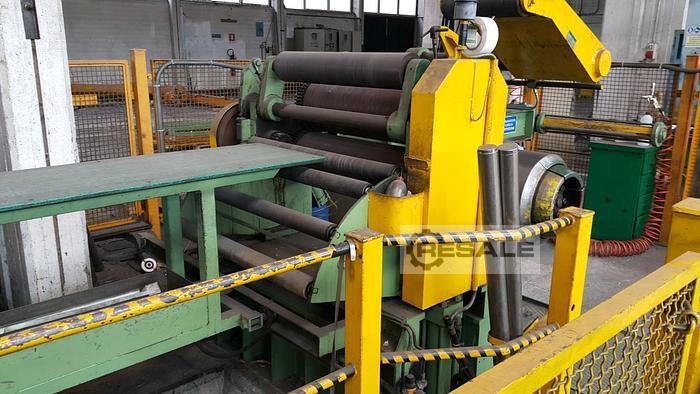

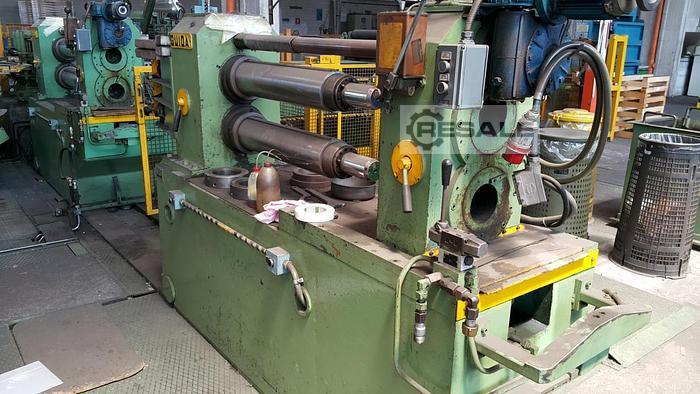

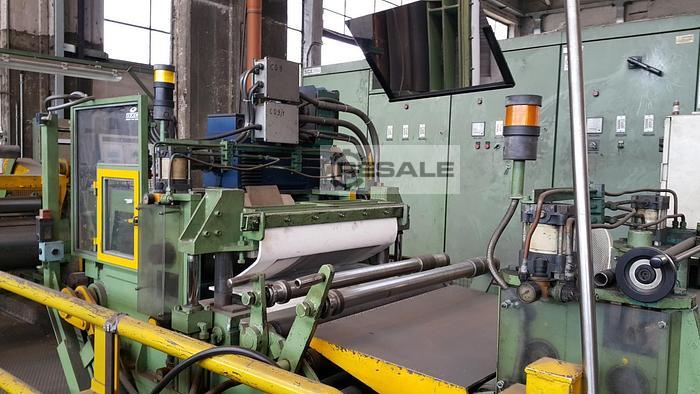

Impianti per la sezionatura longitudinale GUIDA 650 x 3,0 mm
macchine per lavorazione dei metalli / lavorazione della lamiera / Impianti per la sezionatura longitudinale
Strip width... 650 mm Band thickness 0.2-3.0 mm Coil weight.. 5 tons. Coil I Diam. . 400/500/600 mm Coil A Dia. 1,500 mm Yield strength... 700 N/mm2 Strip width.. 10 - 250 mm Speed 150 m/min. Working direction.. right/ left Facility consists of: -Decoiler -Belt removal wedge -Scissor breasts 2 pcs. ...
Fabbricante: GUIDA
Modello:650 x 3,0 mm
Tipo di macchina: Impianti per la sezionatura longitudinale
Numero di articolo: 170159774
Quantità: 1
Data: 08.09.2026
Anno di fabbricazione: 2000
Luogo:
Germania
76467 Bietigheim
Prezzo:
La vostra proposta di prezzo:
Macchina in azione:No
Seller-item-No.:pos.5.049
Strip width... 650 mm
Band thickness 0.2-3.0 mm
Coil weight.. 5 tons.
Coil I Diam. . 400/500/600 mm
Coil A Dia. 1,500 mm
Yield strength... 700 N/mm2
Strip width.. 10 - 250 mm
Speed 150 m/min.
Working direction.. right/ left
Facility consists of:
-Decoiler
-Belt removal wedge
-Scissor breasts 2 pcs.
-Scrap wrapper
-Band brake
-Brake rollers 2 pcs.
-Reel
-Separation arm

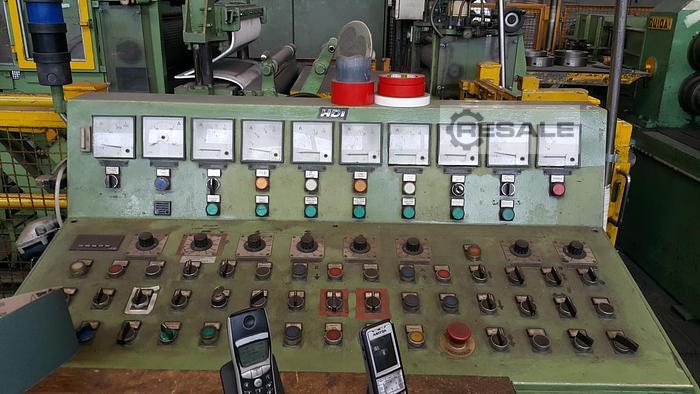

-2 control panels
-Electrical control cabinets
-Central hydraulics
-Tools
Plant dismantled in workshop
Band thickness 0.2-3.0 mm
Coil weight.. 5 tons.
Coil I Diam. . 400/500/600 mm
Coil A Dia. 1,500 mm
Yield strength... 700 N/mm2
Strip width.. 10 - 250 mm
Speed 150 m/min.
Working direction.. right/ left
Facility consists of:
-Decoiler
-Belt removal wedge
-Scissor breasts 2 pcs.
-Scrap wrapper
-Band brake
-Brake rollers 2 pcs.
-Reel
-Separation arm
-2 control panels
-Electrical control cabinets
-Central hydraulics
-Tools
Plant dismantled in workshop
