Presse piegatrici HACO ERM 160.40

pressure: 40.0 t
chamfer lenght: 1600 mm
distance between columns: 1100 mm
stroke of upper beam: 100 mm
throat: 195 mm
working feed: 10.0 mm/sec
return speed: 70.0 mm/sec
: 180 bar
work height max.: 840 mm
table width: 110 mm
dayligth: 295 mm
Control: ATS 585
total power requirement: 5.5 kW
weight: 2500 kg
range L-W-H: 2100 x 1200 x 1800 mm
Furnishing:
- NC controlled hydraulic press brake, with torsion shaft
- with ATLANTIC NC control ATS 560
Positioning of the backgauge (X axis)
Depth setting positioning (Y1+Y2 axis)
Possibility of programming different programs
Storage capacity max. 200 programs - max. 400 sentences
Pivoting control panel, left front

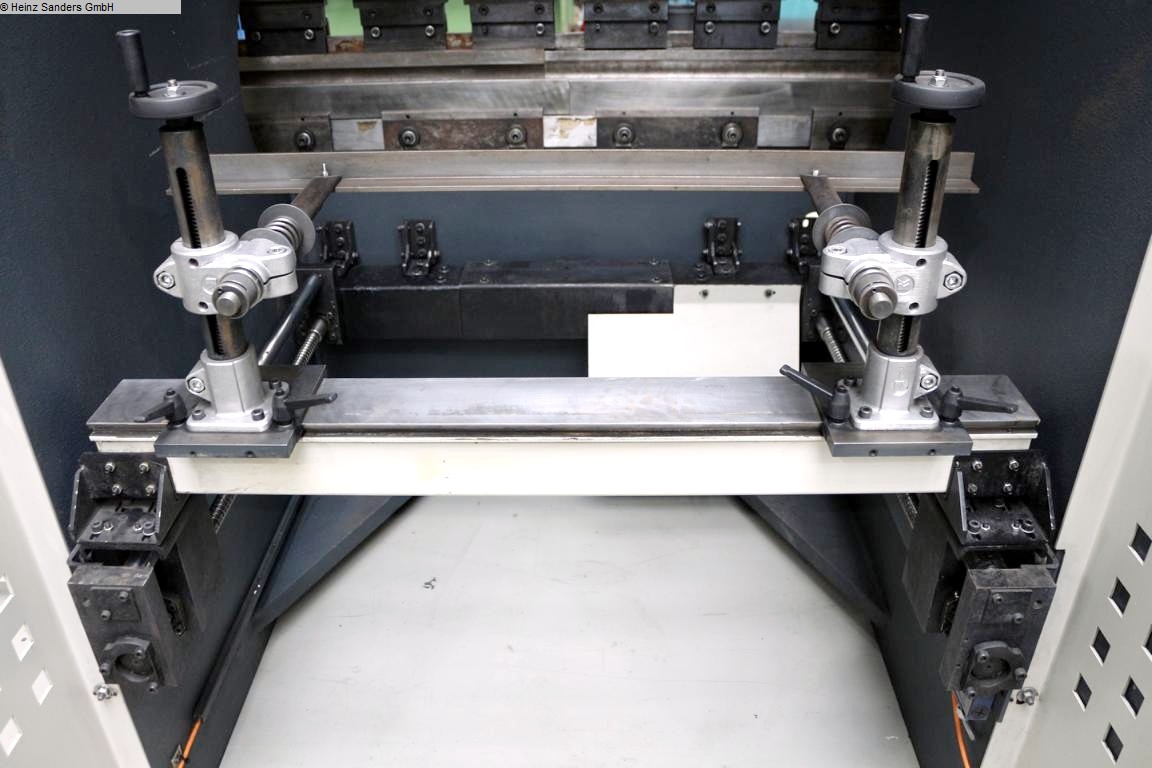

- electric back gauge (X axis)
with 2 stop fingers, manually adjustable (R+Z axis)
- System A tool holder - with cambered upper wedge
- Split insert/bending tools
- side protection grids
- rear protection
- free-moving double foot switch
- Operation manual
