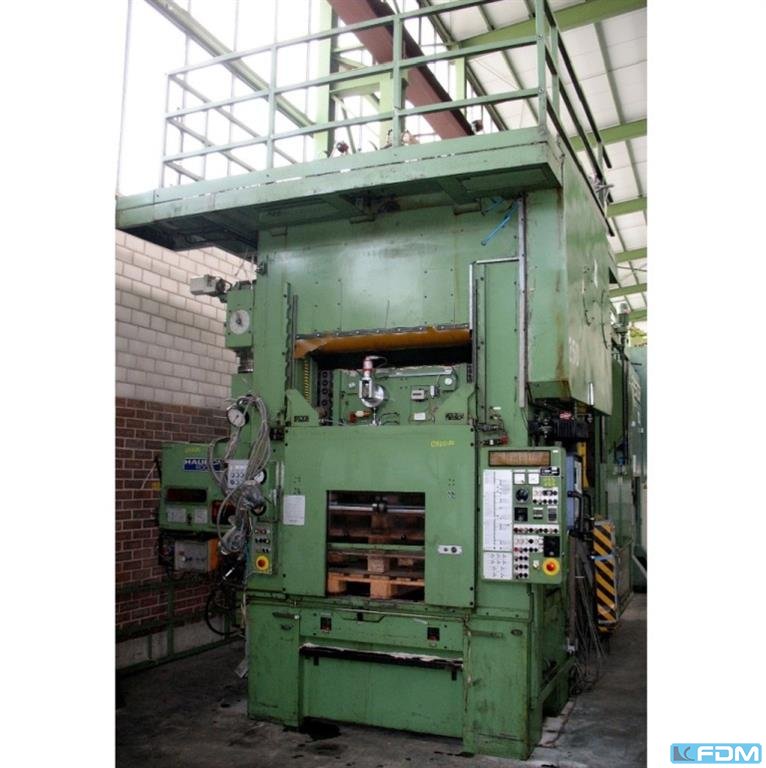

Double Column Press - mechanical HAULICK & ROOS RVD 160-1250 R
macchine per lavorazione dei metalli / presse
pressure:160 tstroke:160 fix mmno. of strokes:30 - 120 /mindistance between columns:1190 mmdistance table/ram, max. stroke up, adjustment up:735 mmtable surface area:1200 x 1000 mmhole in the table:500 x 300 mmtable height over floor:900 mmside window:600 mmram surface:1000 x 800 mmram ...
Fabbricante: HAULICK & ROOS
Modello:RVD 160-1250 R
Tipo di macchina: Double Column Press - mechanical
Numero di articolo: 170153484
Quantità: 1
Data: 06.09.2026
Anno di fabbricazione: 1983
Luogo: Lager Eislingen, Baden-Württemberg
Prezzo:
Macchina in azione:Sì
Seller-item-No.:1050-093056
pressure:160 t
stroke:160 fix mm
no. of strokes:30 - 120 /min
distance between columns:1190 mm
distance table/ram, max. stroke up, adjustment up:735 mm
table surface area:1200 x 1000 mm
hole in the table:500 x 300 mm
table height over floor:900 mm
side window:600 mm
ram surface:1000 x 800 mm
ram adjustment:125 mm
material width of feeder:550 mm
material thickness of feeder:0 - 6,0 mm
feed length:350 mm
material cross-cut:1100 mm²
Feed speed:50 m/min
power requirement:45,0 kW
weight:25,0 t
dimensions (WxDxH):2,3 x 2,1 x 4,7 m
infinitely variable drive:PIV
overload protection in ram:hydraulic
ram adjustment:motoric
ram counterbalance:pneumatic
pincer feed:mechanisch, RS 350/550 SL 90
stroke:160 fix mm
no. of strokes:30 - 120 /min
distance between columns:1190 mm
distance table/ram, max. stroke up, adjustment up:735 mm
table surface area:1200 x 1000 mm
hole in the table:500 x 300 mm
table height over floor:900 mm
side window:600 mm
ram surface:1000 x 800 mm
ram adjustment:125 mm
material width of feeder:550 mm
material thickness of feeder:0 - 6,0 mm
feed length:350 mm
material cross-cut:1100 mm²
Feed speed:50 m/min
power requirement:45,0 kW
weight:25,0 t
dimensions (WxDxH):2,3 x 2,1 x 4,7 m
infinitely variable drive:PIV
overload protection in ram:hydraulic
ram adjustment:motoric
ram counterbalance:pneumatic
pincer feed:mechanisch, RS 350/550 SL 90
