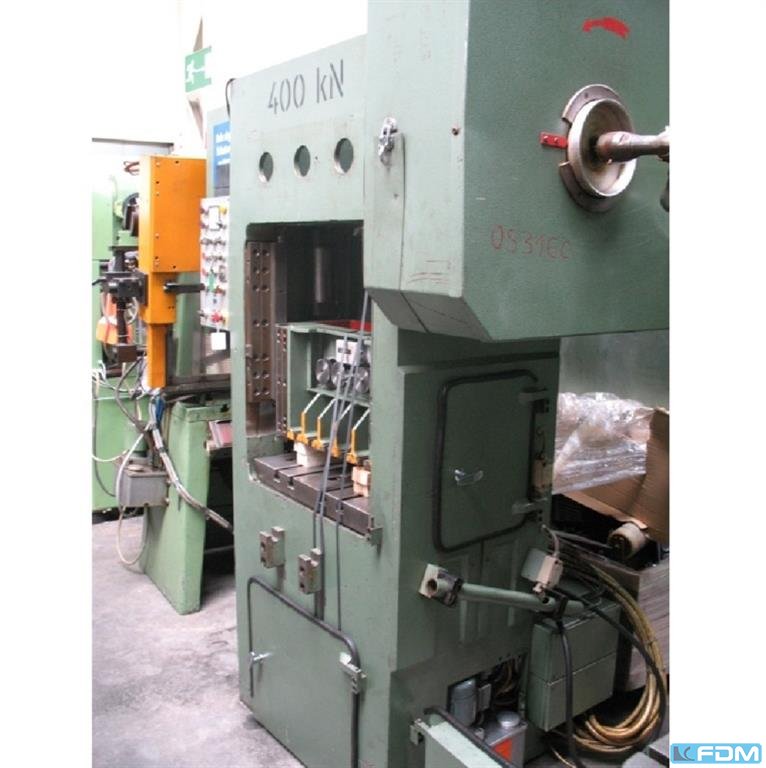

Double Column Press - mechanical HAULICK & ROOS RVD 40
macchine per lavorazione dei metalli / presse
pressure:040 tstroke:8 - 50 mmno. of strokes:50 - 300 /mindistance between columns:600 mmdistance table/ram, max. stroke up, adjustment up:285 mmtable surface area:590 x 500 mmhole in the table:590 x 40 - 100 mmtable height over floor:860 mmcolumn travel -side:280 mmram surface:590 x 380 mmram ...
Fabbricante: HAULICK & ROOS
Modello:RVD 40
Tipo di macchina: Double Column Press - mechanical
Numero di articolo: 170153477
Quantità: 1
Data: 06.09.2026
Anno di fabbricazione: 1978
Luogo: Lager Eislingen, Baden-Württemberg
Prezzo:
Macchina in azione:Sì
Seller-item-No.:1050-083160
pressure:040 t
stroke:8 - 50 mm
no. of strokes:50 - 300 /min
distance between columns:600 mm
distance table/ram, max. stroke up, adjustment up:285 mm
table surface area:590 x 500 mm
hole in the table:590 x 40 - 100 mm
table height over floor:860 mm
column travel -side:280 mm
ram surface:590 x 380 mm
ram adjustment:80 mm
material width of feeder:150 mm
power requirement:7,5 kW
clutch:pneumatic
ram adjustment:motoric
pincer feed:mechanical
stroke:8 - 50 mm
no. of strokes:50 - 300 /min
distance between columns:600 mm
distance table/ram, max. stroke up, adjustment up:285 mm
table surface area:590 x 500 mm
hole in the table:590 x 40 - 100 mm
table height over floor:860 mm
column travel -side:280 mm
ram surface:590 x 380 mm
ram adjustment:80 mm
material width of feeder:150 mm
power requirement:7,5 kW
clutch:pneumatic
ram adjustment:motoric
pincer feed:mechanical
