Raddrizzatrici di lamiera LORENZ BRM50/1720.21-WD-SW-ZW
macchine per lavorazione dei metalli / lavorazione della lamiera / Raddrizzatrici di lamiera
material width: 1650 mmmaterial thickness: 3,00 mmno. of straightening rolls: 21 Control: sheet thickness - min.: 0,50 mmdiam. of the rolls ca.: 50 mmbetween stands ca.: 1720 mmrun-in height: 1250 mmtotal power requirement: 45 kWweight of the machine ca.: 24,50 tdimensions of the machine ca.: ...
Fabbricante: LORENZ
Modello:BRM50/1720.21-WD-SW-ZW
Tipo di macchina: Raddrizzatrici di lamiera
Numero di articolo: 169624869
Quantità: 1
Data: 08.06.2026
Anno di fabbricazione: 2001
Luogo: ab Standort
Prezzo:
Macchina in azione:Sì
Seller-item-No.:1073-60217
material width: 1650 mm
material thickness: 3,00 mm
no. of straightening rolls: 21
Control:
sheet thickness - min.: 0,50 mm
diam. of the rolls ca.: 50 mm
between stands ca.: 1720 mm
run-in height: 1250 mm
total power requirement: 45 kW
weight of the machine ca.: 24,50 t
dimensions of the machine ca.: m

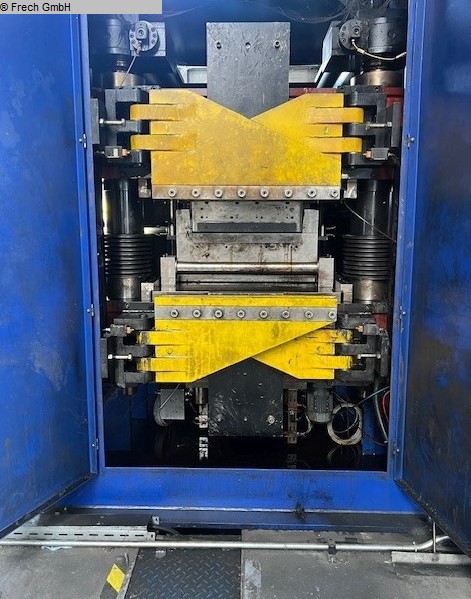

6-HIGH LEVELER / Strip Leveler / with Quick-Change System
- 18 Back-up Supports
- Digital Roll Adjustment (0.01 mm resolution)
- Gearbox renewed in 2021

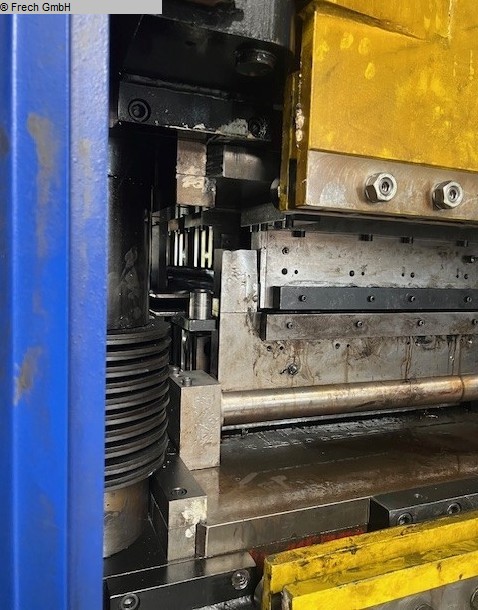

- Quick-Change System
The quick-change system is mounted on a sliding plate. This sliding plate—on which the leveling rolls as well as the entire back-up support assembly are mounted—can be extended, allowing for quick and easy roll replacement in an easily accessible position.
The extension and retraction of the sliding plate are hydraulically actuated. Connection to the drive mechanism is automatic.
- Intermediate Rolls
The intermediate rolls prevent the pattern of the back-up rolls from being imprinted onto the strip being leveled. This effect typically occurs because the leveling rolls become polished (smoothed) at the specific points where the back-up rolls make contact.
This differential surface roughness becomes visually apparent on the strip, streaks appear which remain visible even after the strip undergoes subsequent painting.

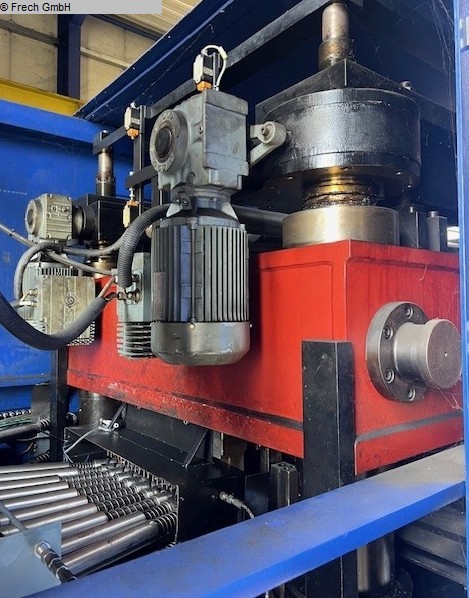

- Motorized Roll Stand Adjustment
- Independent Lower Roll Bending Adjustment
- Spare Intermediate Rolls / Leveling Rolls available (exact quantity yet to be counted)
- Main Control Panel included
- Electrical Control Cabinet included
- Original Operating Manual included
- Leveling Diagrams included
- Declaration of manufacturer included
