Fustellatrice eccentriche MüLLER-WEINGARTEN ARP 100

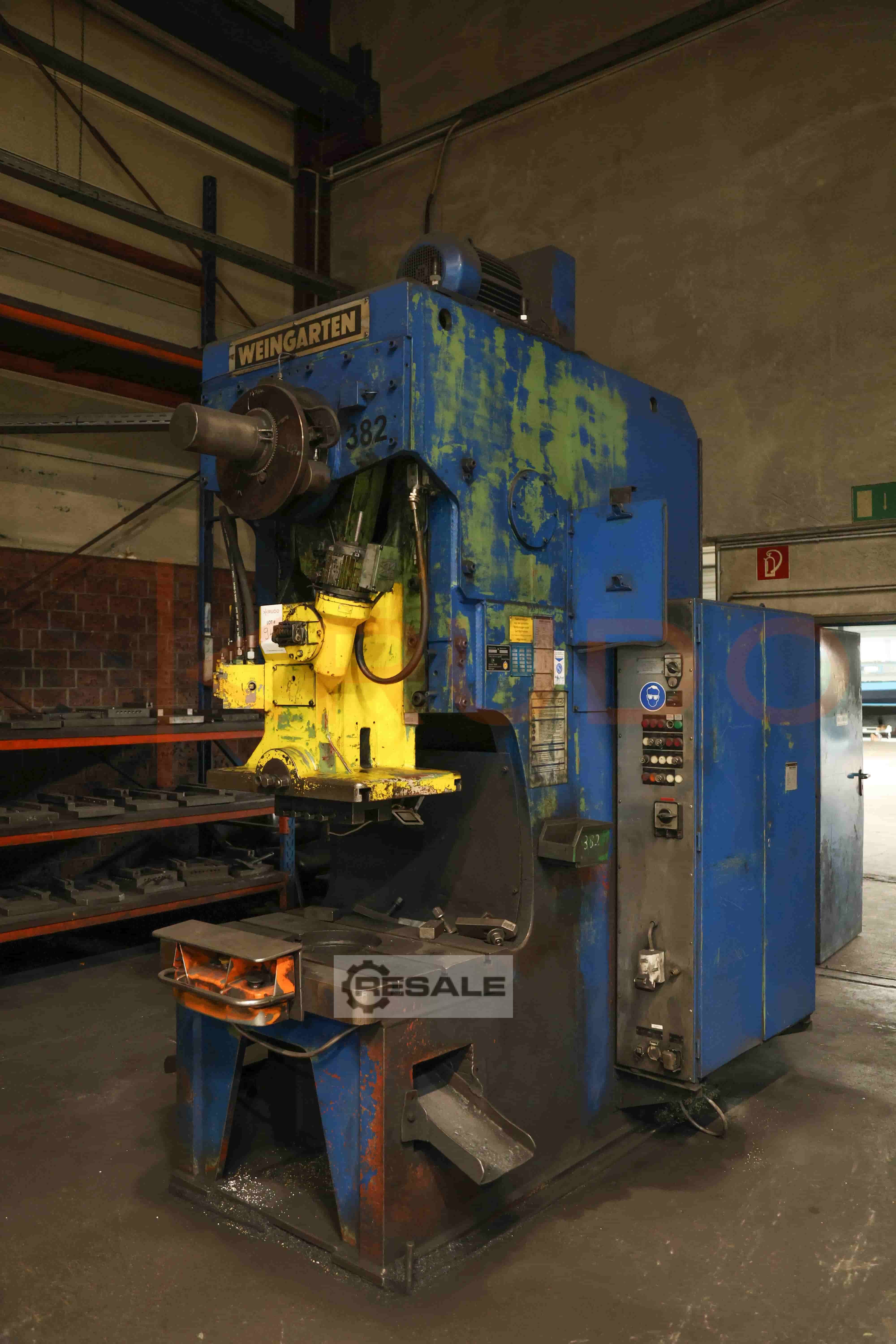

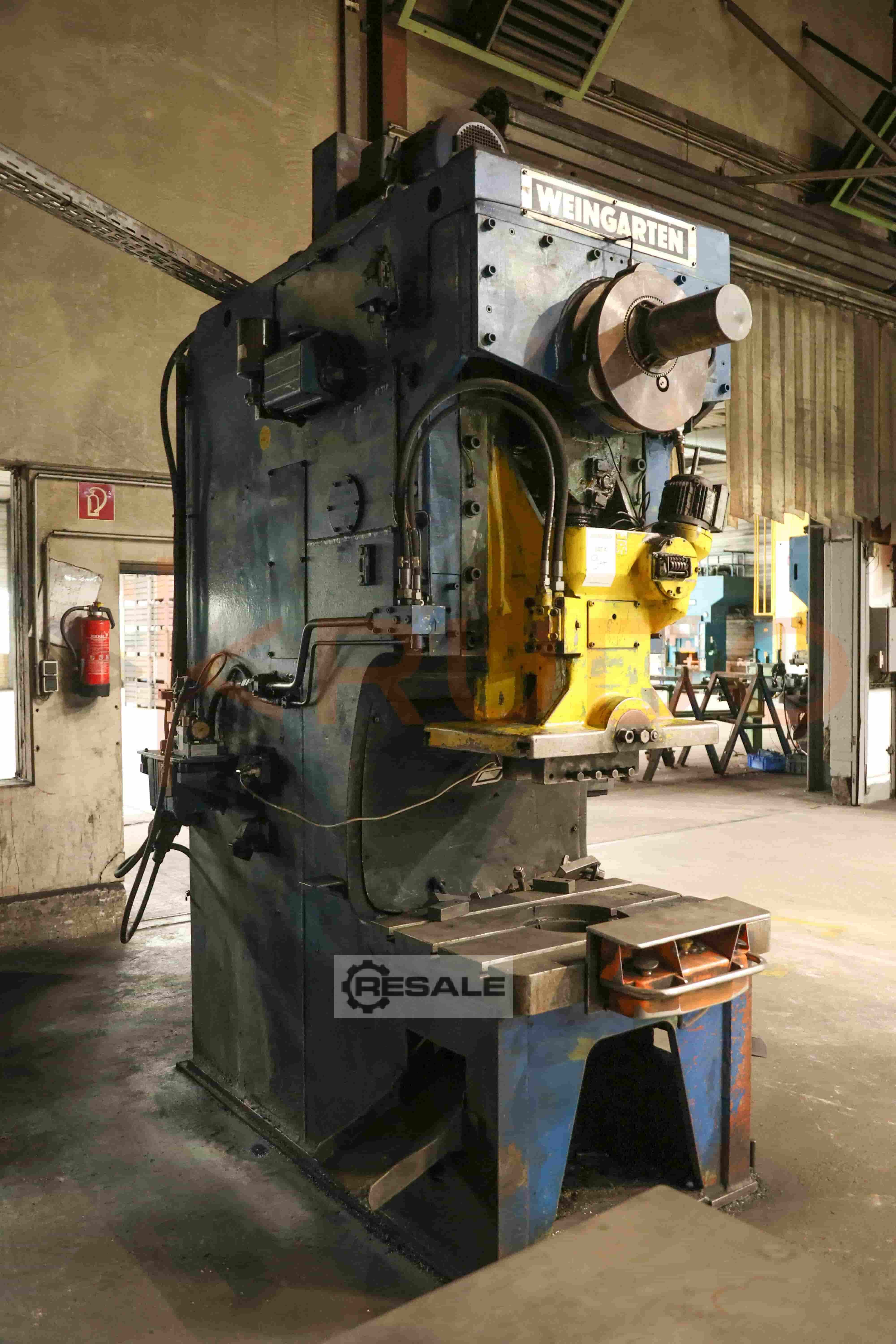

(1984) 100t Müller-Weingarten Eccentric Press



High-Speed Single-Column Eccentric Press with Versatile Stroke Adjustment

This Müller-Weingarten press is a highly adaptable industrial machine, featuring a 100-ton nominal force and an impressive stroke rate of 60 per minute.



Technical Details
‍
Machine Type: Eccentric Press
Manufacturer: Müller-Weingarten
Model: ARP 100
Year of Manufacture: 1984
Nominal Force: 100t
Stroke Rate: 60 strokes/min
Throat Depth (Projection): 375 mm
Frame Passage (Front to Back): approx. 570 mm
Max. Distance (Table to Ram): 384 mm
Adjustable Ram Stroke: 8 mm – 137 mm
Intermediate Strokes: 8, 23, 43, 63, 81, 97, 111, 122, 130, 135, 137 mm
Ram Adjustment: 80 mm
Ram Clamping Surface (W x D): 700 mm × 450 mm
Ram Shank Hole (Ø x Depth): 50 mm × 85 mm
Ejector Travel: 55 mm
Table Clamping Surface (W x D): 920 mm × 660 mm
Table Bed Hole (Diarrhea hole): 280 mm diameter
Motor Specs: 11.0 kW / 1,500 rpm
Total Weight: approx. 8,000 kg
seller offer No. resale 94
