Fustellatrice eccentriche MüLLER-WEINGARTEN ARP 100
macchine per lavorazione dei metalli / presse / Fustellatrice eccentriche
(1979) 100t Müller-Weingarten Eccentric Press High-Utility Eccentric Press for Flexible Stamping and Forming Operations This Müller-Weingarten model is a versatile single-column (C-frame) press designed for high-speed production with a stroke rate of 60 per minute. It features a comprehensive ...
Fabbricante: MüLLER-WEINGARTEN
Modello:ARP 100
Tipo di macchina: Fustellatrice eccentriche
Numero di articolo: 168852617
Quantità: 1
Data: 12.03.2026
Anno di fabbricazione: 1979
Luogo:
Germania
Solingen
Prezzo:
Seller-item-No.:95

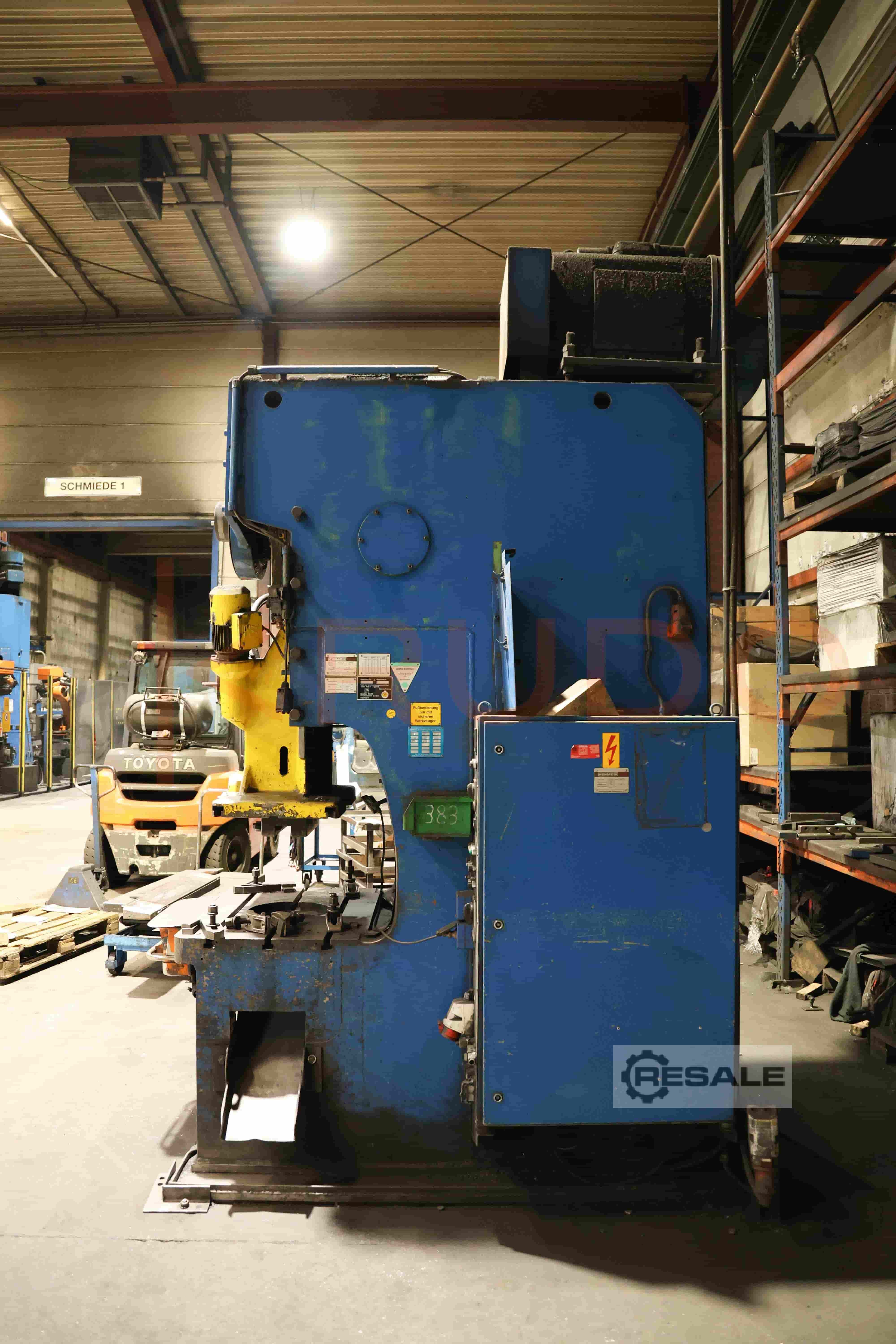

(1979) 100t Müller-Weingarten Eccentric Press
High-Utility Eccentric Press for Flexible Stamping and Forming Operations
This Müller-Weingarten model is a versatile single-column (C-frame) press designed for high-speed production with a stroke rate of 60 per minute. It features a comprehensive range of 11 adjustable stroke settings, making it highly adaptable for various industrial metalworking tasks from shallow blanking to deeper forming.
Technical Details
Machine Type: Eccentric Press
Manufacturer: Müller-Weingarten
Model: ARP 100
Year of Manufacture: 1984
Nominal Force: 100t
Stroke Rate: 60 strokes/min
Throat Depth (Projection): 375 mm
Body Passage (Front to Back): approx. 570 mm
Max. Distance (Table to Ram): 384 mm (at bottom of stroke, adjustment at top)
Adjustable Ram Stroke: 8 mm – 137 mm
Intermediate Strokes: 8, 23, 43, 63, 81, 97, 111, 122, 130, 135, 137 mm
Ram Adjustability: 80 mm
Ram Clamping Surface (W x D): 700 mm × 450 mm
Ram Shank Hole (Ø x Depth): 50 mm × 85 mm
Ejector Travel: 55 mm
Table Clamping Surface (W x D): 920 mm × 660 mm
Table Bed Hole (Diarrhea hole): 280 mm diameter
Motor Power: 11.0 kW at 1,500 rpm
Approximate Base Weight: 8,000 kg
High-Utility Eccentric Press for Flexible Stamping and Forming Operations
This Müller-Weingarten model is a versatile single-column (C-frame) press designed for high-speed production with a stroke rate of 60 per minute. It features a comprehensive range of 11 adjustable stroke settings, making it highly adaptable for various industrial metalworking tasks from shallow blanking to deeper forming.
Technical Details
Machine Type: Eccentric Press
Manufacturer: Müller-Weingarten
Model: ARP 100
Year of Manufacture: 1984
Nominal Force: 100t
Stroke Rate: 60 strokes/min
Throat Depth (Projection): 375 mm
Body Passage (Front to Back): approx. 570 mm
Max. Distance (Table to Ram): 384 mm (at bottom of stroke, adjustment at top)
Adjustable Ram Stroke: 8 mm – 137 mm
Intermediate Strokes: 8, 23, 43, 63, 81, 97, 111, 122, 130, 135, 137 mm
Ram Adjustability: 80 mm
Ram Clamping Surface (W x D): 700 mm × 450 mm
Ram Shank Hole (Ø x Depth): 50 mm × 85 mm
Ejector Travel: 55 mm
Table Clamping Surface (W x D): 920 mm × 660 mm
Table Bed Hole (Diarrhea hole): 280 mm diameter
Motor Power: 11.0 kW at 1,500 rpm
Approximate Base Weight: 8,000 kg
