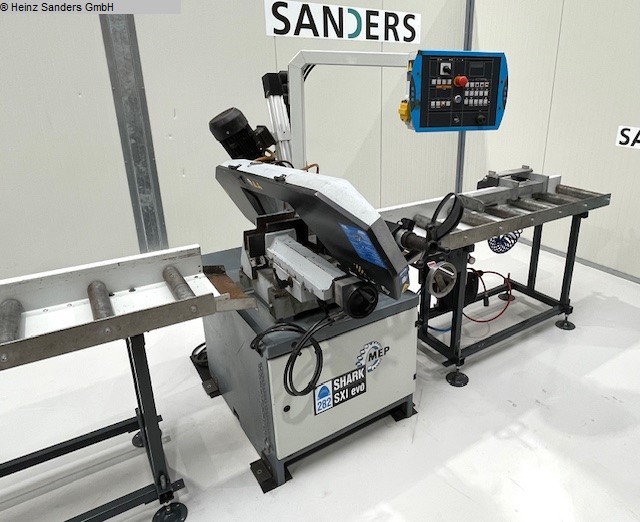

Seghe a nastro MEP - HALBAUTOMAT SHARK 282 SXI EVO

cutting diameter: 250 mm
capacity 90 degrees: flat: 280 x 220 mm
capacity 90 degrees: square: 220 x 220 mm
capacity 45 degrees: flat: 220 x 200 mm
capacity 45 degrees: round: 230 mm
capacity 45 degrees: square: 200 x 200 mm
capacity 60 degrees: flat: 140 x 100 mm
capacity 60 degrees: square: 100 x 100 mm
capacity 60 degrees: round: 150 mm
vice: 285 mm
turning speed range:: 36/72 m/min
dimensions of saw-band: 2950x27x0,9 mm
Control:
total power requirement: 1,5 / 1,8 kW
weight of the machine ca.: 460 kg
dimensions of the machine ca.: 1150 x 1970 mm
Features:
- Robust electro-hydraulic semi-automatic band saw (INDUSTRIE)

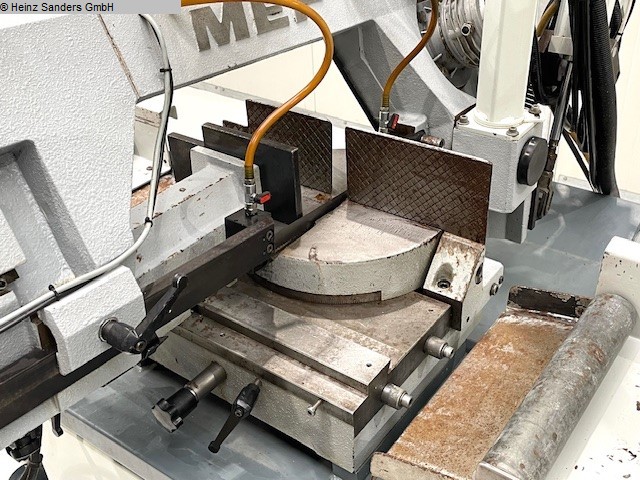

- With miter cuts from 45° right to 60° left
Mitre adjustment via a large turntable

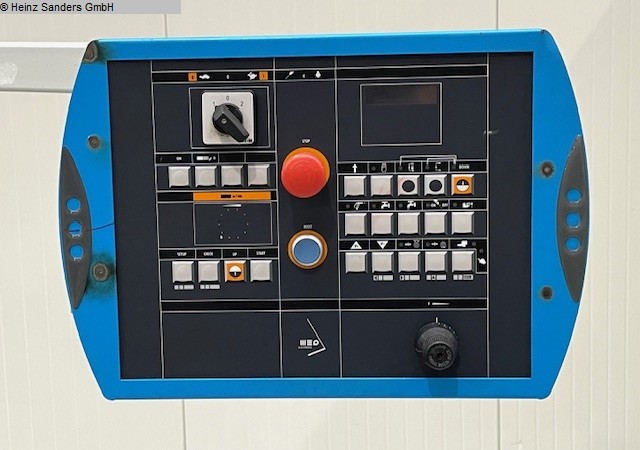

- MEP EVO microprocessor control for managing all functions
Front right, swiveling
- Optional manual or automatic lowering of the saw frame
Stepless adjustment of the saw frame lowering
- Saw blade guide made of carbide plates
- Hydraulic saw blade tensioningâincludes digital display
- 2 saw blade speeds
- Coolant system
- 1 angle stop
- Chip removal brush
- Machine base frame with forklift pockets
- Operating instructions in German
- Replacement saw bands

Semi-automatic operation:
- Electro-hydraulic clamping of the vise
- Electro-hydraulic lowering of the saw frame
- Electro-hydraulic lifting of the saw frame
- Electro-hydraulic opening of the vise

Optional equipment:
- 2000 mm feed roller conveyor
- 2000 mm discharge roller conveyor, including stop




The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1125-3170151
