Foratrici-barenatrici per fori profondi SHIN-IL STL 300/500-6000 CNC
macchine per lavorazione dei metalli / fresalesatrici e centri di lavoro / Foratrici-barenatrici per fori profondi
CNC Deep Hole Drilling Machine Shinil (Korea) Year: 2009 Control: Fanuc Oi-TD Key Technical Specifications • Drilling diameter (solid): Ø 50 – 200 mm • Counter boring max: 500 mm • Trepanning max: 500 mm • Max drilling depth: 6000 mm (6 meters) Workpiece & Motion • Z-axis stroke (tool ...
Fabbricante: SHIN-IL
Modello:STL 300/500-6000 CNC
Tipo di macchina: Foratrici-barenatrici per fori profondi
Numero di articolo: 169330998
Quantità: 1
Data: 14.04.2026
Anno di fabbricazione: 2009
Luogo:
Corea del Sud
Prezzo:

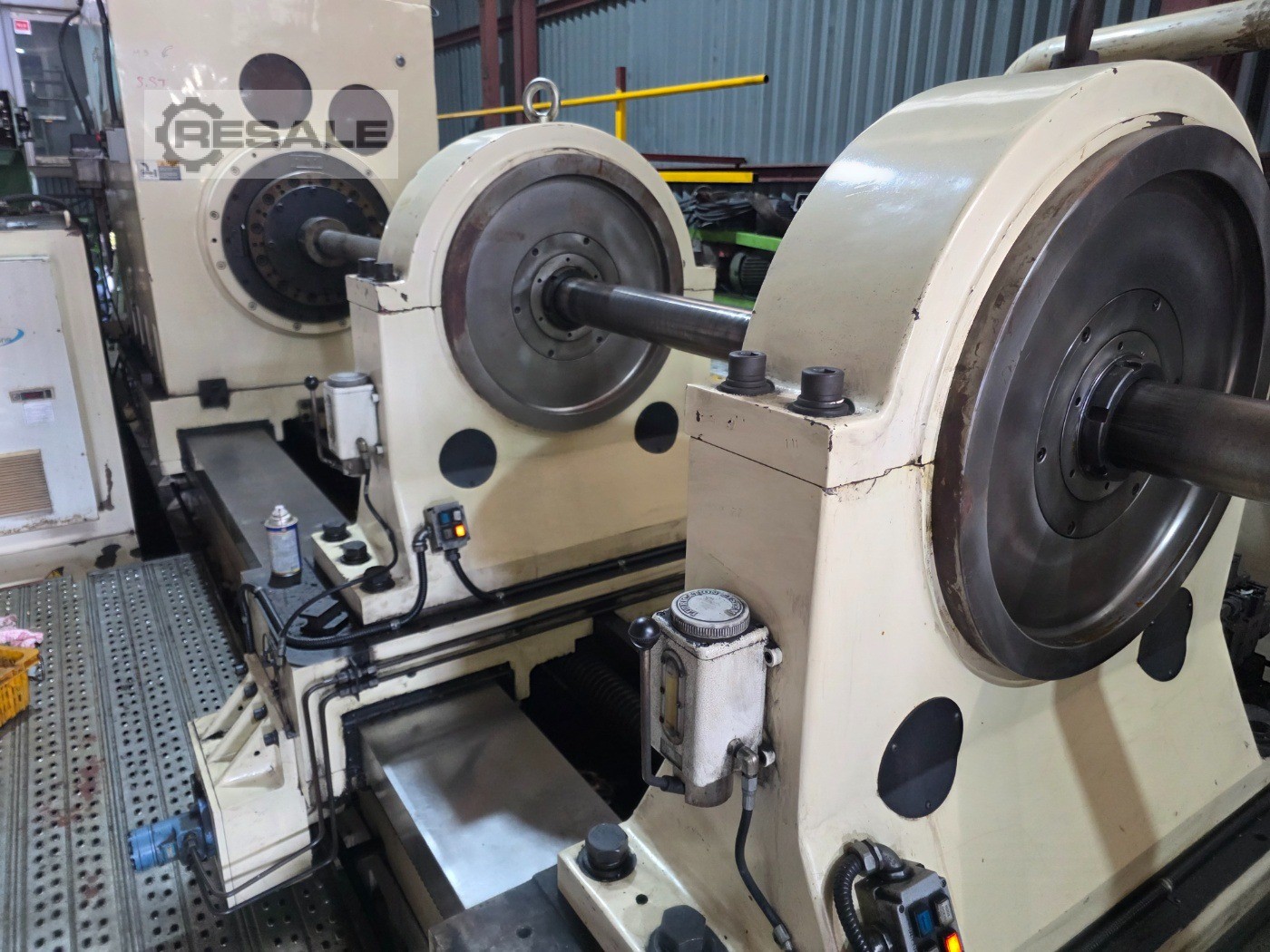

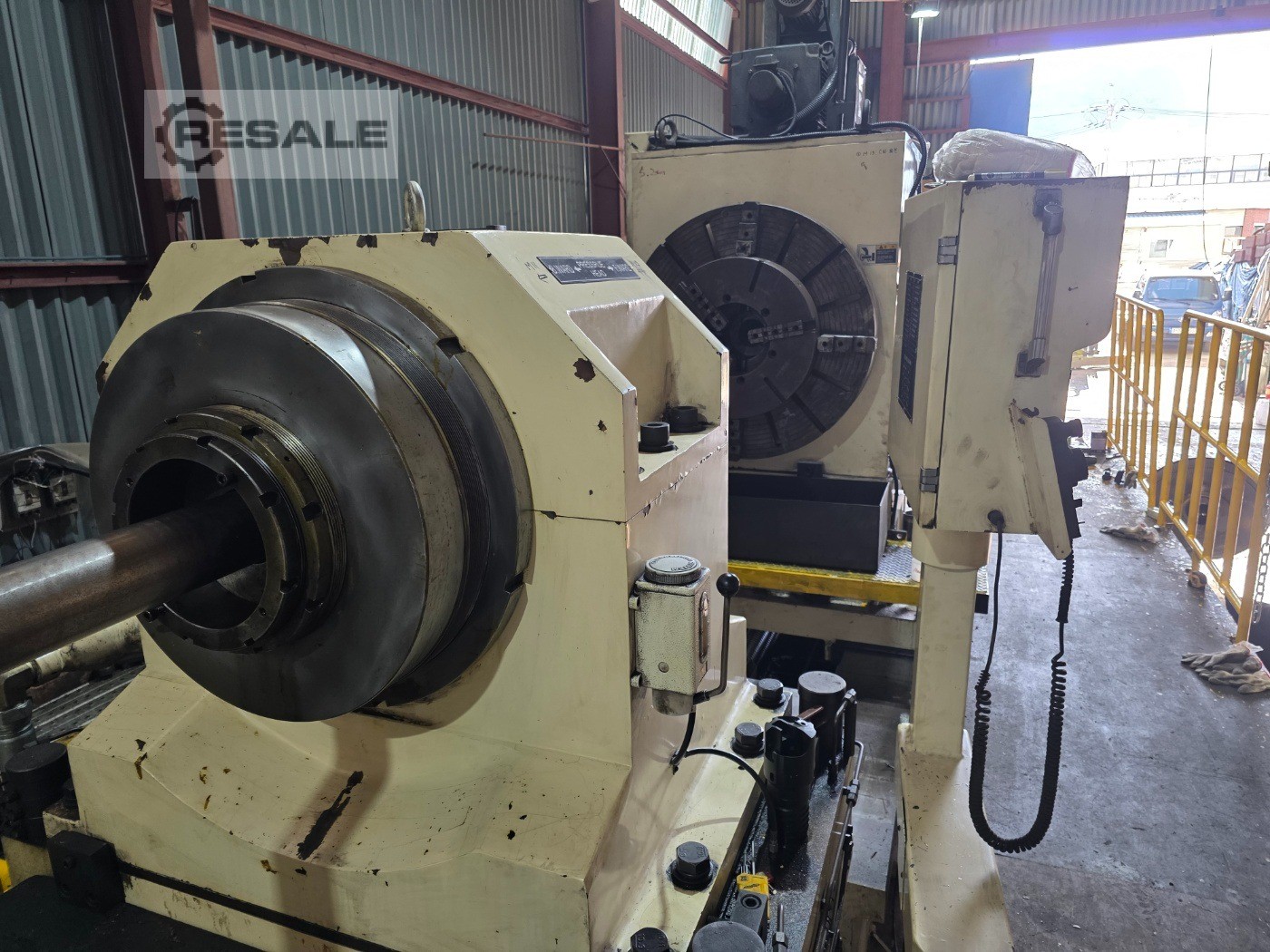

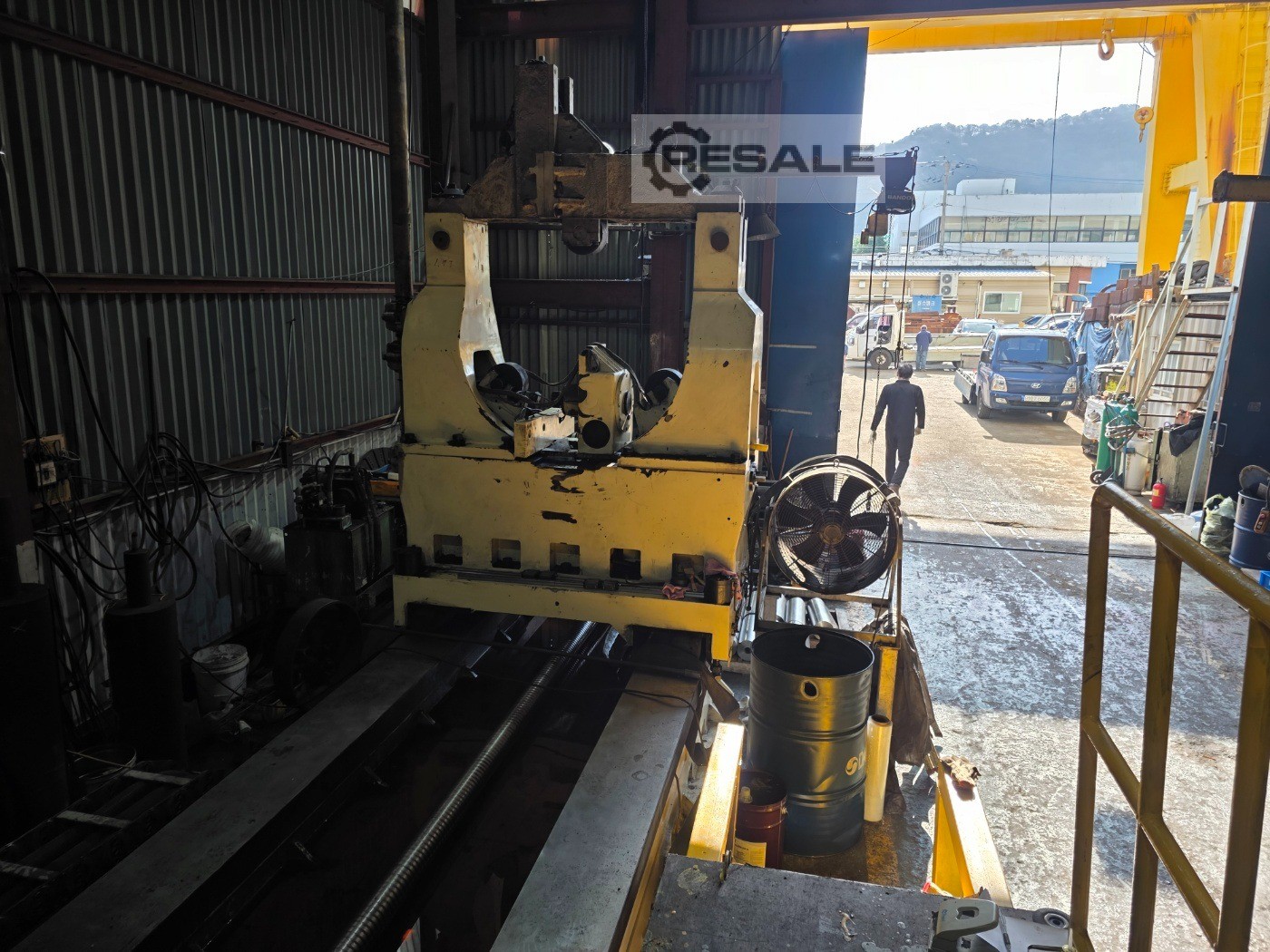

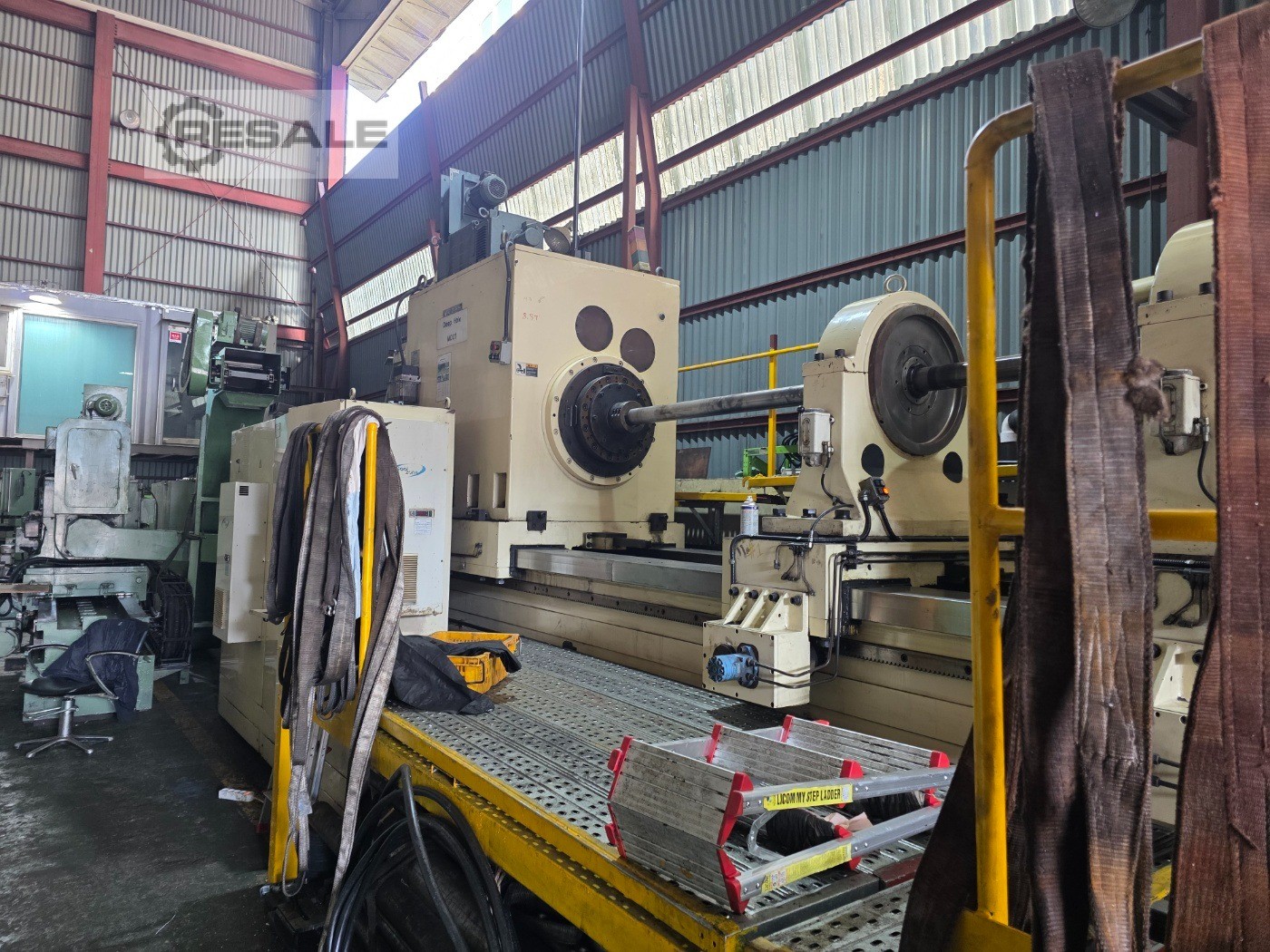

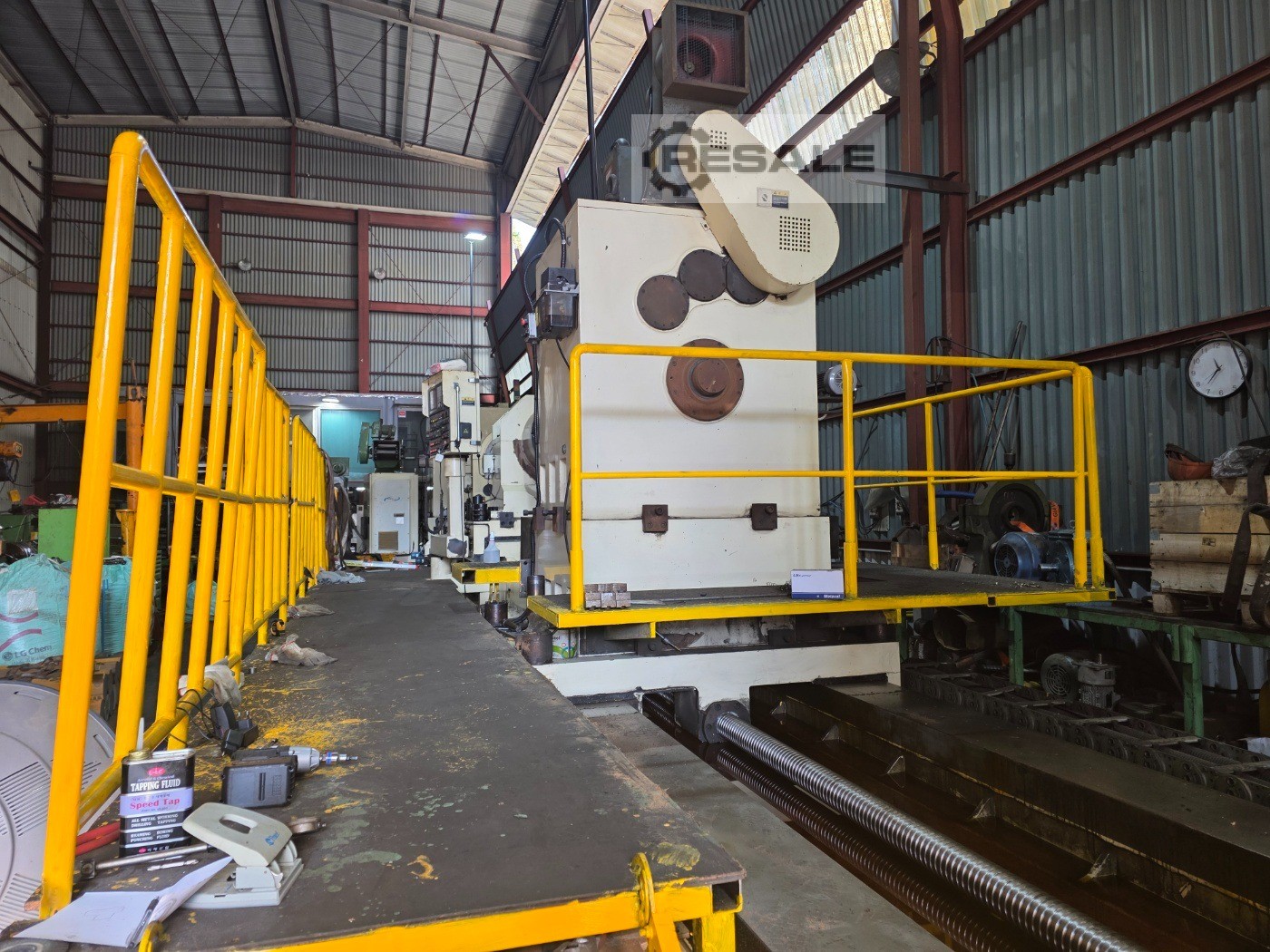

CNC Deep Hole Drilling Machine Shinil (Korea)
Year: 2009
Control: Fanuc Oi-TD
Key Technical Specifications
• Drilling diameter (solid): Ø 50 – 200 mm
• Counter boring max: 500 mm
• Trepanning max: 500 mm
• Max drilling depth: 6000 mm (6 meters)
Workpiece & Motion
• Z-axis stroke (tool free): 6000 mm
• Work spindle stroke (max): 4000 mm
• Z-axis rapid feed: 5000 mm/min
• Z-axis cutting feed: 0 – 1000 mm/min
• Control axis: Z-axis CNC controlled
Spindle & Speed Range
• Headstock rotation: 5 – 30 rpm
• Tool holder spindle speeds:
• 50 – 500 rpm
• 25 – 250 rpm
• 16.6 – 166 rpm
• 8.3 – 83.3 rpm

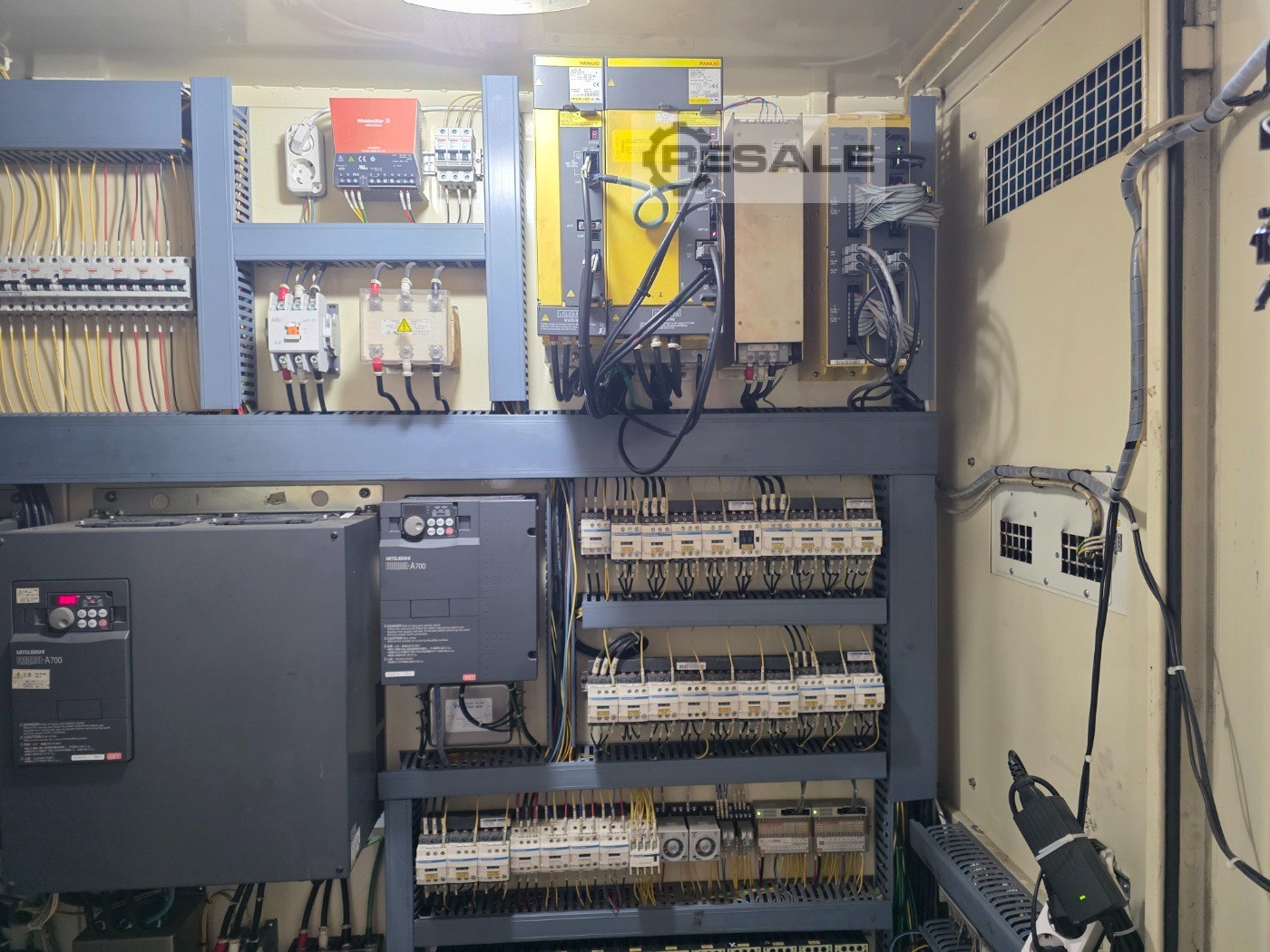

Cooling & Drives
• Coolant pump control: Inverter-driven
• Motor control: NC controlled spindle & tool rotation
Power & Installation
• Total power: approx. 335 kW
• Power supply: AC 440V / 60Hz
Machine Dimensions
• Floor space: 23,000 × 5,000 mm
• Weight: approx. 85,000 kg
Commercial Highlights
• Deep hole drilling up to 6 meters depth
• Large diameter capacity up to 200 mm solid drilling
• Heavy industrial machine (85 ton class)
• Suitable for:
• Oil & gas components
• Hydraulic cylinders
• Aerospace shafts
• Defense / energy equipment
Year: 2009
Control: Fanuc Oi-TD
Key Technical Specifications
• Drilling diameter (solid): Ø 50 – 200 mm
• Counter boring max: 500 mm
• Trepanning max: 500 mm
• Max drilling depth: 6000 mm (6 meters)
Workpiece & Motion
• Z-axis stroke (tool free): 6000 mm
• Work spindle stroke (max): 4000 mm
• Z-axis rapid feed: 5000 mm/min
• Z-axis cutting feed: 0 – 1000 mm/min
• Control axis: Z-axis CNC controlled
Spindle & Speed Range

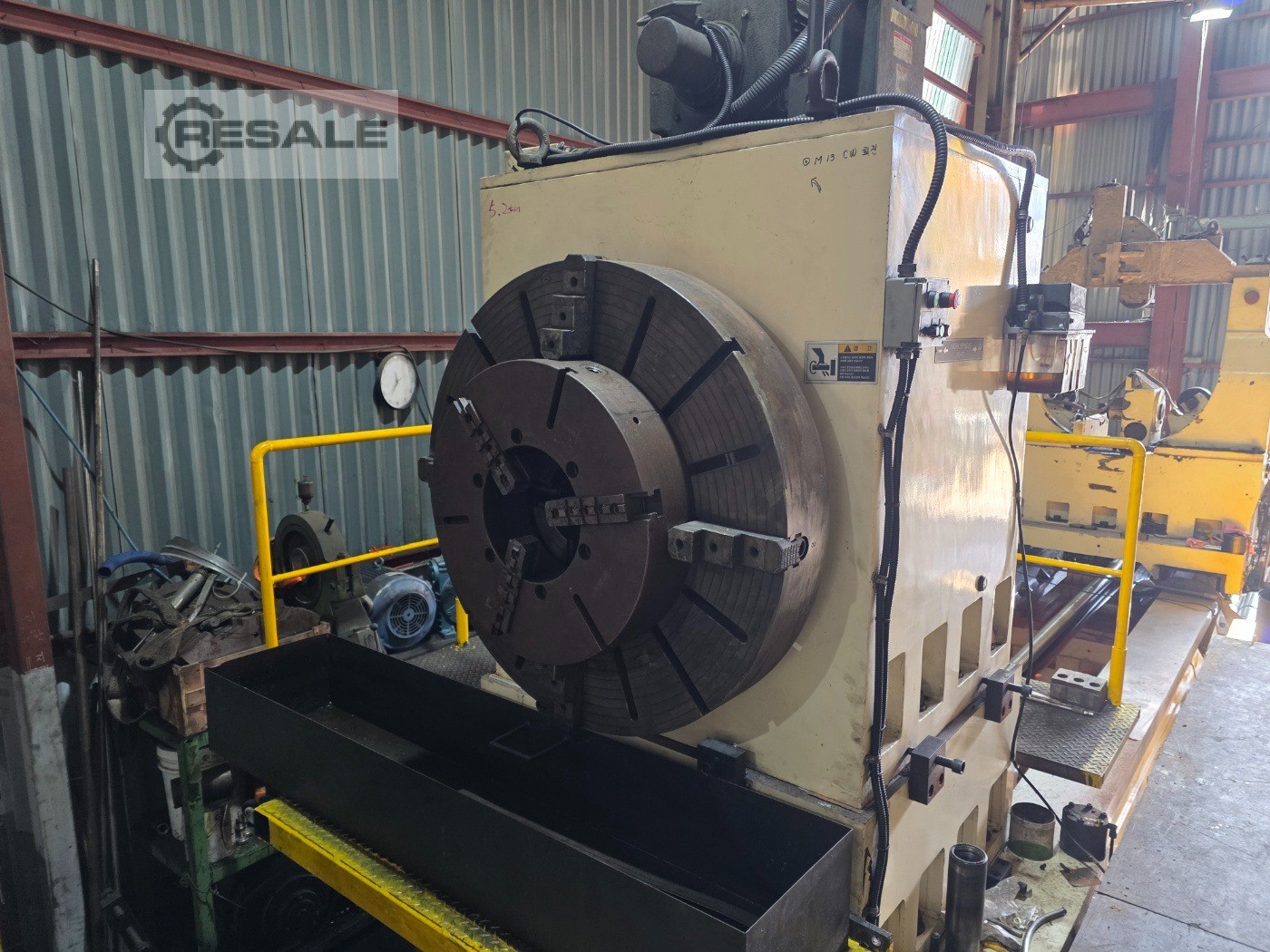

• Headstock rotation: 5 – 30 rpm
• Tool holder spindle speeds:
• 50 – 500 rpm
• 25 – 250 rpm
• 16.6 – 166 rpm
• 8.3 – 83.3 rpm
Cooling & Drives
• Coolant pump control: Inverter-driven
• Motor control: NC controlled spindle & tool rotation
Power & Installation
• Total power: approx. 335 kW
• Power supply: AC 440V / 60Hz
Machine Dimensions
• Floor space: 23,000 × 5,000 mm
• Weight: approx. 85,000 kg
Commercial Highlights
• Deep hole drilling up to 6 meters depth
• Large diameter capacity up to 200 mm solid drilling
• Heavy industrial machine (85 ton class)
• Suitable for:
• Oil & gas components
• Hydraulic cylinders
• Aerospace shafts
• Defense / energy equipment
