Pompe WILO COR/T-1HELIX2.0 VE407-GE

Product Description

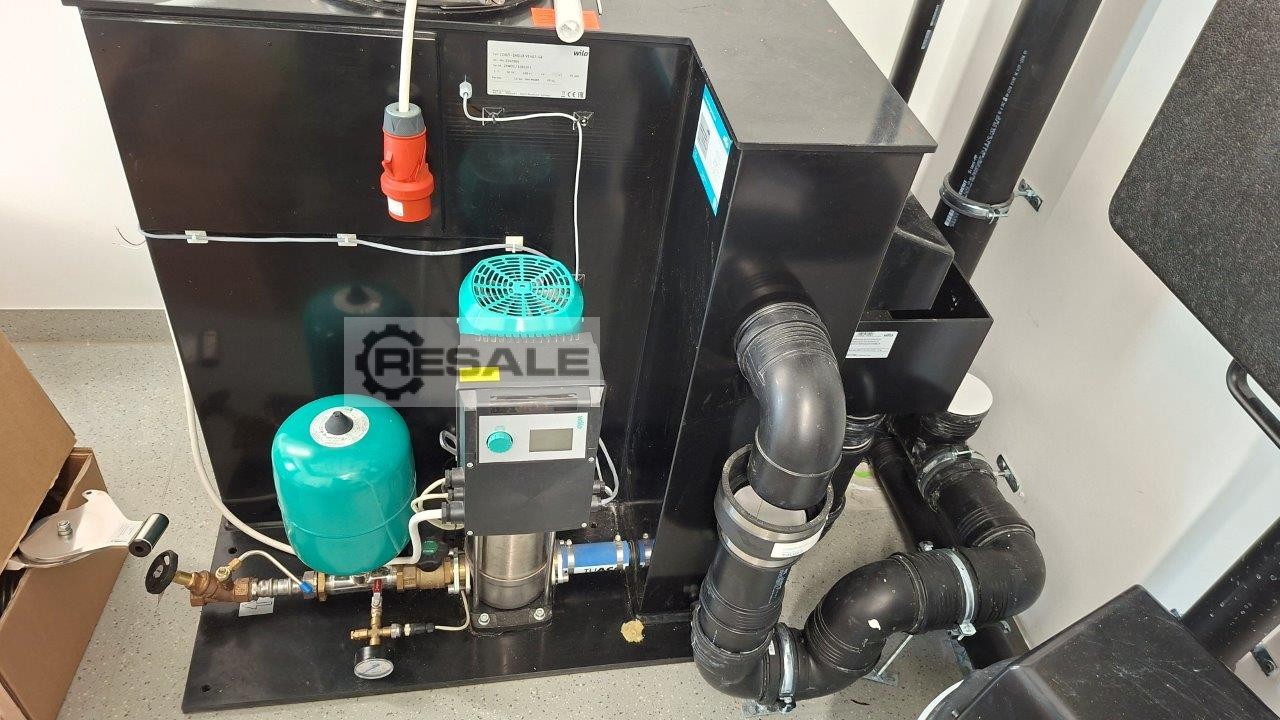

For sale is a Wilo pressure booster system COR/T-1 HELIX 2.0, consisting of:

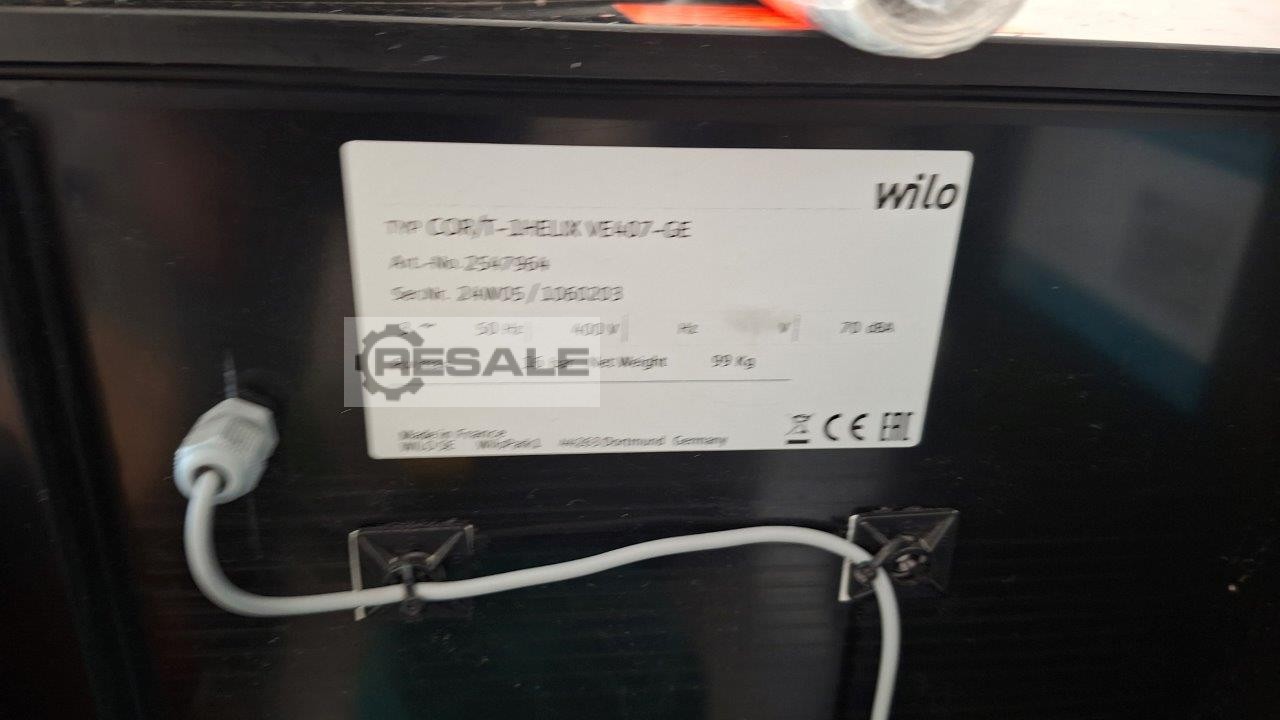

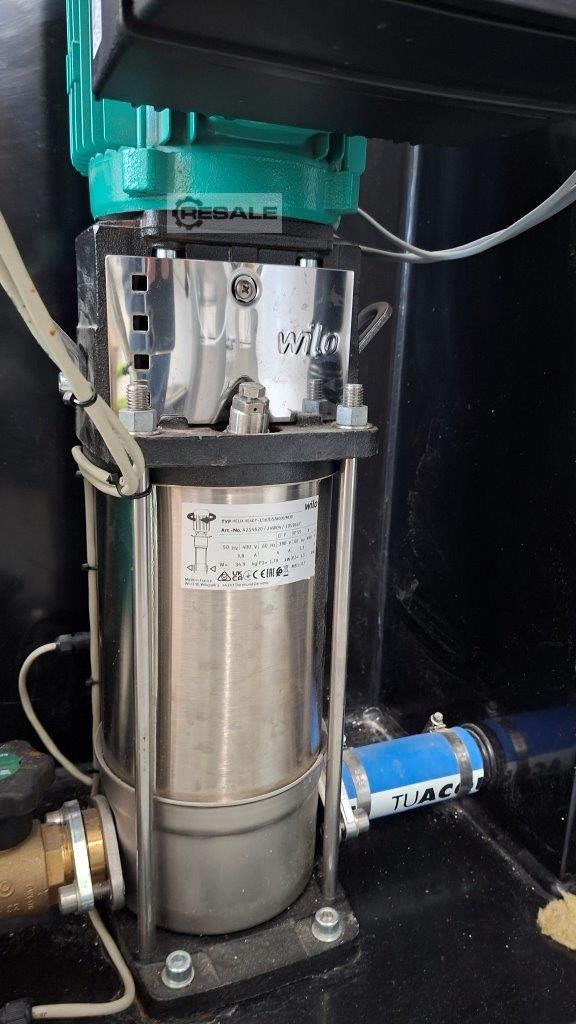

Wilo pump system COR/T-1 HELIX 2.0 VE407-GE
Wilo Reservoir 150 L PE COT GII (nameplate available)
Fully pre-assembled assembly including piping, valves and control
Condition as good as new: clean, complete, in working order

Technical data of the system
(Original data from Wilo data sheet)
Hydraulic data

Max. inlet pressure: 6 bar
Max. operating pressure: 16 bar
Pressure side connection: G 1 1/4
Number of pumps: 1
Plant capacity: 8 m³/h
Medium temperature: 5–40 °C
Ambient temperature: 5–40 °C

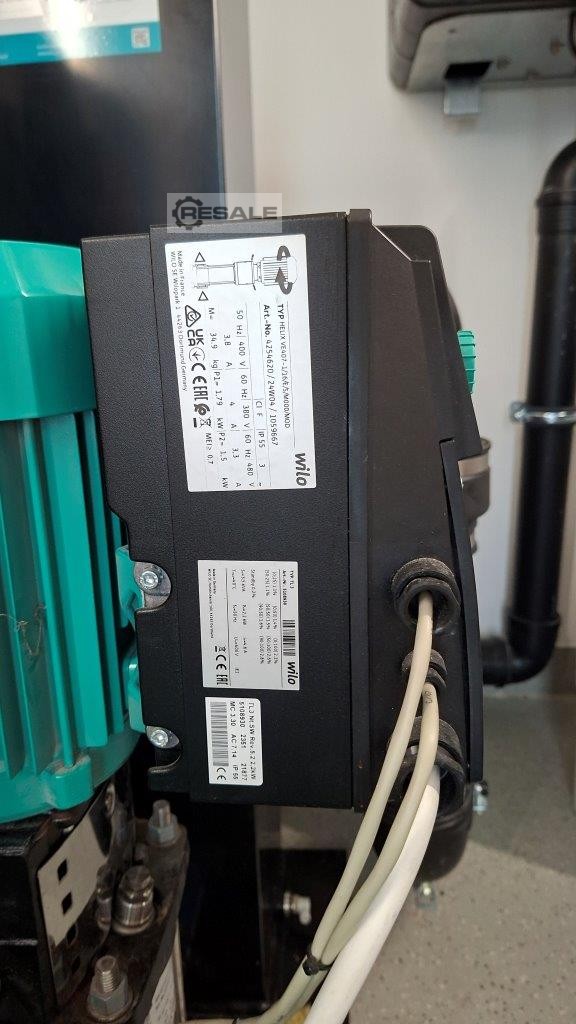

Engine data

Mains connection: 3~ 380 V / 50/60 Hz
Nominal power P2: 1.5 kW
Rated current: 2.7 A
Degree of protection: IP55
Insulation class: F
Motor efficiency: 93.9 %
[Wilo_COR_T-1HELIX2 | PDF]

Materials

Pump housing: stainless steel
Impeller: Stainless steel
Shaft: Stainless Steel
Seal: EPDM / Mechanical Seal BQ1EGG
Piping material: Stainless steel [Wilo_COR_T-1HELIX2 | PDF]

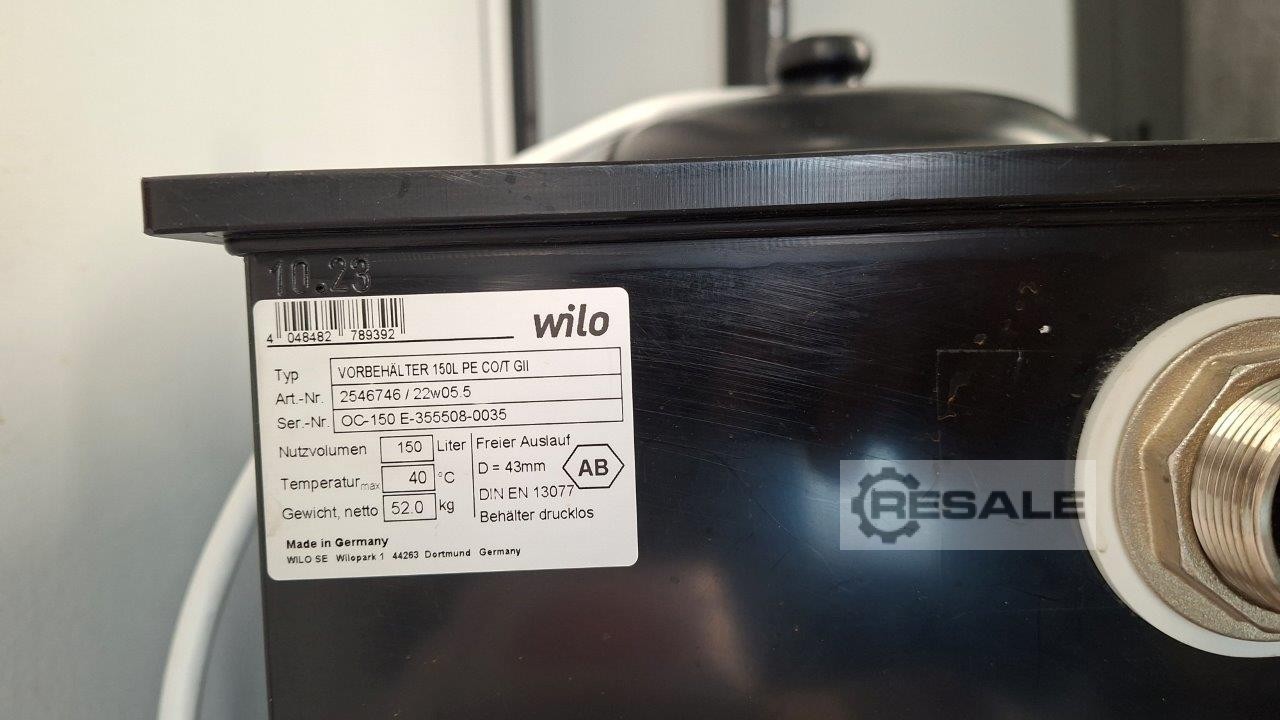

Data of the pre-tank

Type: Pre-tank 150 L PE COT GII
Item no.: 2546746 / 22w205.5
Serial No.: OC-150 E-355660-0035
Usable volume: 150 litres
Max. temperature: 40 °C
Weight: 52.0 kg
Connection: DN 43 mm
Design: Pressureless container
Made in Germany

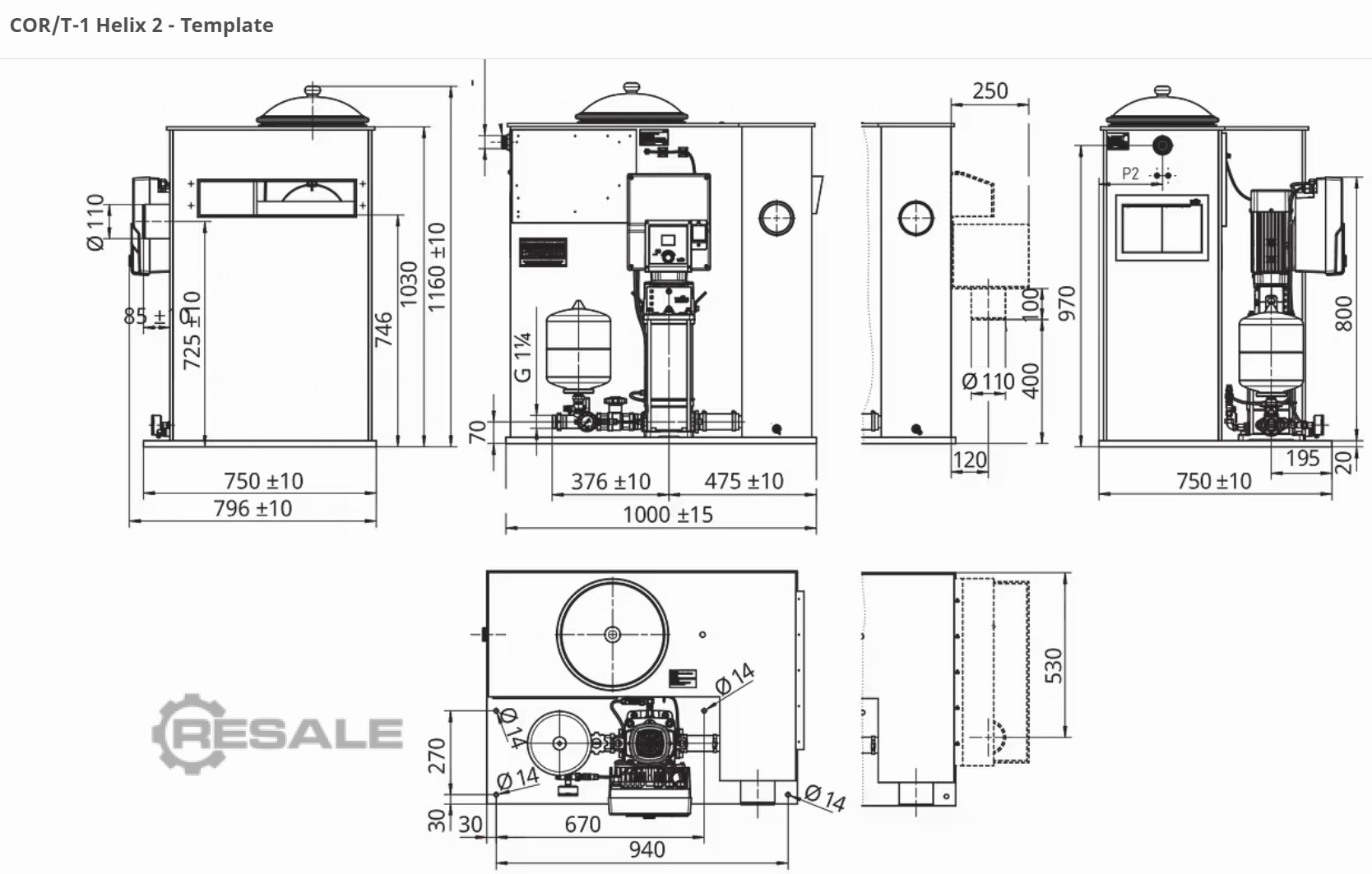

Dimensions

Total width: approx. 1000 mm
Depth: approx. 796–940 mm (depending on position)
Height: approx. 1100–1160 mm

Scope of Delivery

Wilo pressure booster system COR/T-1 HELIX 2.0 complete
Wilo 150-litre pre-tank
Installed piping and fittings
Control unit & electronics
Fully as a functional unit
seller offer No. resale 168858912
