110 BERNARDO macchina utilizzata in vendita

Il tornio universale BERNARDO Super 180 è stato costruito in Austria dalla PWA Handelsgesellschaft m.b.H. La macchina in vendita è un'ottima scelta sia per la produzione unitaria che per quelle in piccoli lotti. È in grado di eseguire operazioni come la tornatura di fronti cilindriche, coniche e di estremità, oltre a tagliare filettature metriche e in pollici. I pezzi con diametro massimo di 506 mm e lunghezza di 1000 mm sono lavorati tramite un mandrino affidabile, che ruota all'interno di un intervallo da 45 giri/min a 1800 giri/min. Fino a 16 stadi di regolazione della velocità del mandrino consentono una regolazione precisa della velocità di taglio in base al tipo di pezzo e al tipo di lavorazione. Il BERNARDO Super 180 offre anche un'ampia gamma di alimentazioni longitudinali e trasversali. I display digitali installati migliorano ulteriormente il comfort dell'operatore. Tutto ...

Tabella 800 x400 mm

La fresatrice universale servoassistita BERNARDO Variomill FU 2000E è stata costruita nel 2020 in Austria da PWA Handelsgesellschaft m.b.H. La macchina, che si distingue per il suo design stabile in ghisa grigia e l'uso di tecnologie moderne, è la scelta perfetta per la lavorazione di pezzi pesanti e di grandi dimensioni. Tutti gli assi lineari sono azionati da servomotori ad alte prestazioni, che garantiscono accelerazioni e velocità di avanzamento adeguate in ogni direzione. Inoltre, l'asse X è stato rivestito con uno speciale rivestimento Turcite B per ridurre l'effetto dello slittamento. Tutto questo, combinato con un'ampia attrezzatura, massimizza la precisione e la ripetibilità dei pezzi prodotti, anche durante le sfide più intense. La fresatrice verticale Variomill FU 2000E Servo pesa 4500 kg. Dati tecnici della fresatrice servoassistita BERNARDO Variomill FU 2000E - ava ...

CAPASITY 60 T

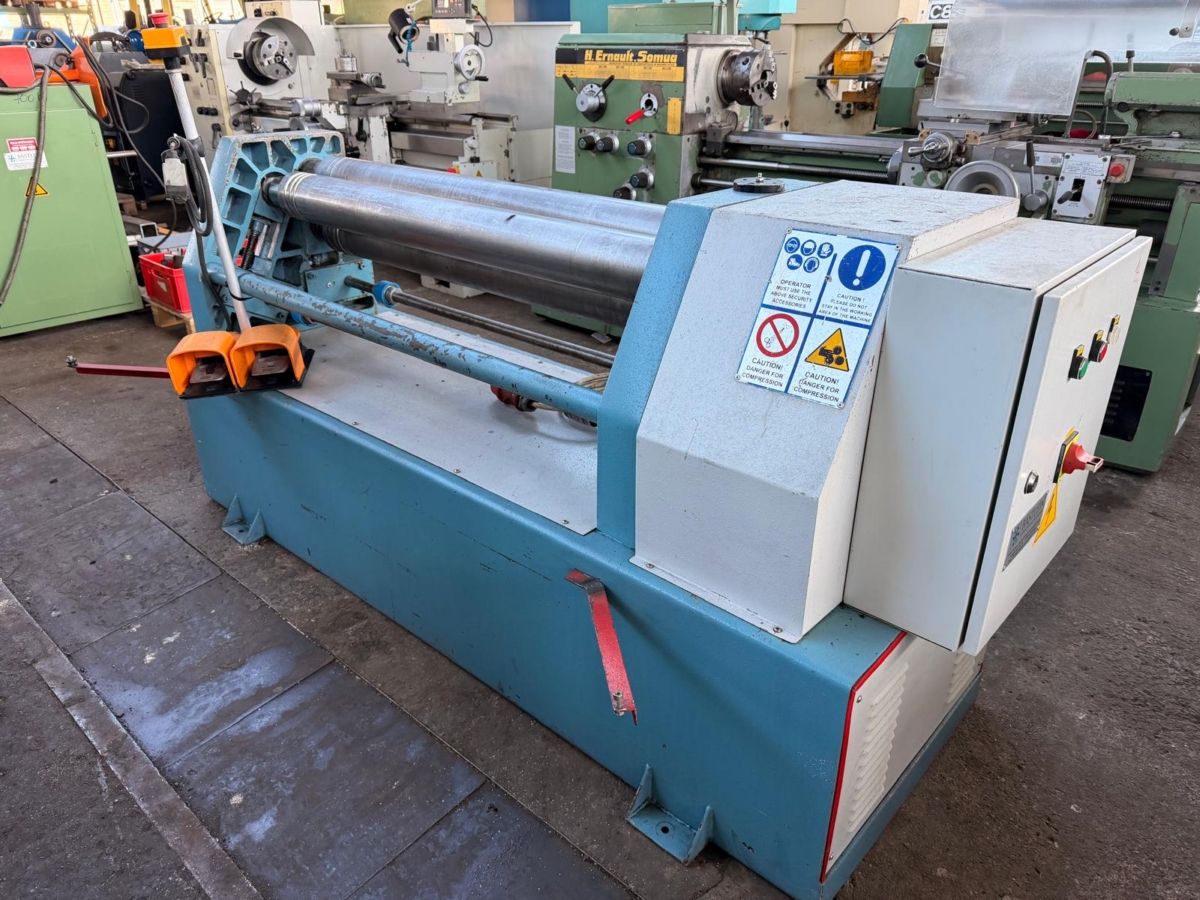

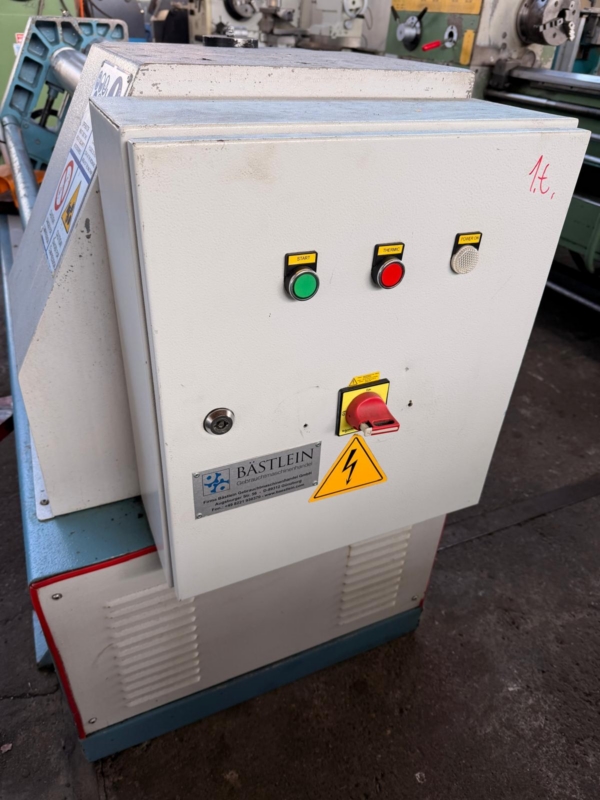

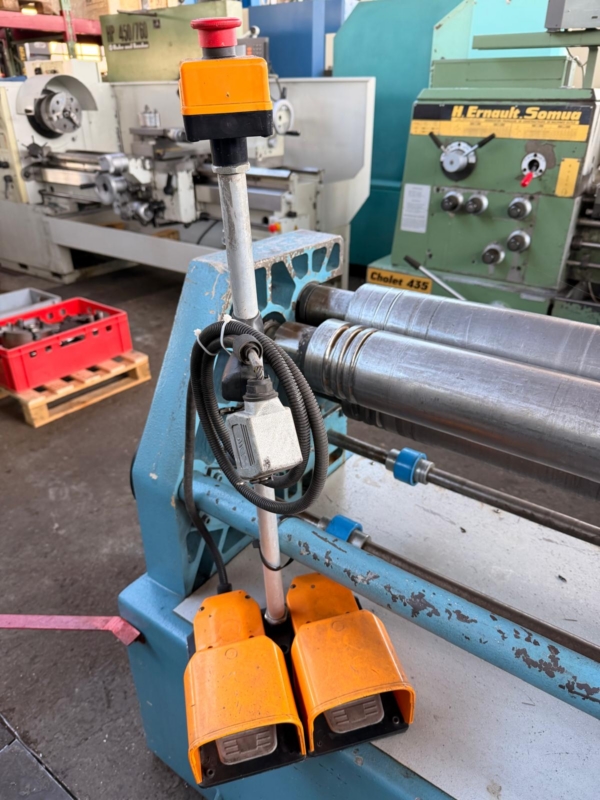

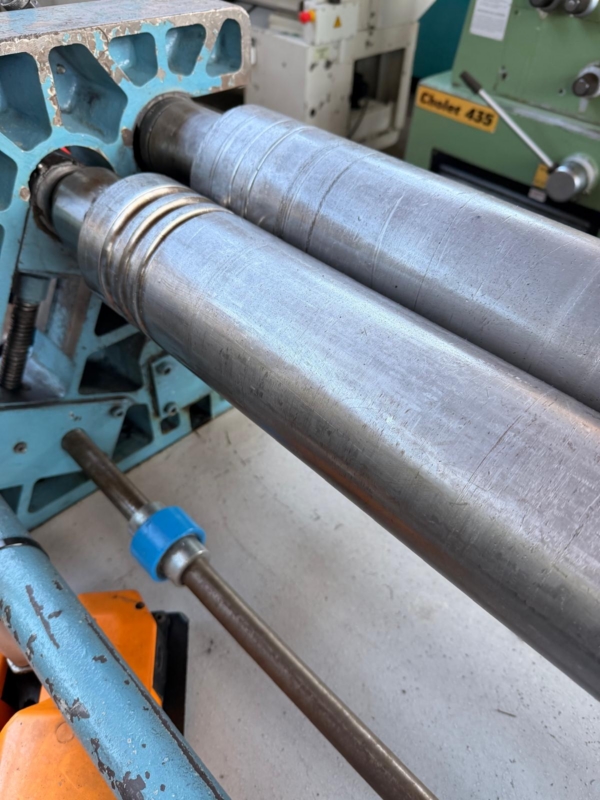

Larghezza del foglio: 1270 mm, spessore della piastra: max. 4,5 mm: 4 mmroll diametro: 120 mm, velocità del rotolio: 8 U/min. Diametro di flessione: 180 mm Potenza totale richiesta: 2,2 kWweight della macchina ca.: 1250 kg Dimensioni: 2470 x 750 x 1000 mm I dati per questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.

drill diameter: 2.0 - 20.0 mm lip angle: 90 - 135 ° turning speeds: 4800 U/min voltage: 230 Volt engine output: 0.12 kW weight: 8.6 kg range L-W-H: 285 x 130 x 170 mm The handy DG 20 M drill grinding machine is ideal for grinding twist drills made of HSS, cobalt and hard metal. Thanks to the adjustable tip angle of 90° to 135°, this model can be used universally for 2-edged twist drills. Properties: - For grinding HSS and hard metal twist drills from 2 - 20 mm - ER 20 and ER 25 collets also enable clamping of intermediate sizes - Optimum grinding result thanks to the specially guided collet - Includes device for sharpening the drill tip - Universally adjustable tip angle from 90° - 135° - Fast and easy grinding process Scope of delivery: - CBN grinding wheel - ER 20 collets, 3 - 12 mm 11 pieces (3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 /12 / 13 mm) - ER 25 collets, 14 - 20 mm 7 pieces  ...

altezza massima del pezzo: 645-1240 mm capacità del foro nell'acciaio (diametro): 50 mm lunghezza del braccio: 350-1590 mm peso totale, circa: 3500 kgvelocità di tornitura: 25-2000 U/min cono mandrino: filettatura MK5: M42 corsa del cannotto: 320 mm potenza totale richiesta: 4 kW gamma L-W-H: 2450x980x2840 mmI dati di questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.

Segheria circolare Bernardo FK2, buone condizioni, 2,2 kW, 450 kgPrezzi soggetti a variazioni, errori, errori di stampa e composizione tipografica esclusi

Segatricatrice circolare Bernardo CSM2000, buone condizioni, 3 kW, 315/30 mm, circa 2200 mm lunghezza di taglio, altezza di taglio circa 100 mm, circa 500 kgPrezzi soggetti a variazioni, errori, errori di stampa e composizione tipografica esclusi

Saw roller stand, saw roller stand, sawhorse, roller conveyor stand, roller stand -Manufacturer: Bernardo, roller stand for hacksaw, band saw, cold circular saw -Roll height: 570 to 970 mm -Roll: Ø 52 x 355 mm -Dimensions: 500/420/H570 mm -Weight: 14 kg

Saw roller stand, saw roller stand, sawhorse, roller conveyor stand, roller stand -Roller stand: Roller stand for hacksaw, band saw, cold circular saw -Roll height: 445 to 565 mm -Roll: Ø 55 x 270 mm -Dimensions: 370/315/H445 mm -Weight: 22 kg

Saw roller stand, saw roller stand, sawhorse, roller conveyor stand, roller stand -Roller stand: Roller stand for hacksaw, band saw, cold circular saw -Roll: Ø 65 x 240 mm -Dimensions: 325/65/H520 mm -Weight: 8.7 kg

turning length: 2000 mm centre height: 330 mm swing diameter over bed slide: 660 mm swing diameter over slide rest: 460 mm turning dia. in gap: 900 mm spindle bore: 105 mm turning speeds: 25 - 1600 U/min bed width: 400 mm spindle taper: 55029 D 1-8 taper in tailstock: 5 MK quill travel: 235 mm total power requirement: 7,5 kW weight of the machine ca.: 2900 kg. range L-W-H: 3630 x 1200 x 1520 mm Scope of delivery : - 3-axis digital display ES-12 V with LCD display - Slip clutch - Rapid traverse longitudinally and flatly - LED machine light - 3-jaw chuck PS3-315 mm / D8 - Clamping disk 450 mm - Fixed bezel - Passage diam. max. 180 mm - Revolving bezel - Passage diam. max. 120mm - 2 centering points - Motor with magnetic brake according to CE standards - Foot pedal with braking function according to CE - Initial filling with Shell Tellus 46 - Coolant device - Quick-change tool holder with 4 ...

width of the strips: 150 mm band length: 2000 mm band speed: 14.5 + 29 m/sek grinding width: 460 x 150 Plantisch mm Dust suction hood: 100 mm total power requirement: 4.0 kW 100% ED weight: 84.0 kg range L-W-H: 1080 x 520 x 1000 mm Standard with 2 speeds, ideal for grinding stainless steel properties - Good sanding performance due to high belt speed - Quick adjustment for horizontal and inclined position - Continuous flat grinding surface for optimal grinding of long workpieces - Constant belt tension through spring-loaded tensioning device - Universally applicable for grinding edges, surfaces and for cylindrical grinding - Including quick-release system for quick strap changes - Simple adjustment of the parallel belt run by means of an adjusting screw - Graphite coating on the flat grinding surface increases the sliding properties of the Sanding belt scope of delivery - Sanding belt  ...

turning length: 3000 mm turning diameter: 660 mm turning dia. in gap: 900 mm turning diameter over slide: 460 mm turning speeds: 25 - 1600 U/min quill:: 5 MK quill travel: 235 mm spindle bore: 105,0 mm engine output: 7,5 kW spindle taper: DIN 55029 D 1-8 weight of the machine ca.: 3.300 kg. dimensions: 4.630 x 1.200 x 1.529 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-jaw steel chuck PO3-315 mm / D8 - Clamping disk 450 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 120 mm - 2 centering points - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick- ...

capacity 90 degrees: round: 100 mm capacity 45 degrees: round: 65,0 mm capacity 90 degrees: flat: 100 x 150 mm capacity 45 degrees: flat: 60 x 100 mm dimensions of saw-band: 1470 x 13,0 x 0,65 mm volt: 230 V : 45,0 m/min weight: 26,0 kg range L-W-H: 700 x 320 x 420 mm scope of delivery - saw band - workpiece stop - Quick release vice - Ergonomic handle - Chip collector The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

width of the strips: 150 mm band length: 2000 mm band speed: 29.0 m/sek grinding width: 460 x 150 Plantisch mm Dust suction hood: 100 mm total power requirement: 4.0 kW 100% ED weight of the machine ca.: 84.0 kg range L-W-H: 1080 x 520 x 1000 mm Description : - Good sanding performance due to high belt speed - Quick adjustment for horizontal and inclined position - Continuous flat grinding surface for optimal grinding of long workpieces - Constant belt tension through spring-loaded tensioning device - Universally applicable for grinding edges, surfaces and for cylindrical grinding - Including quick-release system for quick strap changes - Simple adjustment of the parallel belt run by means of an adjusting screw - Graphite coating on the flat grinding surface increases the sliding properties of the sanding belt Scope of delivery : - Sanding belt K 80 - Hinged protective screen - Sanding ...

pressure: 20,0 t stroke: 185 mm table surface area: 170 mm Breite column travel between the guideways: 510 mm weight of the machine ca.: 112 kg dimensions of the machine ca.: 1630 x 560 x 730 mm Furnishing: - Standard with pressure cylinder that can be moved to the left and right - For aligning, pressing, bending, assembling gears, discs, etc. - Standard with foot pedal and hydraulic hand pump for piston delivery - Standard with support prism for aligning shafts - With automatic piston retraction by integrated return spring as standard - Height-adjustable press table with locking bolts - Large manometer for reading the compressive force - Including two-stage hydraulic pump - Robust construction with welded steel frame The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

width of the strips: 75.0 mm band length: 2000 mm band speed: 29.0 m/sek grinding width: 460 x 75 Plantisch mm Dust suction hood: 100 mm total power requirement: 3.0 kW 100% ED weight of the machine ca.: 66.0 kg range L-W-H: 1080 x 440 x 1000 mm Description : - Good sanding performance due to high belt speed - Quick adjustment for horizontal and inclined position - Continuous flat grinding surface for optimal grinding of long workpieces - Constant belt tension through spring-loaded tensioning device - Universally applicable for grinding edges, surfaces and for cylindrical grinding - Including quick-release system for quick strap changes - Simple adjustment of the parallel belt run by means of an adjusting screw - Graphite coating on the flat grinding surface increases the sliding properties of the sanding belt Scope of delivery : - Sanding belt K 80 - Hinged protective screen - Sanding ...

pressure: 30 t stroke: 150 mm table surface area: 185 mm Breite column travel between the guideways: 530 mm weight of the machine ca.: 162 kg dimensions of the machine ca.: 800 x 700 x 1805 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 50 t stroke: 200 mm table surface area: 730 x 205 mm dayligth: 1050 mm column travel between the guideways: 730 mm weight of the machine ca.: 288 kg. Description : - Standard with cable winch - for easy height adjustment of the support table - Piston delivery either manually or pneumatically - Powerful workshop presses for craft and repair businesses - Optimum price-performance ratio thanks to rational design - The standard foot pedal keeps your hands free for the workpiece - Increased range of application thanks to the optionally . available pressure mandrel set (10 pieces). - Pressure cylinder with integrated return spring for piston return - Welded steel frame for heavy use and high stability - Versatile in use thanks to the pressure cylinder that can . be moved to the left and right The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 28,0 mm threading: 12 M bore stroke: 130 mm throat: 250 mm table:: 375 x 375 mm morse taper: 3 MK turning speeds: 75 - 3.200 U/min total power requirement: 1,1 / 1,5 kW weight of the machine ca.: 215 kg. range L-W-H: 450 x 600 x 2.020 mm Description : - 12 switchable speeds thanks to the powerful 2-stage motor - Direction of rotation switch for clockwise and counterclockwise rotation for thread cutting - Solid work table (rotatable 360 °), swiveling from -45 ° to + 45 ° - Machined machine base for clamping particularly high workpieces - Quality ball bearings ensure high concentricity - Easy tool change thanks to the automatic tool ejector - Adjustable drilling depth stop, drilling depth can be read off using a scale - Stable and polished steel column, designed for heavy use - Very smooth running thanks to ground gears in the gearbox - High level of  ...

bore capacity in steel (diameter): 13,0 mm x-travel: 300 mm y-travel: 130 mm turning speeds: 100 - 2500 U/min throat: 165 mm spindle taper MT: 3 MK table-size: 490 x 120 mm diameter of hob: 30,0 mm motor: 230 Volt total power requirement: 0,75 kW weight of the machine ca.: 50 kg. dimensions of the machine ca.: 520x500x740 mm Scope of delivery: - Key chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 3 / B 16 - tightening spindle M 12 - Height-adjustable protective cover - operating key The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 32,0 mm arm length: 310 - 820 mm workpiece height max.: 370 - 870 mm turning speeds: 75 - 1220 U/min spindle taper MT: 4 MK base plate: 825 x 690 mm threading: 24 M quill stroke: 250 mm quill feed: 0,1/0,16/0,25 mm/U travel x / y: 500 / 510 mm total power requirement: 2,25 kW weight of the machine ca.: 1200 kg. range L-W-H: 1470 x 750 x 2100 mm Description : - Large-sized base plate - ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good sliding of the drill head on the boom thanks to the ground surface scope of delivery : - Cube table - ...

bore capacity in steel (diameter): 50,0 mm arm length: 350 - 1.590 mm workpiece height max.: 645 - 1.240 mm turning speeds: 25 - 2000 U/min spindle taper MT: 5 MK base plate: 980 x 1.600 mm threading: 42 M quill stroke: 320 mm total power requirement: 4,0 kW weight of the machine ca.: 3.500 kg. range L-W-H: 2450 x 980 x 2840 mm Description : - Large-sized base plate - ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good sliding of the drill head on the boom thanks to the ground surface scope of delivery : - Cube table - Reducing sleeves MK 5/4, MK 4/3, MK3 / 2 - LED mach ...

bore capacity in steel (diameter): 50,0 mm arm length: 320 - 1.220 mm workpiece height max.: 330 - 1.170 mm turning speeds: 25 - 2000 U/min spindle taper MT: 5 MK base plate: 1300 x 980 mm threading: 42 M quill stroke: 335 mm total power requirement: 4,0 kW weight of the machine ca.: 3000 kg. range L-W-H: 2035 x 1000 x 2830 mm Furnishing: - Large-sized base plate, ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good gliding ability of the drill head on the boom - sanded surface Scope of delivery: - Cube table - Drill chuck arbor MK 5 / B 16 - Reducing sleeves MK 5/4, MK  ...

bore capacity in steel (diameter): 60,0 mm arm length: 350 - 1.600 mm workpiece height max.: 665 x 1.250 mm turning speeds: 38 - 2.000 U/min spindle taper MT: 5 MK base plate: 960 x 1.760 mm threading: 42 M quill stroke: 325 mm total power requirement: 4,0 kW weight of the machine ca.: 3.800 kg. range L-W-H: 2.600 x 1.100 x 2.770 mm scope of delivery : - Cube table - Drill chuck arbor MK 5 / B 16 - Reducing sleeves MK 5/4, MK 4/3, MK3 / 2 - LED machine light - First filling with Shell Tellus 46 - coolant device - Frequency converter - Digital speed display - lift motor - hydraulic motor - Height-adjustable protective cover - operating tool The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
