4 DURST macchina utilizzata in vendita

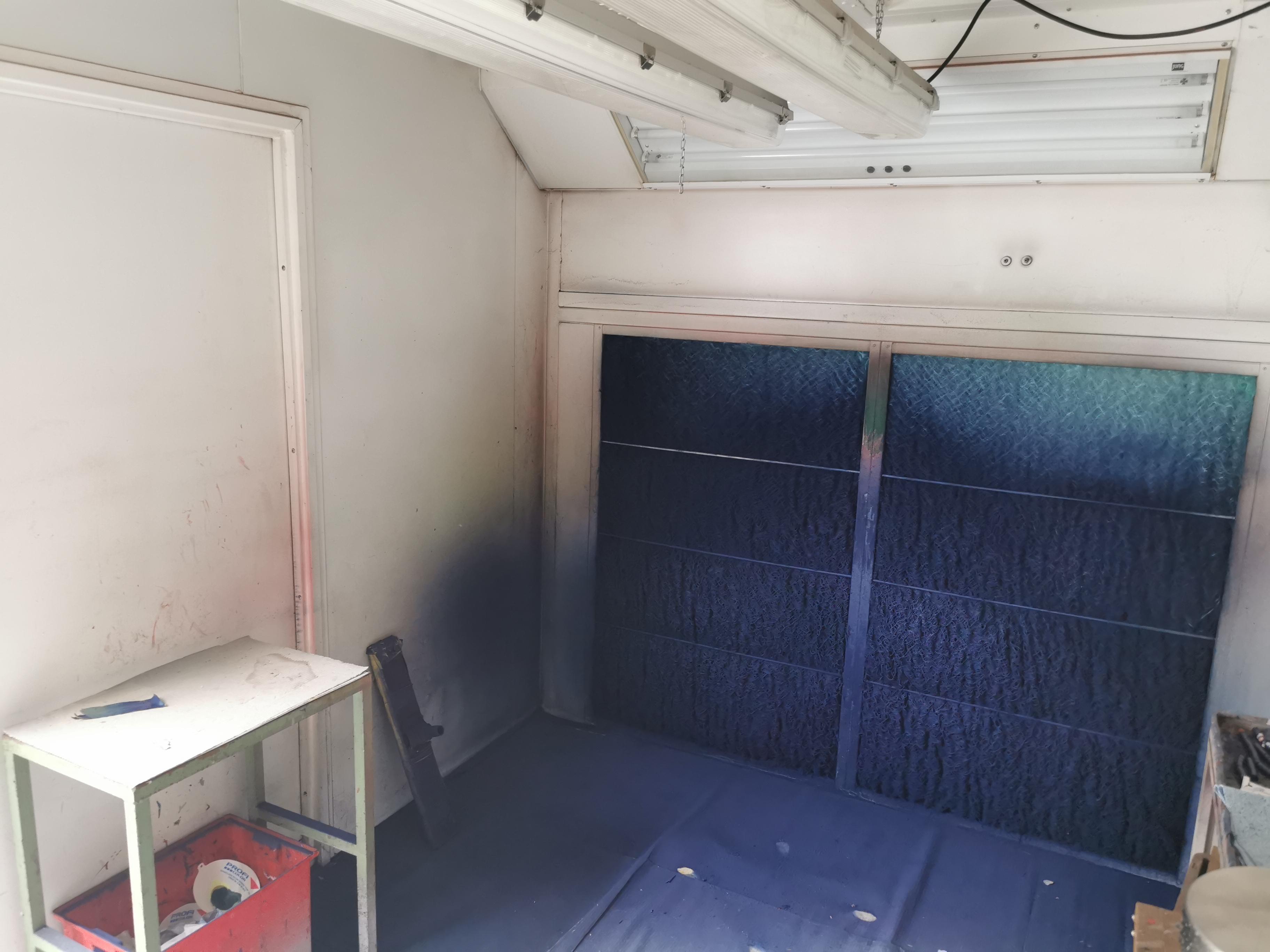

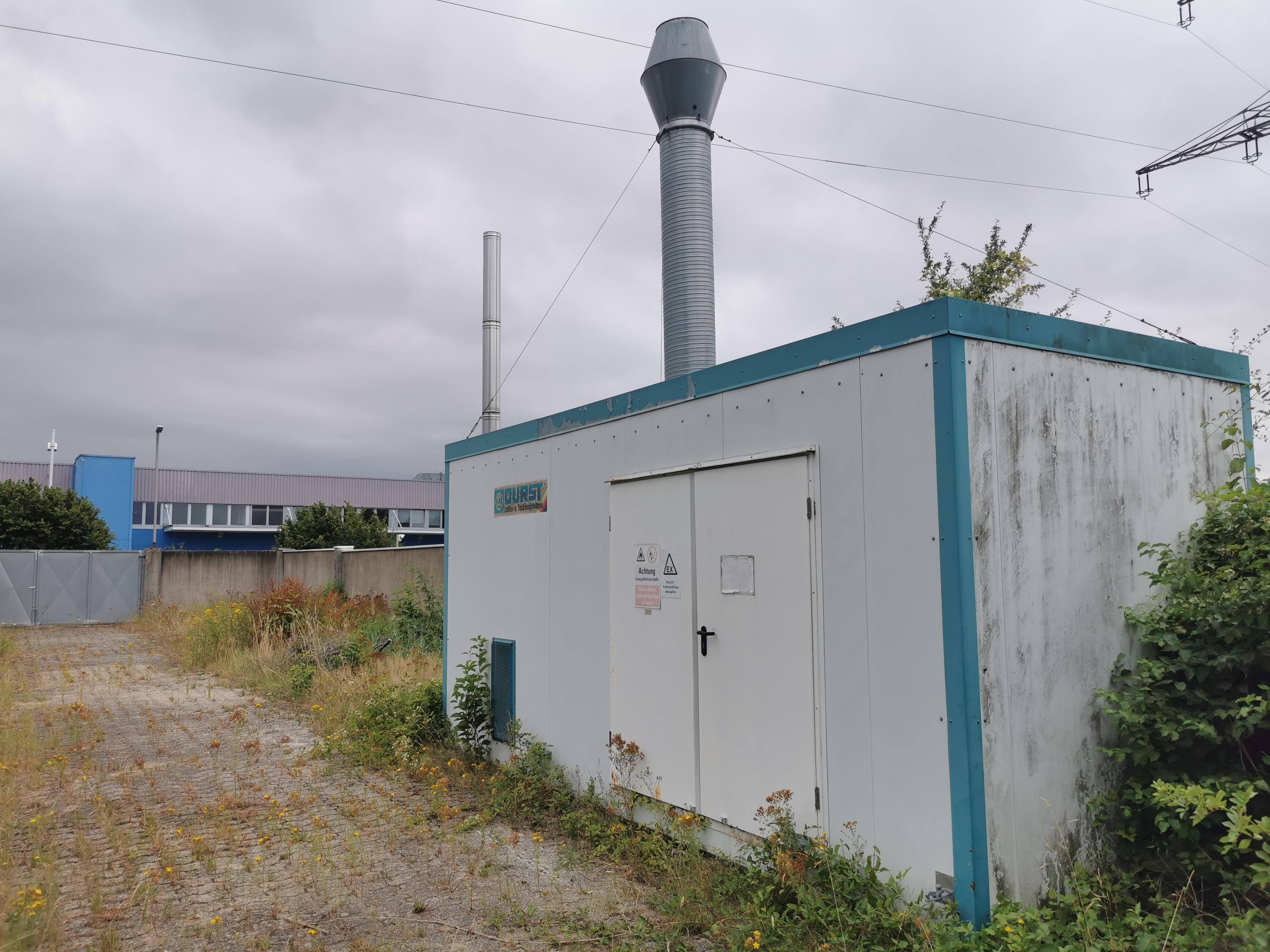

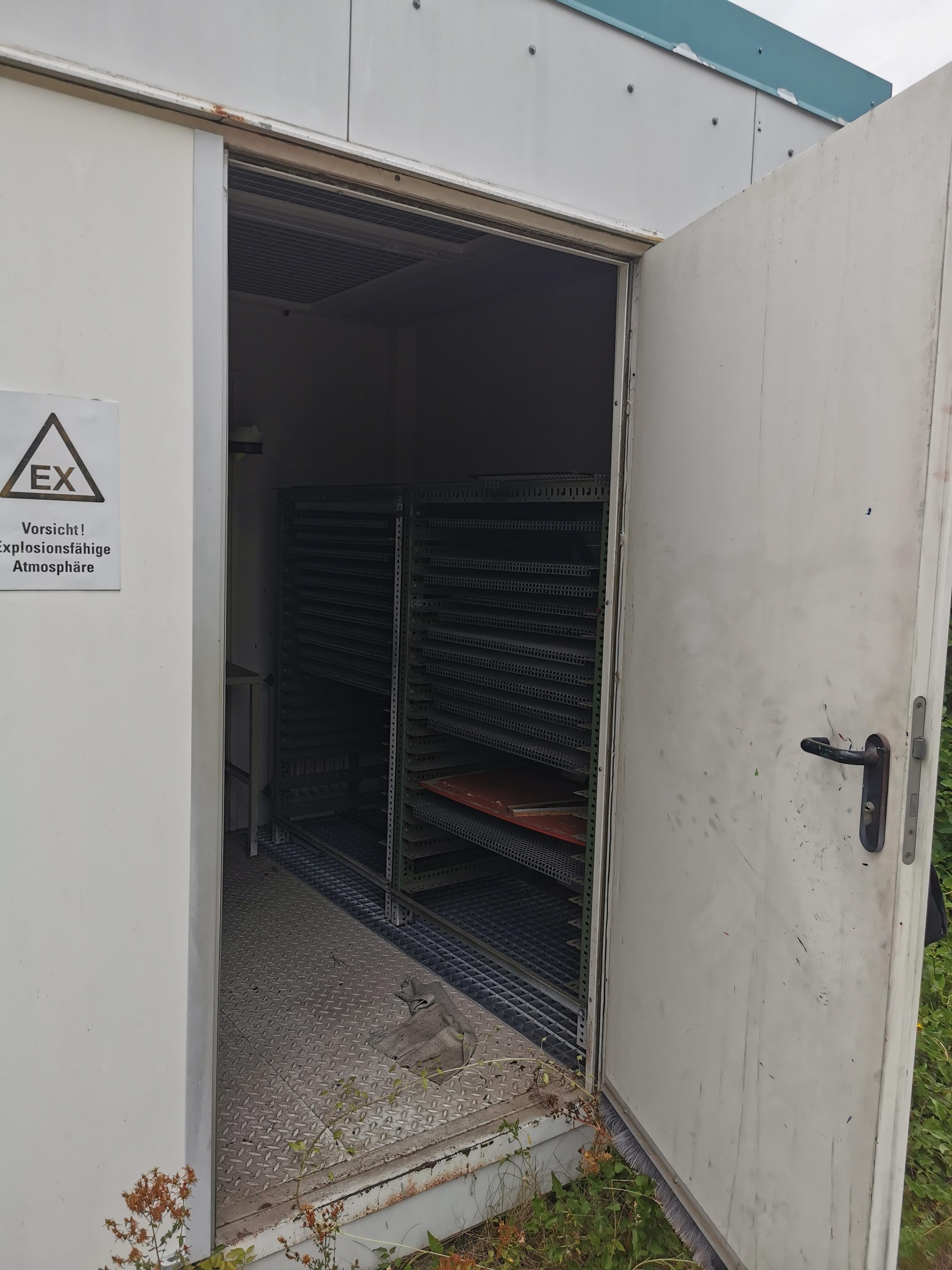

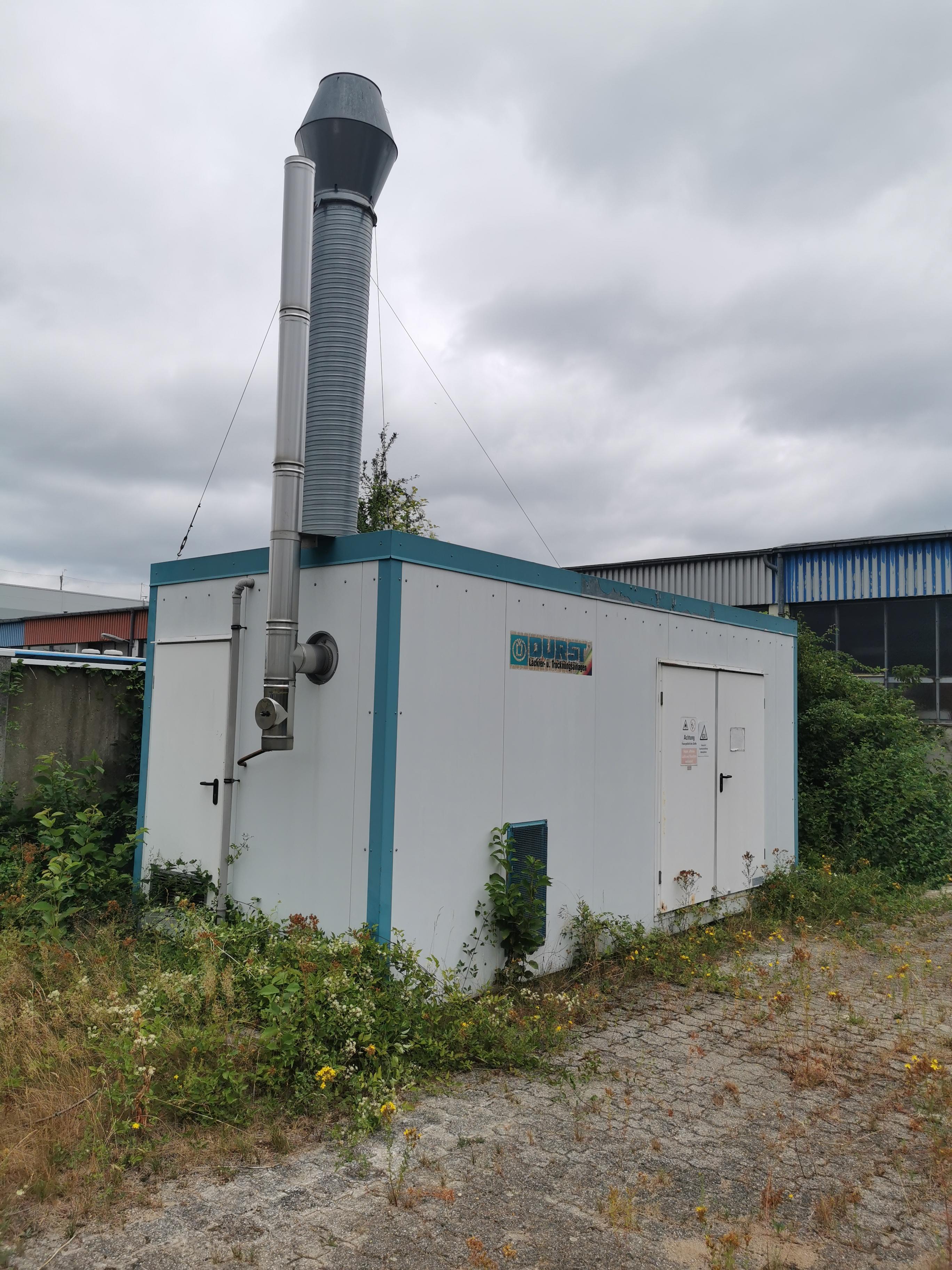

Manufacturer: Durst Type: D-SLK 12 Diagonal, AIRSEC Vario 1/2 Year of manufacture: 2008 Heating medium: liquid gas propane, gas blower burner for natural gas E Dimensions - Spray cabin interior: 4000 x 2400 x 2550 mm - Container exterior overall: 6000 x 2500 x 2800 mm - Aggregate room interior: 2400 x 1850 x 2300 mm Air Performance - Fresh air supply: up to 10000 cubic meters per hour, motor rating 2.2 kW - Exhaust air: up to 10000 cubic meters per hour, motor rating 2.2 kW - Air change rate: up to 408 times per hour - Exhaust discharge velocity: approximately 14.1 to 17 m per second Heating - Maximum heating output: 90 kW - Maximum circulating air temperature for drying: up to 75 to 80 degrees C - Average annual natural gas consumption: approximately 3.4 Nm3 per hour - Maximum consumption at 90 kW: approximately 9.5 Nm3 per hour Filtration - Pre-filter: bag filter, filter cla ...

Printing technology: piezo DOD printheads: Xaar 1001, resolution: 720x360dpi, drying: 1xUV GOZ and 1xUV FOZ Höhnle with 7,2kW, pinning system (LED) after printing unit 1+5, extraction: in the drying unit for cooling the UV lamps and for odor minimization and improvement of sensory conditions, inert gas system: oxygen-reduced curing unit (inert gas system), consumption: under 6m³/h, printing: roll-to-roll, web width: 350mm, print width: 330mm, repeat length: min./max. printable section length 10-1000mm, print tolerance: single spacing +/-0,2mm, cumulative spacing: +/-1,5mm (over one meter), register: register accuracy +/-50μm, max. speed: 48m/min with 4 colors depending on ink coverage, white at 30m/min, speed must be preselected from 18 to 48m/min, print pre-treatment: corona with 1500VA, web cleaning: polymer rollers LC 350, air shafts: for cores with 76mm diameter for unwinding and  ...

DATI TECNICI: Tipo: pressa digitale a getto d'inchiostro UV a 5 colori con unità di stampa bianca separata Lunghezza: 4550 mm Larghezza: 1750 mm Altezza: 2200 mm Peso: 3000 kg Consumo di energia elettrica: 39 kW / 60 A Alimentazione elettrica: 400 V, 3 Ph, 50 Hz Alimentazione ausiliaria: 230 V, 50 Hz (raffreddatore) Consumo d'aria: 100 NL/min Capacità di raffreddamento richiesta: 18 kW (60.000 BTU/h) Interfacce dati: USB 2.0, Ethernet UNITÀ DI RAFFREDDAMENTO (RECOLD RE-C 160 INERTE) Capacità di raffreddamento: 16.000 W Tipo di refrigerante: R134a Carica del refrigerante: 4,5 kg Consumo energetico: 8,5 kW Corrente massima: 15 A TECNOLOGIA DI STAMPA: Tecnologia: Piezo DOD Testine di stampa: Xaar 1001 Risoluzione: 720 × 360 dpi SISTEMA DI DRUING UV: Lampade UV: • 1× Hönle UV GOZ, 7,2 kW • 1× FOZ UV Hönle, 7,2 kW Fissazione: Fissazione LED dopo le  ...
