148 GILDEMEISTER macchina utilizzata in vendita

Lunghezza di rotazione 450 mm Diametro di rotazione 210 mm Con asse C Alesaggio del perno 52 mm Numero di attrezzi 12 Velocità del mandrino 5000 giri/min Controller Heidenhain Plus It

Diametro tornibile 80 mm Diametro barra 20 mm Velocità mandrino 10000 giri/min Assi X1, Y1, Z1, X2, Z2 Controllore Fanuc FANUC 160iB Caricatore di barre LNS

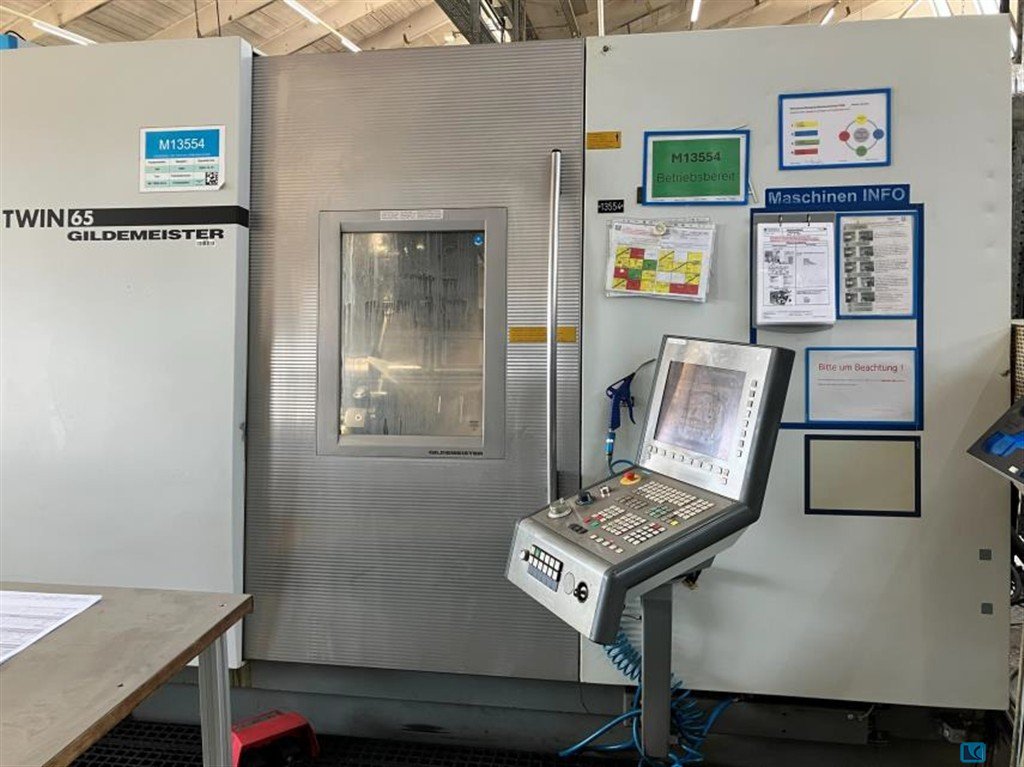

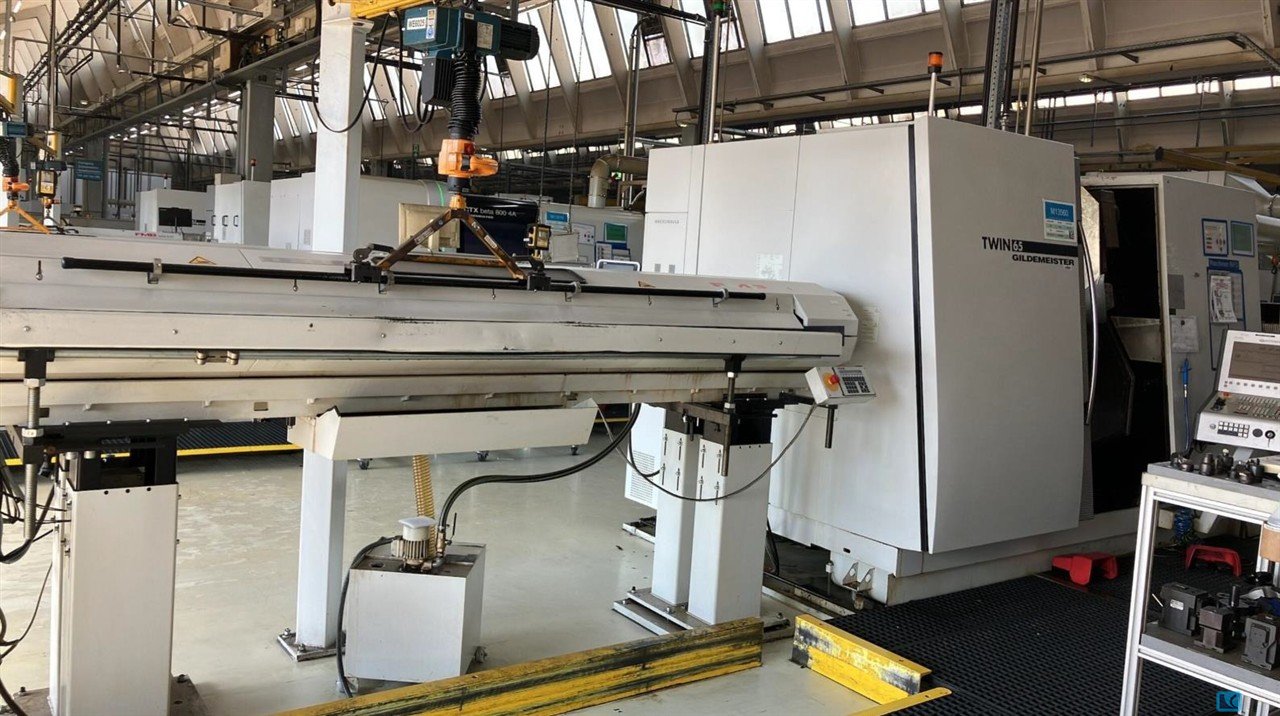

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:160 mm turning length:300 mm control:Siemens 840D Spindle 1 Power:22 kW Spindle 1 RPM:5000 1/min Spindle 1 max. bar diameter:65 Spindle 1 Torque:150 Nm Spindle 2 power:16,8 kW Spindle 2 RPM:5000 1/min Spindle 2 torque:100 Nm Travel for pick up of 2nd Spindle:W2=690 mm dimensions of the machine ca.:´4,5x2,0x2,3 m weight of the machine ca.:9 t CNC turning center with 3 turrets with rotary tool drives and 2 spindles. There is an internal coolant system for the turrets with individual pumps

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

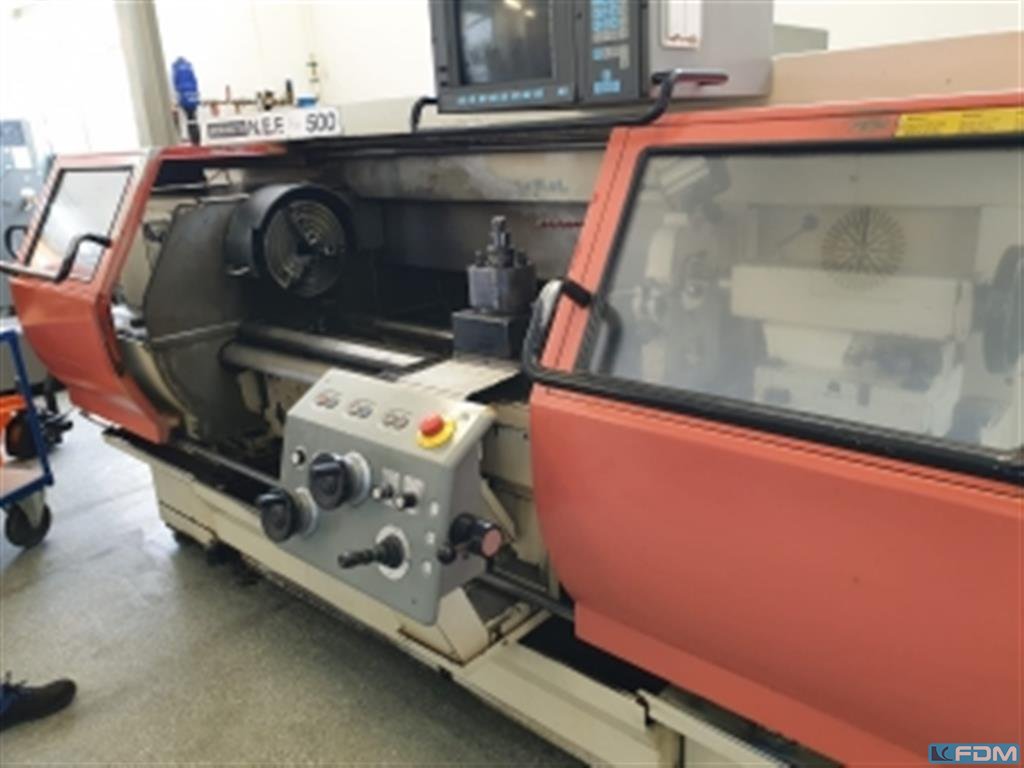

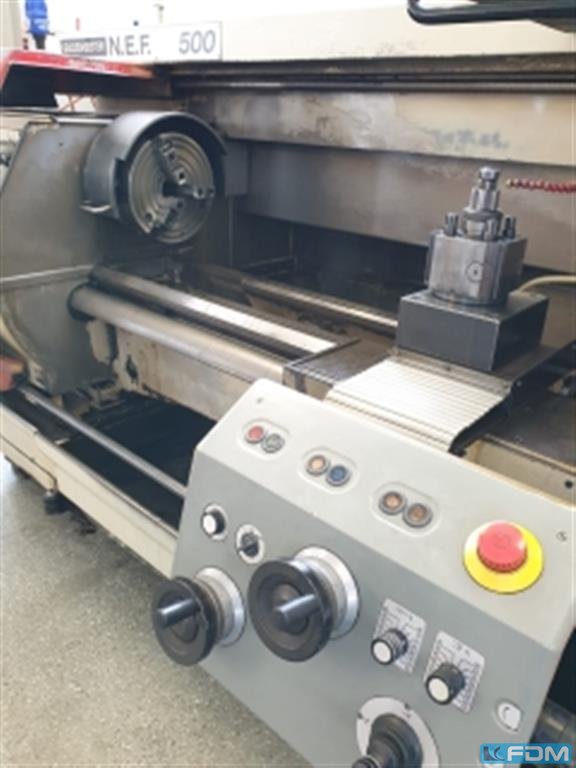

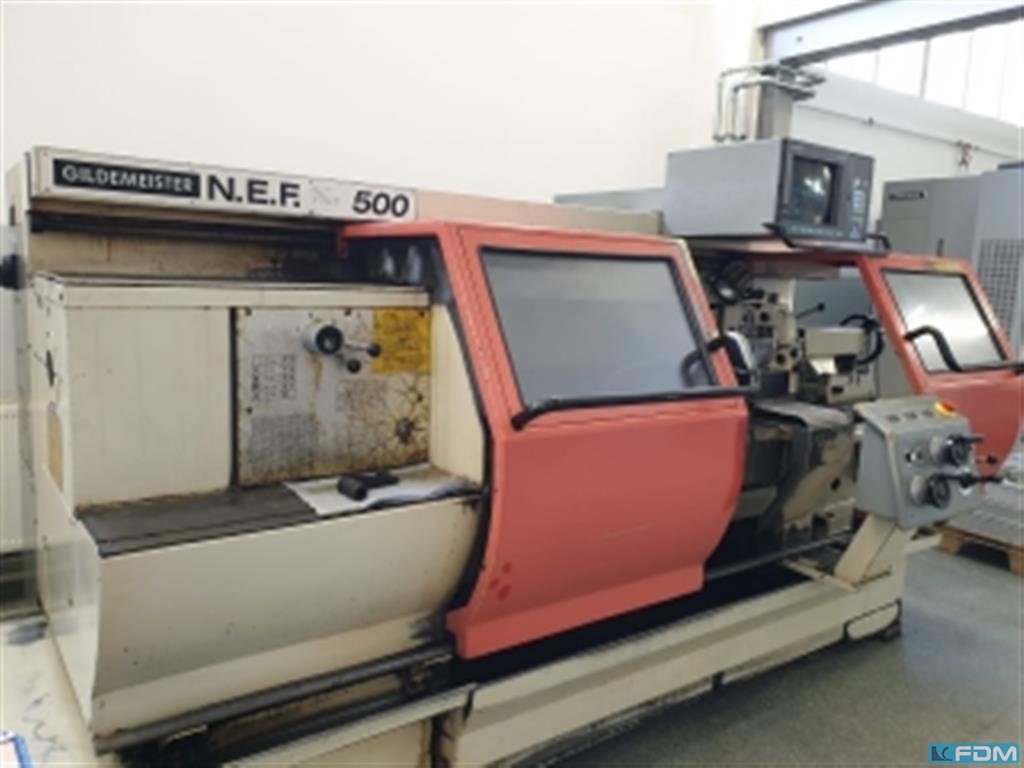

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5 Documents:vorhanden

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5

diametro di torneggio: 680 mm, lunghezza di tornazione: 600-635 mm: Siemens, potenza totale: kWweight della macchina, ca.: 6500 kg, dimensioni della macchina ca.: m. I dati per questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.

diametro di tornazione: 500 mm lunghezza di rotazione: 1000 mm) controllo: Heidenhain Requisiti totali di potenza: kWweight della macchina ca.: 3200 kg tDimensioni della macchina ca.: mI dati per questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.

Diametro di tornazione: 16 mm passaggio del perno: 16 mm Lunghezza di rotazione: 160 mm Controllo: GE FANUC Serie 18 I-T Intervallo di rotazione del perno: 8000 U/minrapid rotazione: 30 m/min Potenza totale richiesta: 2,2 kWweight della macchina ca.: 2,1 t Accessori: caricatore a barre IEMCA, GENIUS 226-32 L, YOM 2002 (per barra diametro 2 - 26 mm e lunghezze della barra 1500 - 3210 mm), Chip conveyor, refrigerante I dati per questo spot sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.

swing diameter max. over bed cover: 570 mm swing diameter over face slide: 420 mm control: Heidenhain CNC PILOT longitudinal stroke: 635 mm face stroke: 220 spindle bore: 79 mm centre distance: 1000 mm chucking diameter: 250 mm tailstock taper MT: 4 feed speed longitudal: 0,025-24.000 mm/min. feed speed face: 0,025-20.000 mm/min. power feed longitudinal: 7.000 N Feed Force Face: 3.500 N total power requirement: 44 weight of the machine ca.: 5,7 t dimensions of the machine ca.: 7,5 x 4,0 x 1,7 m Accessories: - 3 clamping jaws - various tool holders The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

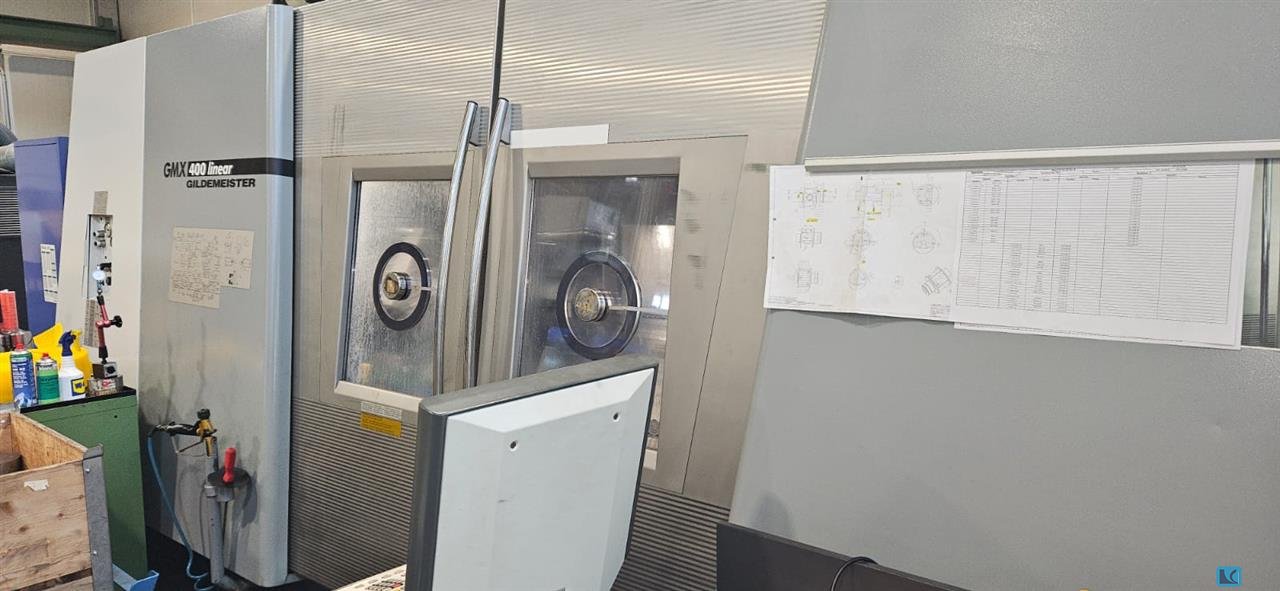

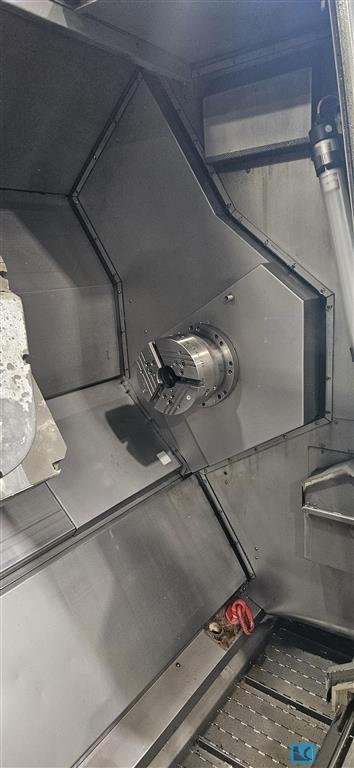

Manufacturer: Gildemeister Model: GMX 400 linear Year of Manufacture: 2007 Total Power Requirement: 100 kVA Voltage: 400 V Machine Weight: 24,000 kg Floor Space Required: 60 m2 Working Range - Centre height: 1,343 mm - Maximum turning diameter: 640 mm - Maximum turning length: 1,930 mm - Maximum turning length over bed: 550 / 180 mm - Slide travel longitudinal X1, X2: 1,585 / 1,400 / 1,500 mm - Slide travel vertical Y: plus/minus 110 mm - B-axis: plus/minus 120 degrees - Maximum circumference: 640 mm - Length of workpiece in crown area: not specified - Maximum workpiece weight: not specified Spindle Specifications - Spindle head flat flange DIN: Flachflansch - Spindle nose diameter front bearing: 220h5 mm - Spindle bore diameter: 107 mm - Spindle nose diameter: 150 mm - Max. chuck bore diameter in front bearing: 250 / 315 / 400 mm (internal taper) - Spindle speed HSP: 3,200 / 4 ...

turning diameter: 350 mm turning length: 650 mm control: 840 D SL ShopTurn Siemens greates pass round over bed: 385 mm Swing dia. over traverse guideway: 350 mm Main spindle:: turning speed range - main spindle: 0 - 4.500 min/-1 power capacity - main spindel: 11,5 / 8 kW max. Torque: 340 Nm spindle diameter in front bearing: 130 mm spindle bore: 87 mm bar material dia.: max. 65 mm max. chucking diameter: 250 mm spindle head: 170 h5 C-Axis: turret:: number of toolpositions: 12 pos. Shank diameter: DIN 69880: 30 mm Driven Tool Stations:: Number of driven toolspositions: 6 pos. Spindle speed - driven tool stations: max. 4.500 min -1 power capacity driven tool-stations: 5,5 kW axis stroke:: x-axis: 255 mm z-axis: 800 mm Tailstock:: tailstock: 680 mm taper of center: MK 4 clamping capacity: 6,8 kN feeds:: feed speeds: 0 - 30.000 mm/min rapid traverse ( X / Y / Z ): 30 / - / 30 m/min Fe ...

turning diameter: max. 400 mm turning length: 600 mm control: 840 D Siemens greates pass round over bed: 500 mm Swing dia. over traverse guideway: 300 mm centre distance: 615 mm Main spindle:: turning speed range - main spindle: 20 - 6.000 min/-1 power capacity - main spindel: 16 kW max. Torque: 155 Nm max. usable bar diameter: 65 mm spindle nose: 140H5 C-Axis: 0,001 ° Subspindel:: Spindle speed range subspindle: 20 - 6.000 min/-1 power capacity - Sub spindle: 7,5 kW max. Torque: 48 Nm spindle diameter in front bearing: 75 mm spindle bore: 37 mm max. usable bar diameter: ( - ) mm spindle nose: 140H5 C-Axis: 0,001 ° turret:: number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. Spindle speed - driven tools: max. 5.000 min -1 power capacity - driven tools: 3,7 kW max. Torque: 24 Nm tool taper: VDI 30 Tool dimensions with square shank: 20 x 20 mm axis stroke:: x-ax ...

turning diameter: 640 mm turning length: 1.185 mm control: SINUMERIK 840D swing diameter: 640 mm distance of spindle heads: 1500 mm slide I:: X1 / Y1 / Z1 / B slide travel X-axis: 550 mm slide travel Z-axis: 180 mm Z- Travel: 1.185 mm B - axis: 240 ° feed x-axis: 0 - 40.000 mm/min feed y- axis: 1 - 24.000 mm/min Feed z- axis: 1 - 70.000 mm/min feed B-axis: 1 - 20 1/min rapid traverse X/Y/Z: 40 / 24 / 70 m/min feed capacity X/Y/Z: S6: 7,00/11,00/7,50 kN tool taper: HSK 63 turning speed milling-spindle: 10 - 12.000 1/min power capacity at 100 % load: 13,20 kW power capacity at 40 % load: 22,00 kW torque milling spindle: 60 / 100 Nm tool magazin:: no. of workpieces in the magazine: 46 Stück tool length - max.: 350 / 200 mm tool diameter: 80 mm wotkpiece diameter with 2 vacant positions: 120 mm weight of tools max.: 6 / 10 kg slide II:: X2 / Z2 slide travel X-axis: 180 mm Z- Travel: 1.050 ...

diametro di tornitura: 246 mmlunghezza di tornitura: 445 mmcontrollo: Fanuc 32 potenza totale richiesta: kWpeso della macchina ca.: 4250 kgdimensioni della macchina ca.: mI dati di questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.

turning diameter: 320 mm turning length: . mm control: Siemens type: . CCUO turning diameter over slide rest: . mm cross movement: . mm spindle passage: . mm turning speeds: . U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appoin ...

turning diameter: . mm turning length: . mm control: . type: . CCUO turning diameter over slide rest: . mm cross movement: . mm spindle passage: . mm turning speeds: . U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment.  ...

Controllo CNC, controllo numerico, da GILDEMEISTER GDM 65/2AGILDEMEISTER Tipo Eltropilot EP20 GD-2ABead 1989Order: 150 299Ser. N.: 0.854.183Alimentazione: 220 VAC 50 HzRack con 20 posti moduli - 11 moduli integratiDimensioni L x A x P 480x 260 x 220 mmPeso circa 7 kgIl controllo proviene da un tornio Gildemeister GDM 42/2A. Ulteriori componenti del Gildemeister sono disponibili con i codici prodotto: 60343, 60346, 60347; usato

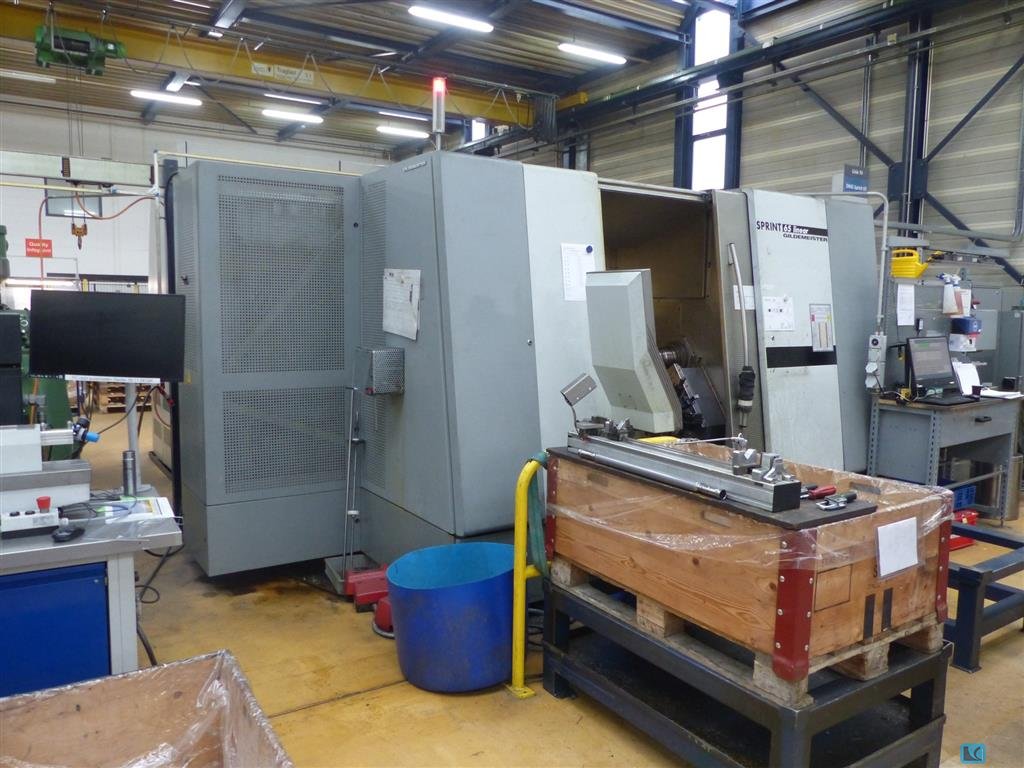

Questo Gildemeister Sprint 20-8 è stato prodotto nel 2010. Dispone di un sistema di raffreddamento con una capacità di 600 l e un filtro da 50 μm, insieme a un'opzione di pompa ad alta pressione da 8 o 20 bar. La macchina include un separatore di nebbia d'olio Bristol B270/E e un caricatore di barre IEMCA Boss 332E per 3 m di barre. Con un'altezza di scarica del truciolo di 1.250 mm, è progettato per un funzionamento efficiente. Contattaci per maggiori informazioni su questa macchina.

diametro di tornitura: 200 mm lunghezza di tornitura: 635 mm controllo: SIEMENS 840D Powerline greates pass round over bed: 250 mm gamma di velocità di tornitura del mandrino: 20-7000 U/min testa torretta: 2x 12 peso della macchina ca.: 10 t assi Y- e B- assi Accessori vari maggiori dettagli su

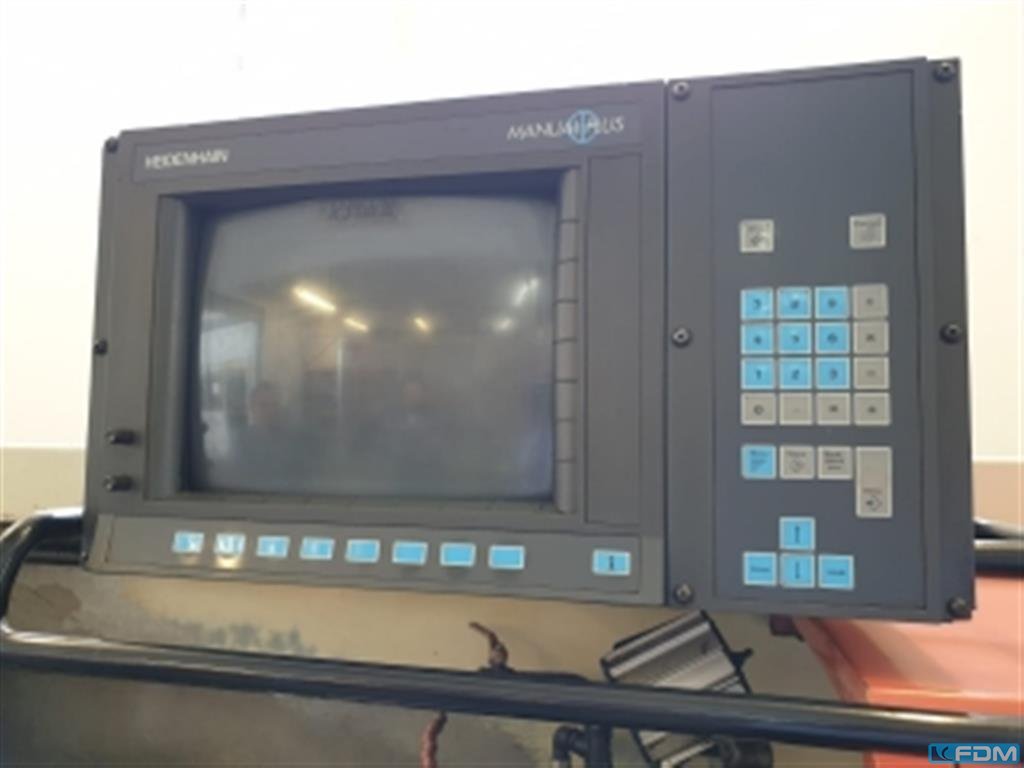

diametro di tornitura: 212 mm lunghezza di tornitura: 750 mm controllo: HEIDENHAIN Manual Plus velocità di rotazione del mandrino - continua: 10-4000 U/min testa della torretta: 8 Peso stazionario della macchina ca.: 2 t dimensioni della macchina ca.: 2,85 x 1,65 x 1,80 m

Inv. Num. : 9089 Tipo: CT 40/1000 Produttore: Gildemeister Creato: 1991 Parametri: Lunghezza massima di rotazione: 1000 mm Diametro massimo di rotazione sul letto: 400 mm Diametro massimo di rotazione sopra il supporto: 225 mm Diametro del mandrino: 56 mm Peso: 3200 kg Attrezzatura: Nizzolo trasportatore a trucioli Retro Pezzi di ricambio Pala Utensili elettrici

Controllo Fanuc Diametro di tornitura ... 380 millimetri Asse X ... 151 millimetri Asse Z ... 339 millimetri Diametro circonferenziale tramite supporto ... 290 millimetri Velocità del mandrino ... 20-6000 giri/min. Peso della macchina ... 4200kg Potenza del motore principale ... 7,5kW L x P x A ... 2885/3865x1720x1670mm La macchina è in buone condizioni, possibile da testare sotto tensione.

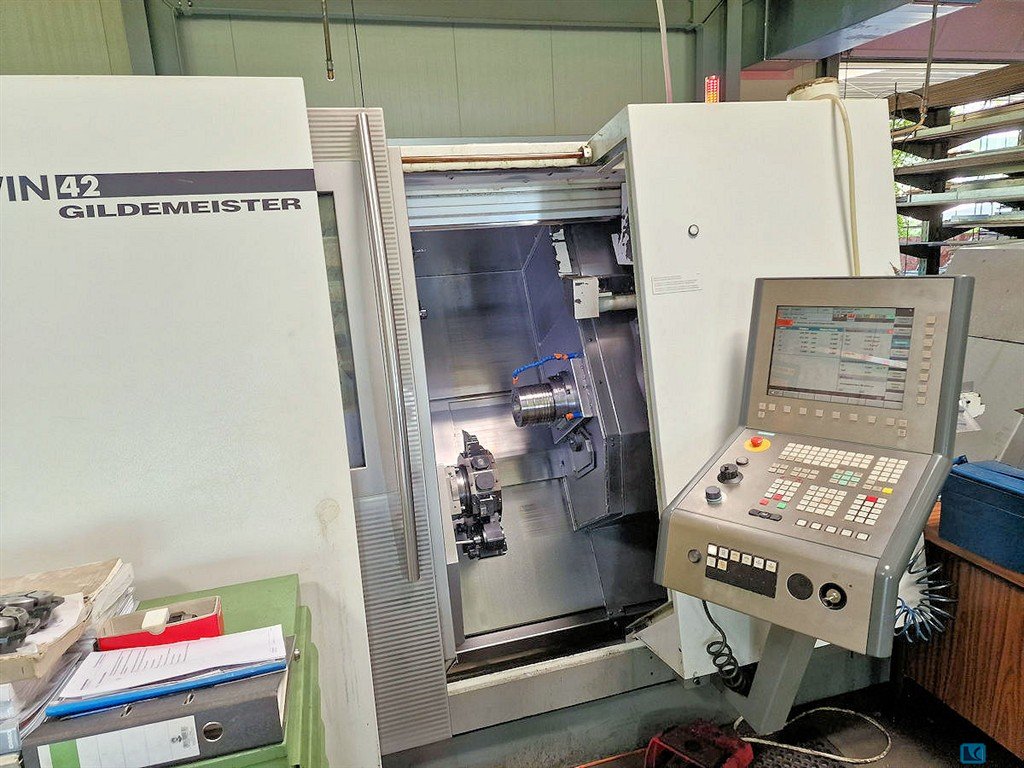

Numero Inv. : 8232 Tipo: Twin 42 Produttore: Gildemeister Creato: 2002 Parametri: Sistema di controllo: Siemens Sinumerik Ore di accensione: 80654 h Ore: 33758 h Lunghezza massima di tornitura: 650 mm Diametro massimo di tornitura sul letto: 250 mm Diametro massimo di tornitura sul supporto: 120 mm Lunghezza massima della corsa nell'asse X: 300 mm Lunghezza massima della corsa dell'asse Z: 650 mm Velocità massima del mandrino: 7000 1/min Lunghezza: 4770 mm Larghezza: 2220 mm Altezza: 1950 mm Peso: 5500 kg Attrezzatura: Utensili motorizzati Caricatore di barre

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...
