16 GLEASON macchina utilizzata in vendita

Diametro massimo di lavoro 660,4 mm Modulo max 16,9 Larghezza di lavoro 106,7 mm Min. max no. Numero di denti 20 - 75 Peso macchina 17700 Kg Dotate Dischi di indicizzazione Teste di taglio Misuratore Dispositivo di regolazione della lama

Distanza massima del cono: 230 mm Numero di denti: 5-150 Diametro del foro conico all'estremità larga: 100 mm Conicità: 1:19,7 Profondità della conicità: 150 mm Diametro del foro attraverso il mandrino: 78 mm Diametro del naso del mandrino: 140 mm Offset massimo sopra il centro: 114 mm Offset massimo sotto il centro: 114 mm Distanza massima dal centro della macchina al naso del mandrino: 343 mm Distanza minima dal centro della macchina al naso del mandrino: 63 mm Velocità della fresa: 17-115 giri/min Avanzamento (sec/dente): 9-80 sec Superficie: 1900x2900 mm Peso netto: 10750 kg

CAMBIO MARCIA

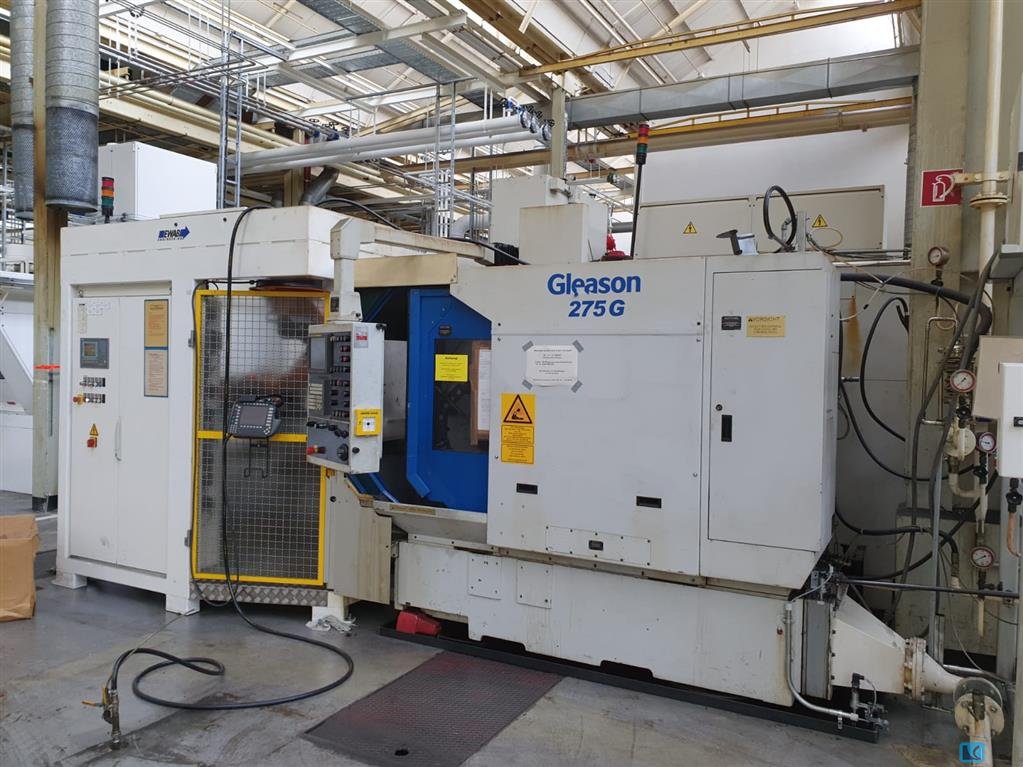

max. wheel diameter:275 mm gear width: mm max. module: weight of the machine ca.:9,4 t dimensions of the machine ca.:3,7 x 3 x 2,82 m min. number of teeth:5 max. number of teeth:2000 range of tooth size:20 mm max. gear width (internal machining):58 mm X-axis:325 mm y-axis:350 mm Z-axis:475 mm Bevel gear milling machine Gleason Pfauter including Promot Automation

max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5

max. wheel diameter: 406,4 mm gear width: 66 mm max. module: ca. 12,5 min. module: Control: Zyklengesteuert total power requirement: 21 kW weight of the machine ca.: 12,5 t dimensions of the machine ca.: 3,3 x 2,5 m The GLEASON 641 G-PLETE bevel gear generating machine is a proven and robust solution for the production of spiral bevel gears, hypoid gears, and Zerol bevel gears usingthe well-established Gleason generating method. Designed for reliable and repeatable machining processes, this machine is ideally suited for small to medium batch production in industrial gear manufacturing. The 641 supports both roughing and finishing operations in a single setup (completing process), ensuring consistent gear quality while reducing handling time. Its mechanical generating system with variable roll ratio and plunge feedmechanism allows precise control of the tooth geometry, making it a depend ...

max. wheel diameter: 762 mm gear width: 116,84 mm max. module: min. module: total power requirement: 145 kW weight of the machine ca.: 27 t dimensions of the machine ca.: 5,5 x 5,3 x 3,4 m With the GLEASON Phoenix® 800HG bevel gear grinding machine, manufacturers of spiral, hypoid, and other bevel gears for large components can significantly increase their productivity. The machine enables faster grinding processes while maintaining the highest accuracy and excellent repeatability. Its extremely robust machine design forms the basis for stable machining processes, even for large workpiece diameters of up to 762 mm. Combined with a powerful FANUC CNC control system, the 800HG offers maximum flexibility for a wide range of gear geometries—from spiral and hypoid bevel gears to special forms. Thanks to its well-thought-out machine concept, the Phoenix® 800HG allows for reduced setup ti ...

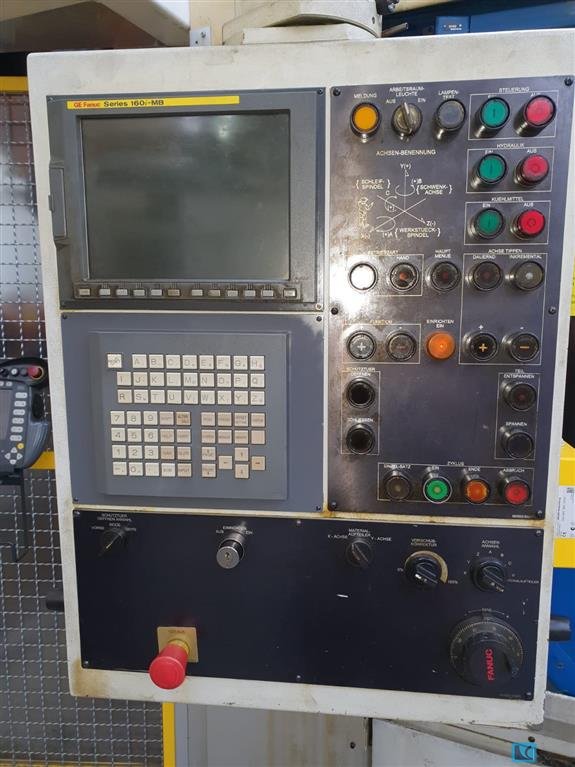

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm diameter of tools min: 69,85 mm tooth width max.: 58 mm diameter of tools max.: 230 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm work piece table - Ø: 212,71 mm b-axis: + 90,1 / - 1 ° Control: 160 i - MB FANUC total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m WAGURI With EWAB robot cell (KUKA robot) without coolant filter system Fire extinguishing system without CO2 bottles Cooling oil return with various pumps / collecting basins Threading device A1/B2 axes with measuring probe Clamping device for a pinion shaft External spindle oil cooler Extraction system pinion shaft The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm tooth width max.: 58 mm diameter of tools min: 69,85 mm diameter of tools max.: 230 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm work piece table - Ø: 212,71 mm b-axis: + 90,1 / - 1 ° Control: SIN 840 D SIEMENS total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m WAGURI with EWAB load cell built in 2012 (Linear loader) no coolant filter system available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

weight of the machine ca.: 7.800 kg dimensions of the machine ca.: 3.380 x 3950 x 3015 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm tooth width max.: 58 mm spindle speeds (infinitely variable): 6000 U/min work piece spindle speed: 1200 U/min diameter of tools max.: 230 mm diameter of tools min: 69,85 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm b-axis: + 90,1 / - 1 ° work piece table - Ø: 212,71 mm Control: SIN 840 D SIEMENS total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m Internal probe Renishaw LP2 (axis X2,Y2) Hoffmann coolant filter system HSF 100SE/K (built in 2008) Tank capacity 2500L VT oil mist filter system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

È disponibile una macchina per la prova di rotolamento di ingranaggi conici Gleason. Diametro del pezzo: 330 mm, interasse massimo: 203 mm, intervallo di distanza del naso del mandrino del driver: 100 mm-250 mm, intervallo di offset massimo superiore/inferiore: 203 mm/50 mm, foro del mandrino del driver: 99 mm, conicità del mandrino del driver per metro: 15,5 mm/m, foro del contromandrino: 58 mm, conicità del contromandrino per metro: 12,7 mm/m, velocità del mandrino: 1500 giri/min, intervallo dell'angolo di prova: 0-180, ripetibilità del mandrino del driver: +/- 0,004 mm, eccentricità: +/- 0,003 mm, dimensioni della macchina X/Y: circa 1550 mm/2050 mm, peso: circa 2400 kg. È possibile un'ispezione in loco.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm tooth width max.: 58 mm spindle speeds (infinitely variable): 6000 U/min work piece spindle speed: 1200 U/min diameter of tools max.: 230 mm diameter of tools min: 69,85 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm b-axis: + 90,1 / - 1 ° work piece table - Ø: 212,71 mm Control: SIN 840 D SIEMENS total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m coolant filtering unit Hoffmann HSF 100 V The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1010 mm gear width: 0 mm max. module: min. module: total power requirement: 15 kW weight of the machine ca.: 9,5 t dimensions of the machine ca.: m Max. depth of tooth 10 mm Max. workpiece Ø (for clearance) 1,010 mm Max. external Ø of coupling 610 mm Sliding base withdraw 216 mm Max. distance from grinding wheel to workpiece nose 90 - 430 mm Max. weight of workpiece, including clamp 500 kg No. of teeth 32 to 150 Grinding wheel Ø, approx 152 - 320 mm Grinding wheel speeds, infinitely variable 0 - 3,600 rpm Work spindle bore 60 mm Total electrical load, approx. 15 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features Automatic roughing and finishing process via pre-settable counter and built-in feed cam. Counter for number of teeth. Counter for number of dressing cycles. 2 built-on dressing units with three dressing diamonds for radiu ...

max. wheel diameter: 215 mm gear width: 40,65 mm max. module: total power requirement: 20 kW weight of the machine ca.: 10 t Max. external Ø of workpiece 215 mm Tooth profile, height x width 16 x 40.65 mm No. of teeth 5 - 200 Max. tooth ratio 1 : 10 Grinding wheel Ø 51 - 190 mm Grinding wheel speeds 1,000 - 6,000 rpm X Axis (horizontal) 152 mm Y Axis (vertical) 178 mm Z Axis (slide base plate) 304 mm Distance from middle of machine to middle of workspindle 115 mm Axial speed 125 mm/sec Workpiece speeds 0 - 30 rpm Workspindle bore, conical 3 29/32 inch Total electrical load 20 kW - 380 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters. Extensive coolant equipment with filter system, band filter, etc. Driv ...

In vendita una palatrice usata di un Gleason Genesis 130 H
