6 IMS macchina utilizzata in vendita

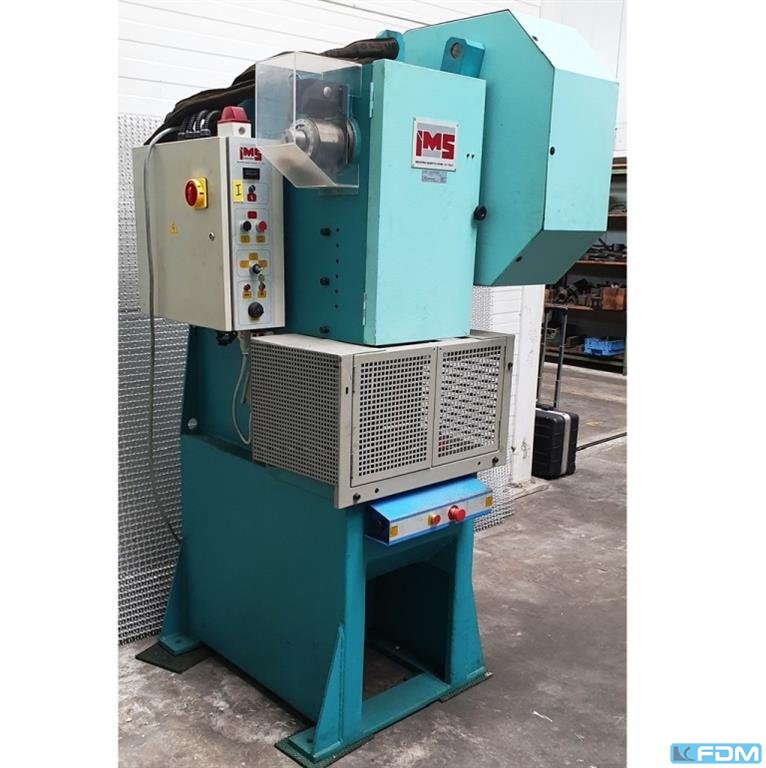

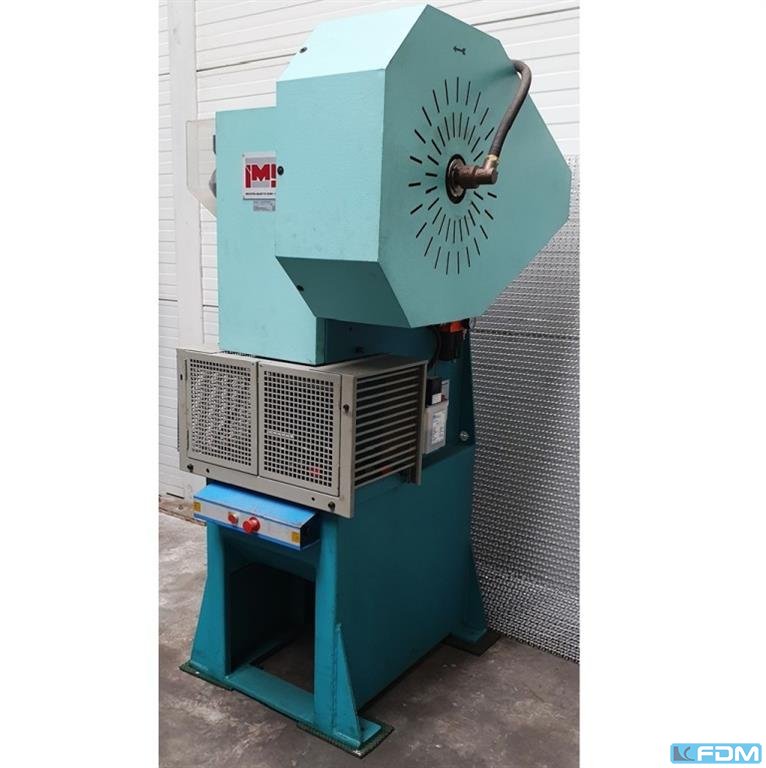

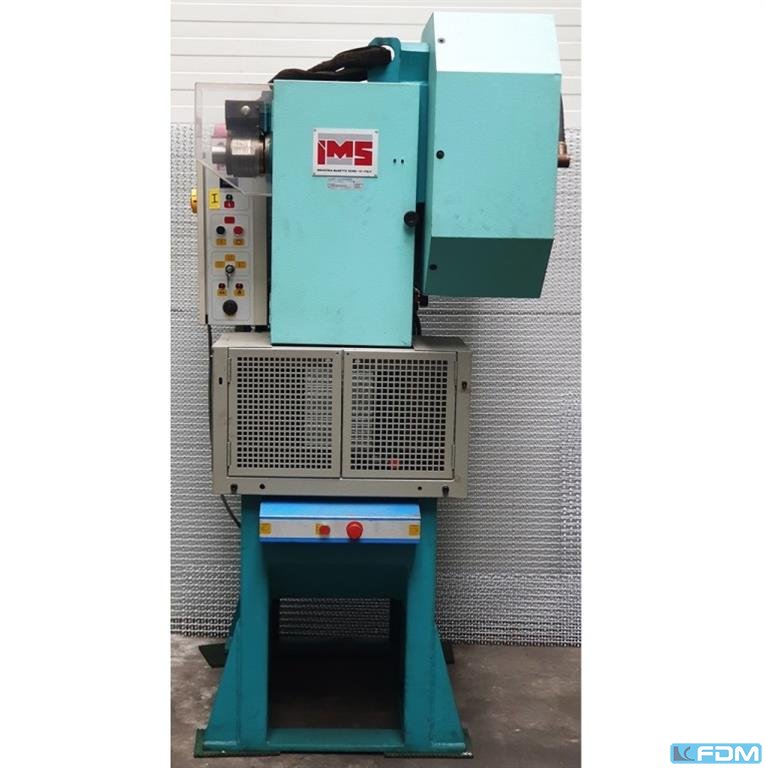

Pressure:040 t throat:180 mm stroke:0 - 76 mm no. of strokes:145 /min distance table/ram, max. stroke up, adjustment up:350 mm table surface area:600 x 360 mm hole in the table:110 mm table height over floor:800 mm ram surface:270 x 175 mm ram adjustment:65 mm power capacity:2,2 kW weight:1,75 t Dimensions (WxDxH):1,1 x 1,2 x 2,1 m German Safety: permitted for manual loading:CE-sign clutch:pneumatic

PRESS DESIGN   drive system: eccentric / crank PRESS FORCES   total force (nominal): 50 to PRESS TABLE   table surface (left-right): 700 mm   table surface (front-back): 450 mm SLIDE   table surface (left-right): 440 mm   table surface (front-back): 360 mm   spigot hole diameter: 40 mm   stroke: 90 mm   stroke rate (max.): 70 /min SLIDE (MECHAN. PRESS)   slide adjustment: 70 mm   stroke min.: 0 mm   stroke max.: 90 mm   main drive power: 3 kW TOOL ASSEMBLY DIMENSIONS   shut height (stroke down, adjustment up), BDC: 300 mm DIMENSIONS / WEIGHTS   space requirements -left/right-: 700 mm   space requirements -front/back-: 1295 mm   total height: 2360 mm   total weight approx.: 3000 kg

Numero di serie.: 1704 Capacità di punzonatura: Ø 28 x 16 Disponibile con utensili speciali: Ø 100 x 4 Anno di costruzione: 1997 Paese di origine: Italia

Numero Inv. : 8437 Tipo: 50-VE Produttore: IMS Creato: 2002 Parametri: Forza di compressione: 50 t Frequenza massima di corse al minuto: 145 1/min Corsa: 80 mm Regolazione del pistone: 75 mm Peso della macchina: 2300 kg

Forza di compressione max.: 55 kN Proiezione: 175 mm Corsa di punzonatura regolabile: 0 - 28 mm Numero di corse con corsa 15 mm: 30 Corsa della tacca regolabile: 0 - 60 mm Azionamento idraulico: 380 V, 3 kW Spazio necessario: 1170 x 620 x 1470 mm Peso: 930 kg

PRESS DESIGN   drive system: eccentric / crank PRESS FORCES   total force (nominal): 80 to PRESS TABLE   table surface (left-right): 850 mm   table surface (front-back): 550 mm SLIDE   table surface (left-right): 560 mm   table surface (front-back): 376 mm   spigot hole diameter: 50 mm   stroke: 110 mm   stroke rate (max.): 60 /min SLIDE (MECHAN. PRESS)   slide adjustment: 80 mm   stroke min.: 0 mm   stroke max.: 110 mm TOOL ASSEMBLY DIMENSIONS   shut height (stroke down, adjustment up), BDC: 360 mm DIMENSIONS / WEIGHTS   space requirements -left/right-: 855 mm   space requirements -front/back-: 1635 mm   total height: 2640 mm   total weight approx.: 5400 kg ATTACHMENTS (PRESSES)   2-hand engagement: yes   foot engagement: optional   European CE standards: yes
