Fresatrici a tavola rotonda (93)

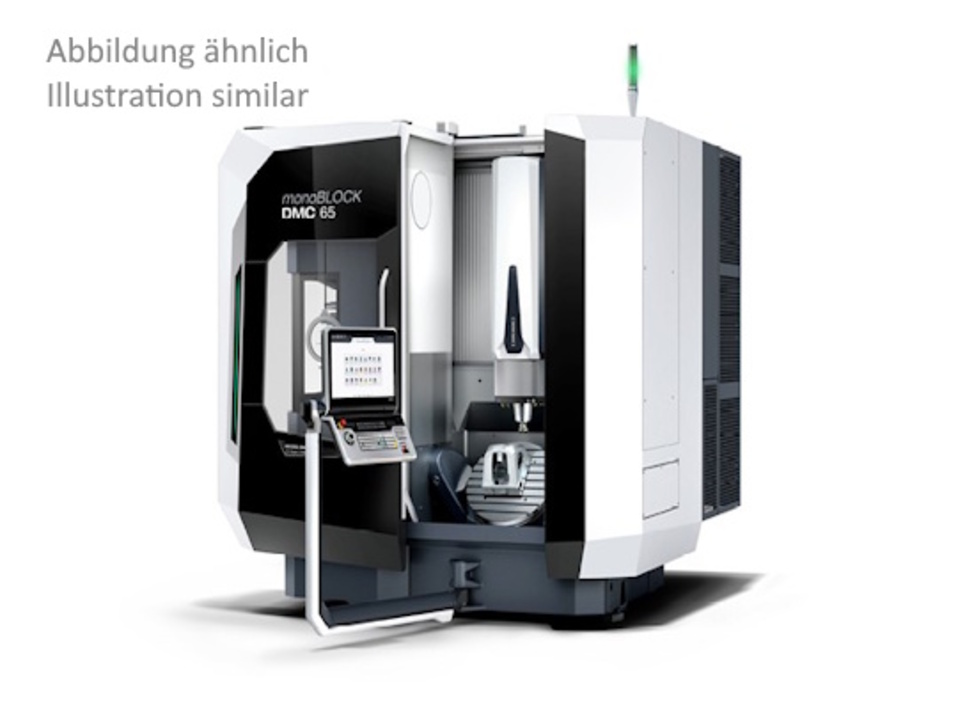

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools90 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.12400 KgNC swivel rotary table integrated in rigid tableType of Measuring system Direct measuring system Table surface 800 x 650 (Ø 650) mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 9 Distance between T-Slots 63 mmRotation speed max.4. Axis 40 rpm4. Axes (swivelling range) 360 x 0,001 degree5. Axes (swivelli ...

GeneralUniversal Machining Centre in monoBLOCK construction - MPC Machine Protection Control; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal750 mmCross650 mmVertical560 mmTechnical DataDrive power (100% DC)25 kWDrive power (40% DC)35 kWTorque (100% DC)86 NmTorque (40% DC)130 NmSpeed range- 20000 rpmSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmMiscellaneousClamping SystemHSK-A 63 Floor space/WeightWeight approx.12300 KgNC swivel rotary tableTable surface 800 x 650 (Ø 650) mmCentre bore 50h6 mmMaximum load (table centre) 600 KgSlot width 14 mm4. Axes ( ...

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.14500 KgMotor spindle 20,000 rpmMotor spindle speedMASTER® SK 40 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle) Tool magazine, chain vert., 60 pocketsTool magazine Vertical chain magazine basic with 60 magazine pockets SK 40 or optionally chosen spindle ta ...

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.14500 KgNC swivel rotary table integrated in rigid tableType of Measuring system Direct measuring system Table surface 800 x 650 (Ø 650) mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 9 Distance between T-Slots 63 mmRotation speed max.4. Axis 40 rpm4. Axes (swivelling range) 360 x 0,001 degree5. Axes (swivelli ...

GeneralUniversal machining centre; Control: Siemens 840D-Powerline ShopMill Classic Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal1250 mmCross1000 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 63 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machining Prod. package 40 bar/23 l/minProduction package 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) tank 900 l, rotating clear-view window, scraper flight conveyor coolant through spindle centre form AD NC rotary table with pallet changerType of Measuring system Direct measuring system Table surface 1000 x 800 mmCentre bore 50H6 mmMaximu ...

GeneralUniversal machining centre; Control: Siemens 840D-Powerline ShopMill Classic Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal1250 mmCross1000 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 100 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machining Prod. package 40 bar/23 l/minCoolant through spindle centre form AD 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) clear-view rotating window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar / 90 psi) (6 water jets, 4 air jets) pump NC rotary table with pallet changerType of Measuring system Direct meas ...

GeneralUniversal machining centre; Control: Siemens 840D-Powerline ShopMill Classic Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal1250 mmCross1000 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 63 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machining Prod. package 40 bar/23 l/minCoolant through spindle centre form AD 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) clear-view rotating window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar / 90 psi) (6 water jets, 4 air jets) pump NC rotary table with pallet changerType of Measuring system Direct measu ...

GeneralUniversal machining centre; Control: 3D Control Siemens 840D powerline Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal1250 mmCross1000 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 100 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machining Prod. package 40 bar/23 l/minCoolant through spindle centre form AD 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) clear-view rotating window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar / 90 psi) (6 water jets, 4 air jets) pump NC rotary table with pallet changerType of Measuring system Direct measuring  ...

GeneralUniversal Machining Centre Vertical headstock Tool change system double gripper NC-Swivel rotary table with pallet carrier 3 pallets 500 mm x 500 mm / 19.7 in x 19.7 in T-slots according to DIN 55201-A2 linear pallet changer coolant tank 500 l / 132 gallon chip conveyor with netting band filter integrated, coolant ring jet; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmFloor space/WeightWeight approx.18300 KgDirect measuring systemDirect path measuring system CabineFull protection cabin NC swivel rotary table with pallet carrierTable surface 500 x 500 mmCentre bore 50 mmMaximum load (table centre) 500 KgSlot width 14 mmNumber of Slots 5 Distance between T-Slots 100 mm4. Axes (swivel ...

GeneralUniversal Machining Centre Vertical headstock Tool change system double gripper NC-Swivel rotary table with pallet carrier 3 pallets 500 mm x 500 mm / 19.7 in x 19.7 in T-slots according to DIN 55201-A2 linear pallet changer coolant tank 500 l / 132 gallon chip conveyor with netting band filter integrated, coolant ring jet; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmFloor space/WeightWeight approx.17800 KgDirect measuring systemDirect path measuring system CabineFull protection cabin Package Mill / Turn HSK-A 63Package Milling / Turning: Upgrade NC-swivel rotary table to Milling - Turning / direct drive Pallet C-axis d 630 mm / 24.9 in Speed C-axis 1.000 rpm Integrated balancing ...

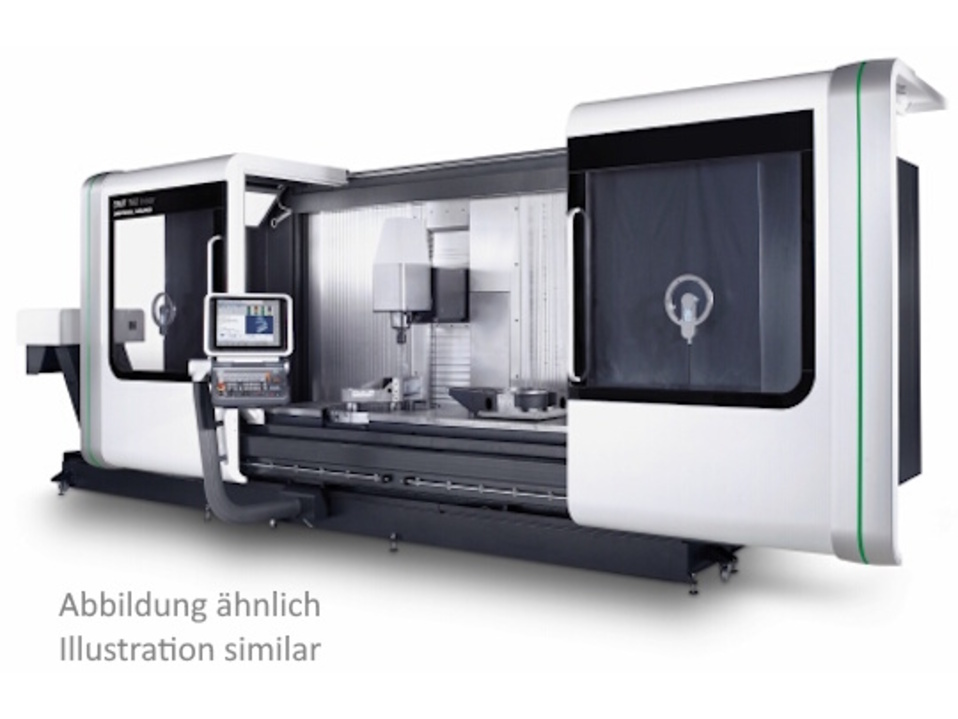

GeneralTraveling column machine DMG MORI Design; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal1800 mmCross700 mmVertical700 mmTool changerType of magazineChain Number of tools30 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightDimensions (L x W x H)6,75 x 3,45 x 2,75 mWeight approx.14320 KgMiscellaneousClamping SystemDIN 69872 NC-swivel head (B-axis)Controlled NC-swivel milling head (B-axis) with clamping in position. Continuously positioning NC swivel milling head with integrated motor spindle for 4/5 axes positioning and simultaneous machining. Swivel range: +/- 90° Swivel speed: 40 rpm Fixed tableFixed Table ...

GeneralUniversal machining centre New DMG MORI Design; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical50/50/50 m/minWorking area 1Longitudinal400 mmCross400 mmVertical375 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools60 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightDimensions (L x W x H)6,21 x 6,58 x 2,69 (6,21 x 7,38 x 2,69) mWeight approx.7200 KgDie and Mold Package linearDie and Mold Package linear Dynamic package V-type Eagle timing belt for Z axis Package Mill / TurnPackage Mill / Turn (only available for Siemens 840D solutionline) NC-Mill-turn table 450x450 mm / 17.7x17.7 in rounded down to d460 mm / 18.1  ...

GeneralUniversal milling machine with duoblock construction; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal800 mmCross1050 mmVertical850 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minTool changerApplicationUniversal Type of magazineWheel Tool changer planehorizontal Type of gripperDouble gripper Number of tools123 Coolant supply ICSCoolant supply: coolant through spindle centre form AD 40 bar/23 l/min(theoretical pump performance) rotating clear-view window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar, 6 water jets, 4 air jets) pump output (theoretic Chip removalChip removal: 2 worm conveyors in the machine bed convey into a chip conveyor (scraper flight conveyor), with interval control, placed at right angles. discharge height: 950 m ...

GeneralUniversal machining centre; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal1000 mmCross1250 mmVertical1000 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minChip removalChip removal: 2 worm conveyors in the machine bed convey into a chip conveyor (scraper flight conveyor), with interval control, placed at right angles. discharge height: 950 mm / 37.4 in width: 380 mm / 14.9 in NC rotary table with pallet changerType of Measuring system Direct measuring system Table surface 1000 x 800 mmCentre bore 50H6 mmMaximum load (table centre) 2000 KgSlot width 18 mmNumber of Slots 7 Distance between T-Slots 100 mmRotation speed max.4. Axis 35 rpm4. Axes (swivelling range) 360 x 0,001 degreeCabineFull protection cabin Uni. head with controlled B-axisUniversal milling head with ...

General2-Axes Universal Turning Center with driven tools, C-axis; Control: DMG MORI Slimline Fanuc i Series Working areaSwing diameter over guide ways700 mmClamping chuck diameter max.315 mmWork spindle (left)Spindle bore91 mmBar diametre80 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)17 kWDrive power (40% DC)25,5 kWSpeed range- 4000 rpmTorque (100% DC)283 NmMax. torque (40% DC)426 NmC-Axis Speed-200 rpmSlide 1Longitudinal stroke830 mmTransverse stroke271 mmTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)5,44 kWFloor space/WeightDimensions (L x W x H)3,26 x 2,44 x 1,95 (4,3 x 2,44 x 1,95) mWeight approx.6500 KgPre-setting PackagePre-setting package: Option includes: - tool pre-setting probe MARPOSS - chip conveyor with right side discharge instead of chip tank  ...

General2-Axes Universal Turning Center with driven tools, C-axis, Y-axis and counter spindle - Direct measuring system for X / Y axis; Control: DMG MORI SLIMline® 0i-F Plus on Fanuc Touch CNC Working areaSwing diameter over guide ways700 mmSwing diameter over transverse guideway370 mmTurning diameter400 mmBar diameter max.80 mmSlide 1Longitudinal stroke755 mmTransverse stroke276 mmY axis, vertical+/- 60 mmRapid traverse in X30 m/minRapid traverse in Z30 m/minRapid traverse in Y22,5 m/minMain drive 1Drive power (100% DC)17 kWDrive power (40% DC)25,5 kWSpeed range - 4000 rpmTorque (100% DC)283 NmMax. torque (40% DC)426 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)426 NmWork spindle (left)Spindle noseA2-8 Bar diametre80 mmSpindle diametre on front bearing130 mmMain drive 2Drive power (100% DC)13 kWDrive power (40% DC)14 kWSpeed range- 5000 rpmTorque (100% DC)171 NmMax. torque (4 ...

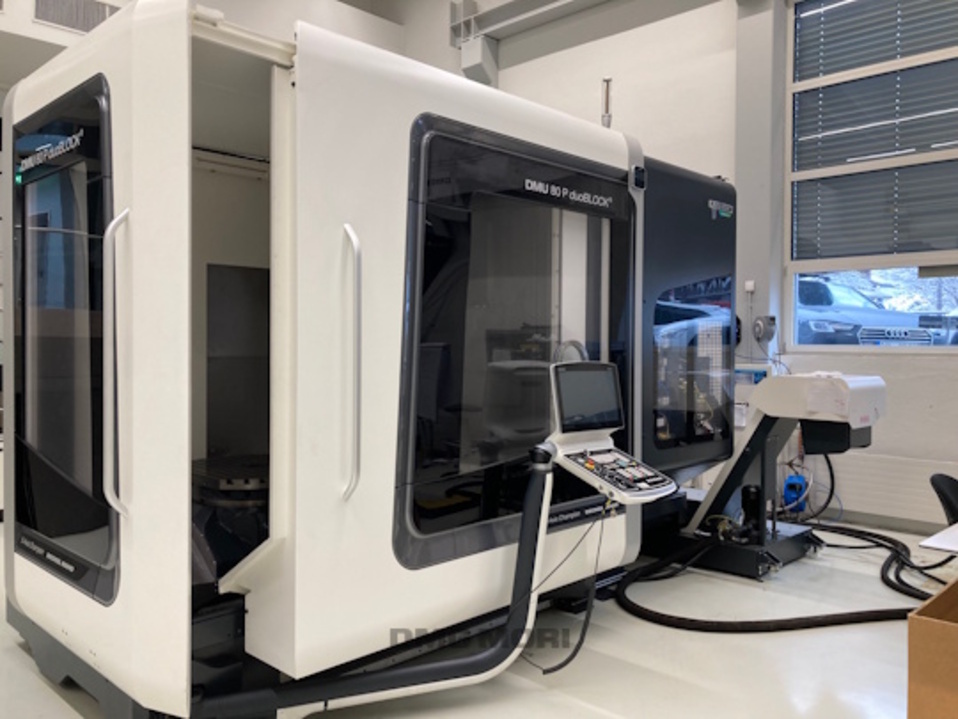

GeneralUniversal milling and turning machining centre with duoBLOCK construction; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal800 mmCross1050 mmVertical850 mmTool changerApplicationUniversal Type of magazineWheel Tool changer planehorizontal Type of gripperDouble gripper Number of tools123 Uni milling head with controlled B axis HSK-A 63Universal milling head with controlled B axis HSK-A 63 Continuously positioning universal milling head (B axis) with integrated motor spindle for 5 axes positioning and simultaneous machining NC mill-turn table with palletNC mill-turn table with pallet number of T-slots: - 1x cross slot 14 H7 / 0.55 H7 - 12x star slots 14 H11 / 0.55 H11 / 22.5° max. table speed milling operation: 30 rpm turni ...

GeneralHorizontal universal machining center; Control: CELOS X with Siemens SINUMERIK ONE Working area 1Longitudinal650 mmCross700 mmVertical950 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minCabineFull protection cabin Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSK Stop block + 3-point-supportStop block + 3-point-support Design according to DECKEL MAHO Standard Package Mill / Turn HSK-A 63Package Milling / Turning: Upgrade NC-swivel rotary table to Milling - Turning / direct drive Table plate C-axis d 680 mm / 26.8 in Speed C-axis max. 1.200 min-1 Integrated balancing sensor Motor spindle speedMASTER® HSK-A63 Spindle speed 20 - 20,000 m Kinematics axis A / C for swivel rotary tableAxis kinematics A/C for swivel rotary table Axis designation swive ...

GeneralCNC Turning Centre; Control: Control M730UM with CELOS CharacteristicsMax machining diameter356 mmMax. Turning Length705 mmSpindle bore111 mmBar diameter max.80 mmSpeed max.4000 rpmNumber of tool stations12 Rotary tool spindle speed10000 rpmMovements X / Z260/795 mmRapid feed X / Z30/30 m/minDrive power main spindle18,5/15 kWDimensions (L x W x H)3,35 x 2,11 x 2,2 (3,99 x 2,11 x 2,2) mWeight approx.6360 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 " ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and p (Spindle 1) Standard spindle 18.5/18.5/15 kW, 4,000min-1(Spindle 1) Standard Spindle 18.5/18.5/15 kW, 4,000 min-1 Max. spindle speed: 4,000 min-1 Chuck size: 10 inch., 12 inch. (8 inch. also for the 2 ...

General2-Axes Universal Turning Center with driven tools, C-axis and Y-axis - Direct measuring system for X / Y axis; Control: DMG MORI SLIMline® Multi-Touch control Working areaSwing diameter over guide ways580 mmClamping chuck diameter max.250 mmWork spindle (left)Spindle bore73 mmBar diametre65 mmSpindle diametre on front bearing120 mmMain drive 1Drive power (100% DC)11 kWDrive power (40% DC)16,5 kWSpeed range- 5000 rpmTorque (100% DC)112 NmMax. torque (40% DC)168 NmC-Axis Speed-100 rpmTorque of C-Axis (holding torque)168 NmSlide 1Longitudinal stroke540 mmTransverse stroke242 mmY axis, vertical+/- 40 mmTool holder 1Number of tool stations12 Shank diametre according to DIN 6988030 mmNumber of driven tools12 Speed max.-5000 rpmPower max. (40% DC)5,65 kWFloor space/WeightDimensions (L x W x H)2,8 x 2,3 x 1,85 (3,95 x 2,3 x 1,85) m mWeight approx.4400 KgAlternative Speed TurningTechnolo ...

GeneralCTX beta 1250 4A Two spindle turning centre with - partial hollow clamping device for main spindle and counter spindle internal diameter of draw tube Ø67 mm (2.63 in) x 700 mm (27.55 in) deep - 2 C-axes and spindle brakes (hydr.) - 2 12 fold Sauter star turrets reception VDI 40, DIN 69880-40 with precision interface (Trifix) and tool drive connection/drive acc. DIN 5480 - Y-axis, slide I - counter spindle slide; Control: CELOS X with Siemens 840D SL Operate Headstock, leftClamping chuck Ø315 mmSpindle nose diameter170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmDrive power (100% DC)25 kWTorque (100% DC)280 NmSpeed range0-5000 rpmC-Axis Speed2000 rpmHeadstock, rightClamping chuck Ø315 mmSpindle nose diameter170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmDrive power (100% DC)25 kWTorque (100% DC)280 NmC-Axis Speed2000 rpmSlide 1Lo ...

General- partial hollow clamping device (hydraulic), - C-axis and spindle brake (hydr.) - upper compound slide with turning-/ milling spindle, with hydraulic locking reception HSK-A63, DIN 69893 - Y-axis ±210 mm - B-axis ±120º interpolating, Torque motor - tool magazine 36-fold disc magazine, ergonomic front load - absolute, direct measuring systems in X-, Y-, Z1-axis - cooling pump 6 bar;20 l/min, - USB-interface, Ethernet-interface; Control: CELOS X with Siemens 840D SL Operate Working areaSwing diameter over guide ways700 mmTurning diameter700 mmDistance between spindles3360 mmClamping chuck diameter max.630 mmBar diameter max.125 mmMain drive 1Drive power (100% DC)40 kWDrive power (40% DC)52 kWSpeed range- 2500 rpmTorque (100% DC)1700 NmMax. torque (40% DC)2200 NmC-Axis Speed2500 rpmTorque of C-Axis (holding torque)1700 NmTurning-milling spindleSpindle taperHSK-A 63 ...

GeneralCNC Turning Centre with C axis and tool drive; Control: CNC control SIEMENS 840D ERGOLine Working areaSwing diameter over guide ways700 mmTurning diameter410 mmTransverse stroke300 mmLongitudinal stroke800 mmMax. Turning Length800 mmClamping chuck diameter max.250 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWSpeed range25 - 5000 rpmTorque (100% DC)280 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)225 NmAccuracy at point stopping0,01 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)11,3 kWFloor space/WeightDimensions (L x W x H)4,17 x 2,69 x 1,99 mWeight approx.6500 KgChuck rinsing device, outsidechuck rinsing device, outside (m ...

GeneralUniversal turning-/milling center; Control: SLIMline® Control SIEMENS 840D sl, w/o CELOS Working areaSwing diameter over guide ways500 mmTurning diameter400 mmMax. Turning Length1100 mmBar diameter max.65 mmWork spindle (left)Spindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)14 kWDrive power (40% DC)17 kWSpeed range- 5000 rpmBench speed485 rpmTorque (100% DC)275 NmMax. torque (40% DC)345 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 Spindle speed-12000 rpmDrive power (100% DC)8,8 kWDrive power (40% DC)10,5 kWTorque (100% DC)73 NmTorque (40% DC)90 Nmlocking moment850 NmSwivelling range+/- 120 degreeTool magazineType of magazineChain Number of tools60 Max. tool diameter78 mmMax. tool-Ø with free adjacent pockets125 mmFloor space/WeightDimensions (L x W x H)5,19 x 2,11 x 2,47 mWeight approx.11200 KgBASICBasic, consisting of: - Basi ...

General2-axes universal turning center with driven tools and C-axis; Control: Control SIEMENS SINUMERIK ONE Working areaSwing diameter over bed650 mmSwing diameter over X linear guideways520 mmMax machining diameter460 mmClamping chuck Ø254 mmX travel300 mmZ travel730 mmMain drive 1Type of main driveAC Drive power (100% DC)15 kWDrive power (40% DC)19,5 kWSpeed range-3500 rpmTorque (100% DC)246 NmMax. torque (40% DC)319 NmWork spindleSpindle noseA2-8 Spindle diametre on front bearing140 mmSpindle bore91 mmBar diameter max.80 mmTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.4000 rpmPower max. (40% DC)5,44 kWSignal lamp with 4 colours standardSignal lamp with 4 colours Red: general error Yellow: intervention necessary Green: automatic mode Blue: setup mode

General2-axes universal turning center with driven tools and C-axis; Control: Control SIEMENS SINUMERIK ONE Working areaSwing diameter over bed550 mmSwing diameter over X linear guideways320 mmMax machining diameter300 mmClamping chuck Ø210 mmX travel232,5 mmZ travel410 mmMain drive 1Type of main driveAC Drive power (100% DC)9 kWDrive power (40% DC)11,7 kWSpeed range-4500 rpmTorque (100% DC)108 NmMax. torque (40% DC)140,4 NmWork spindleSpindle noseA2-6 Spindle diametre on front bearing120 mmSpindle bore73 mmBar diameter max.65 mmTool holder 1Number of tool stations12 Number of driven tools12 Speed max.5500 rpmPower max. (40% DC)5,44 kWTropical PackageTropenpaket für Maschine Option beinhaltet: - aktives Kühlaggregat für Schaltschrank - zusätzlicher Ventilator im Bedienpult Empfohlen ab 35°C bis max. 40°C Umgebungstemperatur. Mechanical oil mist extractor type AFS 600Mechanical oi ...

GeneralUniversal Milling Centre; Control: DMG MORI SLIMline® Multi-Touch control Working area 1Longitudinal750 mmCross600 mmVertical520 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightWeight approx.8000 KgSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only! Type of Measuring system Direct measuring system Table surface Ø 800 x 620 mmMaximum load (table centre) 350 KgSlot width 14 mmNumber of Slots 9 Distance between T-Slots 63 mm4. Axes (swivelling range) 360 x 0,001 degree5. Axes (swivelling range) -10/+95 x 0,001 degreeMode for positioning only Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Pur ...

GeneralUniversal Milling Centre; Control: DMG MORI SLIMline® Multi-Touch control Working area 1Longitudinal750 mmCross600 mmVertical520 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightWeight approx.8000 KgSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only! Type of Measuring system Direct measuring system Table surface Ø 800 x 620 mmMaximum load (table centre) 350 KgSlot width 14 mmNumber of Slots 9 Distance between T-Slots 63 mm4. Axes (swivelling range) 360 x 0,001 degree5. Axes (swivelling range) -10/+95 x 0,001 degreeMode for positioning only Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Pur ...

GeneralUniversal milling machine, with compound Guideway construction; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal500 mmCross450 mmVertical400 mmTechnical DataType of main driveAC Drive power (100% DC)14,5 kWDrive power (40% DC)20,3 kWSpeed range20 - 14000 rpmSpindle taperBT 40 Clamping SystemDIN ISO 7388-3-A, AD Feed rate longitudinal/transverse/vertical-30000/-30000/-30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightDimensions (L x W x H)4,15 x 3,98 x 2,75 mWeight approx.4500 KgSwivel Rotary Table, simultaneousSwivel Rotary Table for simultaneous machining swivel range -5 to +110°, rotary axis 360° including direct measuring system for B- and C-axis and working plane transformation Not available with NC-Divider EA 410! Table surface 630 x 500 mmCentre bore 30H6 mmMaximum load (table centre) 300 KgSlot width 14 mmNum ...

GeneralUniversal Milling Machine; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal650 mmCross520 mmVertical475 mmTechnical DataType of main driveAC Drive power (100% DC)16 kWDrive power (40% DC)21 kWSpeed range20 - 15000 rpmSpindle taperHSK-A 63 Clamping SystemHSK-A 63 Feed rate longitudinal/transverse/vertical-42000/-42000/-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minFloor space/WeightDimensions (L x W x H)2,85 x 2,35 x 2,75 mWeight approx.7500 KgDirect measuring systemDirect path measuring system Spindle speed 15,000 rpmMotor spindle speedMASTER® HSK-A63 Spindle speed 20 - 15,000 min-1 Output 21 kW / 16 kW (28 hp / 21.5 hp) Torque 111 Nm / 85 Nm (82 ft lbs / 63 ft lbs) (40 / 100 % duty cycle) NC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 630 x 500mm / 24.8 x 19.6 in swivel range -35 to +1 ...

GeneralUniversal Milling Machine; Control: CELOS with Heidenhain TNC 640 Working area 1Longitudinal650 mmCross520 mmVertical475 mmTechnical DataType of main driveAC Drive power (100% DC)25 kWDrive power (40% DC)35 kWSpeed range20 - 20000 rpmSpindle taperSK40 Tool holder DIN ISO 7388-1-A Clamping SystemDIN ISO 7388-3-A, AD Feed rate longitudinal/transverse/vertical-42000/-42000/-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minFloor space/WeightDimensions (L x W x H)2,85 x 2,35 x 2,75 mWeight approx.7500 KgDirect measuring systemDirect path measuring system Spindle speed 20,000 rpmMotor spindle speedMASTER® SK 40 Spindle speed 20 - 20,000 min-1 At speed 18.000-20.000 min-1 SK40 – BIG-PLUS® stipulated Output 35 kW / 25 kW (47 hp / 33.5 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63.5 ft lbs) (40 / 100 % duty cycle) NC swivel rotary tableSwivel Rotary Table for simu ...

GeneralUniversal Milling Machine; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal650 mmCross520 mmVertical475 mmTechnical DataType of main driveAC Drive power (100% DC)16 kWDrive power (40% DC)21 kWSpeed range20 - 15000 rpmSpindle taperSK40 Tool holder DIN ISO 7388-1-A Clamping SystemDIN ISO 7388-3-A, AD Feed rate longitudinal/transverse/vertical-42000/-42000/-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minFloor space/WeightDimensions (L x W x H)2,85 x 2,35 x 2,75 mWeight approx.7500 KgDirect measuring systemDirect path measuring system Toolchangertoolchanger Type of magazine Chain Type of gripper Double gripper Number of tools 30 Max. tool weight 8 KgMax. tool length 300 mmMax. tool diameter with occupied adjacent pockets 80 mmMax. tool dia. with free neighbouring pockets 130 mmNC swivel rotary tableSwivel Rotary Table for simultaneous  ...

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS X with Siemens SINUMERIK ONE Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.14500 KgNC swivel rotary tableTable surface Ø650 mmCentre bore 32 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 9 Distance between T-Slots 63 mmRotation speed max.4. Axis 40 rpm4. Axes (swivelling range) 360 x 0,001 degree5. Axes (swivelling range) +/- 120 degreeRotation Speed 5. Axis 20 rpmIntegrated motor spindle speedMASTE ...

GeneralUniversal Milling Machine Stealth Design; Control: CELOS X with Siemens SINUMERIK ONE Working area 1Longitudinal550 mmCross450 mmVertical420 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/mininlineMASTER® spindlespeed range 20 - 15.000 min-1 SK40 suitable for BIG-PLUS® tools Drive power (100% DC) 16 kWDrive power (40% DC) 21 kWTorque (100% DC) 85 NmTorque (40% DC) 111 NmSpeed range 20 - 15000 rpmSpindle taper HSK-A 63 Clamping System HSK-A 63 Toolchanger with set up station for tool loadingNumber of tools 60 Tool clamping for HSK-A63Tool clamping HSK-A63 according DIN 69893 (incl. adaptation working spindle and tool magazine) NC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 505 x 500mm / 19.9 x 19.6 in swivel range -35 to +110°, rotary axis 36 ...

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.14500 KgDirect measuring systemDirect path measuring systemCabineFull protection cabinPackage Mill / Turn HSK-A 63Package Milling / Turning: Upgrade NC-swivel rotary table to Milling - Turning / direct drive Table plate C-axis d 680 mm / 26.8 in Speed C-axis 1.000 min-1 Integrated balancing sensor Motor spindle speedMASTER® HSK-A63 Spindle speed 20 - ...

GeneralUniversal Milling Machines; Control: DMG MORI SLIMline® Multi-Touch control Working area 1Longitudinal500 mmCross450 mmVertical400 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightDimensions (L x W x H)3,15 x 2,86 x 2,71 (4,82 x 4,16 x 2,71) mWeight approx.5000 KgSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only!Type of Measuring system Direct measuring systemMode for positioning only5. Axes (swivelling range) -5/+110 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeDistance between T-Slots 63 mmNumber of Slots 7Slot width 14 mmMaximum load (table centre) 200 KgTable surface Ø 630 x 500 mmDirect measuring syste ...

GeneralUniversal Milling Machines; Control: 3D-control Heidenhain TNC 620 Working area 1Longitudinal500 mmCross450 mmVertical400 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightDimensions (L x W x H)3,15 x 2,86 x 2,71 (4,14 x 4,16 x 2,71) mWeight approx.5000 KgSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only!Type of Measuring system Direct measuring systemMode for positioning only5. Axes (swivelling range) -5/+110 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeDistance between T-Slots 63 mmNumber of Slots 7Slot width 14 mmMaximum load (table centre) 200 KgTable surface Ø 630 x 500 mmDirect measuring system X,Y,ZDir ...

GeneralUniversal Milling Machines; Control: 3D-control Heidenhain TNC 620 Working area 1Longitudinal500 mmCross450 mmVertical400 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightDimensions (L x W x H)3,15 x 2,86 x 2,71 (4,14 x 3,56 x 2,71) mWeight approx.5000 KgSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only!Type of Measuring system Direct measuring systemMode for positioning only5. Axes (swivelling range) -5/+110 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeDistance between T-Slots 63 mmNumber of Slots 7Slot width 14 mmMaximum load (table centre) 200 KgTable surface Ø 630 x 500 mmDirect measuring system X,Y,ZDir ...

GeneralUniversal Milling Machine Stealth Design; Control: CELOS X with Siemens SINUMERIK ONE Working area 1Longitudinal550 mmCross450 mmVertical420 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minNC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 505 x 500mm / 19.9 x 19.6 in swivel range -35 to +110°, rotary axis 360° including direct measuring system for B- and C-axis and working plane transformationTool clamping for HSK-A63Tool clamping HSK-A63 according DIN 69893 (incl. adaptation working spindle and tool magazine)Tool magazine 60 pocketsTool magazine 60 places HSK-A63 Vertical chain with double gripper incl. set up station for tool loadingChip removal package with cabin roofSwarf removal package chip conveyor Coolant - air-blast changeover Swarf con ...

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.14500 KgDirect measuring systemDirect path measuring systemCabineFull protection cabinChip removalChip removal: manual, from the chip troughCoolant supplyCoolant supply: Multi-jet strip at spindle head, switchable from coolant to air (max. 6 bar / 90 psi, 6 water jets, 6 air jets) Pump capacity: 70 l/min / 18 gallon/min (theoretical pump perform ...

GeneralUniversal milling and turning machining centre with duoBLOCK construction; Control: CELOS X with HEIDENHAIN TNC7 Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal800 mmCross1050 mmVertical850 mmTool changerApplicationUniversal Type of magazineWheel Tool changer planehorizontal Type of gripperDouble gripper Number of tools123 NC mill-turn table with palletNC mill-turn table with pallet number of T-slots: - 1x cross slot 14 H7 / 0.55 H7 - 12x star slots 14 H11 / 0.55 H11 / 22.5° max. table speed milling operation: 30 rpm turning operation: 780 rpm integrated balancing sensor Pallet changer for 2 palletsType of Measuring system Direct measuring systemTable surface Ø 800 x 630 mmCentre bore 50 mmMaximum load (table centre) 1400 Kg4. Axes (swivelling range) 360 x 0,0 ...

Working areaTurning diameter500 mmDistance between spindles1435 mmMax. Turning Length1100 mmGeneralTurning/milling center with turning length 1100 mm - mounting HSK-A 63 DIN 69893 - B-axis ±120 - Y-axis ±100 mm - 60-fold chain magazine - Absolute, direct path measuring systems in X-, Y- and Z-axis - Hydraulically movable tailstock with foot pedal - Double switch filter - Electric handwheel - DMG MORI IoT connector - Clamping pressure adjustment on the control - 5-axis simultaneous machining; Control: CELOS X with Siemens SINUMERIK ONE Main drive 1Drive power (100% DC)14 kWDrive power (40% DC)17 kWSpeed range- 5000 rpmTorque (100% DC)275 NmMax. torque (40% DC)345 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 Spindle speed-15000 rpmDrive power (40% DC)22,5 kWDrive power (100% DC)19 kWTorque (100% DC)85 NmTorque (40% DC)120 NmFloor space/WeightDimensions (L x W x H)5,77 x 2,3 ...

GeneralUniversal Milling Machines; Control: DMG MORI SLIMline® Multi-Touch control Working area 1Longitudinal500 mmCross450 mmVertical400 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightDimensions (L x W x H)3,15 x 2,86 x 2,71 (4,14 x 2,91 x 2,71) mWeight approx.5000 KgSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only!Mode for positioning only5. Axes (swivelling range) -5/+110 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeDistance between T-Slots 63 mmNumber of Slots 7Slot width 14 mmMaximum load (table centre) 200 KgTable surface Ø 630 x 500 mmType of Measuring system Direct measuring systemDirect measuring syste ...
