altre macchine per lavorazione dei metalli usati in vendita (10,822)

Mounting SIA-PRO Symlock01 with transport hook | MS01 | SW01 | (suitable Lenhoff quick-change system) Adapter frame

ParameterValueModel NameHerkules 450/10/50TypePiston Air CompressorTank Capacity50 litresMax. Operating Pressure10 bar Motor Power2.2 kW / ~3 HPVoltage230 V AC Frequency50 HzEngine Speed2800 rpmAir Intake Capacity400 L/minAir Delivery (Effective)320 L/min Noise Level95?97 dB Number of Cylinders2 (twin cylinder)LubricationOil-lubricated systemTypical UsesHome workshop, tire inflation, air tools, painting

LEHMANN NC axle, EA 420.1A, incl. tailstock, without pallet and pallet trolley.

Diameter: 13 to 16mm, for more details see photos of the nameplates

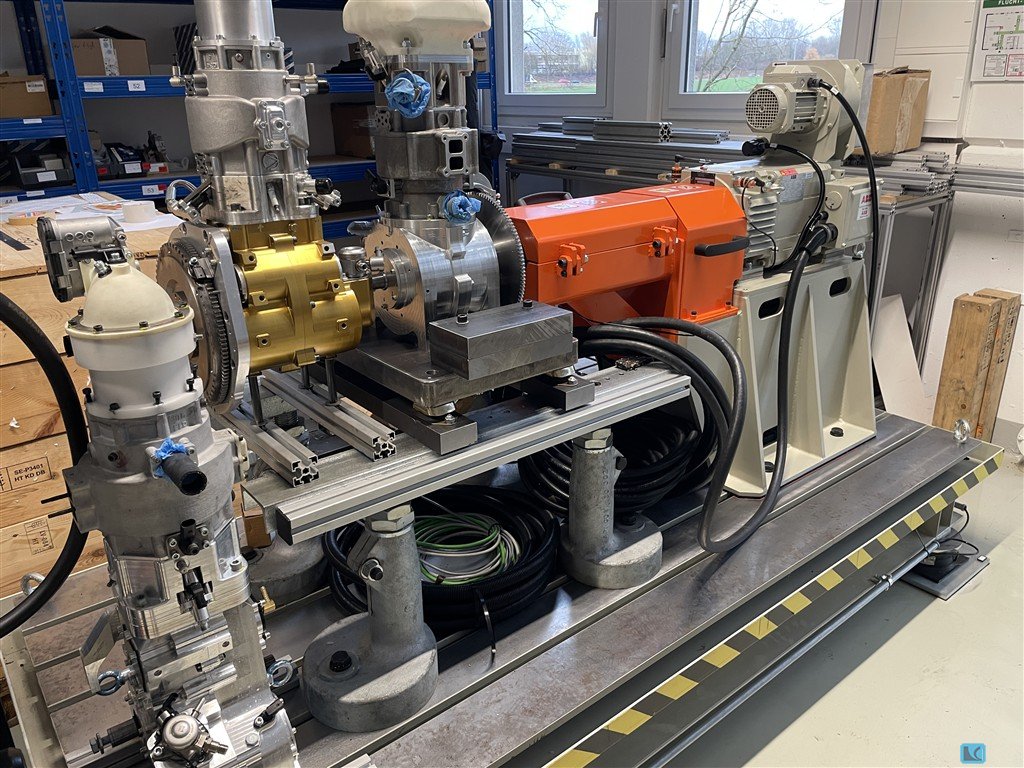

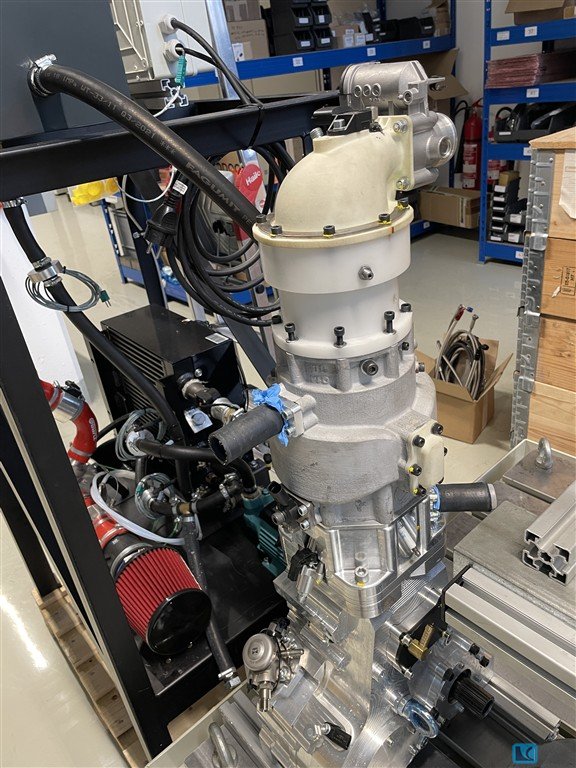

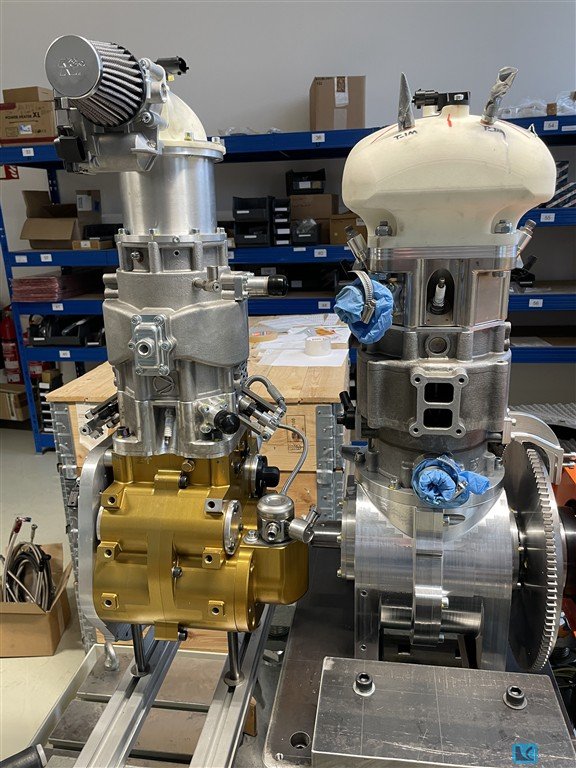

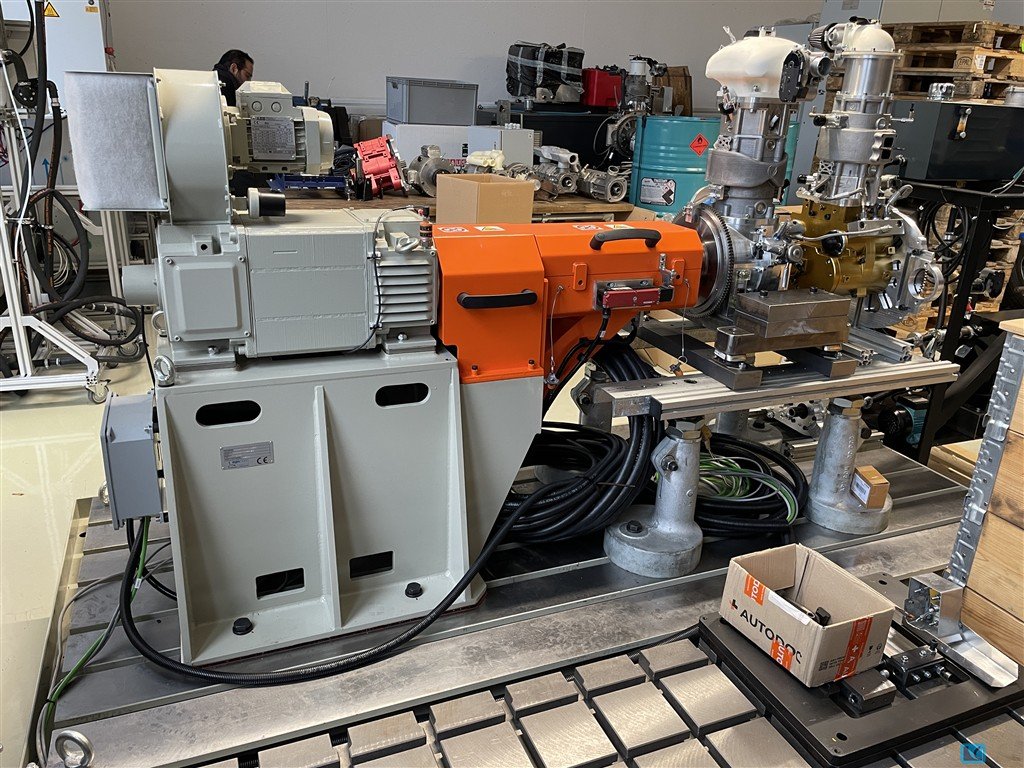

Performance·Max. motor power: 30 kW·Max. engine speed: 10,000 rpm·Rated torque (test bench): > 100 Nm·Max. braking torque: up to 122 Nm·Max. braking power: up to 46 kW (overload)Dynamometer·Type: AC asynchronous dynamometer, frequency-controlled·Voltage: 360 V·Cooling: Forced ventilation (IC06)·Protection class: IP23·Insulation class: F·Speed range: 0 ? 10,000 rpm·Continuous operation: up to 40 kW (depending on speed)·Overload capability: 1 min every 10 minMeasurement System·Torque measurement:oHBM T12HP torque flangeoMeasurement range: 200 NmoAccuracy class: 0.02·Speed measurement:oIncremental encoder, 1024 pulses/revoAccuracy: ±0.01 rpm·Vibration monitoring:oIntegrated vibration sensorMechanical Structure·Slotted base plate with air suspension (Bilz air springs)·Vibration-damped test bench·Motor mounting system:oAdjustable aluminum frameoMax. motor weight: 500 kgoCo ...

automatic switch plate1x saw unit with saw, head and saw valve 40/801x turning unit with turning valve 30/60 with flange9x units 30/60 with valve normal and flanges5x units 20/50 with valve normal and flanges1x oil distributor WK9; 1x bar feeder 4 meters; 1x chip conveyor VR500;1x hydraulic unit1 Knoll oil filterWithout collets and ejectors, without platform and without tool monitoring.supplied tooling may differ from the pictures.We can send you more pictures.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

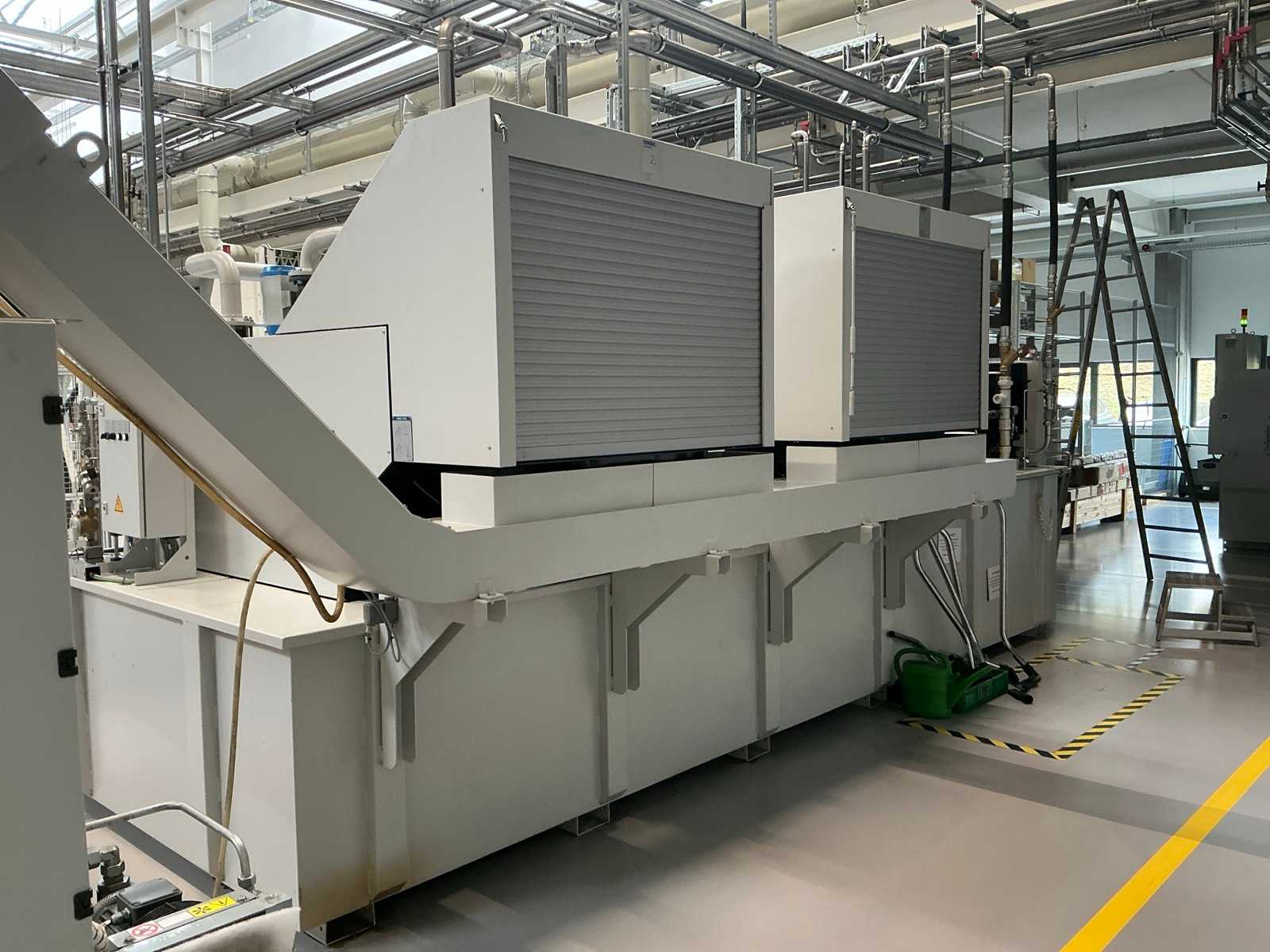

Hersteller: KNOLL Maschinenbau GmbH Maschinentyp: Zentrales Kühlmittelfiltersystem / Vakuumfiltereinheit Modell: VL 1000-E-2/12000 Herstellungsjahr: 2022 Seriennummer: 1521820 Kapazität ca: 1000L/min Tankvolumen ca.: 12.000L Technische Beschreibung Hochleistungs-industrielles Kühlmittelfilter- und Recyclingsystem Für den Dauerbetrieb in CNC-Bearbeitungs- und Schleifanwendungen konzipiert Geeignet für zentralisierte Kühlmittelversorgungssysteme für mehrere Werkzeugmaschinen Vakuumfiltertechnologie für die Feinteilchentrennung Integrierte Kühlmittelreinigung, Schlammtrennung und Umlaufprozess Automatischer Filtrationszyklus mit geringem Wartungsaufwand

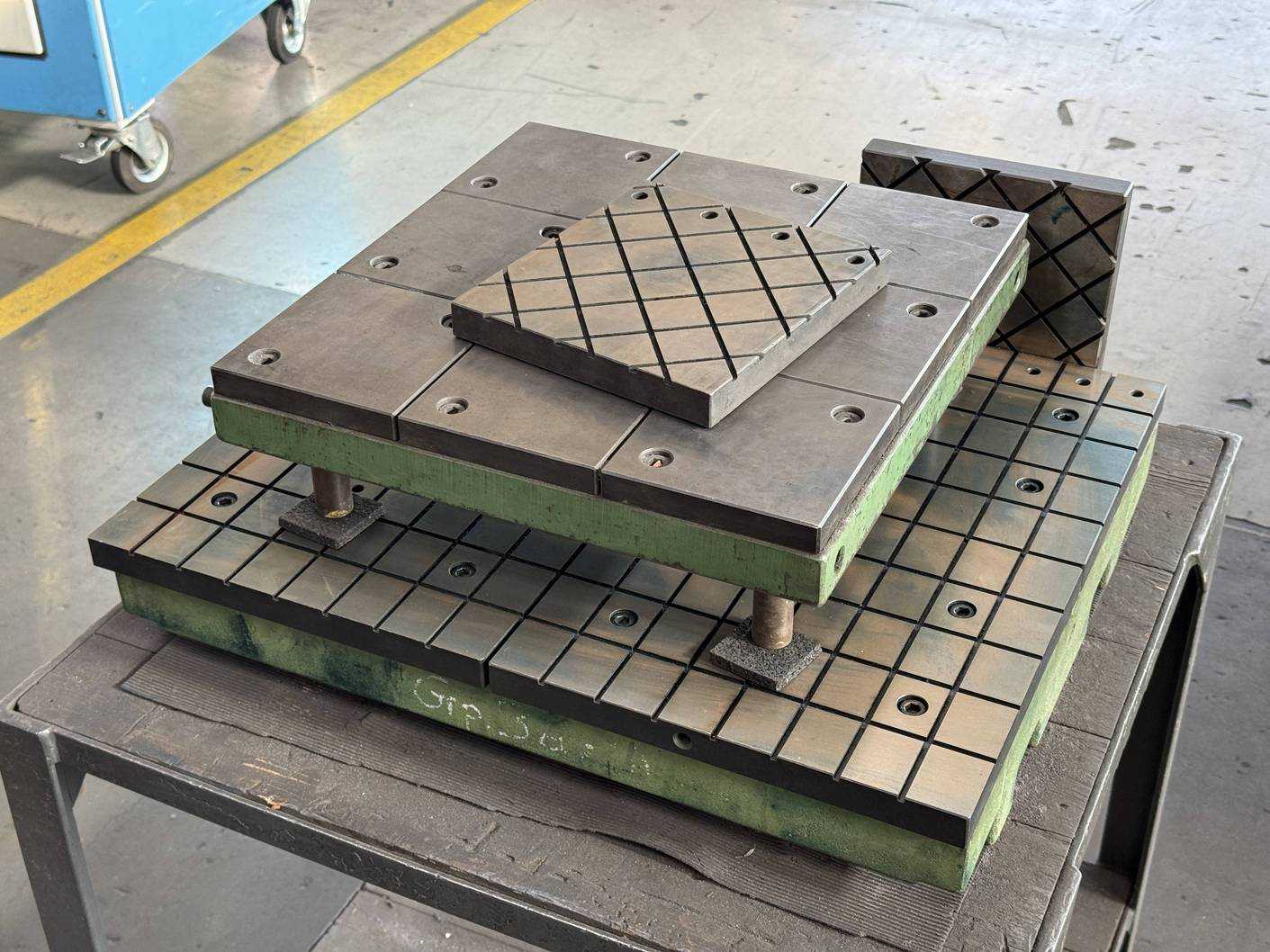

A total of 3 pieces, partly with groove grid, Dimensions: 200x220x30 , 420x410x140 , 600x500x160

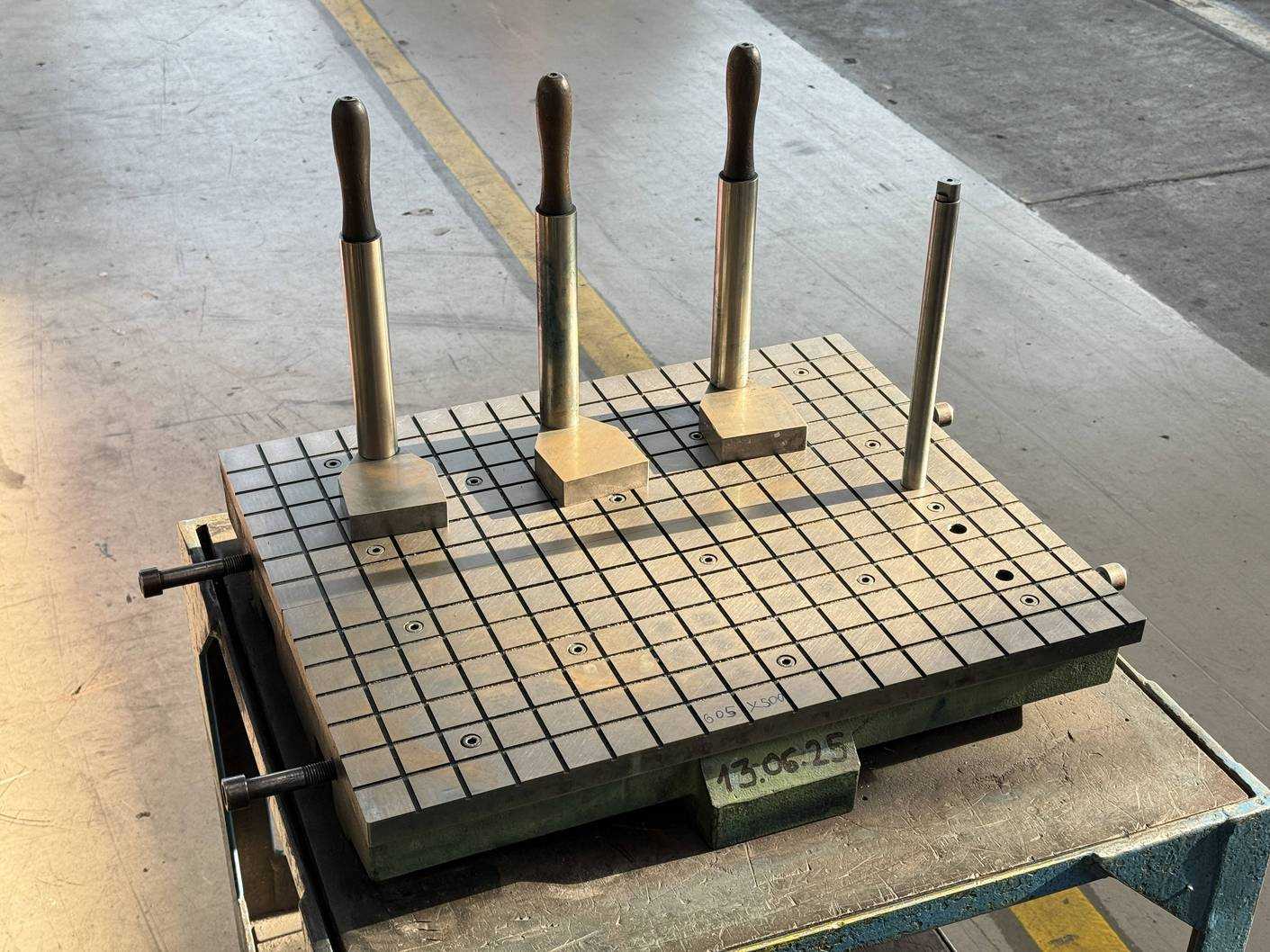

Dimensions of the clamping plate approx. : 600x500 , with groove grid and accessories , see photos for more details

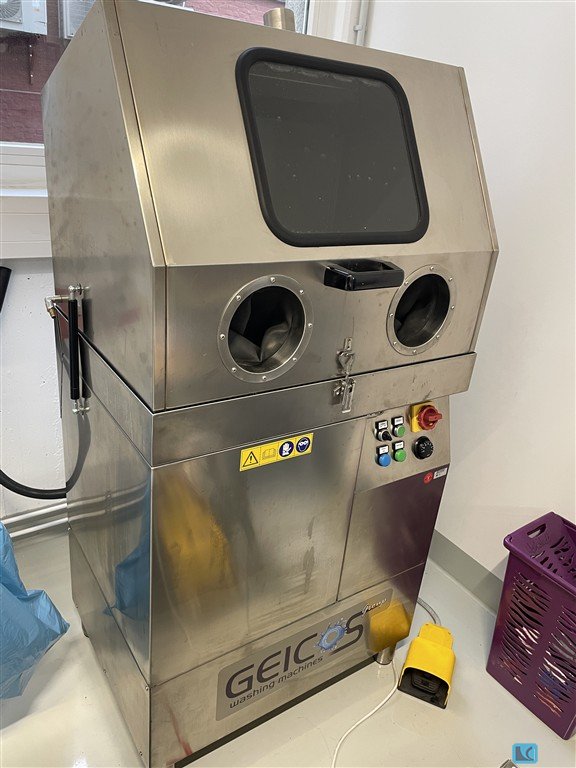

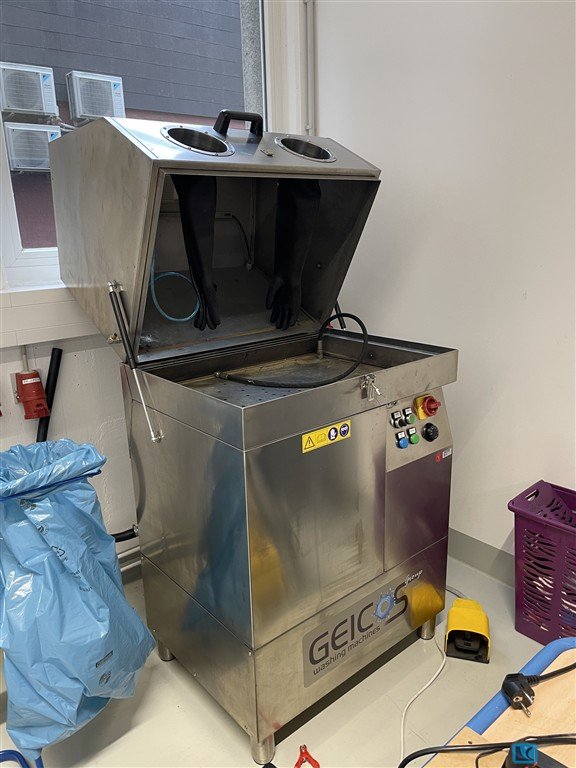

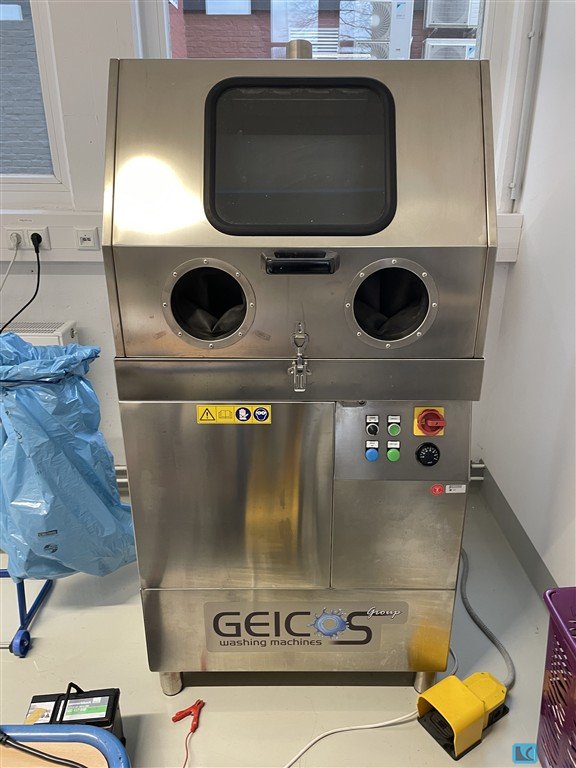

Max. basket weight:50 kgTemperature for washing water:0-60 °CElectrical heating power:2 kWRated power supply:230 VMachine size LxWxH:600x800x1650 mmMachine weight:90 kgDIMENSIONS DxWxH600x800x1650 mmPOWER SUPPLY230 VDETERGENTwaterPUMP POWER1.2 kWTANK CAPACITY100 lLOAD CAPACITY50 kgHEATING ELEMENTS POWER2 kWHEATING TEMPERATURE0-60°WORKTOP DIMENSIONS750x550 mmWEIGHT90 kg

Machine type: Vertical machining center Control: Heidenhain, Table load: 500 kg Tool magazine: 24 places The dismantling must be carried out by one of the partner companies mentioned. The costs for this are to be requested by the buyer himself. Dismantling of the system mandatory in week 31, 27.07.- 29.07.26

travel -x axis:800/1825 mmtravel -y axis:800/460 mmtravel -z axis:600 mmFeeding X,Y,Z up to:0 - 40/40/40 mm/min.swival range +/-:+10 bis -90 x 360 GradRotary-table:800 x 630 mmnumber of T-slots:5 T-slot - distance:125 mmT-Slots:18 mmcenter hole:30H7X15 mmswival range +/-:90 Gradturning speed:20 m/min.Number of axles:3-7 St.Spindle RPM:12.000 1/minmax. tool weight:10 kgmax. tool length:330 mmdiameter of tools max.:80 mmtool changing time:4 secCNC control with15.1" color flat-screen19" machine control panelPCU 50 with Intel Pentium IIWindows XP10.0 GB hard drive

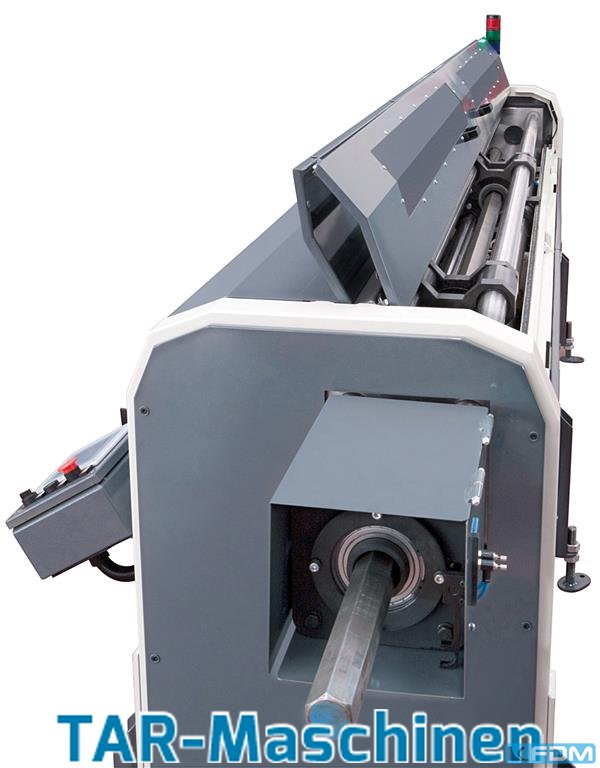

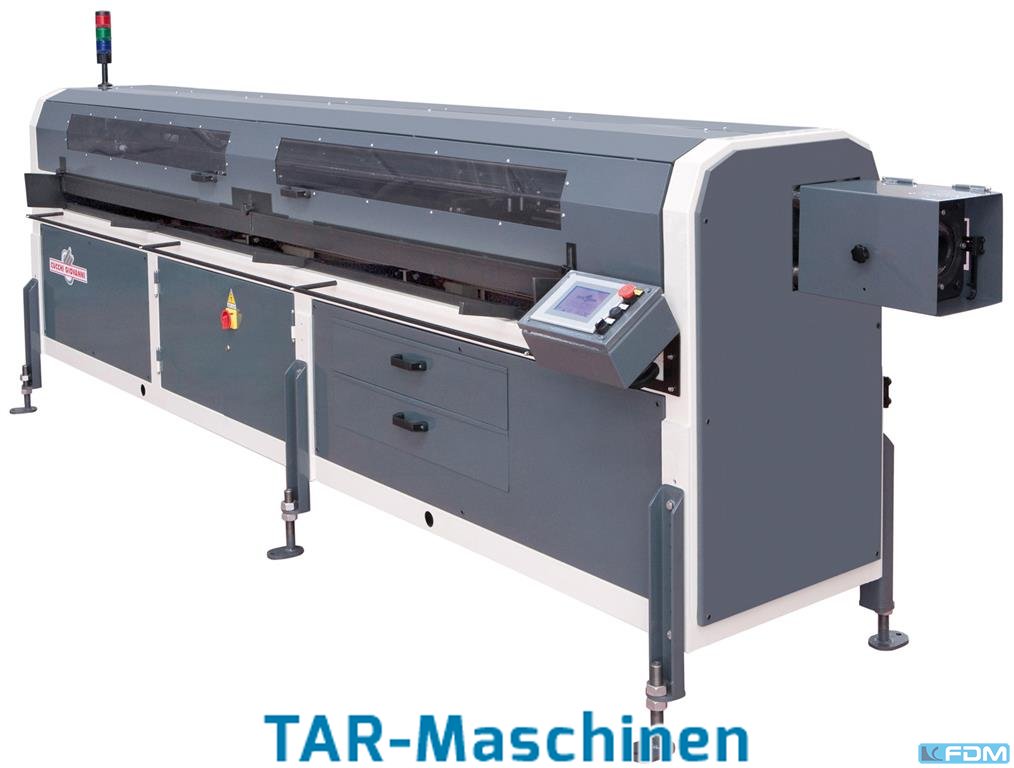

Automatic bar loading magazine for single spindle automatic lathe / short lathe, newTEST the new DB-EVO bar loader4 WEEKS, NON-BINDING, FREE OF CHARGE (conditions on request)very high speeds even with profile materialManufacturer: Giovanni CucchiMachine type: Automatic bar loading magazine for single-spindle / short turningType: DB-EVODesign: Surface loading magazine or bundle loading magazinediameter range: 20-110mmDB-EVO at a glance:Scope of delivery and optionally orderable functions:- oriented loading of the bar material possible (e.g. edge upwards) - optional feeding of saw cuts and short parts possible - optional- Monitoring and fault diagnosis (touch screen)- Surface magazine- Bundles and other variants possible- automatic loading of short bars- Trays for tools- low power consumption (start/stop function)- Available in versions for 1.5, 1.8, 2.5, 3.3, 4.2 and 6.1 meter rod length  ...

Keyence Digital Measuring Projector ? Model XM-1600General:Digital measuring projector with a high resolution image measurement system and very easy operation. Place the part on the stage and measure by pressing a button. Supports automated measurements of up to 300 dimensions within seconds.Measuring Head / Control Unit:·Sensor: Monochrome CMOS 1 inch, 20 megapixels·Display: 12.1 inch LCD monitor (WXGA 1280 x 800)·Lens: Double telecentric lensMeasuring Field and Measuring Range:·Standard measuring field: approx. 100 mm diameter·Precision mode measuring field: approx. 25 x 25 mmMeasurement Accuracy and Repeatability:·Display resolution: 0.1 micrometer·Repeatability (standard, without stage movement): approx. plus minus 1 micrometer·Precision mode (without stage movement): approx. plus minus 0.5 micrometerStage / Travel Axes:·XY measuring stage: motorized·Z axis: approx. 75 mm,  ...

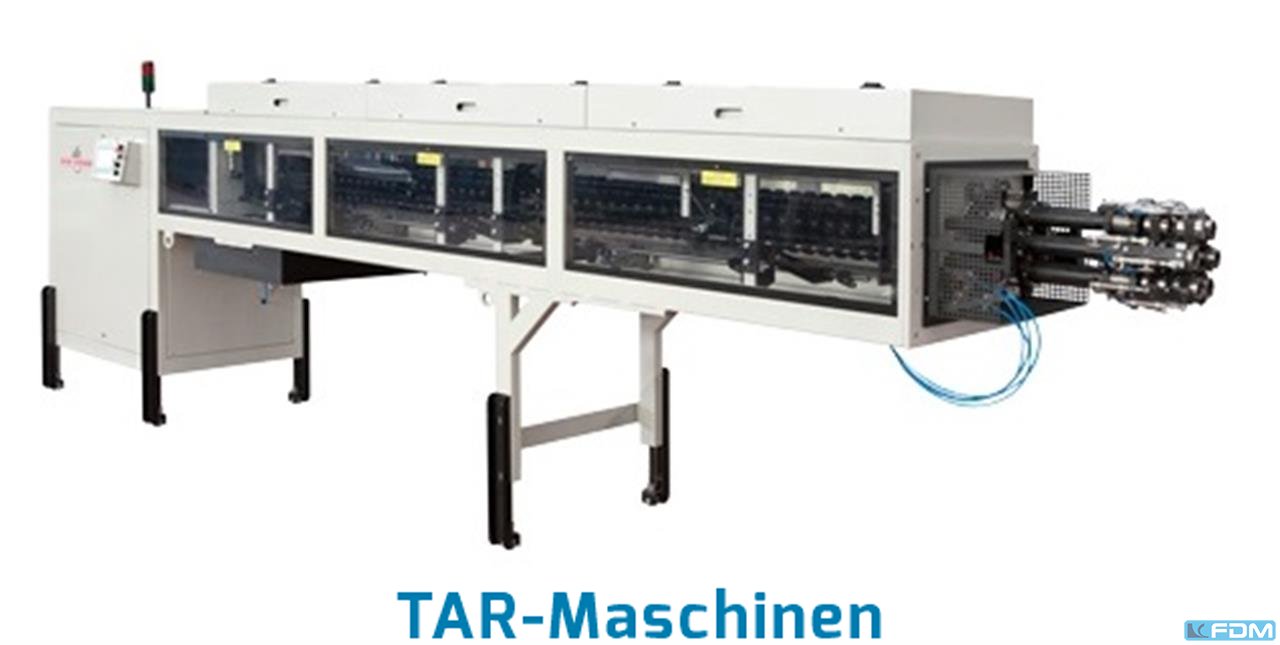

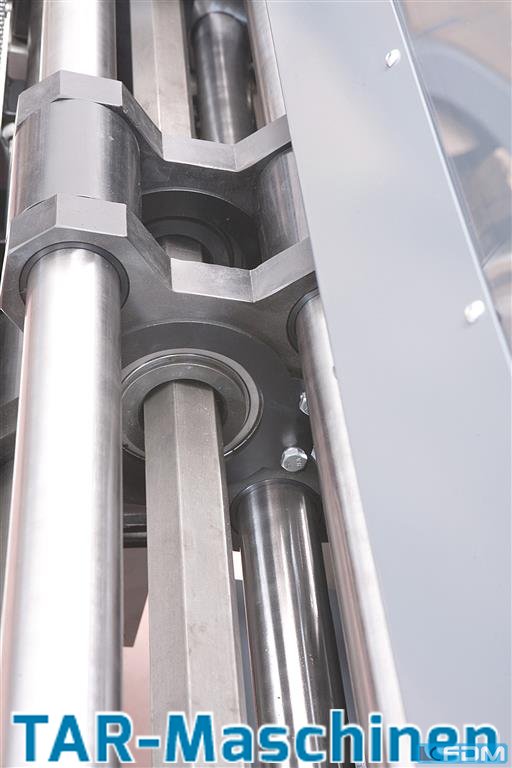

Bar loading magazine for multi spindle automatic lathe, newManufacturer: Giovanni CucchiMachine type: Bar loading magazine for multi-spindleType: CMSP/CMSPFDesign: Side loader as surface loading magazine or bundle loading magazineCMSP / CMSPF at a glance:Proven technology - in use for decadesThe material feed of this loader generation is carried out by the loading magazine. Bar loading magazines CMSP/CMSPF are mounted on rails, so they can be easily disconnected from the machine at any time by unlocking them at the quick release.These magazines do not require bar tubes on the machine and are screwed directly to the machine. It is possible to work in automatic mode as well as in manual mode.The magazine is mounted on rails, so it can be easily disconnected from the machine at any time by the operator by unlocking it on the machine. To change bar diameters, only the clamping sleeves of the ...

Consisting of 2x clamping table with clamping tower, dimensions clamping table 1x 500x400 mm and 1x 440x400 mm

Drilling/milling machine with: • Digital display • Digital depth gauge for quills • Adjustable guides through wedge strips • Large 12-step speed range from 75 - 3200 rpm • Extremely smooth running due to hardened and ground gears running in oil bath • Right-counterclockwise rotation • Prism guides in all axes • Gear head can be swivelled 90° • Chip protection with safety circuit Machine base optional. Not included. Drilling capacity in steel 40 mm Projection 290 mm Drilling stroke 130 mm Spindle holder SK 40 Spindle speeds 75 - 3200 rpm Table adjustment transverse 500 mm Table adjustment longitudinal 230 mm Table clamping area 720 x 210 mm Connection voltage 400 V Milling cutter diameter max. 80 mm Total power requirement 1.1 kW Machine weight approx. 0.35 t Dimensions approx. 1.1 x 0.9 x 1.2 m Condition: never used / new (5)

Consisting of 11x HSK63 tool holders in various designs

turning diameter:500 mmturning length:1500 mmTechnical Specifications:·Turning diameter over cross slide: 290 mm·Spindle bore: 71 mm·Speed range: 3?2,800 rpm·Rapid traverse speed: 10 / 5 m/min·Feed rate: 1?2,000 mm/min·Total power requirement: 22 kW·Machine weight: approx. 3.2 t·Space requirement: approx. 3.0 × 1.6 × 2.0 m

In different designs, see photos for more details

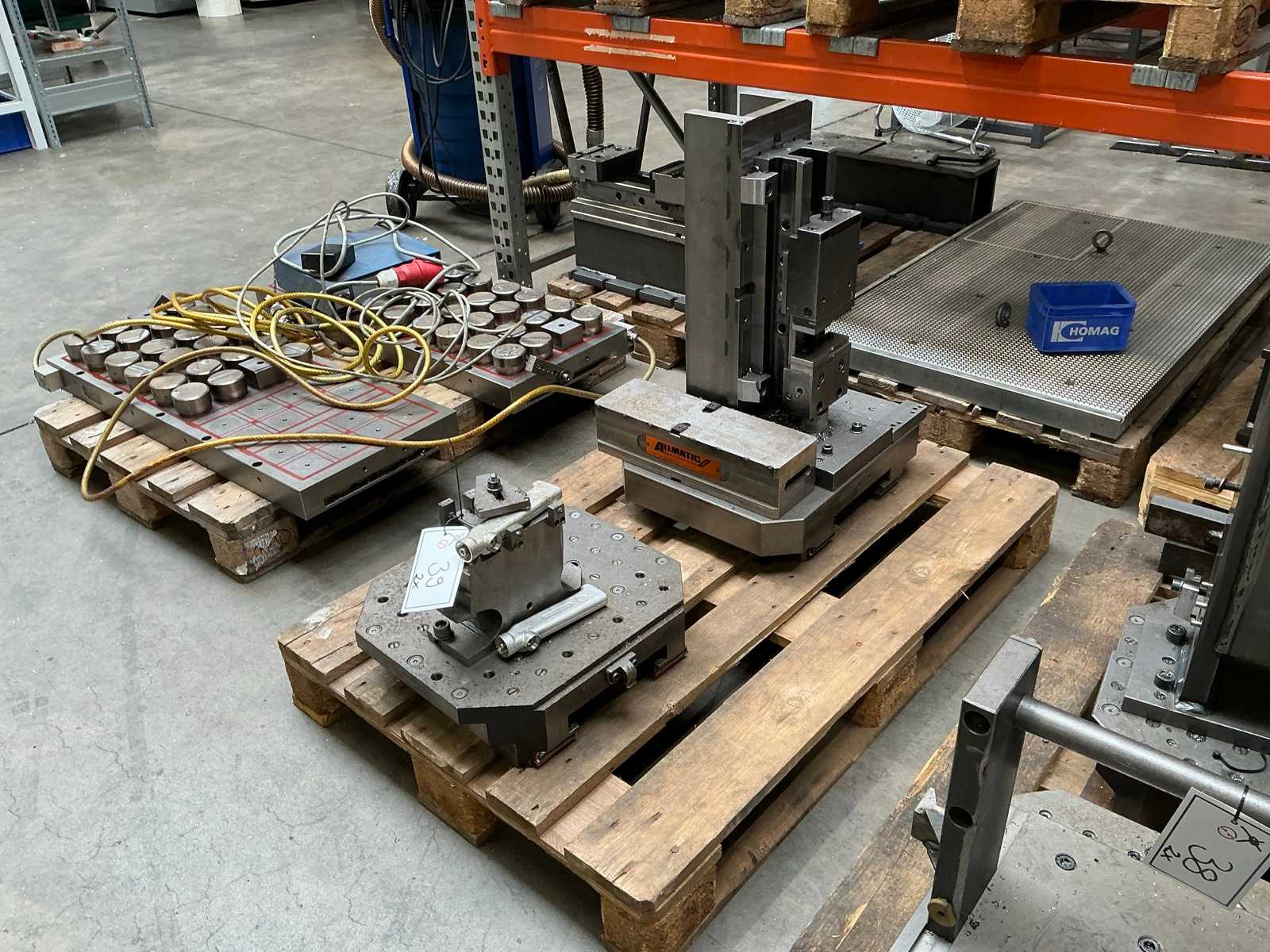

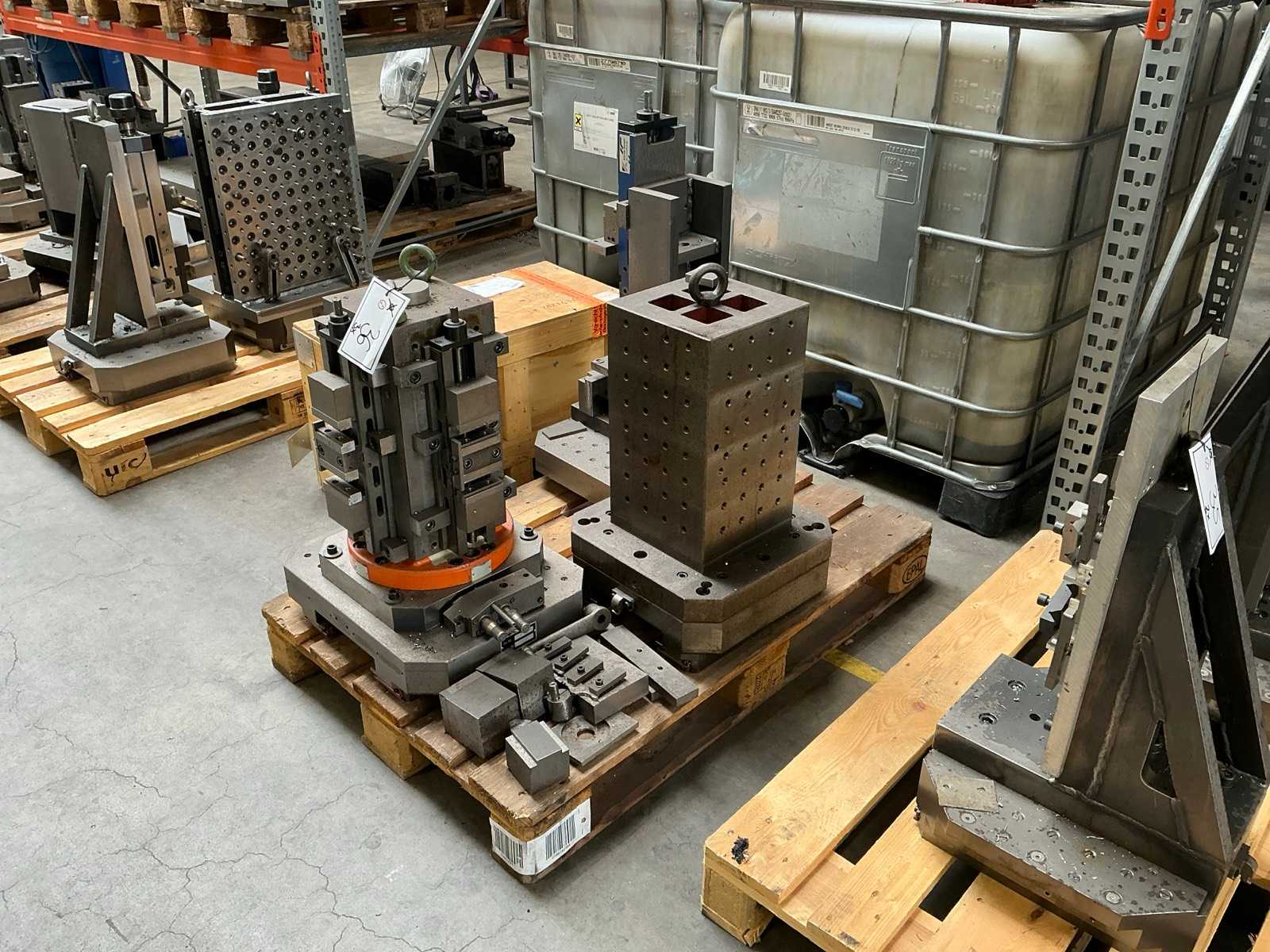

Consisting of 3x clamping table with clamping tower, dimensions clamping table 2x 500x400 mm and 1x 400x400 mm

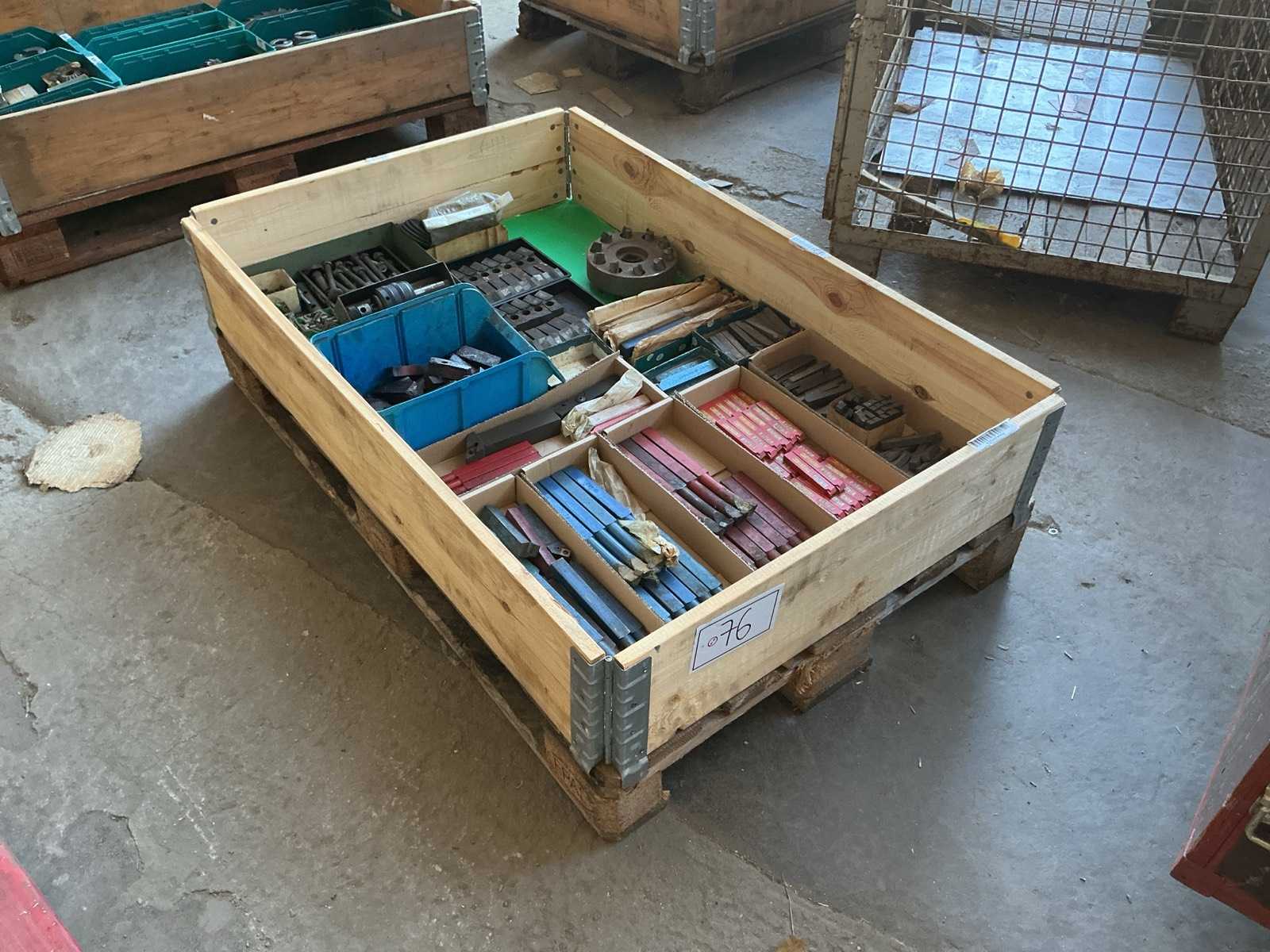

Pallet with various lathe bits / turning steels

turning diameter:356 mmturning length:700 mmy-axis:±60 mmspindle drive:18 kWcounterspindle motor:15 kWDirect drive for driven tools:5,5 kWMotor starting torque:640 NmMain spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mmmain spindle speeds::4.000 U/minDrehzahl angetriebene Werkzeuge :6.000 U/minrapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg12-station turret, all positions drivenC-axis on both spindlesBelt-driven and infinitely variable drive on all motorsPrismatic guideways on all axesOil cooler for both spindles, manufacturer DaikinAutomatic, dialog-guided programming system MAPPSAutomatic monitoring of tool load and tool wearTwo Renishaw measuring arms for automatic tool measurementInterfaces: USB, PCMCIA card, and RS-232 portInterface for bar feederAutomatic parts catcherDual foot pedal for independent opening and closing of the chucks  ...

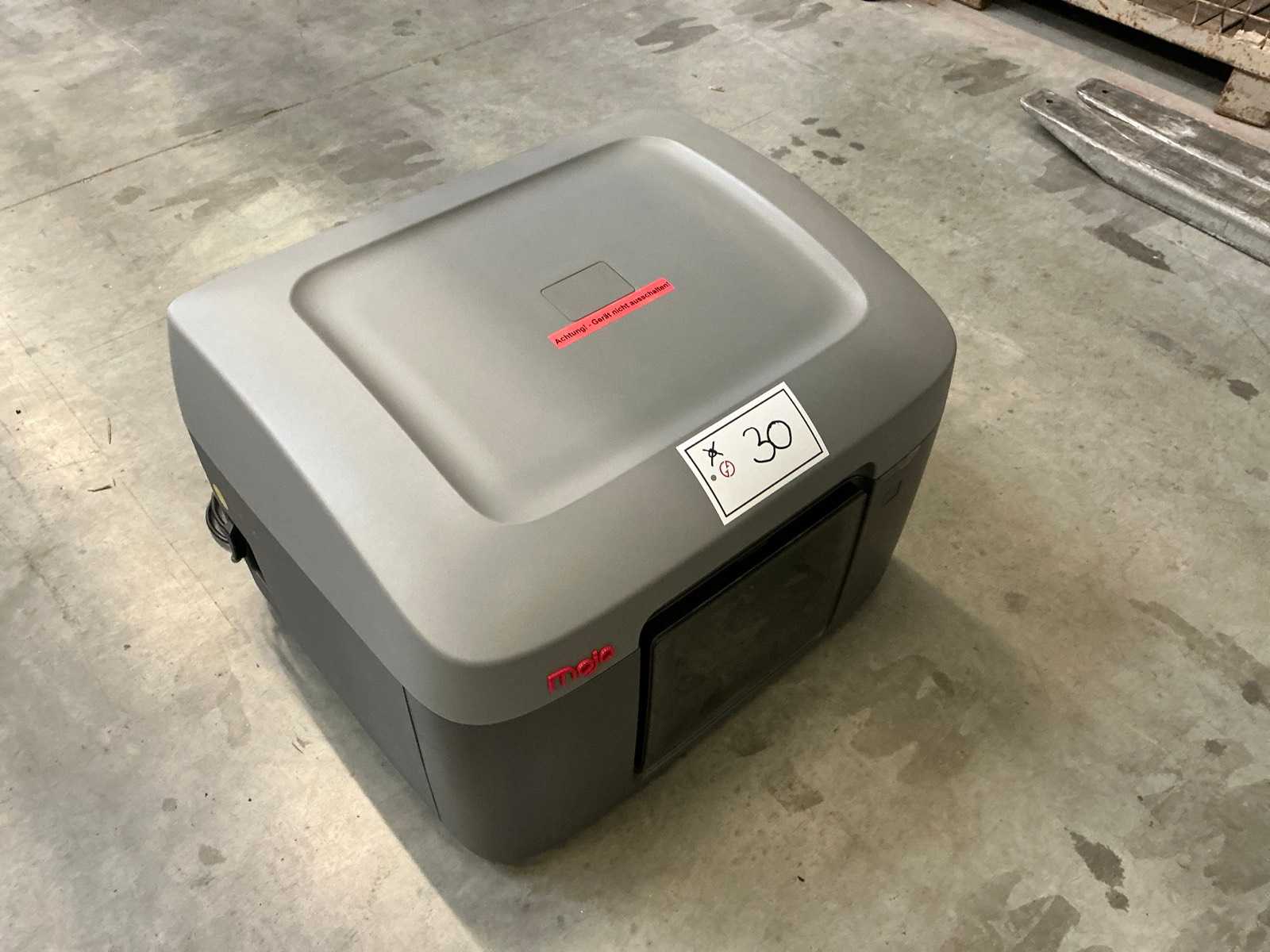

Incl. 1xSTRATSYS Wave Wash cleaning device and various accessories

Hartner Multi-Step DrillsPrecision reimagined. Efficiency made tangible. Made in Germany.The multi-step drills are the intelligent further development of classic HSS and HSS-E twist drills. Thanks to their innovative step-drill geometry, the drills deliver significantly higher performance, greater precision, and noticeably improved drilling comfort in daily use.What makes the multi-step drill so special? Unlike conventional HSS drills that machine material in a single cutting action, the multi-step drill works in several defined cutting stages. The result is smooth, low-vibration operation with significantly lower force requirements.Additional advantages include optimal chip removal, perfectly round and precise holes, and almost burr-free hole exits. Even when used with hand drills and cordless drills, the special geometry enables controlled drilling without jamming or slipping in the dr ...

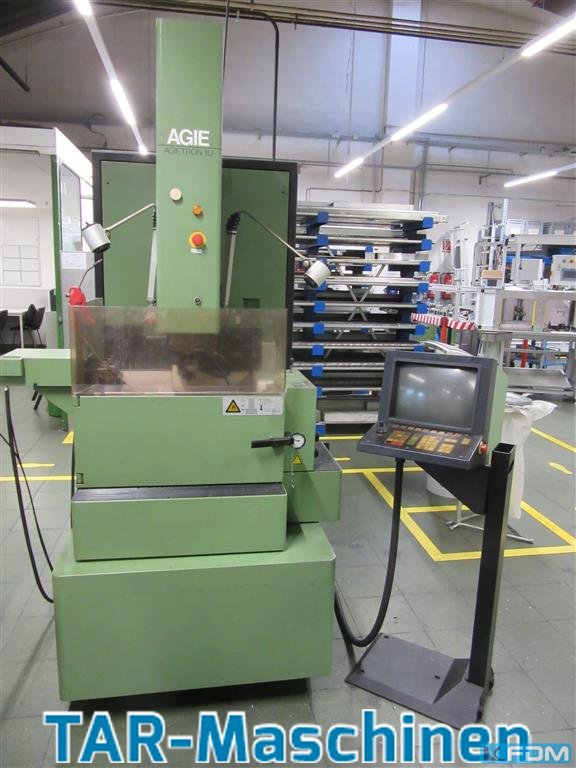

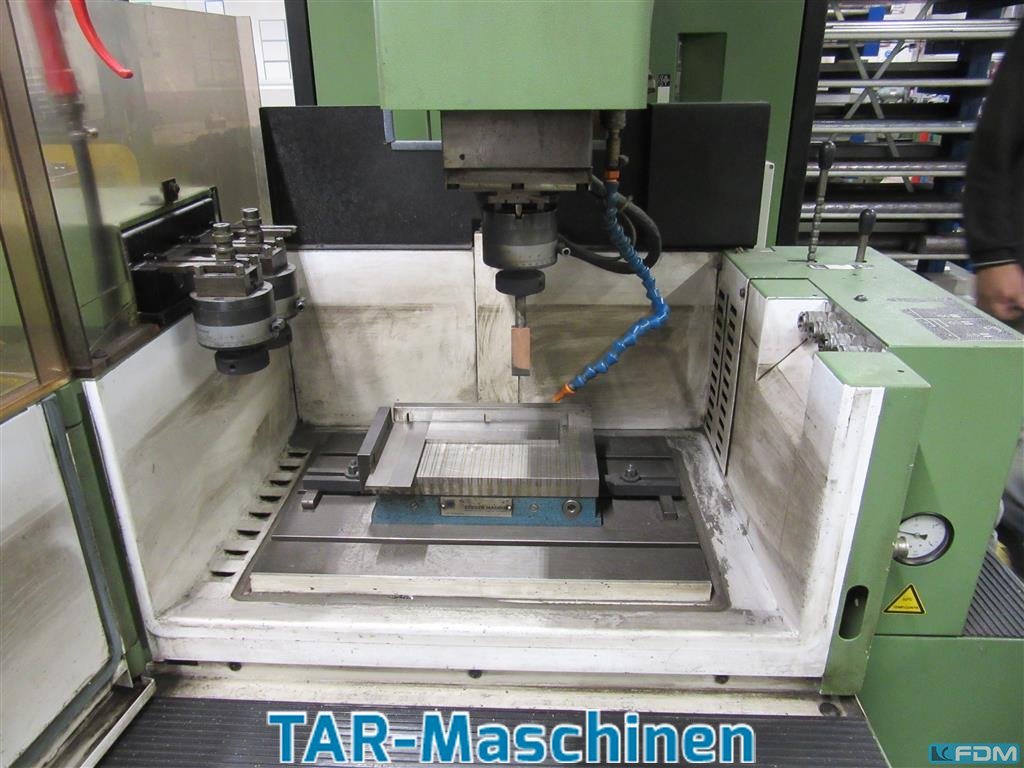

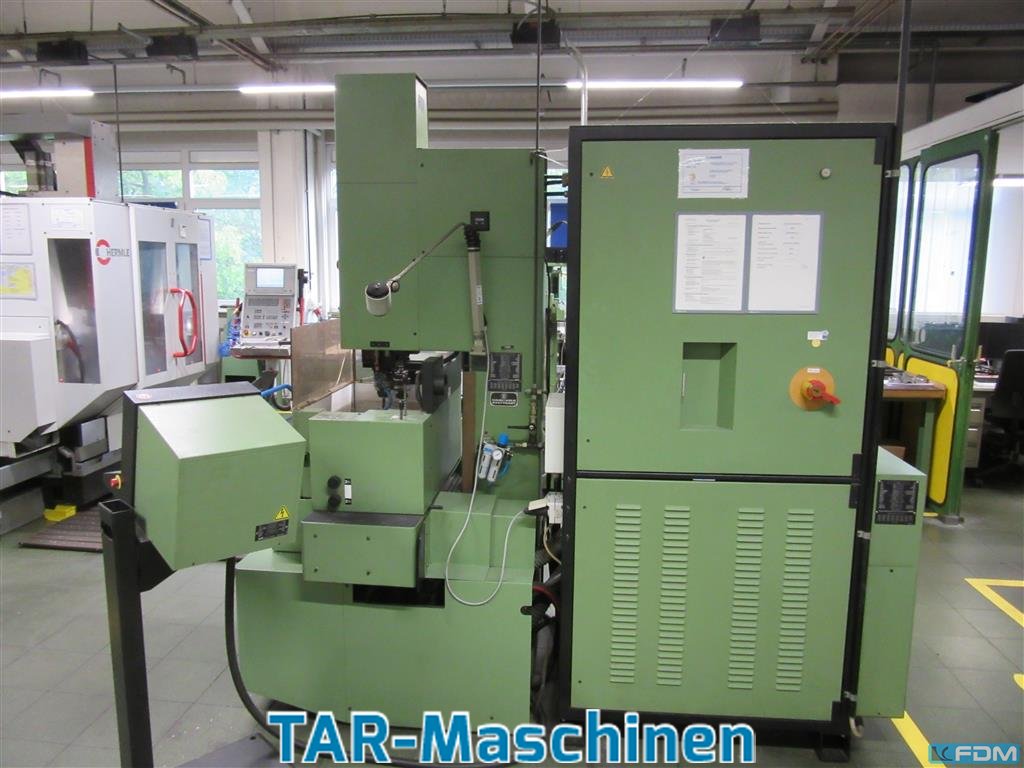

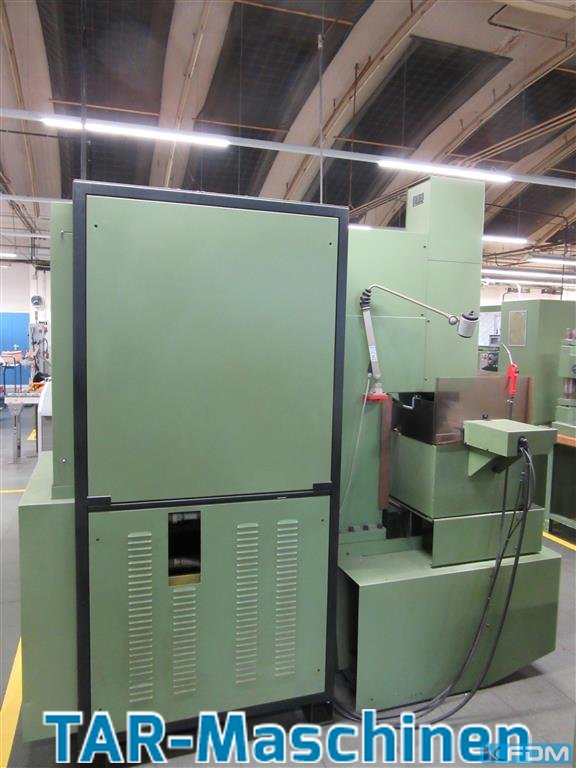

Erodiermaschine, gebrauchtBaujahr: 1989Bitte kontaktieren Sie uns für weitere Informationen und Bilder über mail(at)tar-mc.com oder www.tar-mc.com

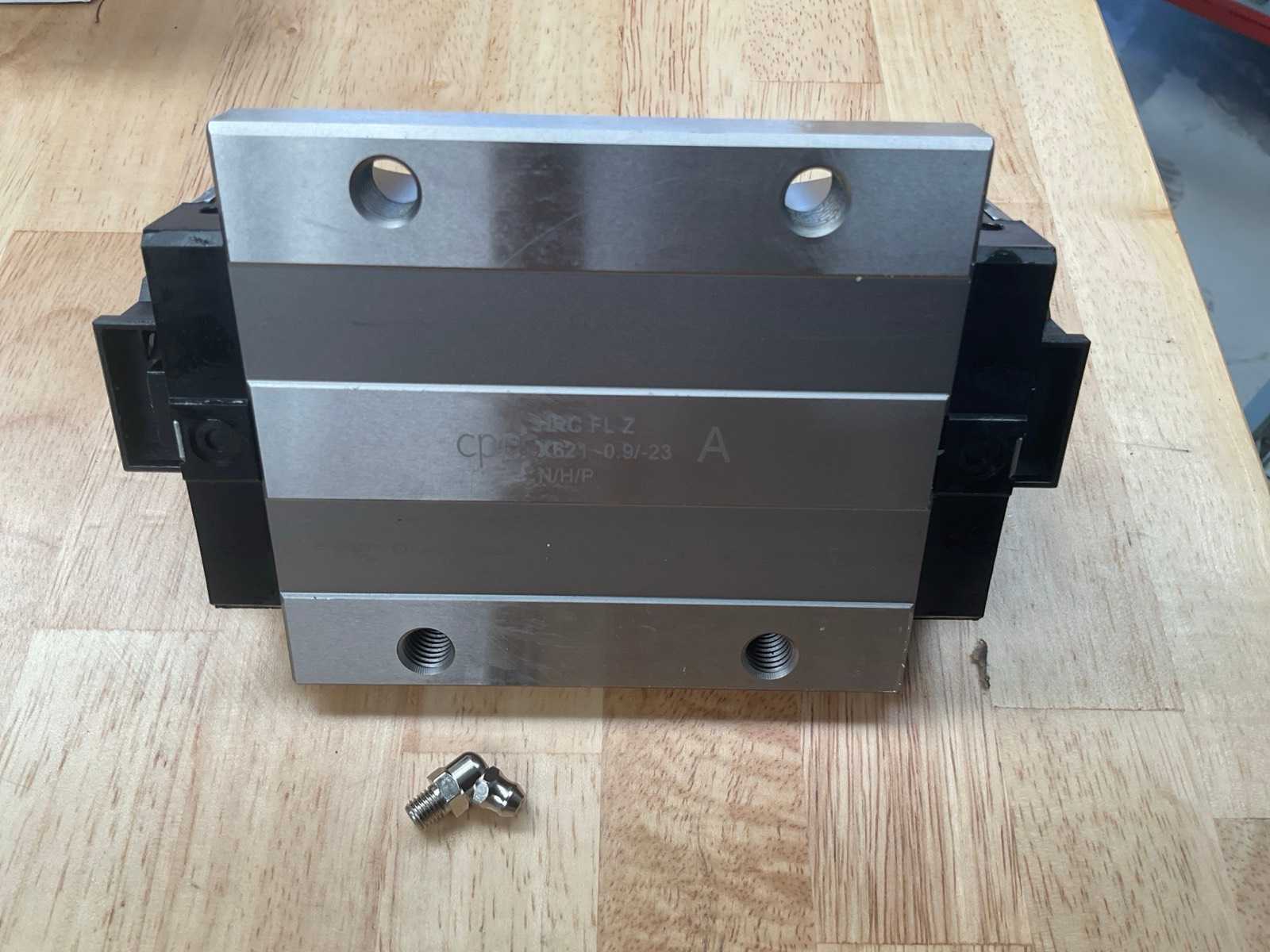

stands for the highest quality in linear motion technology

Max. Rotation 6000 1/min
