Impianti di imbottigliamento AMTEC SAMPLE-SYS 4HD CAP-LAB

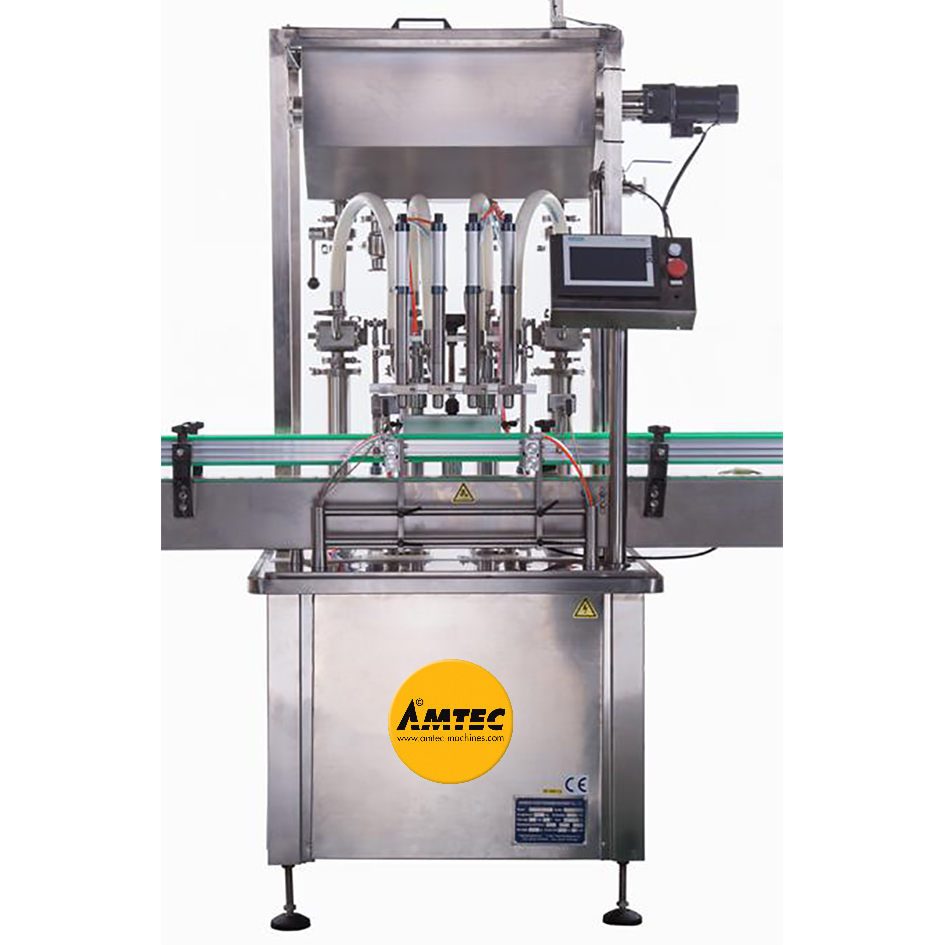

Sample system for filling liquids into bottles, closing them with a twist-off cap and then bottles labelling. Complete system consisting of: Bottle unscrambler | Filling machine with 4 filling heads for liquids with high or low viscosity | Lid closing machine for different sizes and shapes of lids including lid unscrambler | Labelling machine for bottles/cans/containers made of glass or plastic | Collecting table. The individual machines of the packaging line are connected to each other via conveyor belts, which gives the installation of the line high flexibility. -Specifications: Number of filling nozzles: 4 | filling range: 100-1000ml | dosing method: by piston pump | accuracy: +/- 1% | bottle height: 15-400mm | bottle diameter: 25-200mm | speed: max. 1000 bottles/hour | label size: L25-300mm, W20-180mm, product contact parts are made from 304 stainless steel. Dimensions and total weight of the line depend on the actual layout. Please note: This is only an example system. Final specifications may vary. The machine B5917119 photo just shows the 4-head B5917119 filling machine.

Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.
seller offer No. resale GE-FLSYS11-4HCAPLB
