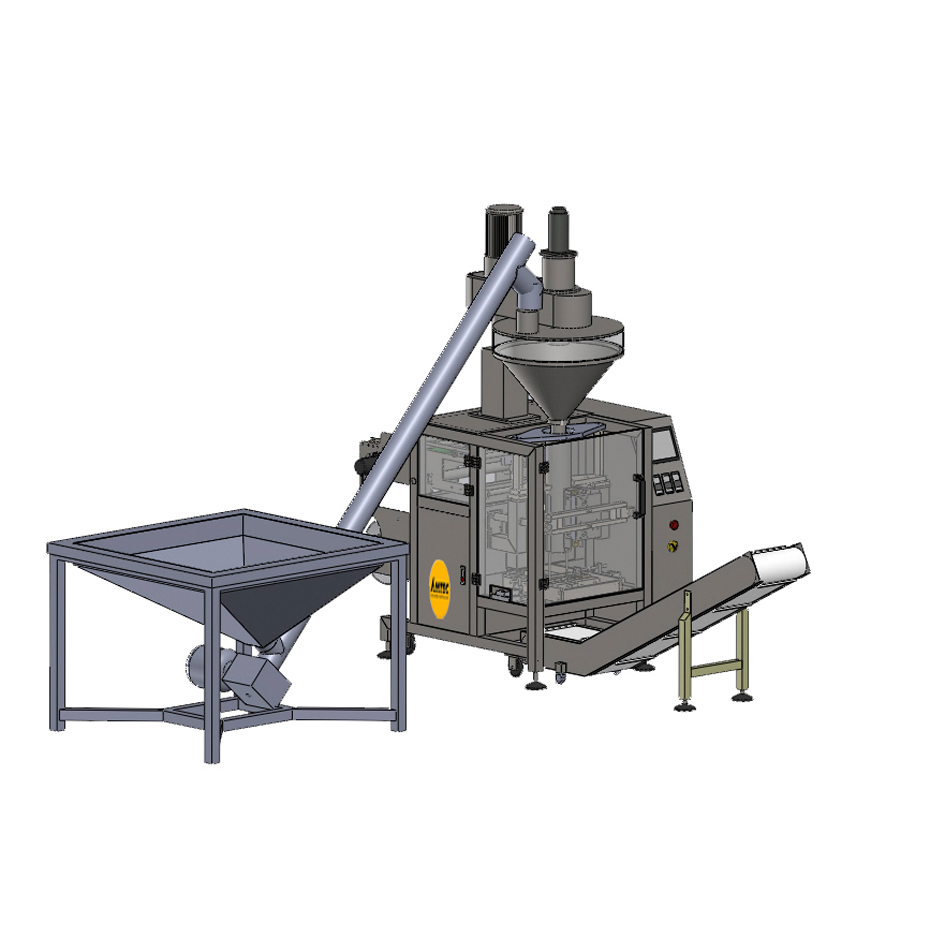

AMTEC VFFS-SYS AF100 P Sistemi completi

Complete compact vertical packaging system including auger dosing unit (1-300g), screw conveyor and outfeed conveyor. Vertical packaging machine: MITSUBISHI PLC, WEINVIEW touch screen operator interface, automatic program set-up, mark sensor registration control, quick change former assembly, servo motor sealing unit, servo motor film pulling, double pulling possible. - Specifications: bag size: L(50-230)xW(60-190) (single pulling) | max. speed of the machine in neutral: 100 cycles/min | stainless steel | 220V/4.5kW | 6bar, 0.2m?/min | L2588xW3308xH2159mm (depending on final layout) | weight: 800/900kg.
Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.
