Rettificatrici per piani con mola BLOHM Planomat 616 HP
macchine per lavorazione dei metalli / rettificatrici / Rettificatrici per piani con mola
Fabbricante: BLOHM
Modello:Planomat 616 HP
Tipo di macchina: Rettificatrici per piani con mola
Numero di articolo: 168423924
Quantità: 1
Data: 17.12.2025
Anno di fabbricazione: 2015
Ore di servizio: 6840
Luogo:
Francia
73240 Saint-Genix-les-Villages
Prezzo:
Macchina in azione:Sì
Seller-item-No.:90136

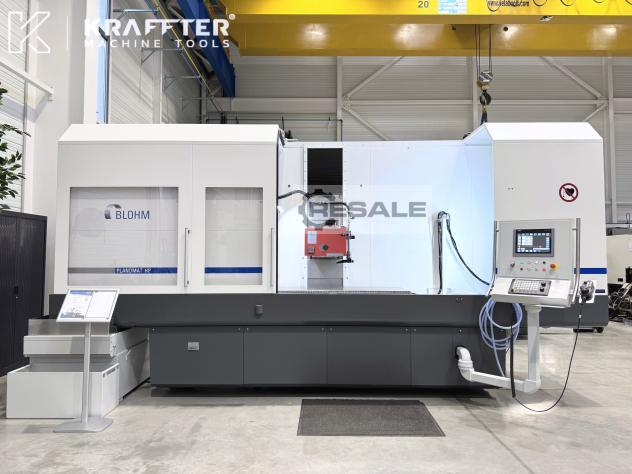

BLOHM Planomat 616 HP CNC surface grinding machine
TECHNICAL FEATURES:
Year: 2015
NC Type: SIEMENS 840D SL
Maximum surface area. Grinding Length x Width: 1600 x 600 [mm]
X-axis stroke (longitudinal axis): 1700 [mm]
Minimum speed. X-axis travel: 30 [mm/min]
Maximum speed X-axis travel: 30000 [mm/min]
X-axis resolution: 0.001 [mm]
Y-axis stroke (vertical axis): 800 [mm]
Minimum speed. Y-axis travel: 4 [mm/min]
Maximum speed Y-axis travel: 6000 [mm/min]
Y-axis resolution: 0.001 [mm]
Z-axis stroke (transverse axis): 560 [mm]
Minimum speed. Z-axis travel: 4 [mm/min]
Maximum speed Z-axis travel: 6000 [mm/min]
Z-axis resolution: 0.001 [mm]
Minimum distance. Spindle/table: 150 [mm]
Maximum distance Spindle/Table: 950 [mm]
Spindle power for the grinding wheel: 15 [kW]
Maximum diameter Grinding wheel: 400 [mm]
Maximum width Grinding wheel: 30 [mm]
Wheel bore: 127 [mm]
Magnetic tray dimensions: 1600 x 600 [mm]
Machine dimensions: 5450 x 3560 x 2800 [mm]
Supply voltage: 400 [V]
Number of hours on power: 6840 [h]
Weight: 8000 [Kg]
EQUIPMENT INCLUDED:
x1 watering tray and its paper filtration
x1 Oil Mist Vacuum Cleaner
x1 electro-magnetic plate 1600600 [mm]
x1 Lifting Straightening K51249644 Device
x5 Wheel Holder Flanges
Machine visible under tension for testing at our premises, by appointment.
Price excl. VAT on request, including truck loading.
Possibility of shipping throughout France as well as internationally.
More photos and details on request.
Technical description for information purposes only, without obligation on our part.
Machine similar to brands okamoto, jones shipman, jung, favretto, blohm, studer to see also cylindrical grinding machine, lathe, machining center, milling machine
TECHNICAL FEATURES:
Year: 2015
NC Type: SIEMENS 840D SL
Maximum surface area. Grinding Length x Width: 1600 x 600 [mm]
X-axis stroke (longitudinal axis): 1700 [mm]
Minimum speed. X-axis travel: 30 [mm/min]
Maximum speed X-axis travel: 30000 [mm/min]
X-axis resolution: 0.001 [mm]
Y-axis stroke (vertical axis): 800 [mm]
Minimum speed. Y-axis travel: 4 [mm/min]
Maximum speed Y-axis travel: 6000 [mm/min]
Y-axis resolution: 0.001 [mm]
Z-axis stroke (transverse axis): 560 [mm]
Minimum speed. Z-axis travel: 4 [mm/min]
Maximum speed Z-axis travel: 6000 [mm/min]
Z-axis resolution: 0.001 [mm]
Minimum distance. Spindle/table: 150 [mm]
Maximum distance Spindle/Table: 950 [mm]
Spindle power for the grinding wheel: 15 [kW]
Maximum diameter Grinding wheel: 400 [mm]
Maximum width Grinding wheel: 30 [mm]
Wheel bore: 127 [mm]
Magnetic tray dimensions: 1600 x 600 [mm]
Machine dimensions: 5450 x 3560 x 2800 [mm]
Supply voltage: 400 [V]
Number of hours on power: 6840 [h]
Weight: 8000 [Kg]
EQUIPMENT INCLUDED:
x1 watering tray and its paper filtration
x1 Oil Mist Vacuum Cleaner
x1 electro-magnetic plate 1600600 [mm]
x1 Lifting Straightening K51249644 Device
x5 Wheel Holder Flanges
Machine visible under tension for testing at our premises, by appointment.
Price excl. VAT on request, including truck loading.
Possibility of shipping throughout France as well as internationally.
More photos and details on request.
Technical description for information purposes only, without obligation on our part.
Machine similar to brands okamoto, jones shipman, jung, favretto, blohm, studer to see also cylindrical grinding machine, lathe, machining center, milling machine
