BREYER 190-313-44 Coextrusion Line

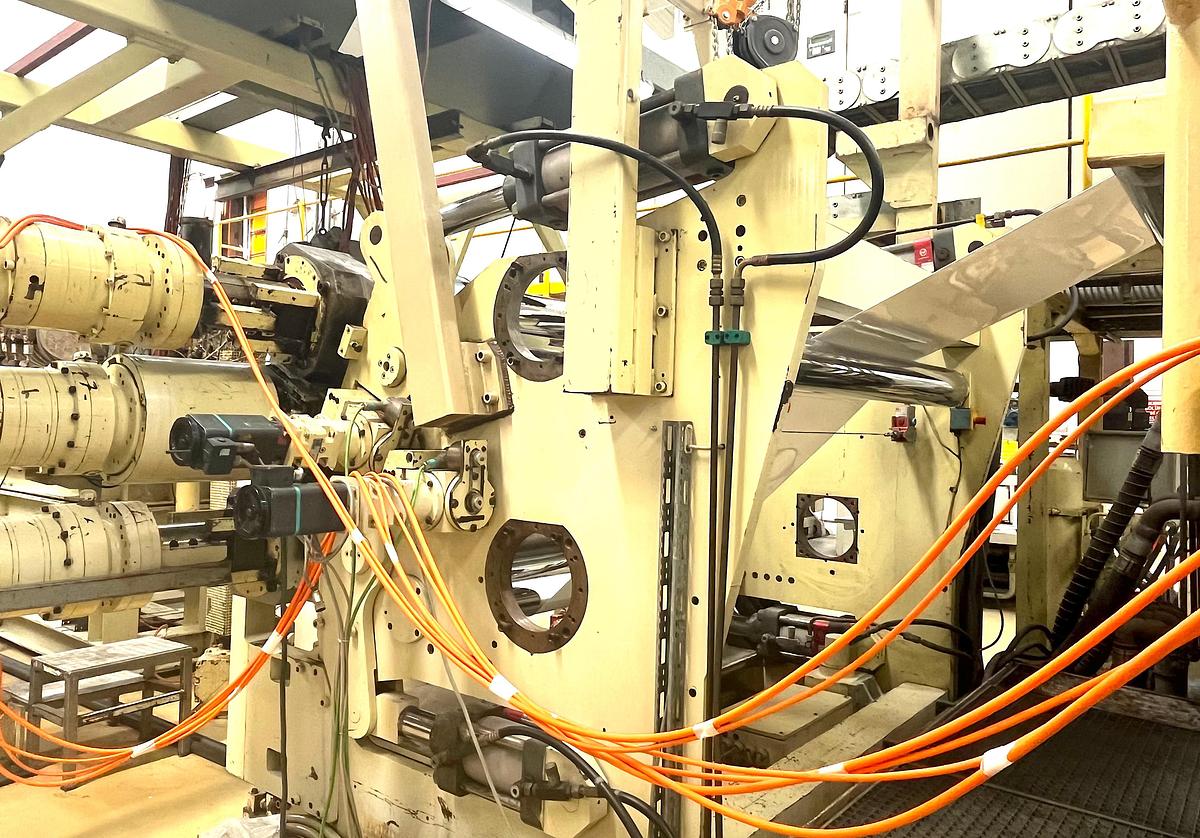

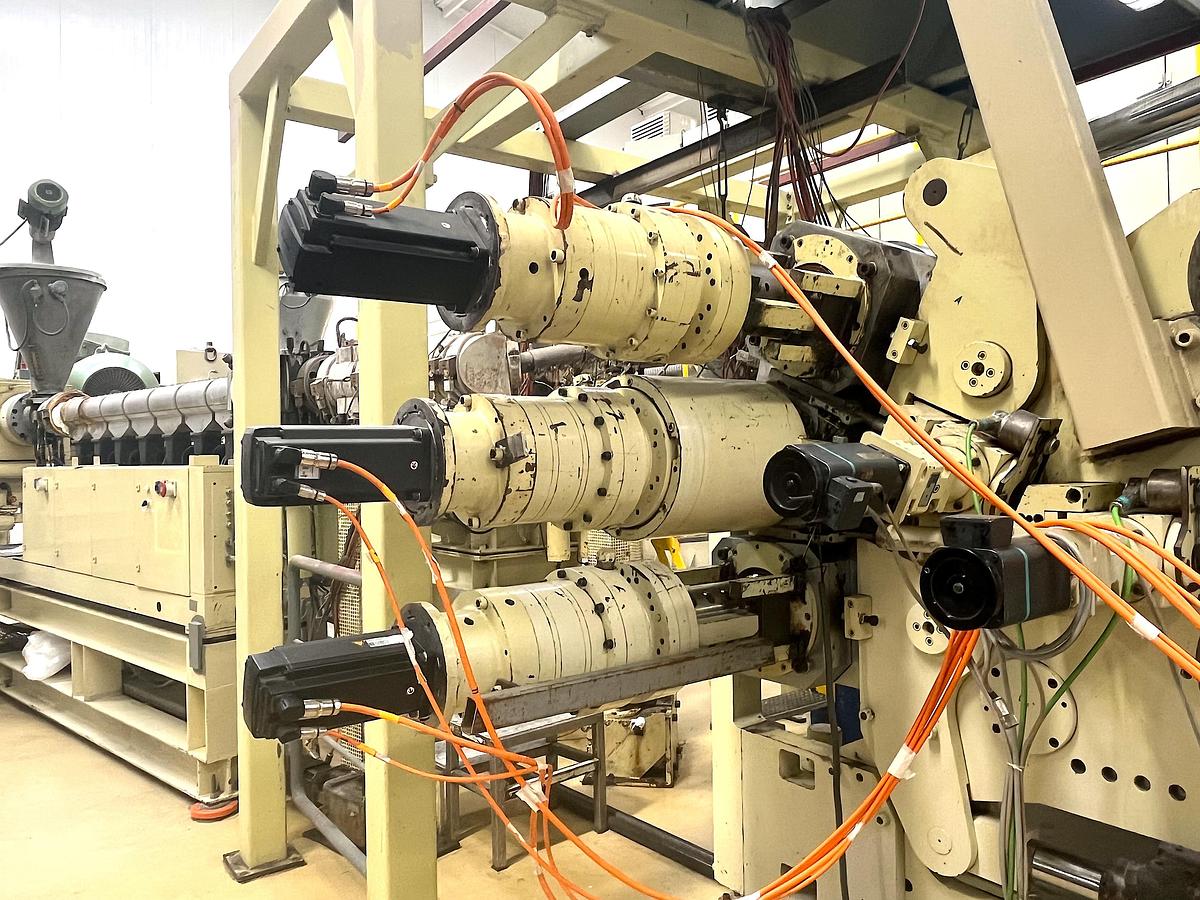

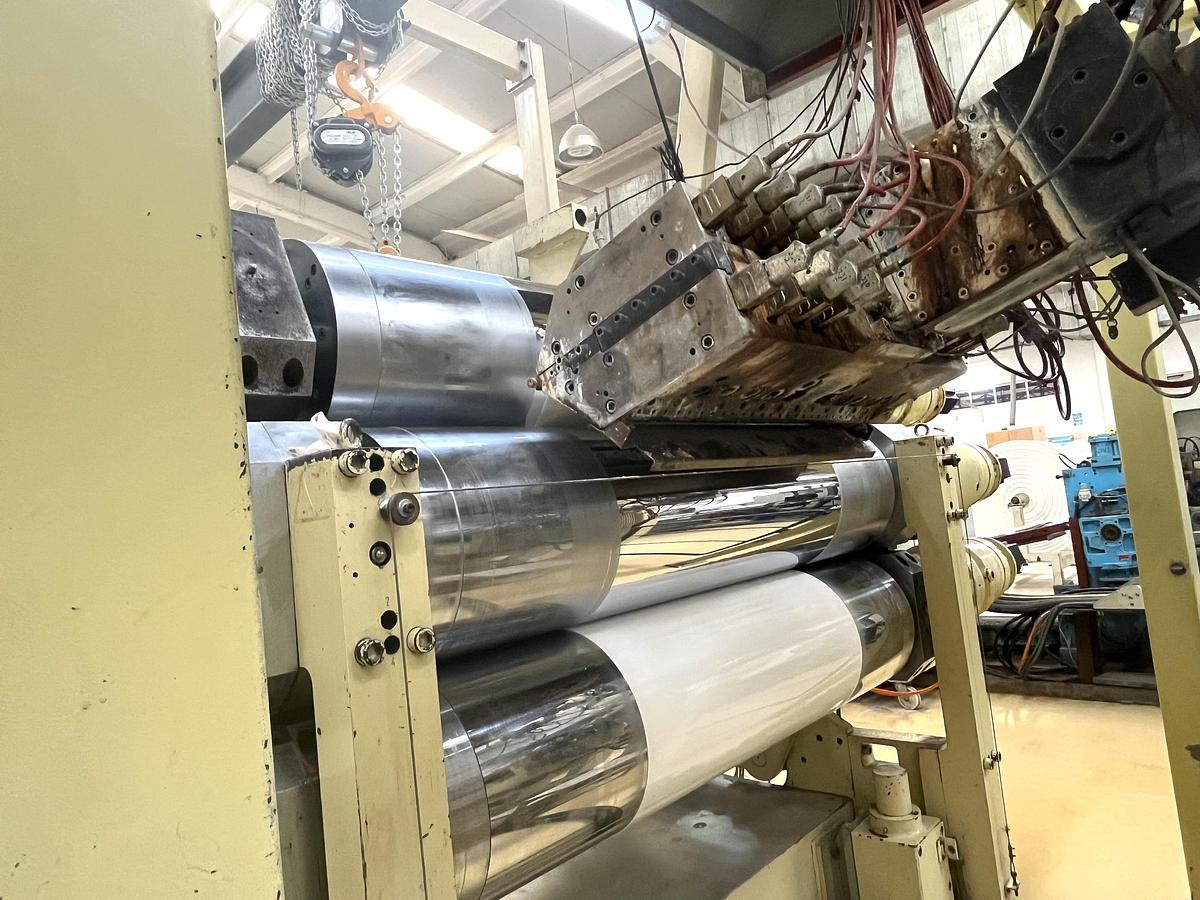

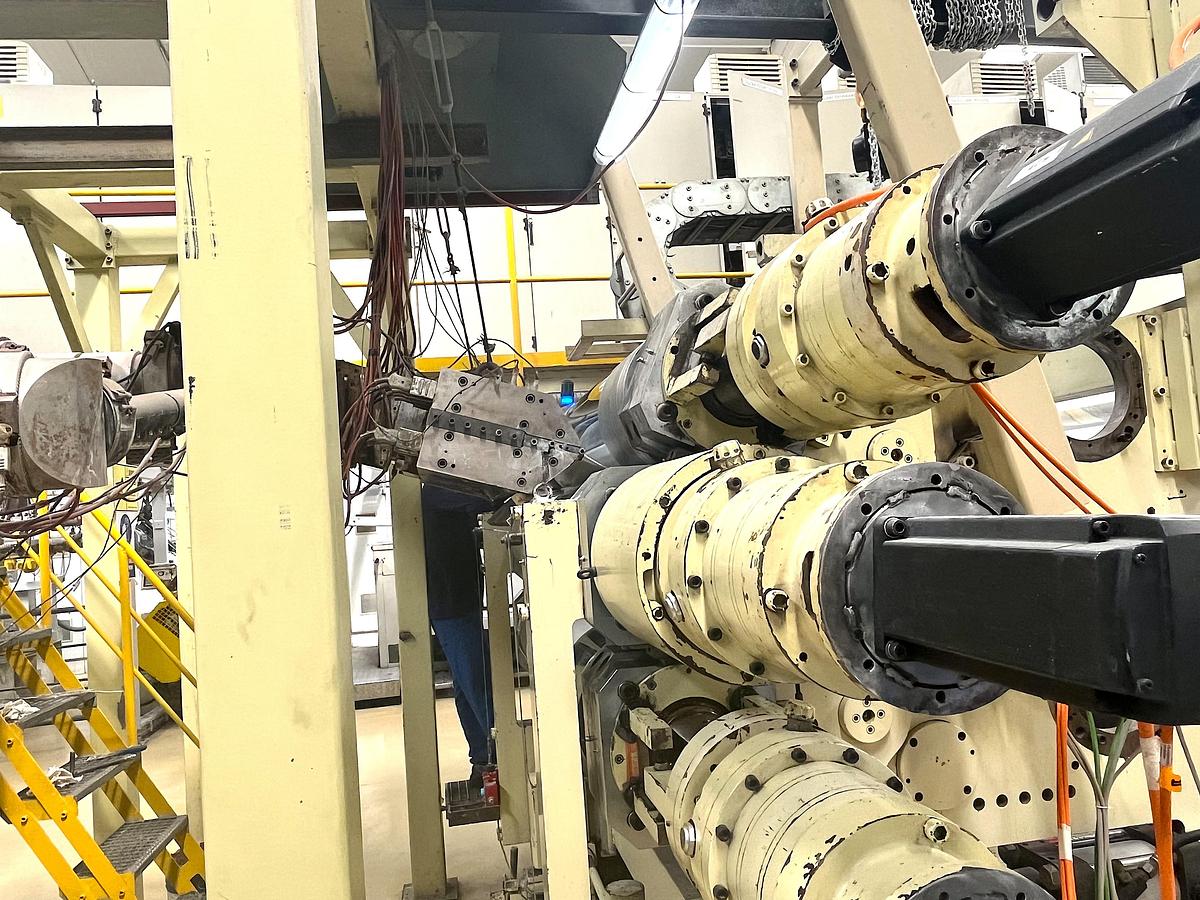

900 mm wide Breyer sheet coextrusion line for PP/PS:, Refurbished in 2011., 3 component Dosing Mixing Station, Main Extruder, diameter 120 mm L/D 32, 350 - 375 kg/ hr through-put., Coextruder diameter 90 mm L/D 32, 300 - 350 kg/ hr through-put., 6 x Zone Electrically heated fan cooled barrel., Both Extruders with Hydraulic Double Pot type screen changers with Hydraulic Power Pack., Both Extruders equipped with EXTREX Melt-Pumps, ABA Configuration Adapter, Breyer 900 mm wide Inclined flex lip sheet Die. Thickness Range 0.5 mm to 2 mm, 1200 mm wide Breyer 5-Roll Polished Chrome cooling stack, with 670 mm, 400 mm, 400 mm dia. Rolls, Driven by individual Indramat Servo Motors, 2 x Extra Rolls available but not installed on the Stack, Roller Conveyor, 2 x Rubber Roll nip Take-off., Pump group with heat exchangers for roll cooling., Breyer double station haul off with circuler knife shear cut edge trim Station, Edge trim Grinder, 2-Station Breyer Winding Station., Complete Suite of control panels for above., Can be inspected in production., V. Good Production Condition !
seller offer No. resale 625
