Measuring machine BRUKER ALICONA ?CMM
macchine per lavorazione dei metalli / altre macchine per lavorazione dei metalli
Bruker Alicona µCMMYear of manuf. : 2022 Control : Sonstige Bruker alicona MetMaX Movement X/Y/Z : mm____________Description:In General:Measurement method:Non-contact, optical, three-dimensionalMaximum number of measurement points:500 millionMeasurement volume:310 x 310 x 310 mmTravel speed:100 ...
Fabbricante: BRUKER ALICONA
Modello:?CMM
Tipo di macchina: Measuring machine
Numero di articolo: 170334205
Quantità: 1
Data: 18.10.2026
Anno di fabbricazione: 2022
Luogo:
Germania
Gewerbering 6, D-82140 Olching
Prezzo:
Macchina in azione:Sì
Seller-item-No.:89-001883
Bruker Alicona µCMMYear of manuf. : 2022 Control : Sonstige
Bruker alicona MetMaX Movement X/Y/Z : mm____________Description:In
General:Measurement method:Non-contact, optical,
three-dimensionalMaximum number of measurement points:500
millionMeasurement volume:310 x 310 x 310 mmTravel speed:100
mm/sDimensions:960 x 1,109 x 1,958 (2,288) mmWeight:approx. 1,250
kgMeasuring objectSurface texture:Any surface (including polished
metals)Max. weight:30 kgMax. dimensions (W x H):680 x 375

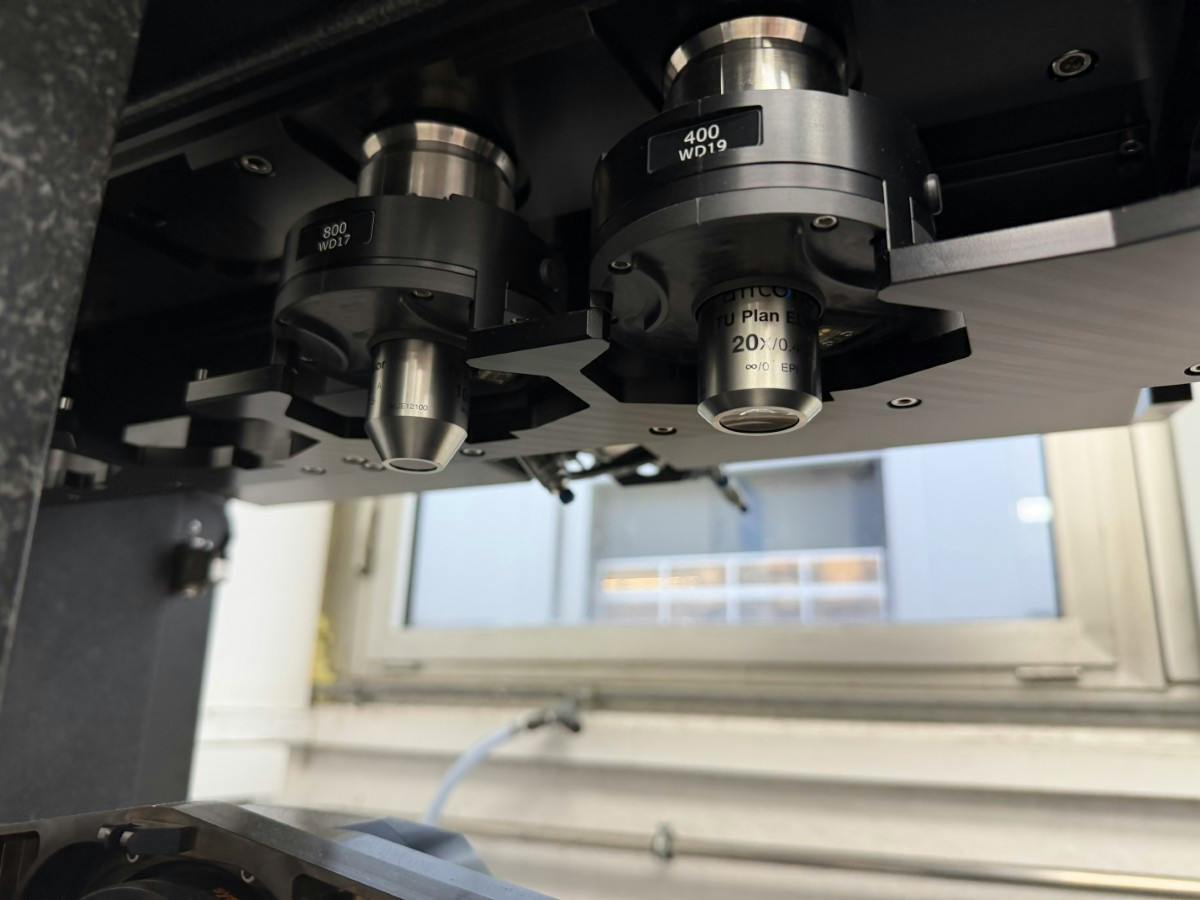

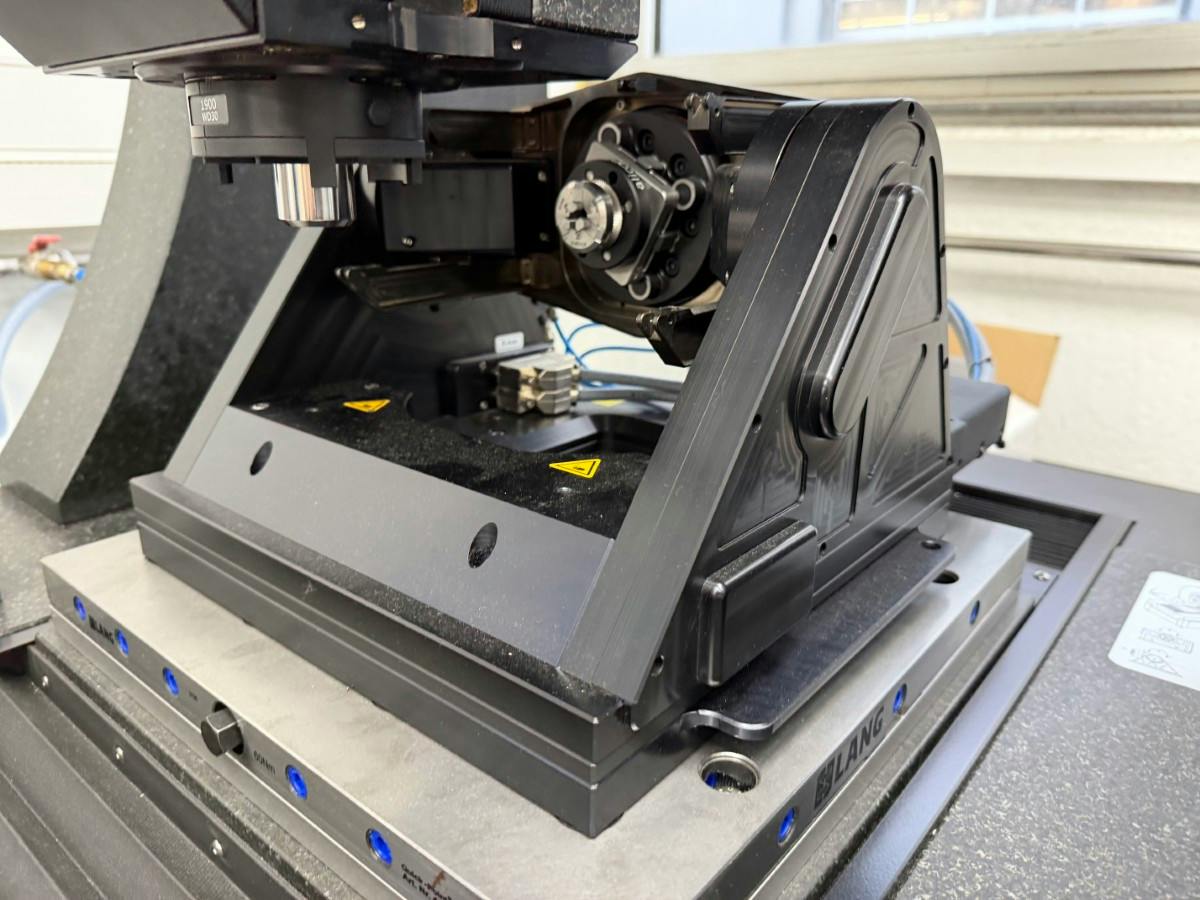

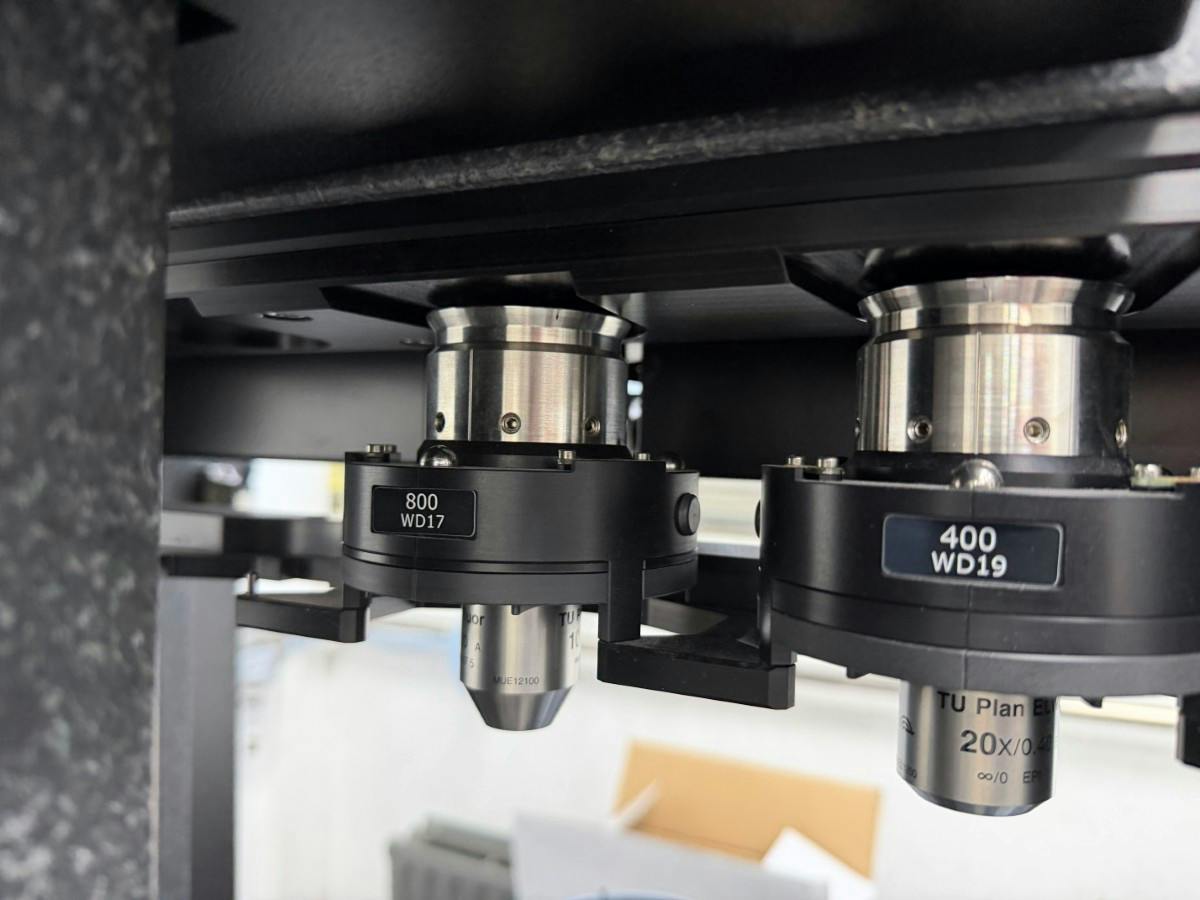

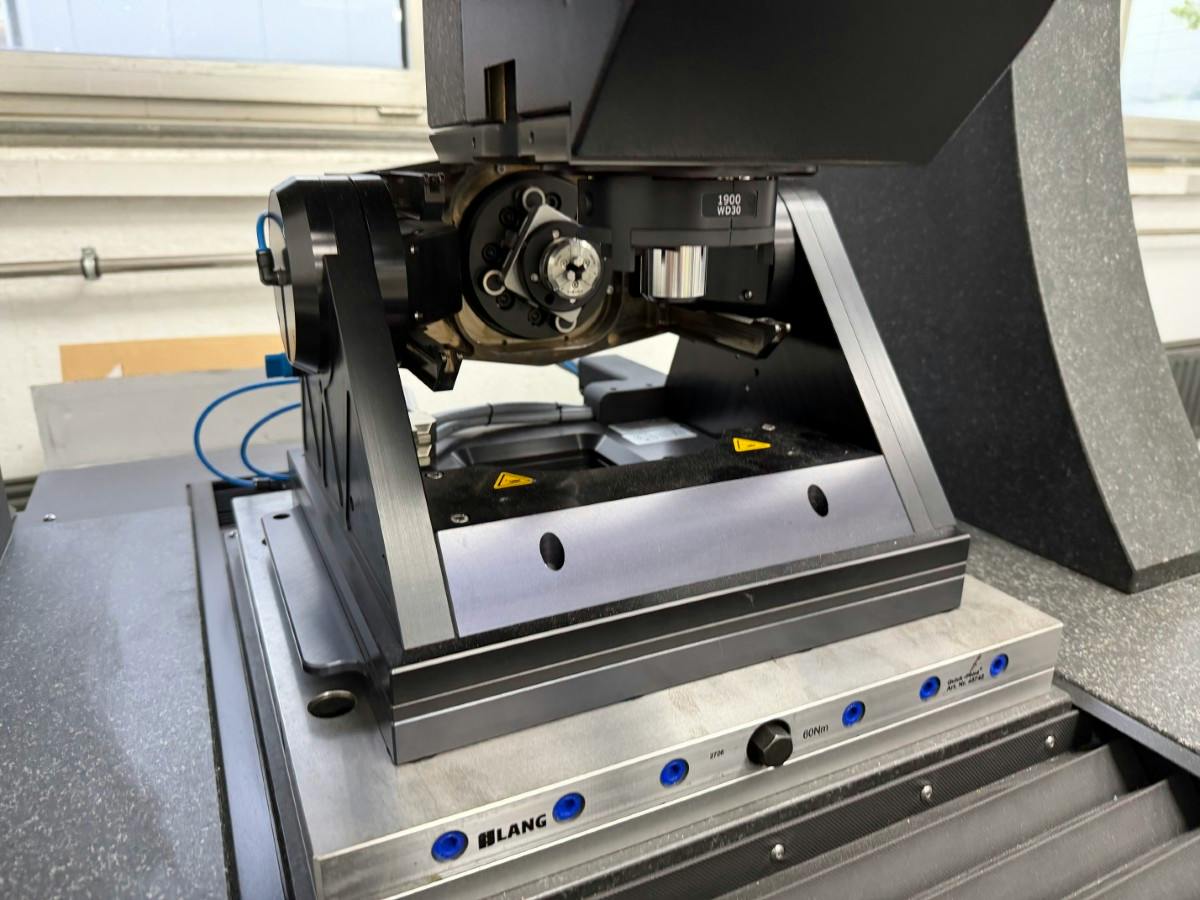

mmEquipment:Rotary table:A-axis, C-axisLens changer:Automatic
(4-position)Number of lenses:4 (WD 11, 17, 19,
30)Polarisation:Ringlight HP Vc1System monitoring:9 temperature
sensorsControlServerSF:64-bit, 6-core, 32 GB RAM, 500 GB SSD, Windows
10Set-up mode:Handheld control unit
