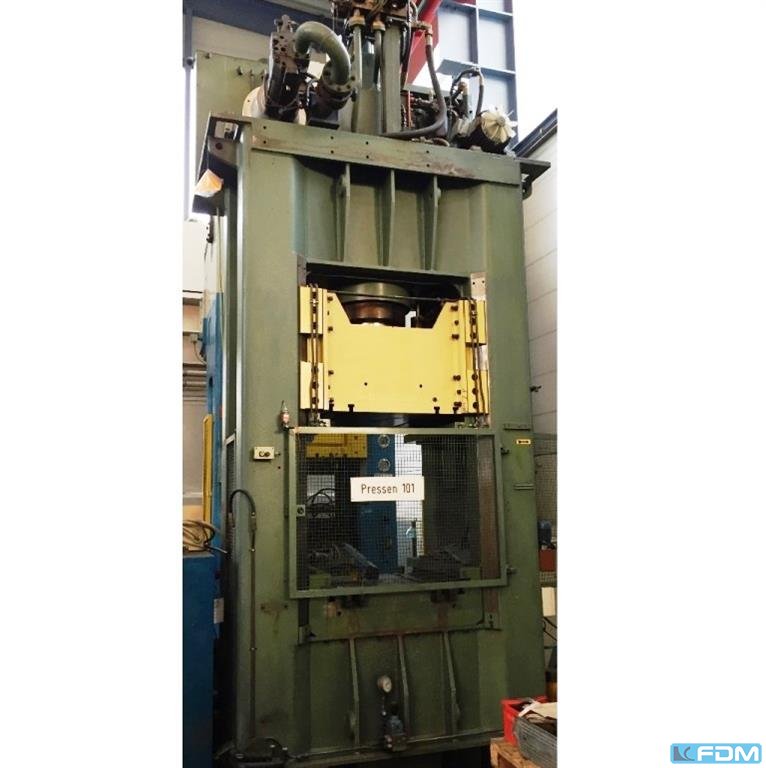

CAVENAGHI & RIDOLFI CRS 300 (UVV) Hydraulic Double-Column (Drawing) Press
usatoVenditore verificato
Richiedi il prezzo
Direttamente al venditore
1 / 2
Dati tecnici
· ID 170387035Macchine usate
- Condizioni
- usato
- Anno di costruzione
- 1988
- Ubicazione
- Lager Salach, Baden-Württemberg
Identifikation
ProduttoreCAVENAGHI & RIDOLFI
ModelloCRS 300 (UVV)
Numero articolo1050-123021
Technik
Quantità1
Descrizione
pressure:300 t
distance between columns:1220 mm
stroke:1000 mm
distance table/ram, max. stroke up, adjustment up:1200 mm
table surface area:1200 x 1000 mm
pressure of drawing cushion in table:115 t
stroke of drawing cushion in table:400 mm
die cushion area:1100 x 860 mm
table height over floor:900 mm
side window:550 x 1000 mm
ram surface:1200 x 1030 mm
speed down:400 mm/s
speed up:350 mm/s
working speed:12 - 31 mm/s
oil volume:1080 l
power requirement:36,0 + 19,0 kW
weight:22,0 t
dimensions (WxDxH):2,5 x 2,5 x 6,3 m
height over floor:5,4 m
height beneath floor:0,9 m
German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
light guard:Sick
hydraulic safety block and pump:Fabrikat Rexroth
distance between columns:1220 mm
stroke:1000 mm
distance table/ram, max. stroke up, adjustment up:1200 mm
table surface area:1200 x 1000 mm
pressure of drawing cushion in table:115 t
stroke of drawing cushion in table:400 mm
die cushion area:1100 x 860 mm
table height over floor:900 mm
side window:550 x 1000 mm
ram surface:1200 x 1030 mm
speed down:400 mm/s
speed up:350 mm/s
working speed:12 - 31 mm/s
oil volume:1080 l
power requirement:36,0 + 19,0 kW
weight:22,0 t
dimensions (WxDxH):2,5 x 2,5 x 6,3 m
height over floor:5,4 m
height beneath floor:0,9 m
German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
light guard:Sick
hydraulic safety block and pump:Fabrikat Rexroth
