Torni CNC DMT KERN CD 650 / 2000

greates pass round over bed: 650 mm
Swing dia. over traverse guideway: 420 mm
Distance between centres: 2.000 mm

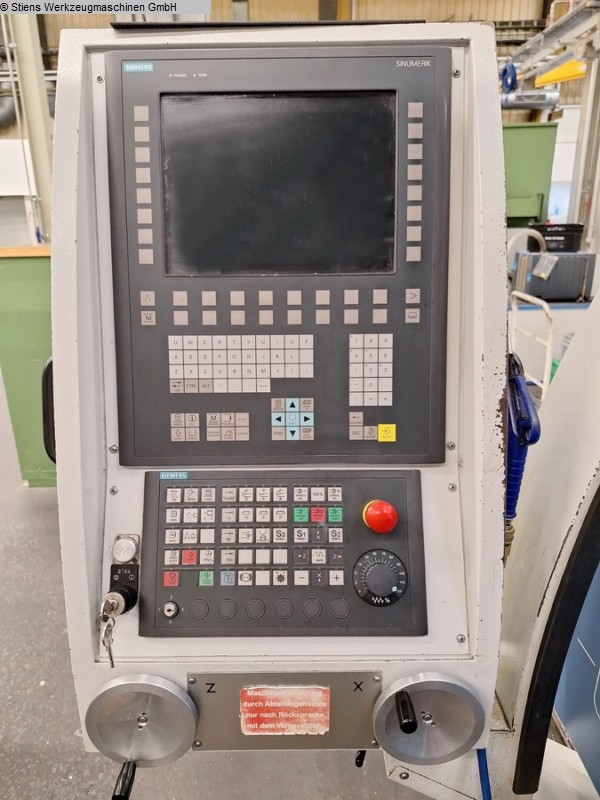

control: Sinumerik Siemens
slide travel X-axis: 440 mm
slide travel Z-axis: 2.000 mm
Main spindle::
turning speed range - main spindle: 1 - 3.000 min/-1
power capacity - main spindel: 33 / 27 / 22 kW
transmission ratio: 2
spindle diameter in front bearing: 140 mm
spindle bore: 106 mm
standard chuck diameter: 250 - 400 mm
spindle head: DIN 55026 / A8

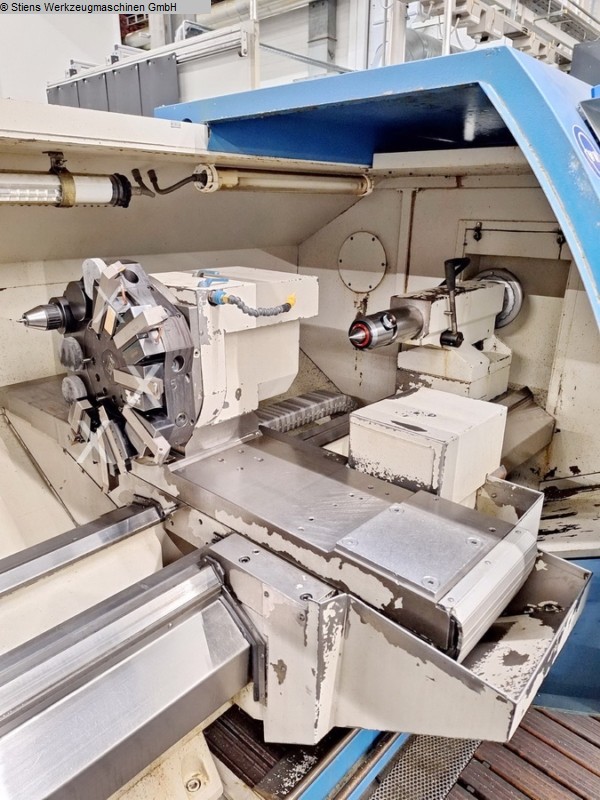

turret head: 12 pos.
turning tool - shaft cross cut: 32 x 32 mm
feeds::
rapid traverse: X: 5 m/min
rapid traverse: Z: 10 m/min
feed range: X: 0,001 - 1.000 mm/min
feed range: Z: 0,001 - 2.000 mm/min
power feed coss: 9.000 N
power feed longitudinal: 12.000 N
Tailstock::
diameter of quill: 100 mm
quill travel: 200 mm
taper of center: MK 6
total power requirement: 38 kW
weight of the machine ca.: 6,0 t
dimensions of the machine ca.: 6,0 x 2,5 x 2,0 m
Coolantsystem:
Tailstock:
Chip conveyor:
tool holders: 1x

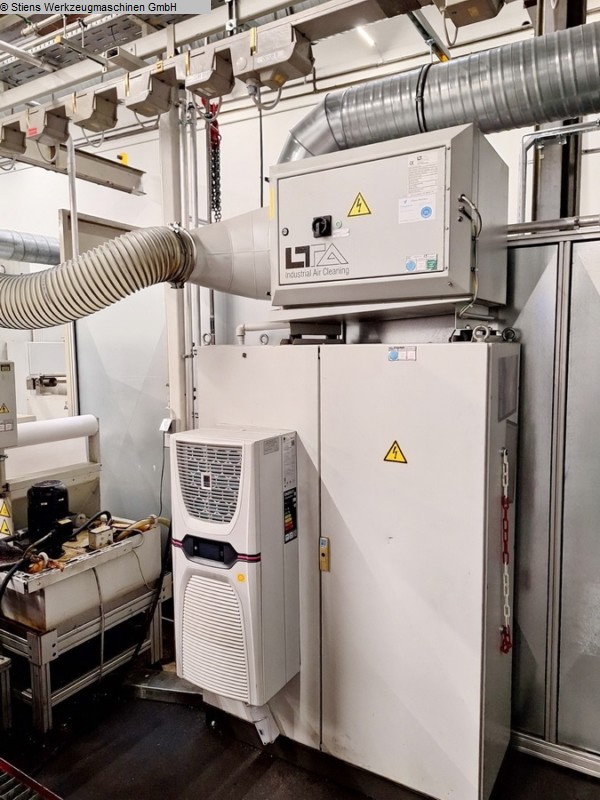

exhaust fan: LTA - AC3001 R

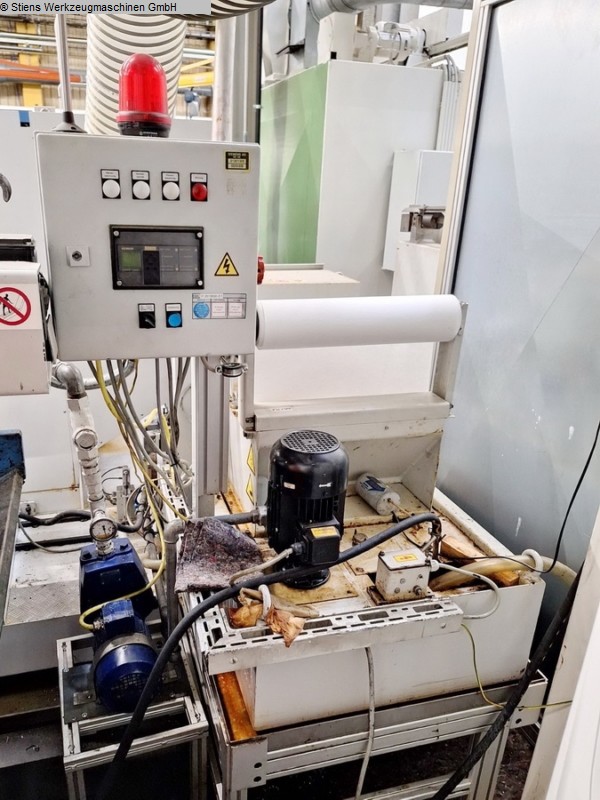

paper band filter:

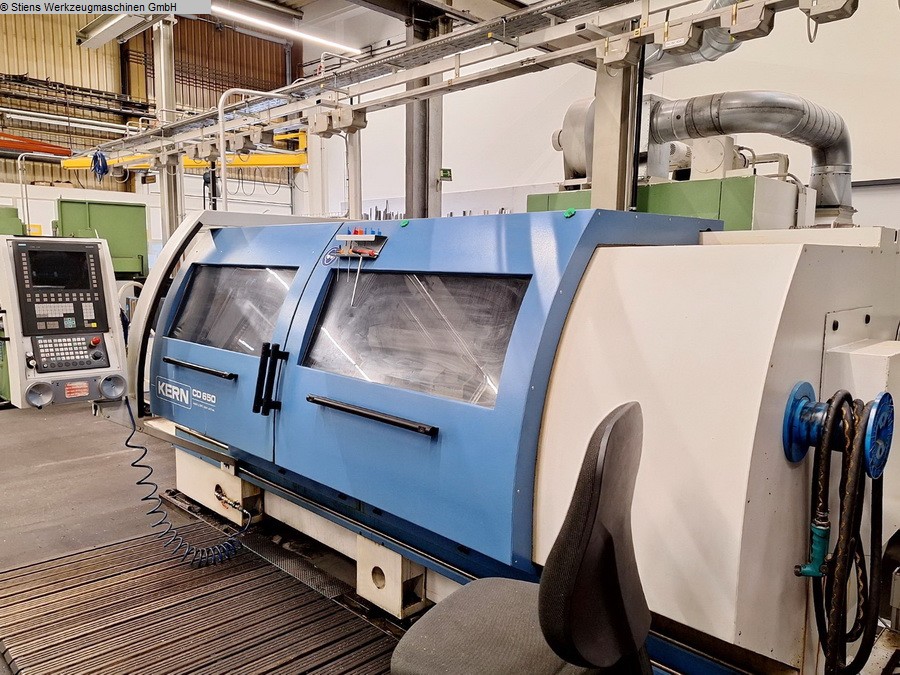

CNC - Lathe
DMT KERN - CD 650 / 2000

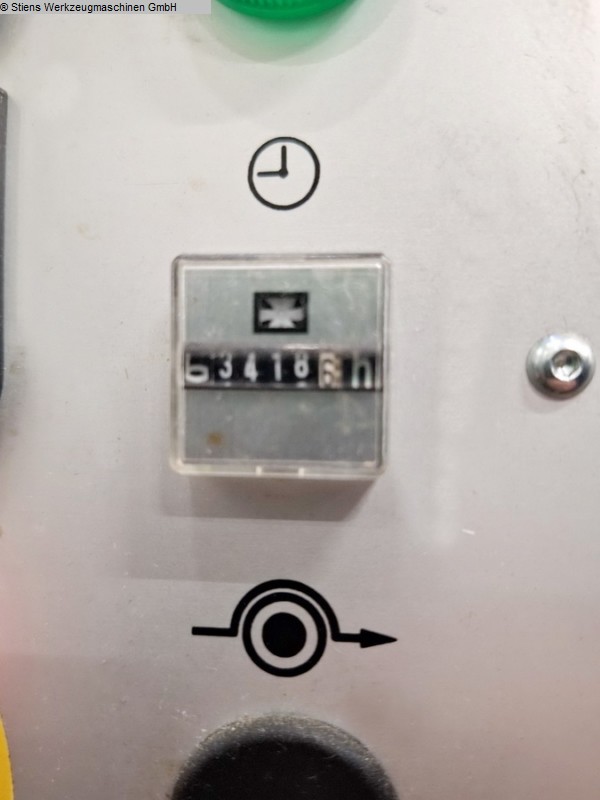

- only 3,446 operating hours

- incl. boring bar with holder for cross slide
- incl. face plate 600 mm
- incl. traveling steady rest max. 160 mm
- incl. fixed steady rest max. 160 mm
- incl. fixed steady rest max. 250 mm (not pictured)
- incl. fixed steady rest max. 350 mm (not pictured)

- incl. spare parts package
- NO additional tools included
