Presse piegatrici CNC DURMA AD-S 30175

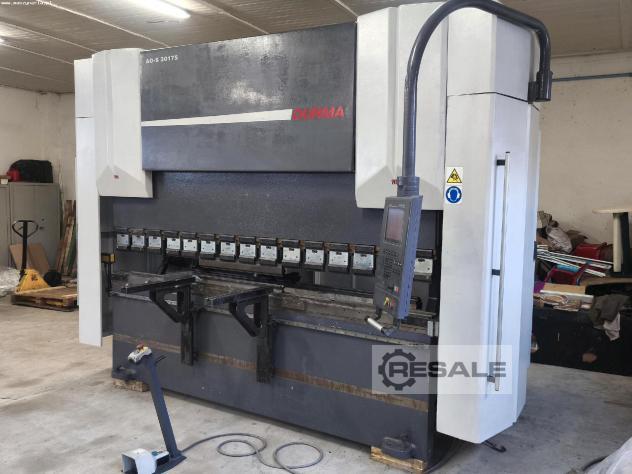

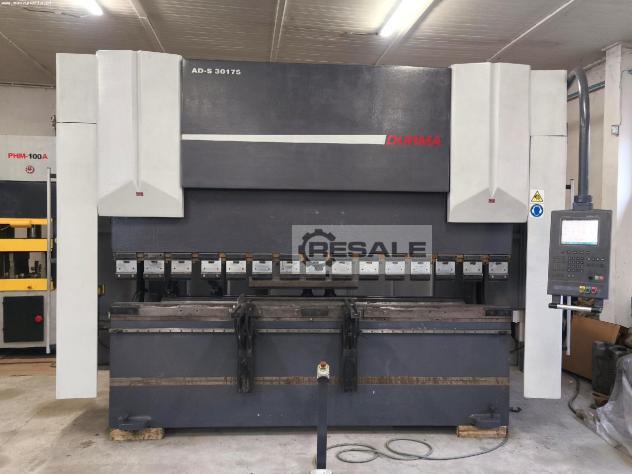

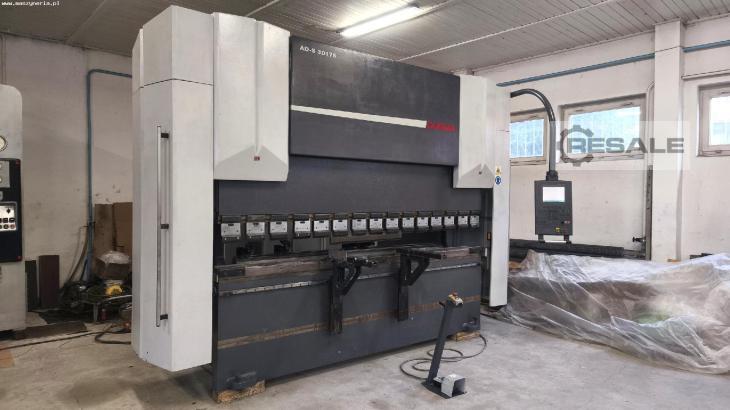

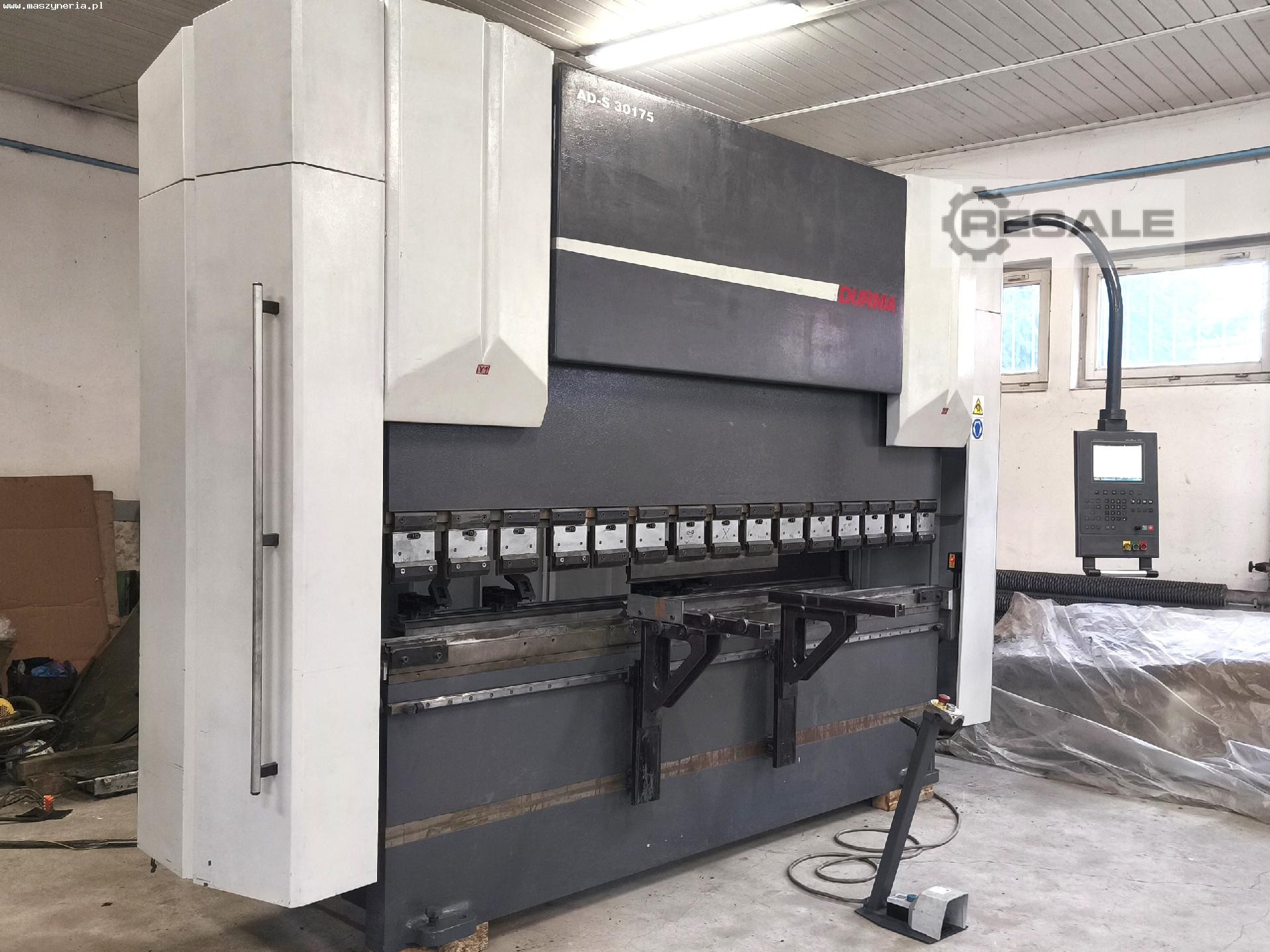

DURMA AD-S 30175 CNC hydraulic press brake was built in 2009 in Turkey by DURMAZLAR MAKİNA SANAYİ ve TİCARET A.Ş. The offered machine is an excellent choice for precision machining of workpieces with a maximum length of 3050 mm. The machining process is performed with a high force of 175 tons in four numerically controlled axes (X, Y1, Y2, R). The state-of-the-art technology used makes it more precise and energy-efficient than other presses available on the market. These include, among others, the manual deflection arrow compensation function, which ensures that the desired angle is achieved along the entire length of the bent workpiece. The sturdy construction, combined with economical drives, in turn guarantees excellent bending results, even during the most intensive challenges.

The positioning of the material is facilitated by front supports with T-slots and a back stop operating in the X and R axes. The DURMA AD-S 30175 is also equipped with a European-style tool clamping system, which guarantees wide compatibility with the most common tooling. The set includes punches and dies in the same standard. All this is complemented by the advanced CYBELEC control system, which ensures intuitive operation and rapid programming of the machining processes. The DURMA AD-S CNC press brake weighs 10830 kg.

Technical specifications of the DURMA AD-S 30175 press brake
- number of axes: 4 (X,Y1,Y2,R)
- maximum press force: 175 t
- maximum bending length: 3050 mm
- slider stroke: 265 mm
- reach: 410 mm
- approach speed: 140 mm/s
- bending speed: 10 mm/s
- return speed: 130 mm/s
- distance between columns: 2600 mm
- stopping time: 102 ms
- stopping distance: 8 mm
- safety distance: 263.2 mm
- oil tank capacity: 200 l
- maximum operating pressure: 285 kg/cm2
- motor power: 18.5 kW
- current: 37 A
- current protection: 50 A
- control voltage: 24 V
- power supply: 3x 400 V; 50 Hz
- dimensions (L x W x H): 5450 x 2550 x 2750 mm
- weight of the DURMA AD-SERVO 30175 machine: 10830 kg

Equipment of the DURMA press brake

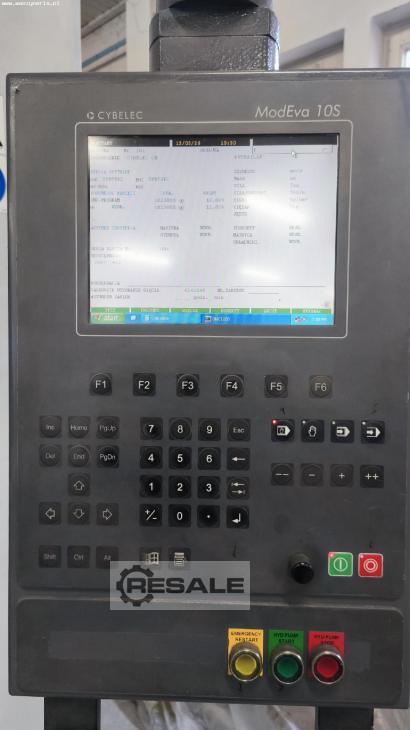

- CNC controller: CYBELEC ModEva 10S
- manual deflection arrow compensation
- European-style tool clamping system

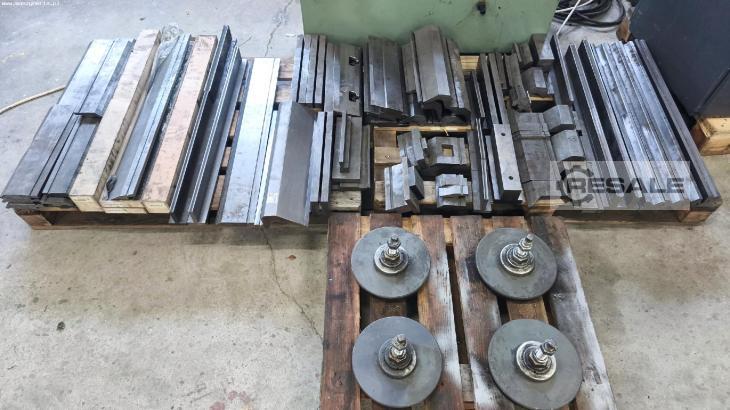

- European-style punches and dies

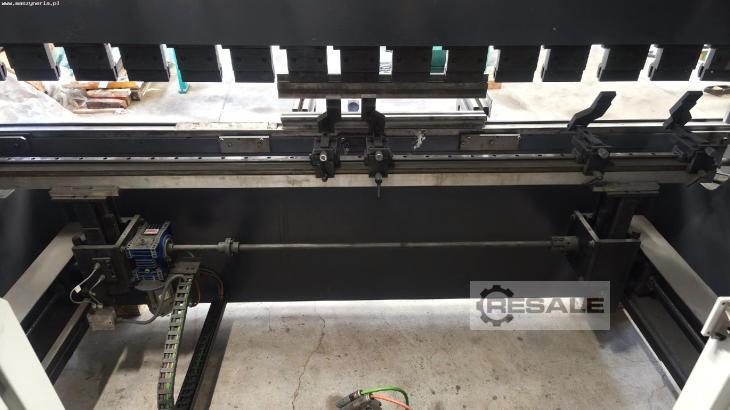

- driven back stop
- front supports with T-slots and tilting stop
seller offer No. resale 169303468
