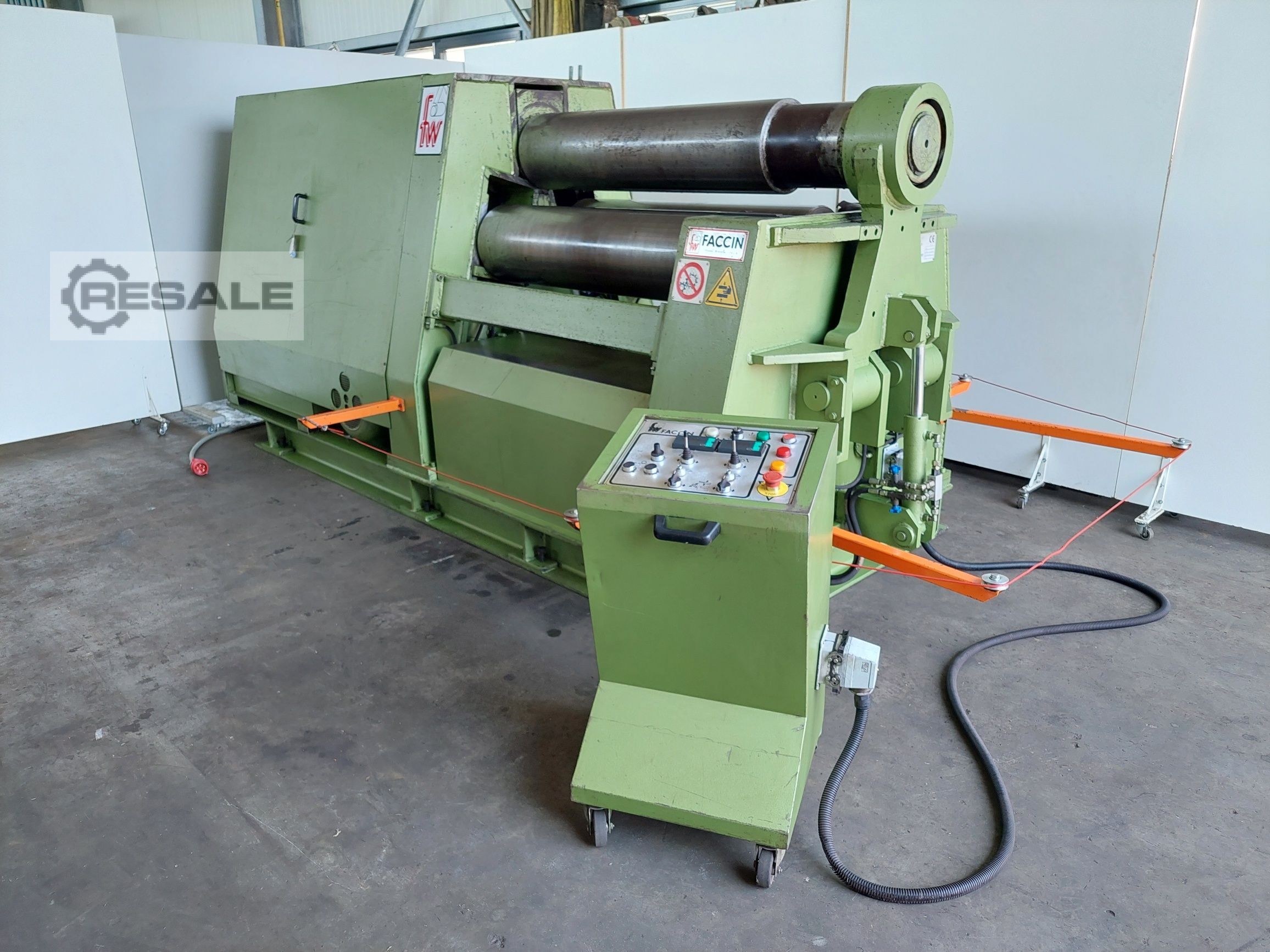

Curvatrice per lamiere motorizzato FACCIN 3 HEL 12-300
macchine per lavorazione dei metalli / lavorazione della lamiera / Curvatrice per lamiere motorizzato
Offer 26165 Technical data - Two driven rollers, each roller hydraulically adjustable - For bending and conical rolling - Operation of separate control panel, with digital actual value display - and manual operation - Max. working width 1300 mm - Max. sheet thickness at 400 N/mm² without bending - ...
Fabbricante: FACCIN
Modello:3 HEL 12-300
Tipo di macchina: Curvatrice per lamiere motorizzato
Numero di articolo: 169738317
Quantità: 1
Data: 22.06.2026
Anno di fabbricazione:
Luogo:
Germania
63322 Rödermark
Prezzo:
La vostra proposta di prezzo:
Seller-item-No.:Lg.-Nr. 26165
Offer 26165

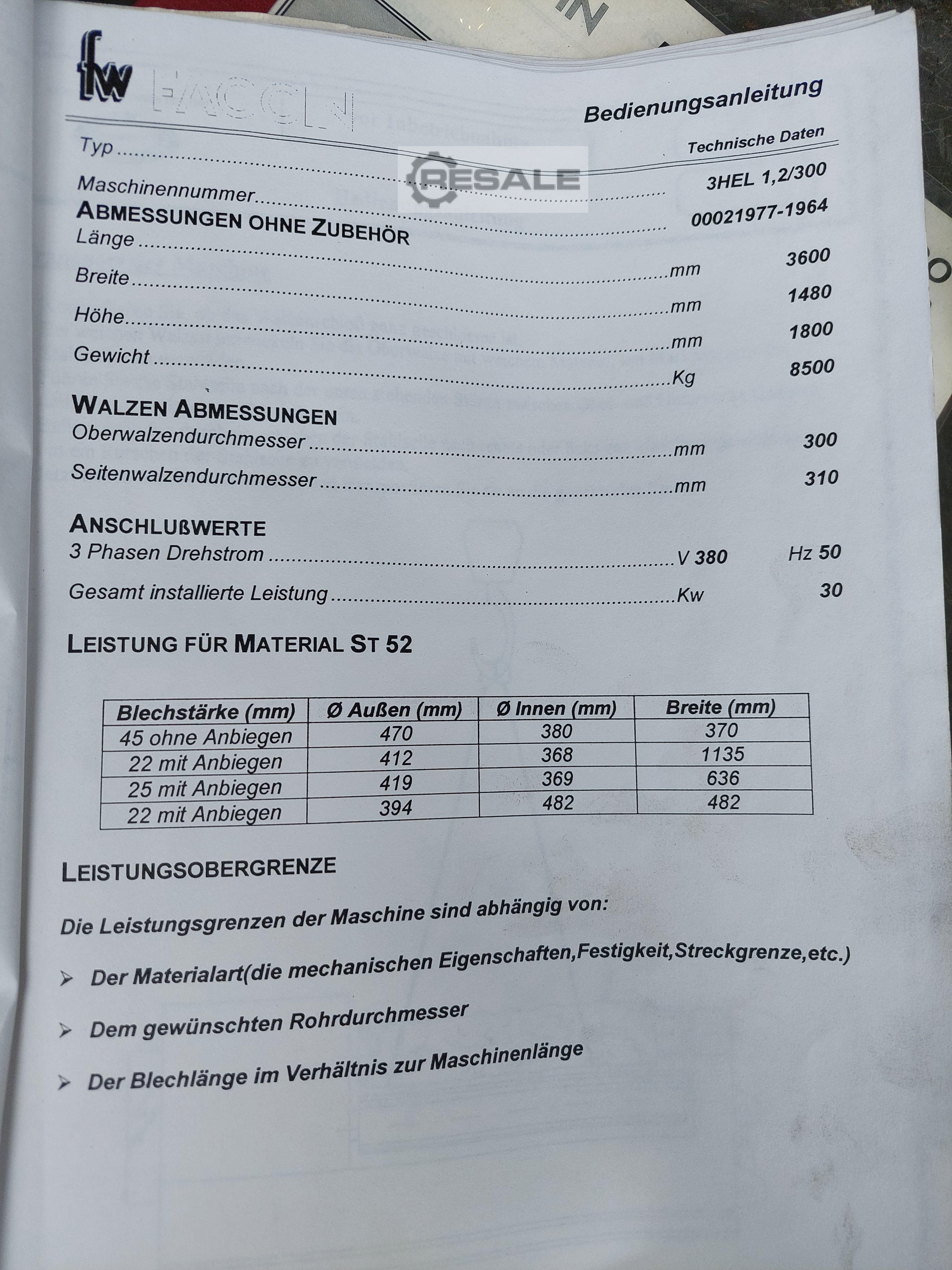

Technical data
- Two driven rollers, each roller hydraulically adjustable
- For bending and conical rolling

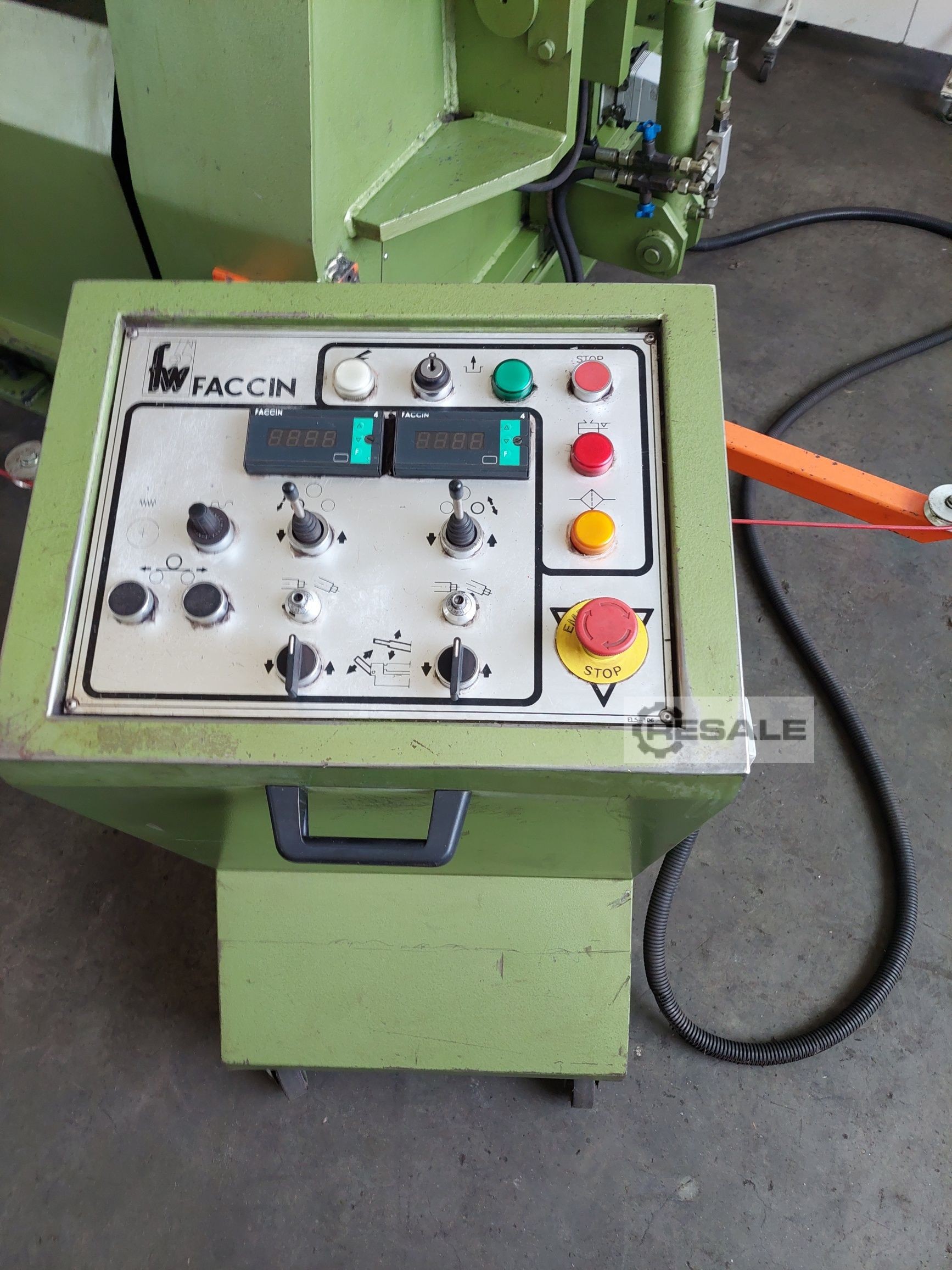

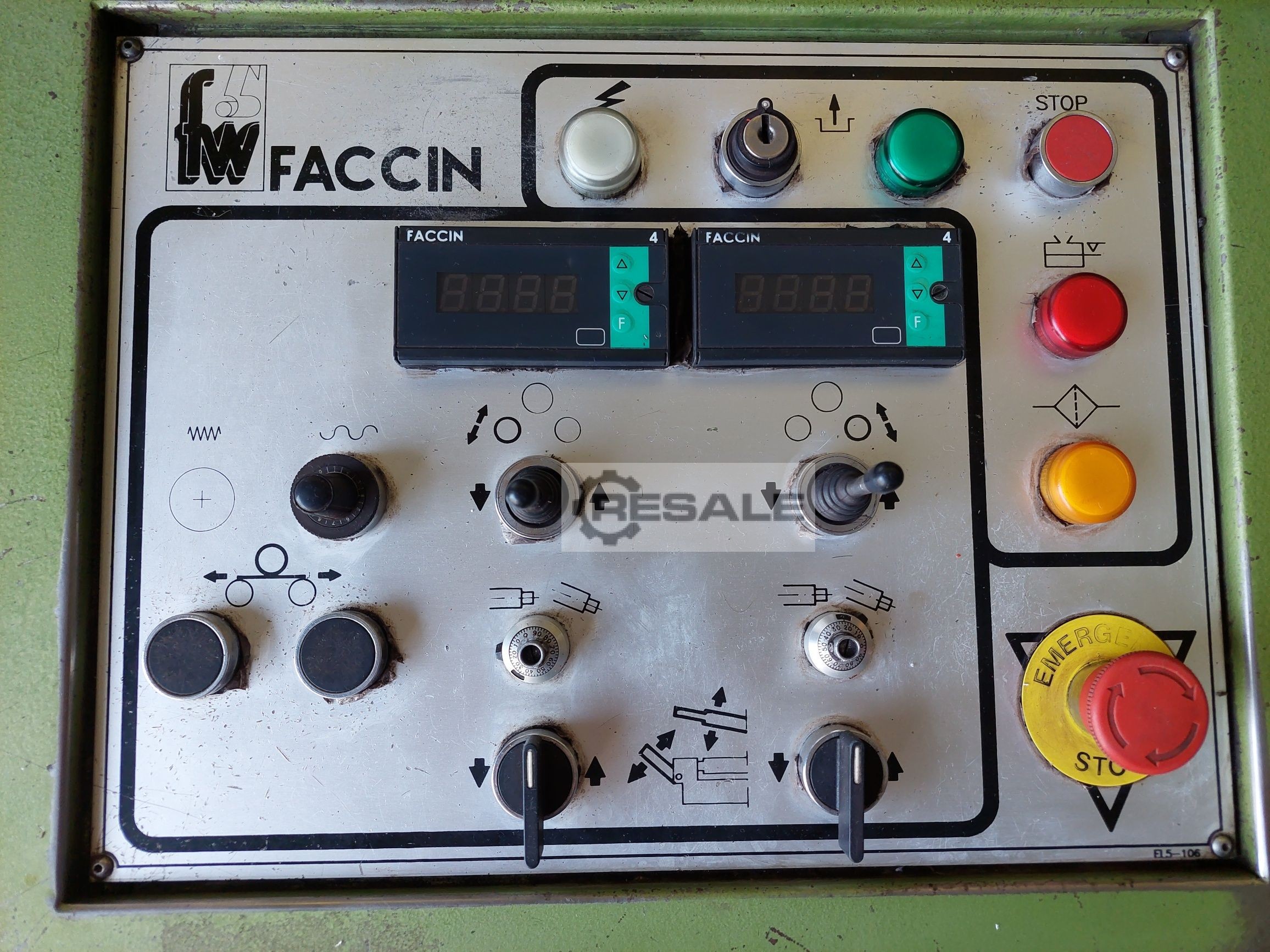

- Operation of separate control panel, with digital actual value display
- and manual operation
- Max. working width 1300 mm
- Max. sheet thickness at 400 N/mm² without bending
- With a bending diameter of 370 mm, 30 mm inside
- With bending at bending diameter 370 mm, inside 25 mm
- without bending with a bending diameter of 380 mm inside and
- Width of 370 mm 45 mm
- Upper roller diameter each 300 mm
- Side roller diameter each 310 mm
- Working speed 4.5 m/min
- Drive 400 V / 30 kW
- Required space W 5800 x H 1900 x D 2200 mm
- Weight 8500 kg
Technical data
- Two driven rollers, each roller hydraulically adjustable
- For bending and conical rolling
- Operation of separate control panel, with digital actual value display
- and manual operation
- Max. working width 1300 mm
- Max. sheet thickness at 400 N/mm² without bending
- With a bending diameter of 370 mm, 30 mm inside
- With bending at bending diameter 370 mm, inside 25 mm
- without bending with a bending diameter of 380 mm inside and
- Width of 370 mm 45 mm
- Upper roller diameter each 300 mm
- Side roller diameter each 310 mm
- Working speed 4.5 m/min
- Drive 400 V / 30 kW
- Required space W 5800 x H 1900 x D 2200 mm
- Weight 8500 kg
