Impianti di imbottigliamento FRAMAX Isobaric Modulblock RFCI-16

Glass Bottle Filling Line foor Beer and CSD FRAMAX 3000 bph – 2017

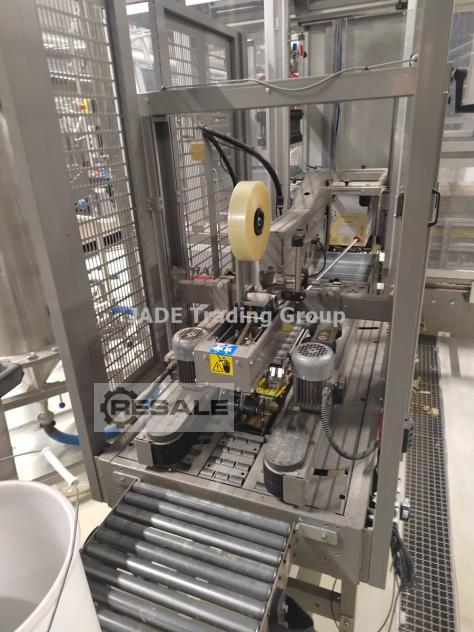

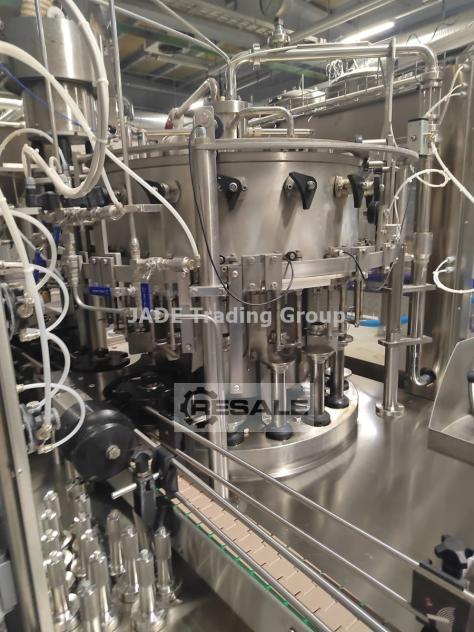

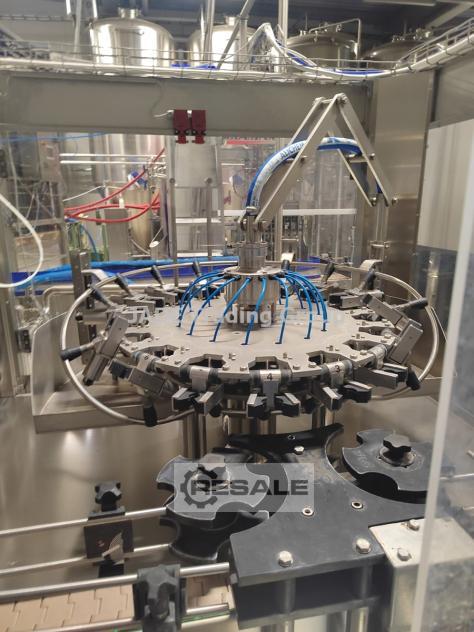

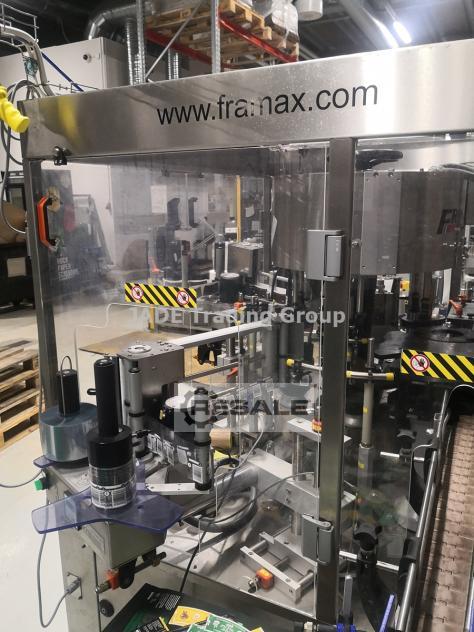

This filling line used to fill beer in 330 ml glass bottles with crown caps. This complete line was delivered by Italian Framax in year 2017 and it has operated only about 2600 hours. It contains automatic depalletizer, self-adhesive labeller, tri-bloc bottling machine and carton box packaging machine. Bottling machine consist of 16 clamps rotating rinser with single hot water treatment, an isobaric 16 valve counterpressure filler with double air pre-evacuation with CO2 and a single head crowner. Filling vales are DPS type the product is spread along bottle sides by a rubber packing mounted on the levelling system. As soon as the product level reaches the hole on the levelling system the filling nozzle is shut off mechanically by a control cam. Filler has also a fobber unit for foaming in order to reduce any oxygen pickup. The filler is suitable for filling all kinds of carbonated products in addition to beer, such as carbonated water and soft drinks. All machinery is in excellent condition.

Main characteristics
Made by FRAMAX, Italy
Manufacturing year 2017
Total operating hours 2600
Product Beer and Carbonated Soft Drinks
Containers One way glass 330 ml and 500 ml
Filling Block Isobaric Modulblock RFCI-16/16/1DPS/C
Nominal capacity 3000 bph in 330 ml
Actual capacity 2000 bph in 500 ml
Cap Crown cap
Labels Self adhesive back-front-neck
Consumer packs Carton box in format 6x4
seller offer No. resale 10082024
