Fresatrici a portale (21)

Inv. Num. : 9154 Tipo: 17-10 FP NC/5 Produttore: Waldrich Coburg Creato: 1985, GO 2011 Parametri: Sistema operativo: Sinumerik 840 Lunghezza tavolo: 5000 mm Larghezza del tavolo: 2500 mm Peso massimo del pezzo: 60000 kg Peso: 125.000 kg Il liquido refrigerante fuoriesce nella zona del mandrino della macchina. I GO sono stati eseguiti sulla macchina nel 1997/2008/2011.

Working AreaX-axis travel 3,900 mmY-axis travel 2,940 mmZ-axis travel 1,100 mmB-axis (swivel head) 90° freely interpolatingNC rotary table Ø 2,800 mmMax. workpiece weight 15,000 kgSpindleTool holder SK 50Spindle power 63 kWMax. torque 200 NmMax. speed 6,000 min⁻¹FeedRapid traverse X/Y/Z 30 / 30 / 25 m/minFeed force 9,000 NTool magazineTool positions 20Max. tool diameter 110 mmWith free adjacent positions 180 mmMax. tool length 400 mmRotary TableClamping surface Ø 2,800 mmMax. transport load 15,000 kgTangential moment 40,000 NmTilting moment 90,000 NmElectrical connection values 3 × 400 V / 50 HzEquipmentHEIDENHAIN iTNC 530 HSCINC rotary table Ø 2,800 mmFreely interpolating swivel headPortal designFull enclosureAutomatic central lubricationCoolant systemChip conveyorControl panel on swivel arm

Key data: 3400 mm, 2700 mm, 1250 mm

Fresatrice a portale LAVORI JOMACH 241 Anno di costruzione: 1998 Corsa X: 3400 mm Escursa Y: 2700 mm Escursa Z: 1250 mm Comando numerico: CNC Siemens SINUMERIC 840 D Dimensione del tavolo: 3000 x 1500 mm 1 Cambio Utensili 32 Strumenti ISO 50 + 1 Cambio Attrezzi 32 Strumenti HSK-63 Larghezza massima tra i montanti: 1700 mm 3 Teste di fresatura - Asce C: 2 teste TWIST - ISO 50 + HSK 63 A + 1 testa 3 assi ISO 50 Peso: 44 T

The BRETON MATRIX 1300 DY K30 is a 5-axis CNC gantry machining center with a movable gantry design for high-precision complete machining of large workpieces. The rigid steel construction, combined with direct measuring systems and high-dynamic axis drives, ensures high positioning accuracy and consistently stable machining quality.The machine is equipped with a HEIDENHAIN iTNC 640 HSCI CNC control system, including AFC (Adaptive Feed Control), AVD (Active Vibration Damping), and CTC (Cross Talk Compensation). These functions optimize the machining process, reduce vibrations, and improve surface quality and process reliability.The 40 kW high-speed spindle with up to 28,000 rpm features programmable internal cooling (IKZ) from 40 to 70 bar and is suitable for demanding milling operations on a wide variety of materials.The equipment includes a direct-drive NC rotary table Ø 3,500 mm with a ...

Fresatrice a portale MARIO CARNAGHI

Waldrich Coburg 17 S-10 FP 300 NC / 5 m – CNC Gantry Milling MachineMachine: 17-10 FP 300 NC / 5 mSerial Number: 2.8304.06Original Year of Manufacture: 1983In 2016, it was comprehensively overhauled and modernized by the manufacturer Waldrich Coburg. The machine is equipped with a modern Siemens SINUMERIK 840D sl control system and is ideally suited for heavy-duty machining of large and complex workpieces in machine, tool, mold, and power plant construction.The delivery includes a Universal Fork Milling Head USP 300 C 350 with B-axis as well as an additional Angle Milling Head WFU 500 SZ 400 F17, ensuring versatile machining capabilities for demanding milling tasks.The machine features a modern full protective enclosure, coolant system, chip conveyor technology, and extensive technical documentation including circuit diagrams and overhaul documentation.The system has been professionall ...

Numero Inv. : 7770 Tipo: KFU 3000 Produttore: Zayer Creato: 1990 Parametri: Sistema operativo: HEIDENHAIN TNC 415 B Lunghezza della tavola: 3000 mm Larghezza della tavola: 1000 mm Carico massimo tavola: 10000 kg Velocità massima: 3000 1/min Asse X: 2700 mm Asse Y: 1000 mm Asse Z: 1000 mm Dimensioni della macchina: 4000 x 2500 x 2800 mm Peso: 18600 kg Attrezzatura: Graffe (circa 40 pezzi) Morse (2 pezzi) Angolo (2 pezzi) Blocchi di serraggio (2 pezzi)

x-travel: 6000 mmy-travel: 3500 mmz-travel: 1900 mmsurface area: 6000x2500 mmcontrol: Siemens type: 840D Tool changer: 40 chip conveyor: Richter b-axis: +/- 110 °c-axis: 360° 0turning speeds: 24000 U/minspindle taper:: HSK 63spindle drive: 25 kWtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mMachine No.: 2259B +/- 110° C 360°Table size: 6000 mm x 2500 mm (hole pattern 22H7 / M16)Spindle: Manufacturer Fischer, 2 pieces (type MFWS 1709/30Serial number: 10015020 / 133227)Milling head: Forest Line type: fork head / B-axis +/- 110° swivel /C-axis 360° (infinite) rotation /Station for milling head storage (2 pieces)Chip conveyor: Scraper conveyor / Manufacturer: RichterTool measurement: BlumFeed: X + Y 30,000 m/min / Z 28,000 m/minRapid traverse: equals feed rateThe tech. Data are manufacturer or operator information and therefore non-binding. We ...

Heynumill 2700-PF del produttore Heyligenstaedt. La macchina è anche alimentata e può essere visualizzata in qualsiasi momento. Si prega di fare riferimento alle foto per i dati Se avete domande o avete bisogno di maggiori informazioni, non esitate a contattarmi.

HEYLIGENSTAEDT HEYMUNILL 3200-P in heavy-duty portal design with fixed crossrail, suitable for machining large and heavy workpieces.Large working area with travels of X 6,000 mm / Y 5,000 mm / Z 1,500 mm, as well as a table size of approx. 5,000 x 3,000 mm and a table load capacity of approx. 50,000 kg.Portal clearance approx. 3,220 mm width / 2,050 mm height.5-axis machining / milling headsA- and B-axis (swivel axes in the milling head)C-axis (360° rotation)Simultaneous 5-axis machining possible (with fork head)Milling heads:Straight milling head FK 120/34090° angle head WFK 100/750MFork head FK 100/2DMilling head magazine:5 positionsAutomatic milling head changeAdditional equipment:Internal cooling (IKZ) approx. 7 barTool changer 32 positions (SK50, Fibro ATC 32/50)Tool holder SK50 (DIN 69871)Tool measuring system (laser)Chip conveyorCoolant systemAdaptive feed controlHeidenhain line ...

I dati della macchina si trovano nei file allegati. La macchina è ancora sotto tensione e può essere esaminata. La macchina è ora disponibile.

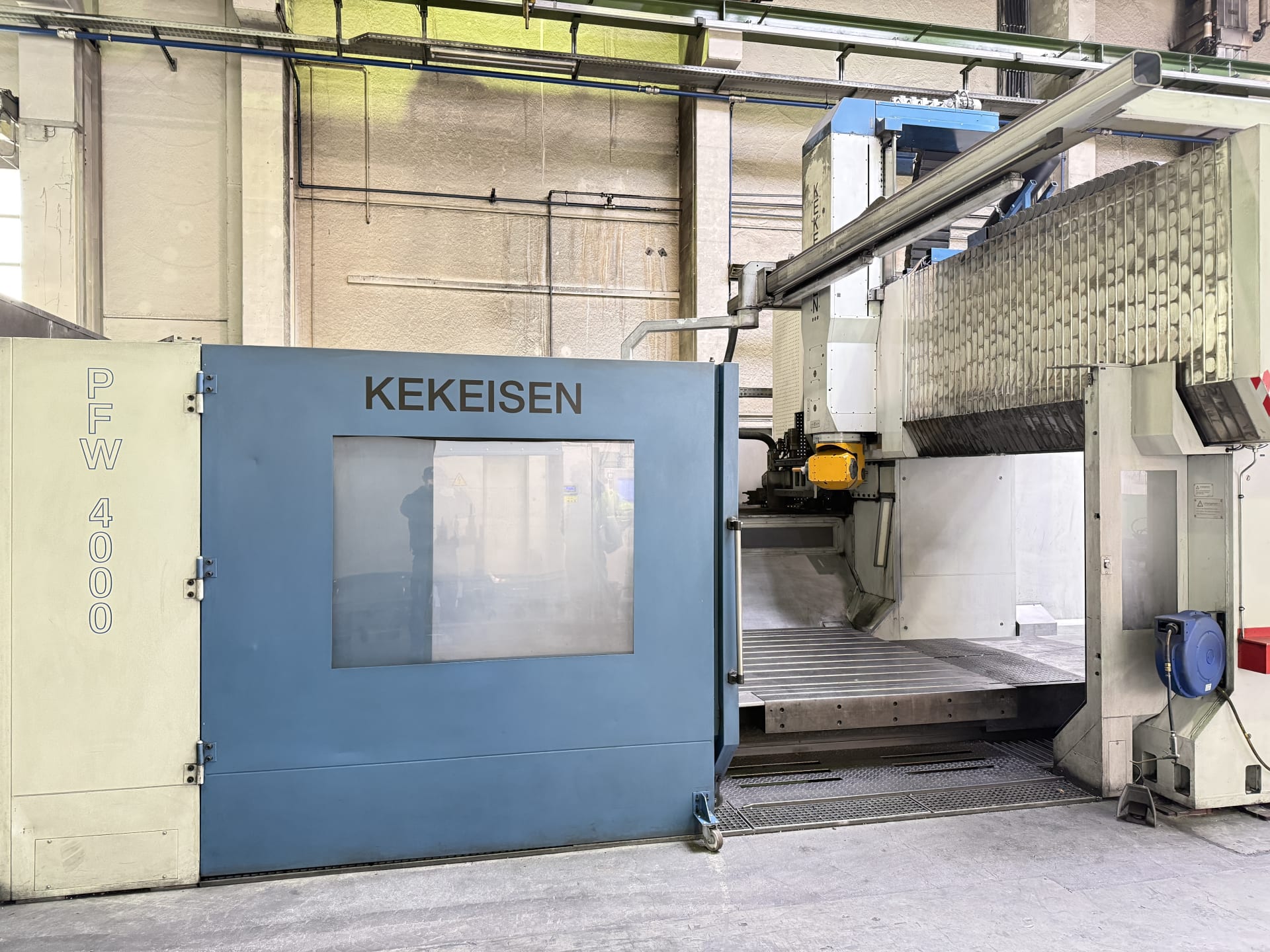

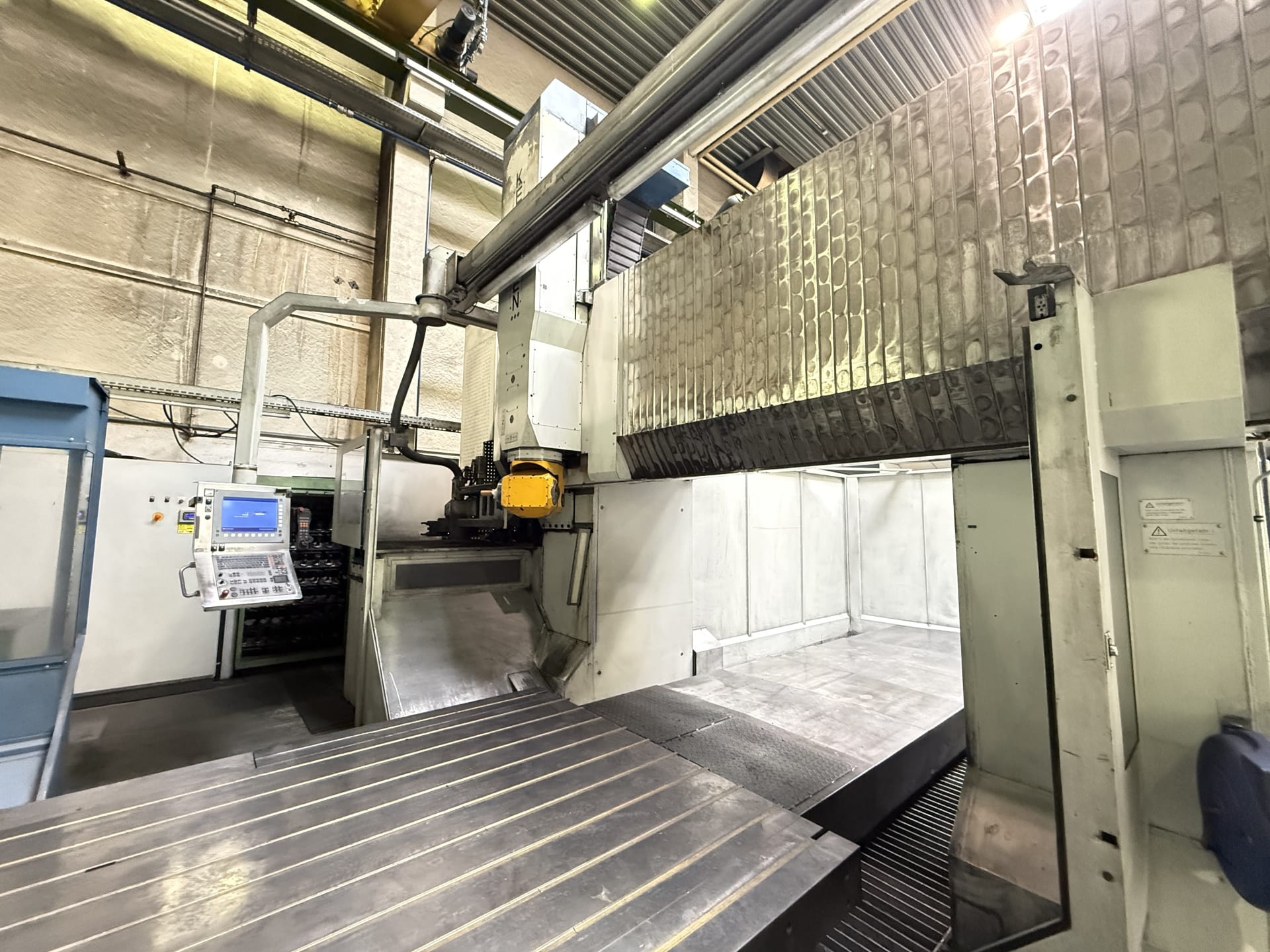

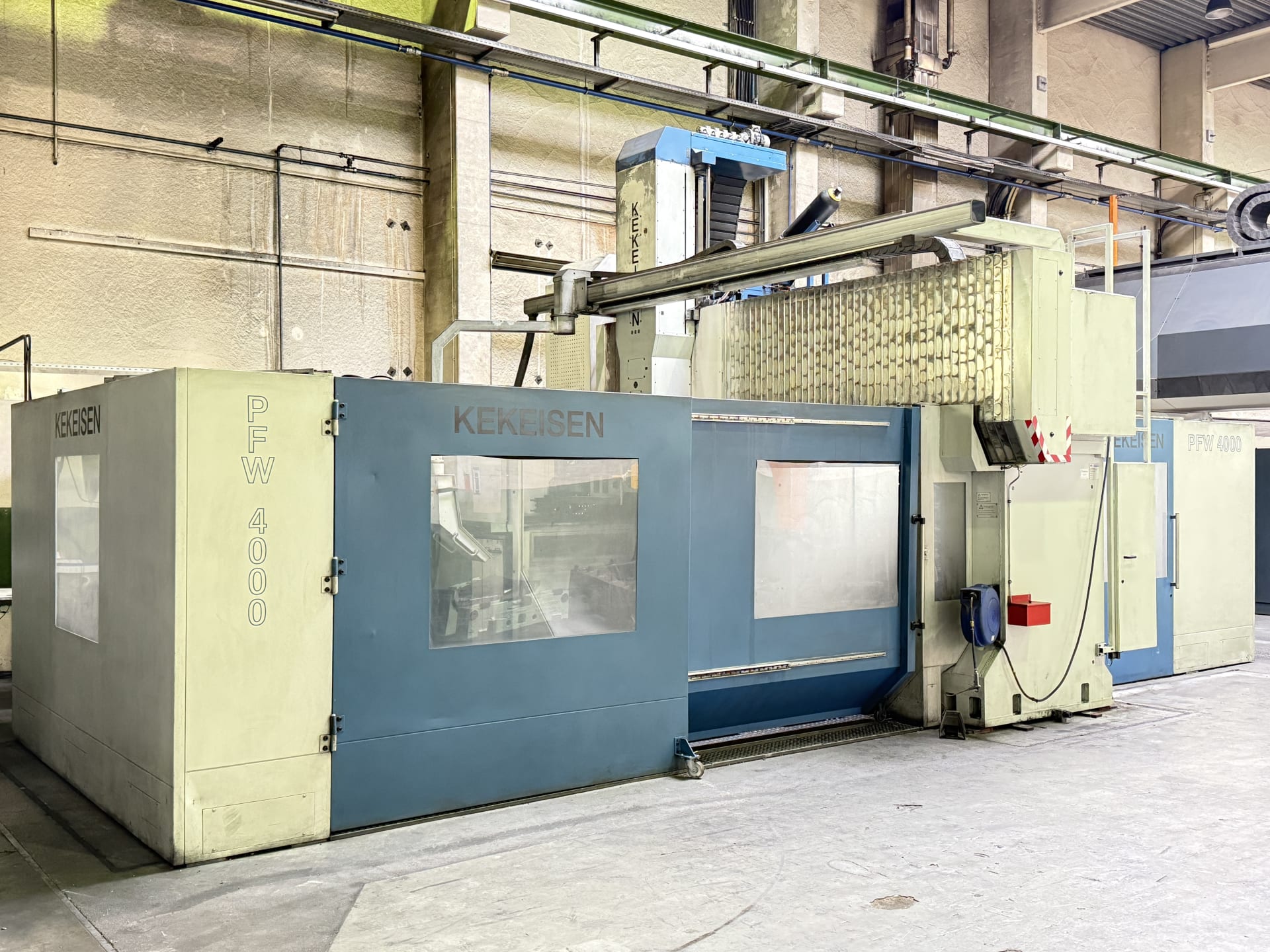

KEKEISEN PFW-T 4000/12 portal milling machine in a heavy, rigid design for machining large and heavy workpieces.Travel paths of 4,000 x 2,700 x 1,200 mm and a large worktable of approximately 4,000 x 1,800 mm with a table load capacity of 10,000 kg enable the machining of large-volume components.The machine is equipped with a universal milling head with 2 swivel axes and 5 - 1 degree steps NC controlled - adjustable positions (manually or optionally NC-controlled). Hirth gearing ensures precise angle settings.Powerful main spindle drive with approximately 30 kW. Speed range 20 – 7,000 rpm, maximum torque of approximately 1050 Nm.Additional equipment includes a 60-tool changer (KWE60), chip conveyor, KNOLL filtration system, Hydac cooling units, and central lubrication.Feed rate up to 4 m/min, rapid traverse up to 18 m/min, and feed forces of approximately 30,000 N per axis underscore t ...

Fresatrice a portale GMB 2560 CNC Produttore: Fermat GC: 2023 Controllo Heidenhain ... TNC 640 Dimensioni del tavolo ... 6000 x 2500 millimetri L'asse X ... 6000 millimetri Distanza tra il supporto... 3200 millimetri Passaggio tra tavolo .dem e traversa... 1900 millimetri Certificazione ISO 50 Velocità del mandrino ... 40-5500 giri/min. Carico max. del tavolo ... 22000kg Asse Y ... 3200 millimetri L'asse Z ... 1250 millimetri Peso macchina... 88000kg Potenza del motore principale ... 41kW Traversata rapida... 10m/min Fabbisogno energetico totale ... 83kVA Media del pezzo abrasivo ... 500x450 millimetri La macchina è in buone condizioni, è possibile eseguire il test sotto l'elettricità.

x-travel: 6000 mmy-travel: . mmz-travel: . mmsurface area: mmcontrol: type: Tool changer: chip conveyor: b-axis: 63c-axis: 0turning speeds: U/minspindle taper:: HSK spindle drive: 50 kWtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mMachine No.: 2259B +/- 110° C 360°Table size: 6000 mm x 2500 mm (hole pattern 22H7 / M16)Spindle: Manufacturer Fischer, 2 pieces (type MFWS 1709/30Serial number: 10015020 / 133227)Milling head: Forest Line type: fork head / B-axis +/- 110° swivel /C-axis 360° (infinite) rotation /Station for milling head storage (2 pieces)Chip conveyor: Scraper conveyor / Manufacturer: RichterTool measurement: BlumFeed: X + Y 30,000 m/min / Z 28,000 m/minRapid traverse: equals feed rateThe tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and condit ...

Ottime condizioni generali. Utilizzato dai produttori di stampi in plastica principalmente per modelli di utensili 3D in grafite-carbonio e lavori di incisione. Basse forze di taglio, basso carico macchina... Corse x=1200 y=800 z=500 Velocità mandrino 0 - 8000 rpm / potenza azionamento mandrino principale 11 kW velocità di avanzamento 0 - 30 m/min / Dimensioni tavola 1320 x 800mm Carico della tavola max. 2.000kg / cambio utensile 20 volte / diametro massimo Wzg 63mm / lunghezza WZG 200mm / portautensili SK 40 / sonda 3D, Fabr. Heidenhain, Tipo TS 220 / Dispositivo di raffreddamento / trasportatore di trucioli / estrazione (opzionale) Involucro completo Heidenhain tipo di controllo TNC 426 PB volantino digitale / elettronico Heidenhain HR 410

x-travel: 5300 mmy-travel: 3300 mmz-travel: 1300 mmTable load: 50000 kgcolumn daylight: 2600 mmworkpiece height max.: 1700 mmTable dimensions: 5000x2000 mmcontrol: Heidenhain type: ITNC530 : angular milling head: total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mMaschine wurde überholtmachine is retofitThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Asse X: 4500 mm Asse Y: 2500 mm Asse Z: 1000 mm Anno: 1986 Tensione: 380 V Potenza: 80 kW Peso: 63000 kg Dimensioni: 9500x9800x6100(h) mm

x-travel: 5300 mmy-travel: 2500 mmz-travel: 1200 mmangular milling head: Table load: 60000 kgcolumn daylight: 2700 mmworkpiece height max.: 1700 mmTable dimensions: 5000x2250 mmcontrol: Heidenhain type: 430 : total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mMaschine wurde überholtmachine is retofitThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tensione di funzionamento: 400 volt, autonomia di lavoro: X/ Y / s: 400 x 375 x 250 mm, Posizionamento di Heidenhain e controllo della traccia TNC 125, alimentazione (X / z): 5-1000 mm/min, (Y): 5-500 mm / min, zona di bloccaggio: 620 x 300 mm Capacità di carico 200 kg, tavolo di bloccaggio con 6 Tslot, velocità: 50-3150 rpm Documentazione completa (istruzioni operative, piani tecnici) disponibile. Errori riservati!

x-travel: 9700 mmy-travel: 3500 mmz-travel: 640 mmw-axis: 3000 mmControl: Siemens type: 840D PL spindle diameter: 200 mmSpindle capacity: 85 Kwsurface area: 9000x2800 mmTable load: 40000 kghigh speed spindle taper ISO: 50 chip conveyor: coolant: total power requirement: kWweight of the machine ca.: 193,8 tdimensions of the machine ca.: 22,4x10,2x8,2 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 5000 mmy-travel: 3100 mmz-travel: 1200 mmControl: total power requirement: 20/27 kWweight of the machine ca.: 65 tdimensions of the machine ca.: 15x6,2x6 mStock number 1110051Machine type CNC Portal milling machineMake CORREARapid type 50Year of manufacture 2004Control type HEIDENHAINTable size (mm) 5000 x 2000 mmX out (mm) 5000 mmY-off (mm) 3100 mmZ-off (mm) 1200 mmTable load Max 15 tonSpeed (RPM) Max 18,000Tool holder HSK 63Gesamtleistung(kW) 20/27Length (mm) 15000Width (mm) 6200Height (mm) 6000Weight 65 ton Additional informationTool changer for 24 tools5-axis gesteuerd The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
