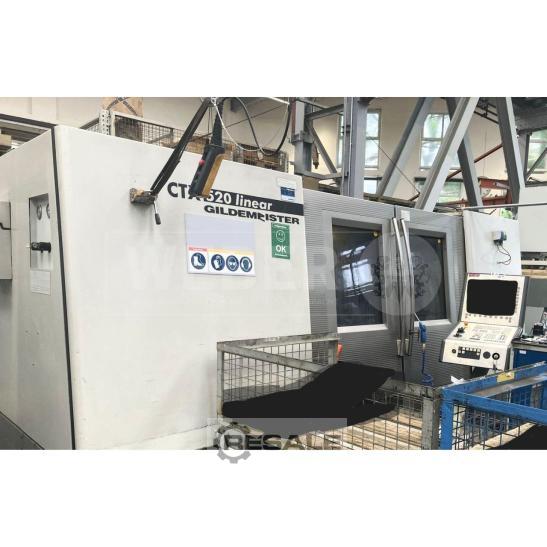

Torni CNC GILDEMEISTER CTX 520 linear

Specifications:
Workspace:
Max. circumferential diameter: 680 mm
Circumferential diameter via X-guide: 565 mm
Chuck diameter: 250 / 315 mm
Plane stroke (X): 315 mm
Longitudinal stroke (Y): 1350 mm

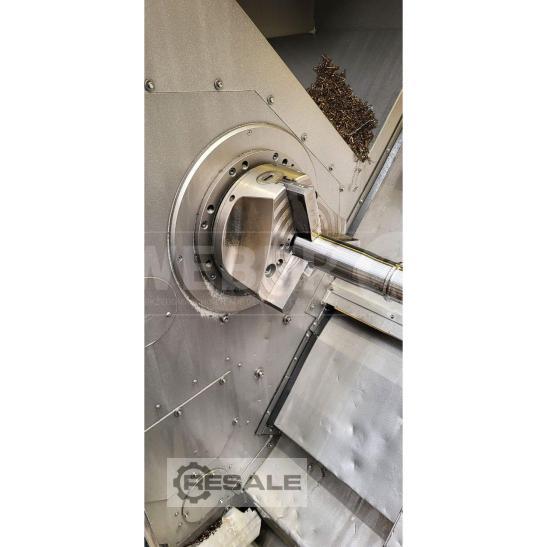

Spindle box:
Spindle diameter in the front bearing: 150 mm
Spindle bore: 107 mm

Main Drive:
Power of the three-phase main drive: 36 / 45 kW
Torque (100% ED / 40% ED): 600 / 750 Nm
Speed range (100% ED): 20 - 3200 rpm
Speed range (40% ED): 20 - 4000 rpm

Tool carrier:
Number of tool stations: 12
Cylindrical shank diameter: 50 mm
Switching time 30°: 0.16 sec.

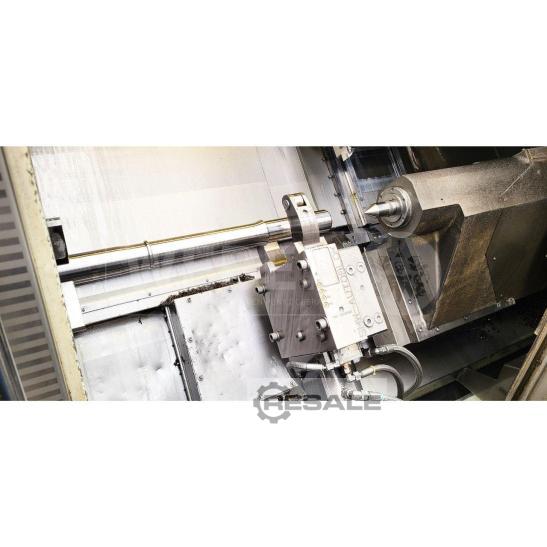

Tailstock:
Tailstock, travel: 1200 mm
Quill stroke: 120 mm
Quill diameter: 120 mm
Quill holder: MK 5

Coolant Facility:
Content: approx. 220 l
Pump power: 1.7 W5945297 kW
Flow rate at 6 W5945297 bar: 20 l/min

Connected load: approx. 65 kVA
Dimensions (LxWxH), approx.: 5560 x 2115 x 2050 mm
Weight without chip conveyor, approx.: 9500 kg

Equipment:

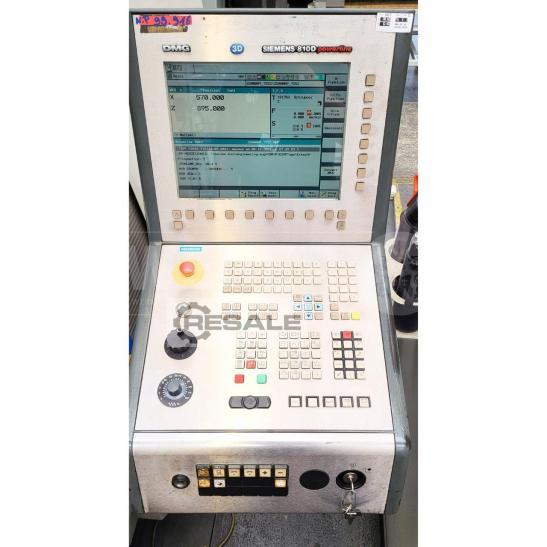

- CNC control SIEMENS SINUMERIK 840D powerline with shop turn

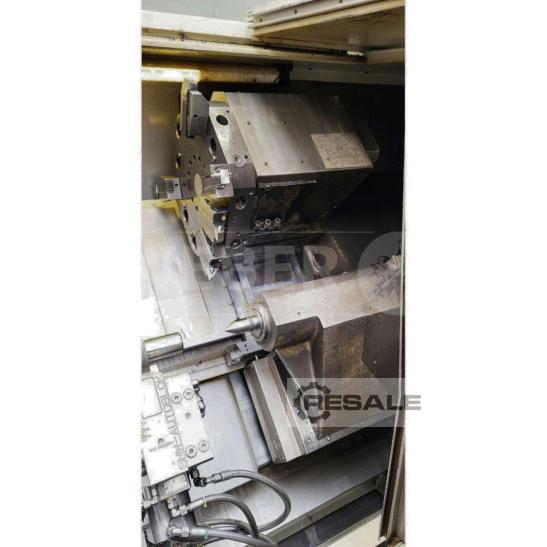

- Single-lane turret with 12 fixed tool positions
- Hinged belt chip conveyor
seller offer No. resale WW12549
