Macchine confezionatrici verticali HASSIA PILTZ ROVEMA FlexiBag BC 260 Rovema EE54

The system was built for a very special drugstore product, for which the customer became insolvent after a short time. It consists of:

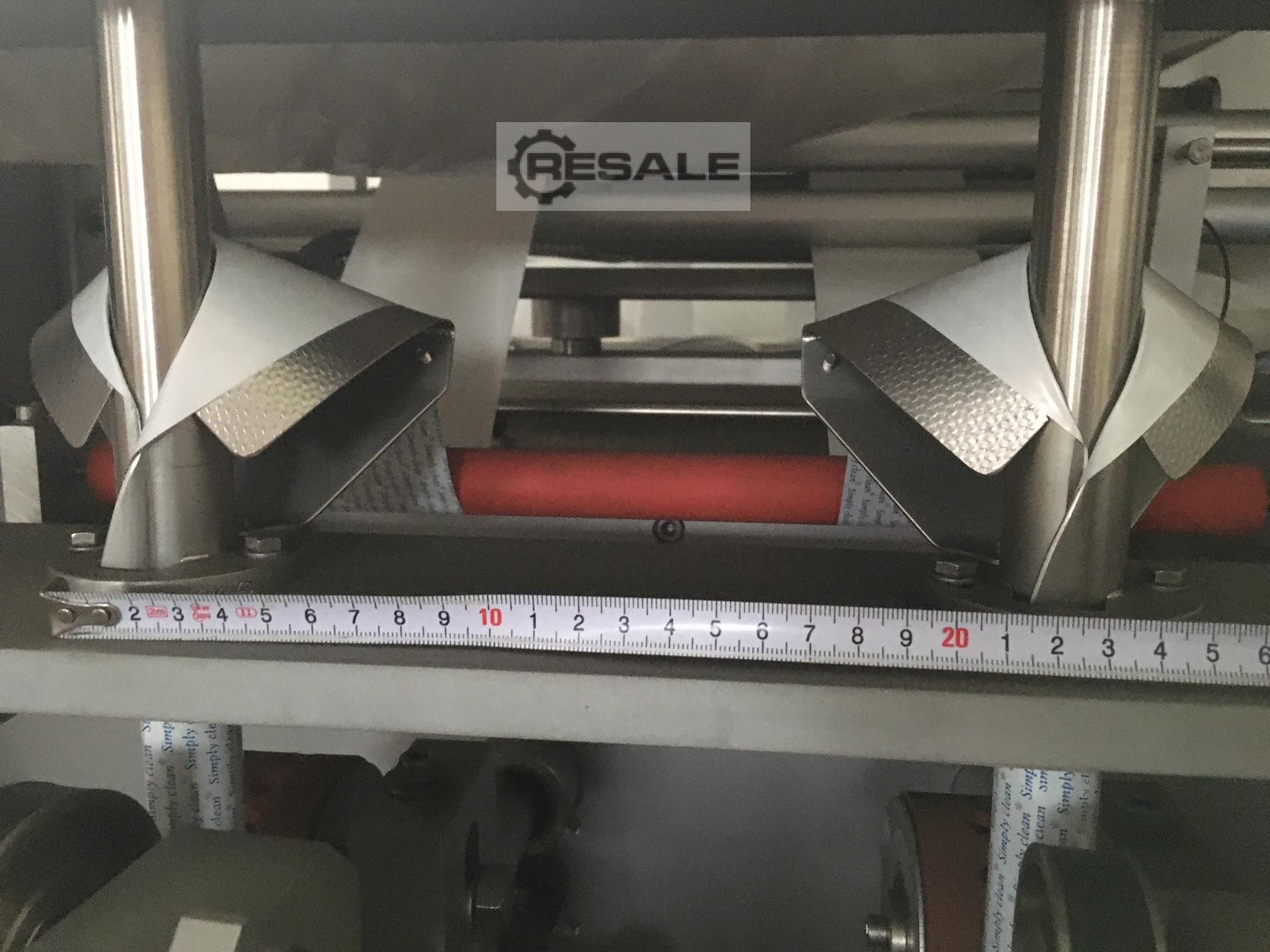

- HASSIA-PILTZ FlexiBag BC 260

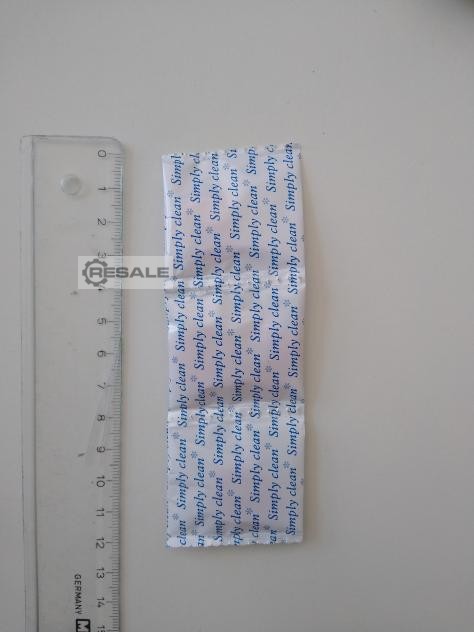

Double-lane, fully automatic, vertical flow wrapping machine, for flat and tetrahedral bags, for heat-sealable films
Bag width from 2x50mm to 2x80mm
Trigger length 50 - 250mm
Seam width transverse: 2mm
Seam width longitudinal: 5mm
Packaging material roll: max. outer diameter 600mm, core diameter 76mm
min. 80 cycles/min single or 2x80 cycles/min

- Dosing scale

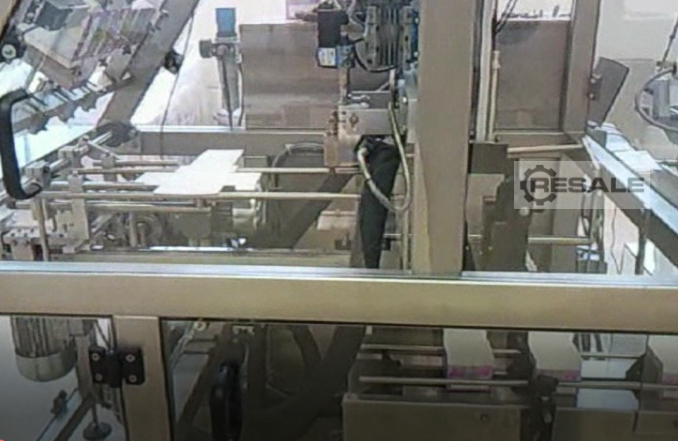

- Rovema EE 54 folding carton erector
for fully automatic erection and gluing of boxes and trays from flat blanks made of solid or corrugated cardboard
derz. Box dimensions L84 x W84 x H85mm
Output power 25 boxes/min

- Head flap sealing station
Acceptance of the folding cartons and transport to the filling station, fixation under the filling station and side shaking, folding of the flaps and fixation with hot glue

- Conveyor belts

- Prefabricated box grouping station

Year of manufacture 2009, only approx. 500 operating hours

The plant was professionally dismantled and carefully stored. It can be visited in Bremen.
seller offer No. resale 170126317
