Rettificatrici a coordinate HAUSER S40-400

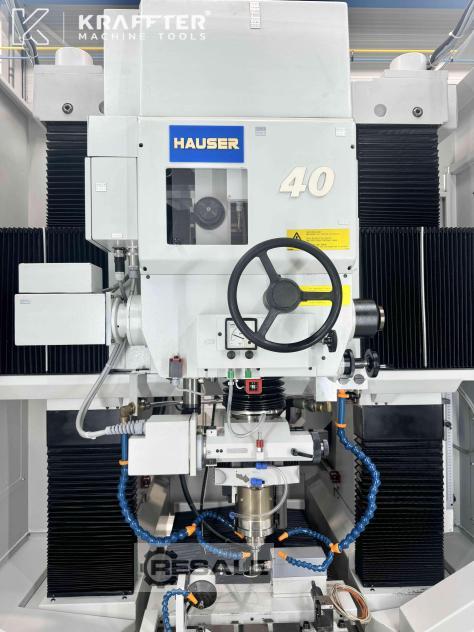

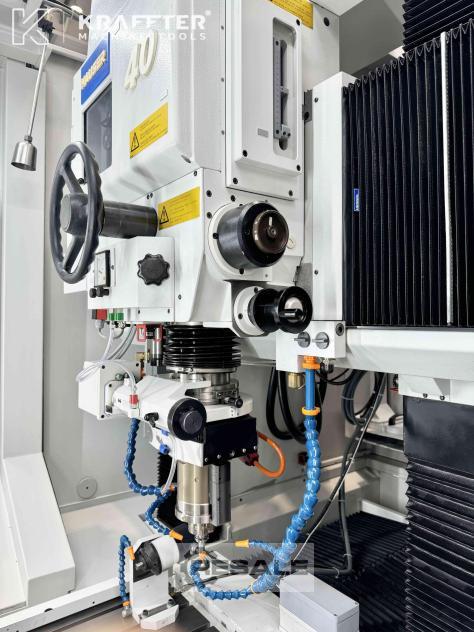

HAUSER S40-400 CNC coordinate grinding machine

TECHNICAL FEATURES:

X-axis travel: 650 [mm]
Maximum speed X-axis travel: 4000 [mm/min]
X-axis working feed speed: 0 - 1800 [mm/min]
Y-axis travel: 450 [mm]
Y-axis working feed speed: 0 - 1800 [mm/min]
Z-axis travel: 130 [mm]
Minimum speed. Z-axis travel: 0.5 [mm/min]
Maximum speed Z-axis travel: 12000 [mm/min]
Z-axis stroke frequency: max. 4 [Hz]
W-axis travel: 500 [mm]
C-axis speed (planetary): 5 - 250 [rpm]
Maximum speed W-axis travel: 800 [mm/min]
U-axis stroke (radial advance): 5.5 [mm]
Distance between columns: 750 [mm]

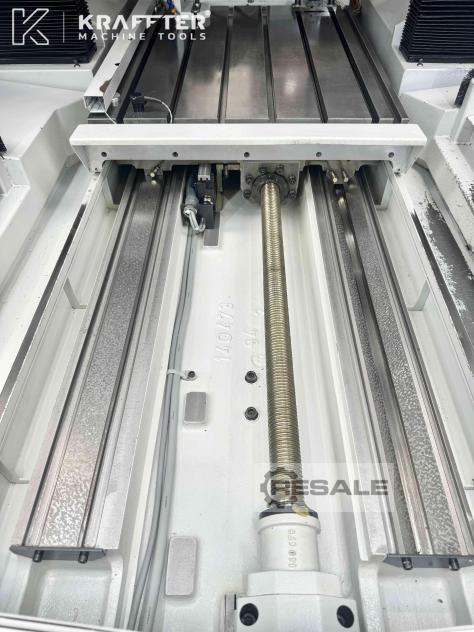

Table length: 770 [mm]
Table width: 630 [mm]
Clear passage between grinding motor and table: 585 [mm]
Maximum weight Tabletop Allowable: 500 [Kg]
Supply voltage: 400 [V]
Weight: 4550 [Kg]

ADDITIONAL INFORMATION:

x1 HI-CUT pack including:

-protection of the work area
-Exhaust device with electrostatic air filter
- fire protection device (to be submitted to a qualified body for expertise)
-cooling unit with automatic belt filter HTG-RWS-60

x1 MSS (Multi-Sensoric System) Tool Detection Device
x1 CBN dressing unit with HF drive for automatic dressing of CBN grinding wheels (ceramic binder and synthetic resin)
x1 T16 grinding wheel - speed: 160,000 rpm - reference: 164225
x1 turbine holder with filter for use with T10 and T16 turbines - reference: 166497
x1 grinding motor 60S-TC, speed 9000 - 60000 [rpm], for SK20 pliers - reference: 208450
x1 intermediate plate for aligning motors and urbines - Reference: 192940
x1 Centering Watch Holder for Grinding Motor Rotor - Order No.: 191790
x15 Grinding Cleats
x1 Grinding Motor Cable
Various tools
Comprehensive documentation

Machine visible under tension for testing at our premises, by appointment.

Price excl. VAT on request, including truck loading.

Possibility of shipping throughout France as well as internationally.

More photos and details on request.

Technical description for information purposes only, without obligation on our part.

The HAUSER S40-400 is a high-precision CNC coordinate grinding machine. This machine excels in tight tolerance environments, especially in contouring applications, such as in the aerospace, automotive, and medical industries. Thanks to its robust design and advanced capabilities, the HAUSER S40-400 is comparable to machines from well-known brands such as Moore. It can be integrated into workshops including Mägerle (Magerle), Studer, Moore, Kellenberger, Okamoto, Jones & Shipman, and ELB machines.
In addition to its performance, the HAUSER S40-400 fits perfectly into workshops equipped with lathes, machining centers, or CNC milling machines, thus offering a complete solution for the needs of high-precision grinding and machining of complex parts.
