Fresatrici a pantografo KIRSCHBAUM KIRBA LH 412 N

Bench Engraving Machine / Copy Milling Machine KIRBA LH 412 N
Manufacturer Kirschbaum GmbH Maschinenbau.
Made in Germany.
Owned by the authorities with a lot of accessories.
Versatile areas of application:
The Kirba LH 412 N is designed for engraving fonts and flat engravings in steel, aluminum, brass, plastic, plexiglass and all other machining materials.
By blocking the engraving head and using the coordinate work table, the machine can also be used excellently for light milling work. In addition to the usual milling engravings, the machine can also be used for diamond scratching and electro-marking.
The big advantage over CNC milling:
No complicated software, no PC knowledge or programming time required!
Insert the stencil, run the guide pin and immediately achieve perfect results.
In addition, the purely mechanical guide offers a direct feeling for the material resistance.

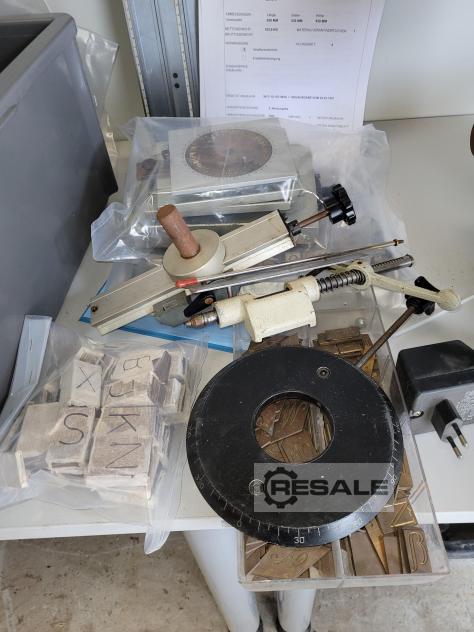

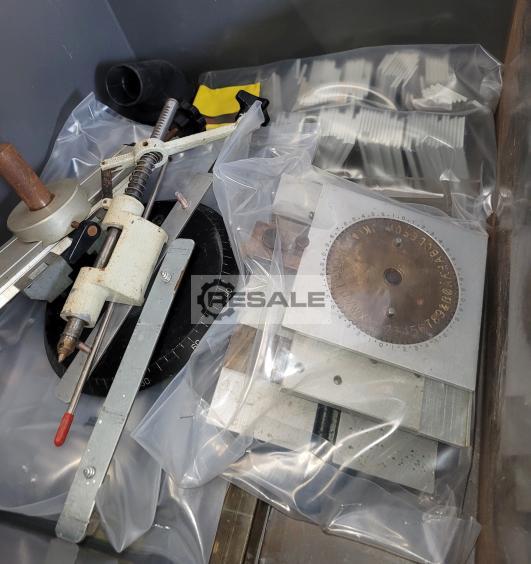

ACCESSORY PACKAGE:

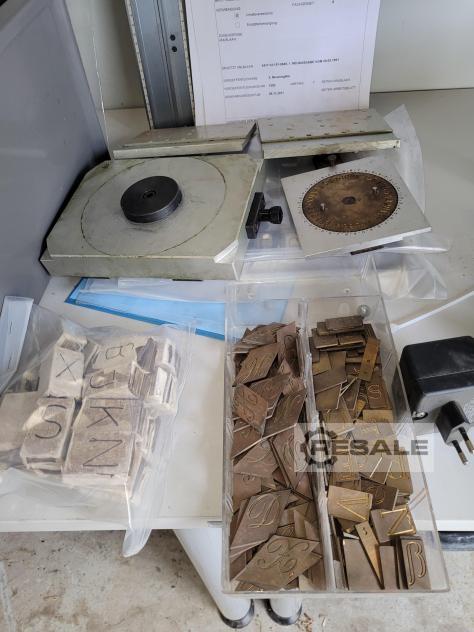

1x Original Kirba dividing head / rotary table with precise 360° disc
for exact circular engravings, scales and angle adjustments.
1x round quick engraving disc / writing circle with the complete alphabet (A–Z),
Numbers (0–9) and special characters (incl. diameter symbol Ø).

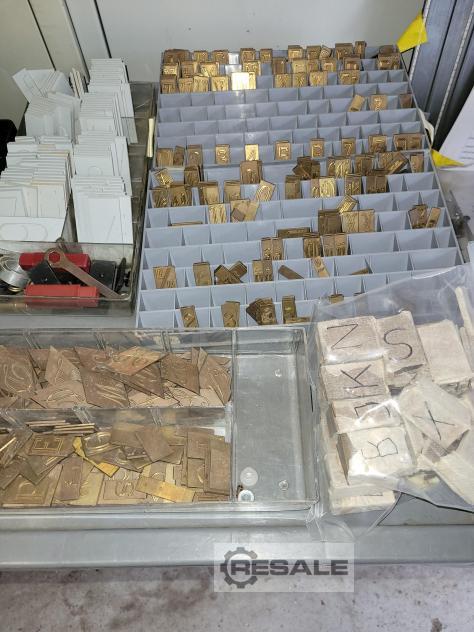

1x Large, neatly organized brass typesetting (block lettering) in the sorting box.
1x brass typesetting in elegant cursive/italic font (diamond shape).
1x Another brass set (block letters).
2x Additional briefs made of robust plastic/composite.
Original guide pin, stencil rail & clamping tool.

Technical data (according to data sheet & manufacturer):
Pantograph ratio: 1:2 to 1:8 continuous.
Working area at 1:2 = 400 X 800 mm or 150 X 150 mm.
Working area at 1:4 = 170 X 40 mm or 70 X 70 mm.
Working area at 1:8 = 50 X 20 mm or 25 X 25 mm.
Spindle speed per minute = 10000 - 12000 - 13000 - 16000 - 20000 - 22000.
AC Motor 220 Volts, 50 Hz, 140 W.
Work table = 300 X 200 mm.
Stencil table = 400 X 200 mm.
Longitudinal adjustment of the work table = 300 mm.
Transverse adjustment of the work table = 100 mm.
Pantograph height adjustment = 180 mm.
Collets for engraving cutters = 2 - 6 mm diameter.
Net weight approx. 105 KG.
Space requirement = 800 X 400 mm.
Max. passage = 550 mm.

Areas of application & details:
Engraver, engraving, jewellery and name engravings, light milling work, flat engraving in steel, milling machine, metal milling, diamond scribing and electrical marking, precision mechanics, sign making, cup engraving, type plates, burins, handicraft, model making, watchmakers, knife makers, toolmakers, logos / emblems, classic car restoration, repair & single part production, brass letters, stencils, tool marking, front plates, serial numbers, round engraving wheel, writing circle, Cranesbill machine, pantograph, copy milling machine.
