Lavaggio della ghiaia

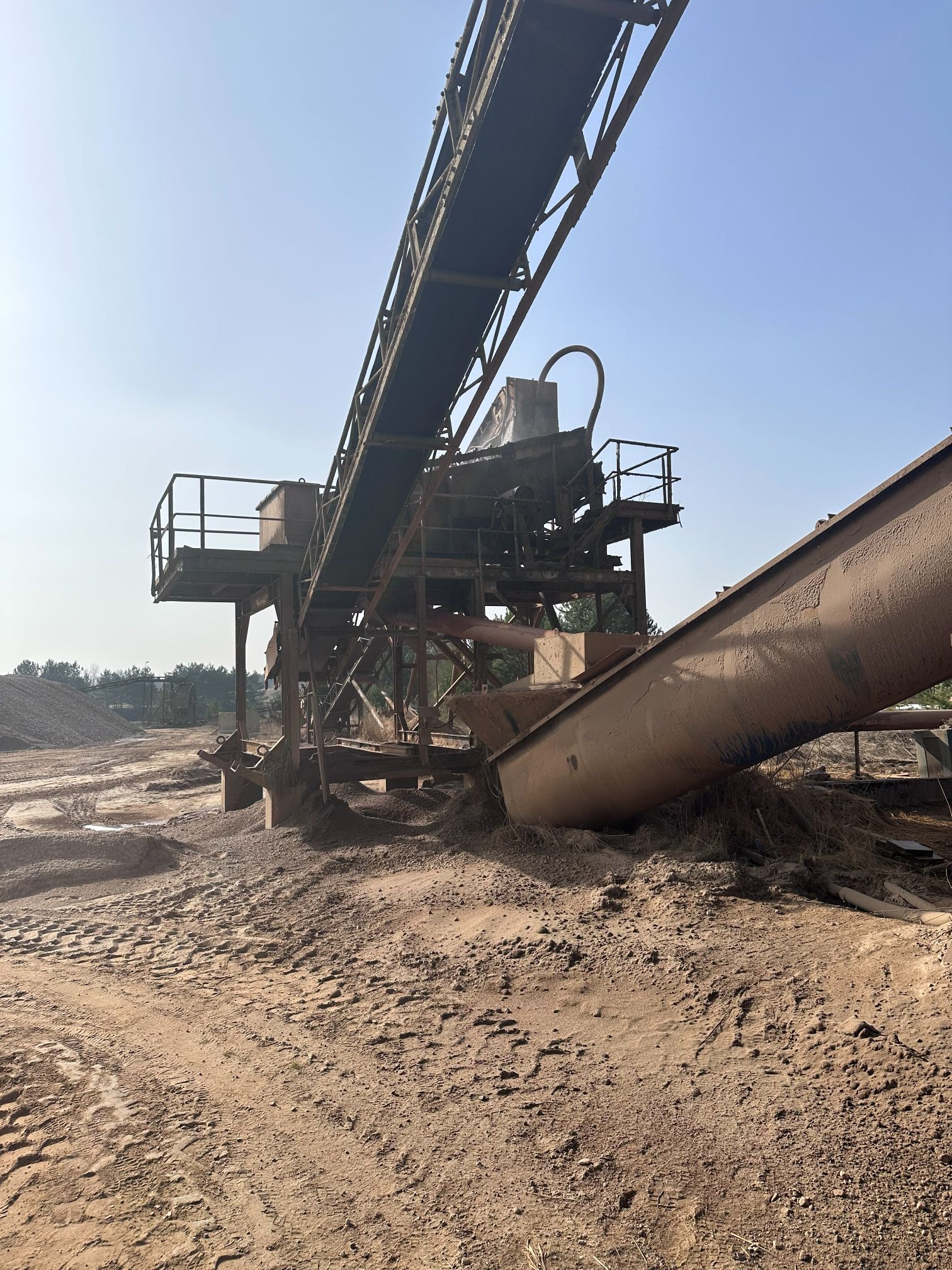

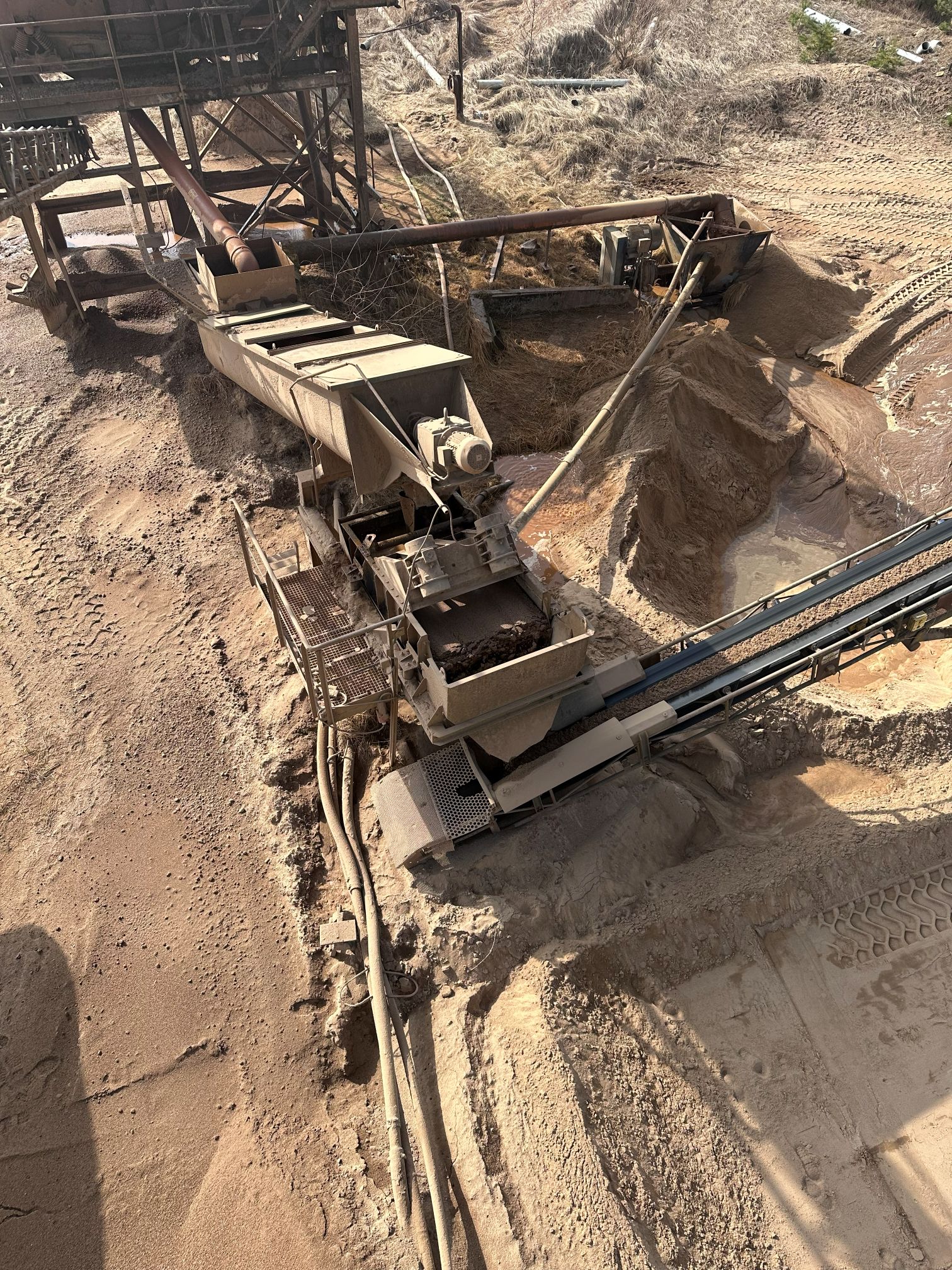

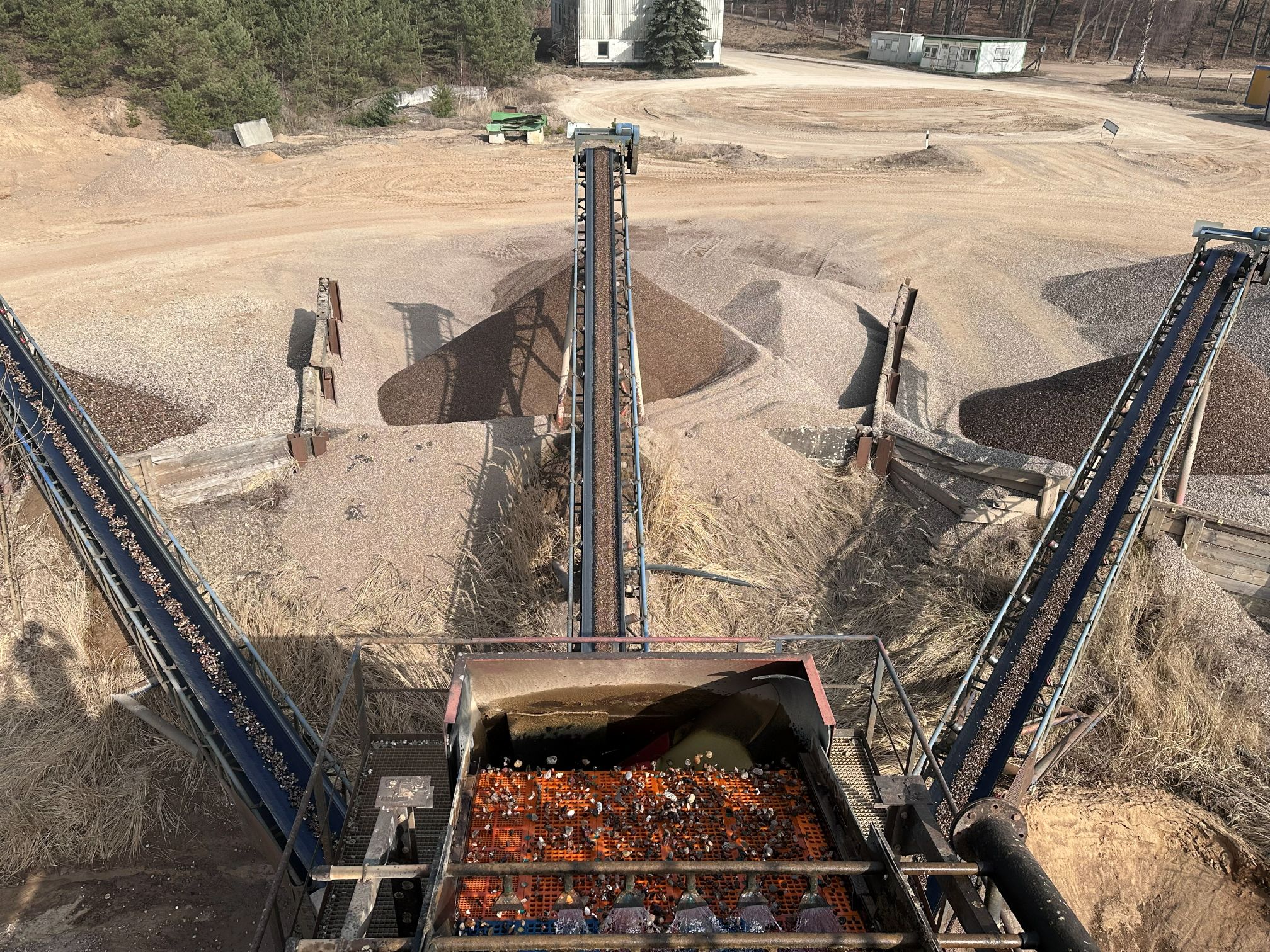

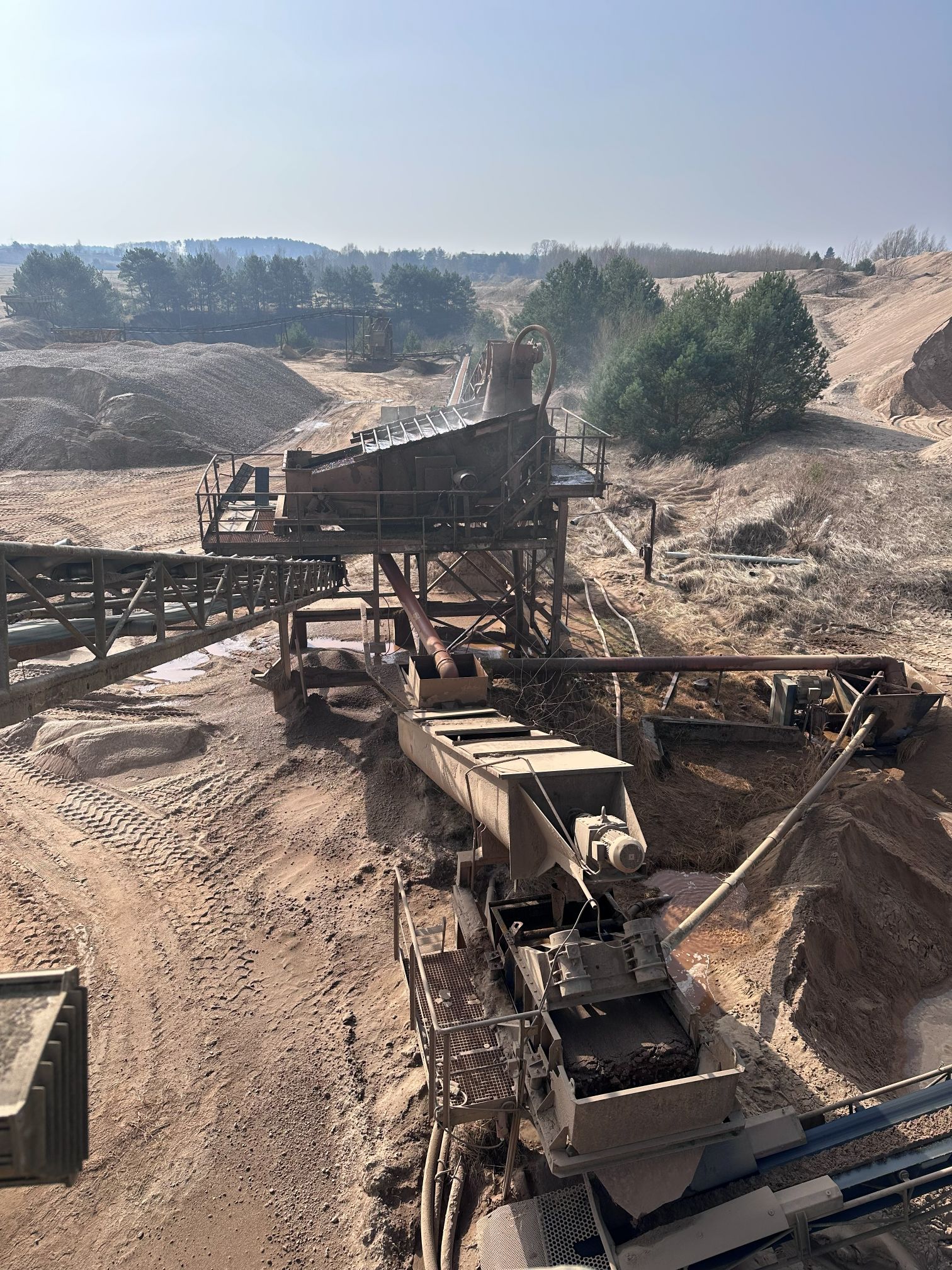

Complete used gravel washing plant available for sale. This is a fully operational gravel washing and screening plant currently still in use.

Complete Plant Component List

1. Feed conveyor for sand classifying screen

- Year: 1991
- Details: Belt width 650 mm / Length 20 m / Stiebel flat gearbox drive
- Condition: Operational

2. Sand classifying screen (single-deck vibrating screen / wash screen)

- Details: Steinhaus / Siebtechnik / PU screen
- Condition: Operational

3. Feed conveyor for log washer

- Year: 1991
- Details: Belt width 650 mm / Length 20 m / Stiebel flat gearbox drive
- Condition: Operational

4. Wolff double-shaft log washer

- Year: 1991
- Details: Wolff Type SW 50
- Condition: Operational

5. 3-deck screening machine / Steinhaus screen

- Year: 2016
- Details: Siebtechnik Type V16.5/40/III KR
- Condition: Operational

6. 3 x stockpile conveyors

- Year: 1991
- Details: Belt width 500 mm / Length 16 m each
- Condition: Operational

7. Wolff sand screw classifier

- Year: 1991
- Details: Wolff WSS 1000
- Condition: Defective

8. Dewatering chute

- Condition: Operational

9. Stockpile conveyor

- Details: Belt width 650 mm / Length 22 m / Stiebel flat gearbox drive
- Condition: Operational

10. Warman slurry pump

- Details: Optional
- Condition: Operational

11. Warman slurry pump

- Details: Optional
- Condition: Operational

12. Fresh water pump (Speck)

- Details: Optional
- Condition: Operational

13. IBAG jaw crusher

- Condition: Operational

14. Steinhaus / Siebtechnik jig machine

- Condition: Defective

15. Steel structure wash tower

- Condition: Operational

16. Single-deck dry screening machine

- Condition: Operational

17. 3 x overland conveyors

- Details: Belt width 650 mm / Total length approx. 450 m
- Condition: Operational

18. 2 x feed hoppers approx. 16 m3

- Details: Discharge with vibrator
