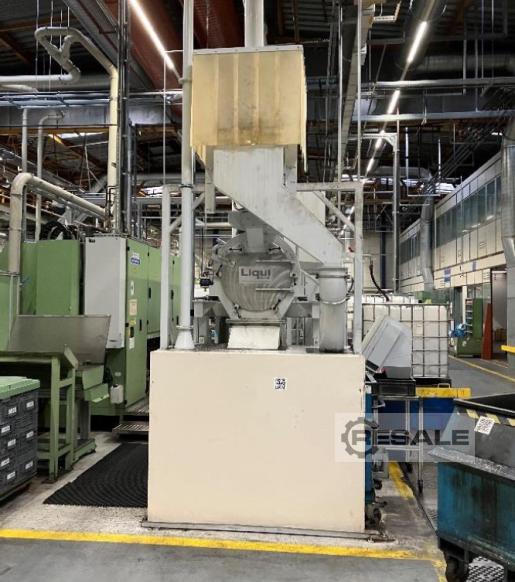

Centrifughe LIQUI FILTER HSZ 650

Liqui Filter Chip Processing System

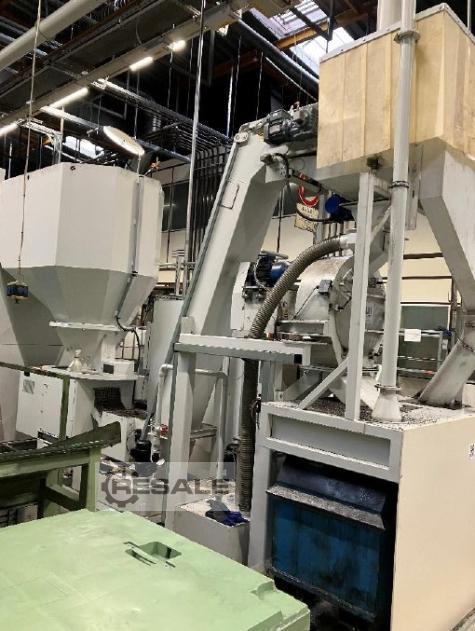

Chip preparation system for the recovery of coolants, oils and drying of chips

Steel chips are crushed and centrifuged. The separated coolant is processed and made available to the system again.
The dried chips are collected in an on-site chip trolley. Sedimented sludge is collected in a container and discharged into a sludge tank on site.

Advantages of continuously operating horizontal centrifuges

- Low investment costs
The investment costs of the centrifuge are significantly lower compared to other centrifuges, with the same capacity.
Installation is simple and can be done quickly.
- Low operating and maintenance costs
The centrifuge is suitable for installation in a continuously operating chip preparation system and then operates without manual operation.
The maintenance costs - which are relatively high for other centrifuges - are lower with this horizontal centrifuge because each part is easy to reach.
During maintenance, the centrifuge does not need to be lifted or moved. All comb grates and capping parts are located at an ideal working height.

Technical data
Type: HSZ 650
Motor power: 5.5 kW, 3x400 V
Max. nominal capacity: 2.3 m³/h
Continuous capacity
Steel shavings: 300 - 650 kg/h
Aluminium chips: 100 - 300 kg/h
Cast iron shavings: 200 - 400 kg/h
Residual moisture: ( weight per cent.) 1 - 4 %
Application: Crushing and centrifuging steel chips

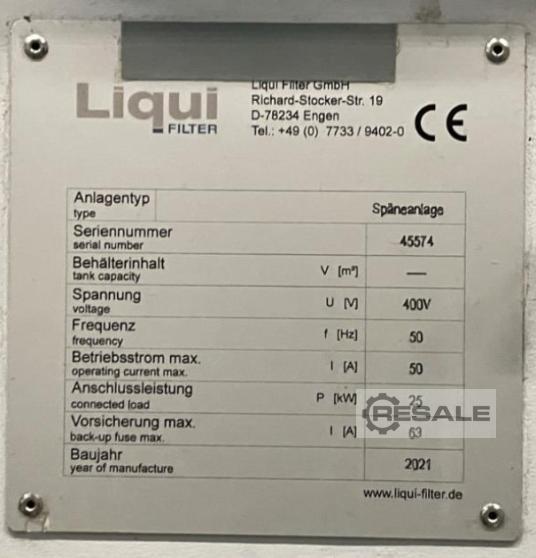

Power supply: 3 x 400 V/N/PE 50 Hz
Control voltage: 24 V K6227004 DC
Total connection: K6227004 25 kW, 50 A
Pre-fuse: 63 A
Dimensions (LxWxH) 1280 x 930 x 955
Net weight with engine: 410 kg
Year of construction 2021

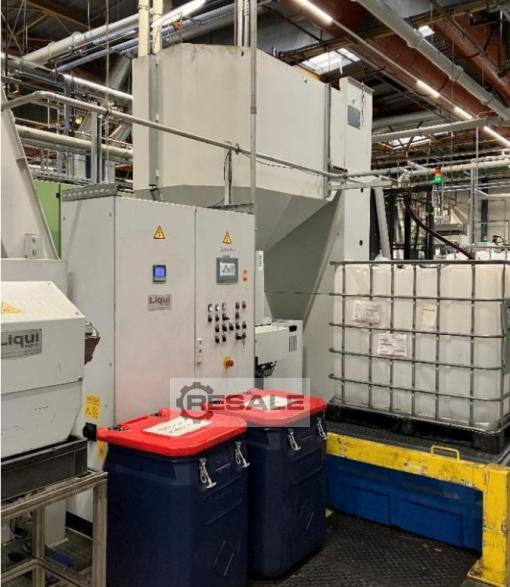

Components

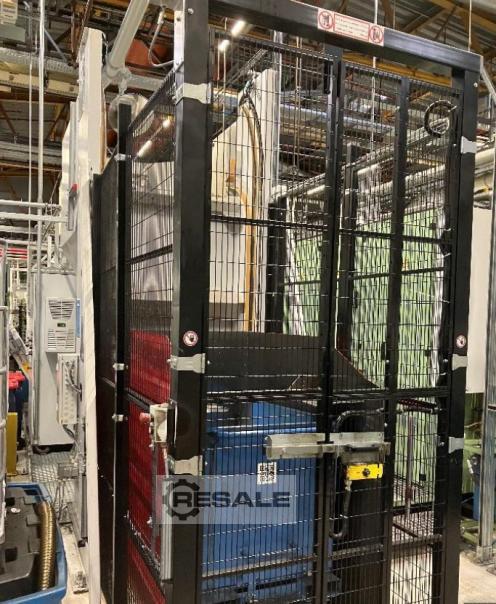

Lifting Tilting Station MD-3 Fa. Dieterle 7000
Chip Crusher SB1000 Liqui 12000
Hinged belt conveyor SF300 LIQUI 8000
Centrifuge HSZ650 LIQUI 12000
Scraper conveyor KF550 LIQUI 5000

Dismantling and removal by buyers
Dismantling also possible by our assembly team (from 5000 € net)

Location: 21079 Hamburg

Financing by our bank is also possible.
komplett-konzept.leasingo.de

More items - new and used - can be found in our shop!
International shipping costs on request!
seller offer No. resale 60134
