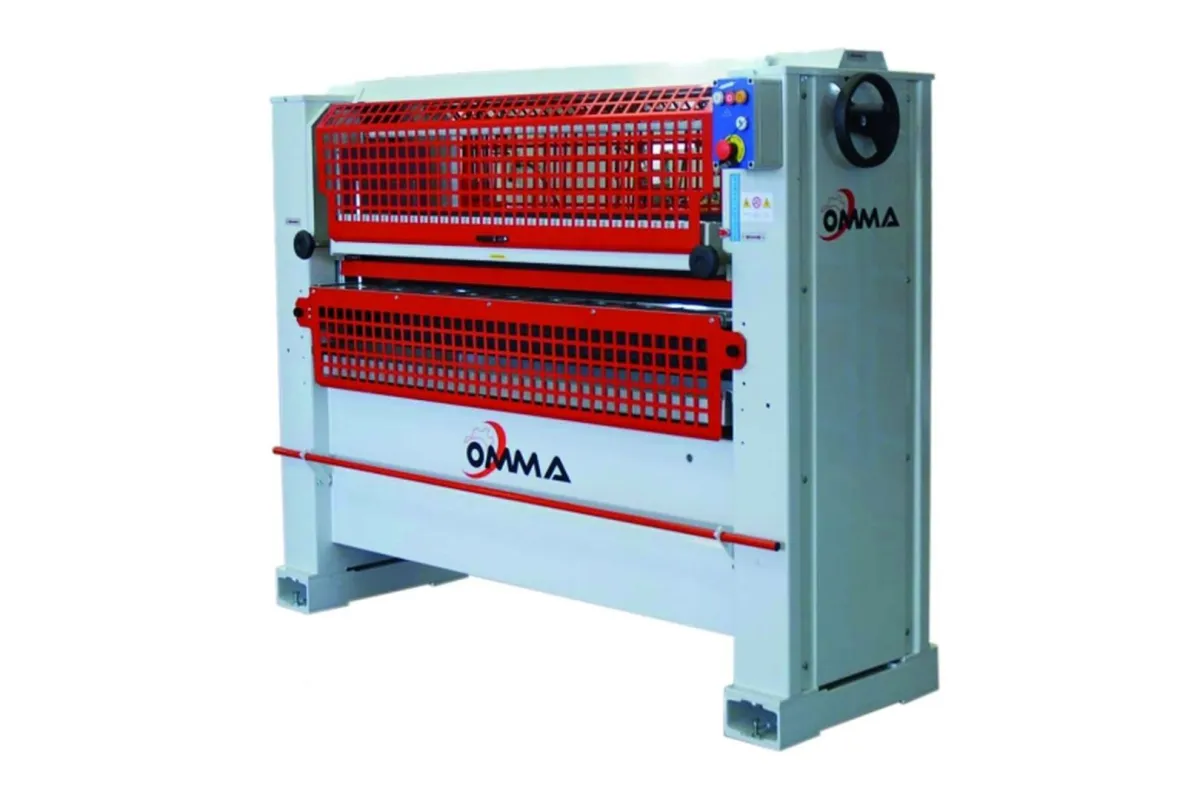

OMMA FSC 600 spalmatore di colla a rullo
Macchina nuovaVenditore verificato
Richiedi il prezzo
Direttamente al venditore
1 / 1
Dati tecnici
· ID 166827478Macchine usate
- Condizioni
- Macchina nuova
- Ubicazione
- 32683 Barntrup
Identifikation
ProduttoreOMMA
ModelloFSC 600
Numero articolo1110017
Technik
Quantità1
Descrizione
Glue application machine
Brand: OMMA
Type: FSC 600
New machine
Technical details:
Useful working width mm 600
Maximum working thickness mm 90
Working speed mt/min 19
Height of working level mm 905
Spreading rollers Ø mm 185
Standard grooving lines/inch 14
Installed power kW 0.37
Colour Ral 7035
Command side (compared to working direction) Right
Standard voltage v 400/50/3
Technical equipment:
- Spreading rubber rollers coated with grinded surface.
- Thickness graduate indicator.
- Top & bottom glue dosing tanks in grinded steel with ground profile and micrometric glue regulation.
- Parallelism regulation between spreading rollers.
- Rollers protection with security plate and foot control in front of the machine that stop immediately the machine if activate.
- Security front foot barrier.
- Steel zinc collecting tank of the cleaning water.
- Electric equipment on board of the machine under protective tubes; electric system in waterproof cabinet and low voltage secondary circuits.
- CE certification
Other options:
- Translation wheels (2 with brake)
- Mechanic variable speed 5-25mt/min
- Automatic cleaning device of spreading rollers
Brand: OMMA
Type: FSC 600
New machine
Technical details:
Useful working width mm 600
Maximum working thickness mm 90
Working speed mt/min 19
Height of working level mm 905
Spreading rollers Ø mm 185
Standard grooving lines/inch 14
Installed power kW 0.37
Colour Ral 7035
Command side (compared to working direction) Right
Standard voltage v 400/50/3
Technical equipment:
- Spreading rubber rollers coated with grinded surface.
- Thickness graduate indicator.
- Top & bottom glue dosing tanks in grinded steel with ground profile and micrometric glue regulation.
- Parallelism regulation between spreading rollers.
- Rollers protection with security plate and foot control in front of the machine that stop immediately the machine if activate.
- Security front foot barrier.
- Steel zinc collecting tank of the cleaning water.
- Electric equipment on board of the machine under protective tubes; electric system in waterproof cabinet and low voltage secondary circuits.
- CE certification
Other options:
- Translation wheels (2 with brake)
- Mechanic variable speed 5-25mt/min
- Automatic cleaning device of spreading rollers
