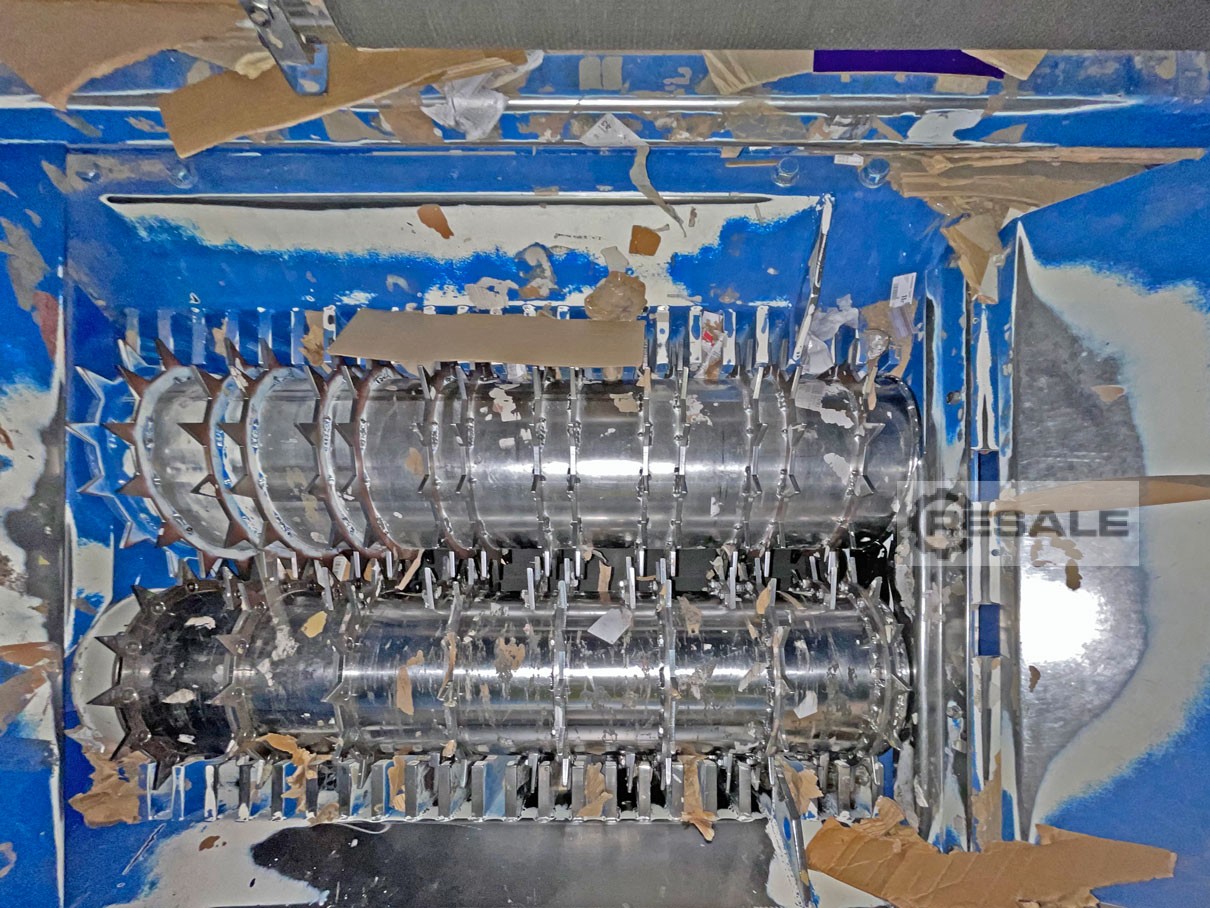

Technical data cardboard shredder (2-shaft shredder):
Manufacturer: Presto GmbH & Co. KG
Type PZA
Year of construction 2007 (52,998 h and 55,325 h)
Throughput volume 130 m³/hour
Speed 37/9 1/min.
Motor power 7.5 / 2.2 kW
Electrical connection 32 A
Dimensions shredder inside 1,490 x 1,320 x 530 mm (L x W x H)
Dimensions shredder external dimensions without hood 2,308 x 1,320 x
685 mm (L x W x H)
Machine weight 0.45 t
Use of the systems:

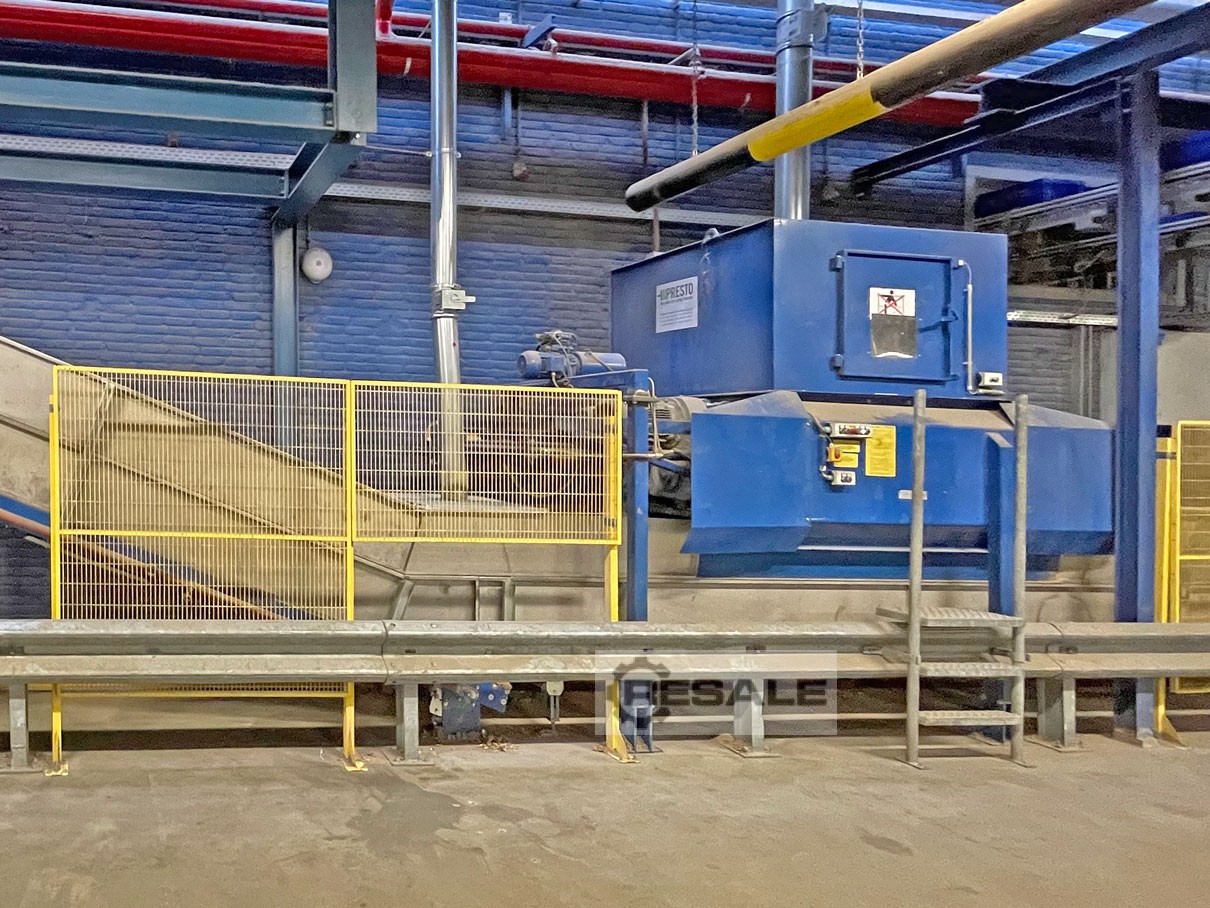

The 2 pieces of cardboard shredders of the type PZA were used in a
Dutch logistics center to pre-shred loose, erected cartons from the
returns department and then press them into bales. The cartons were

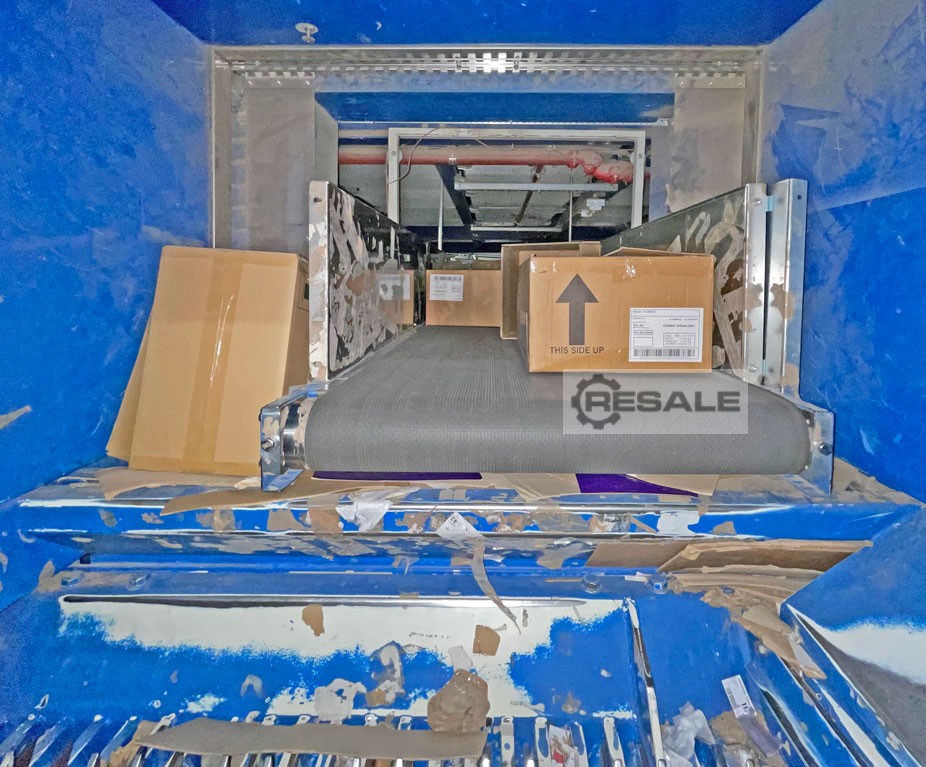

fed by hand onto the feed belt and were transported directly to the
carton shredder with a sliding belt conveyor belt and torn. The

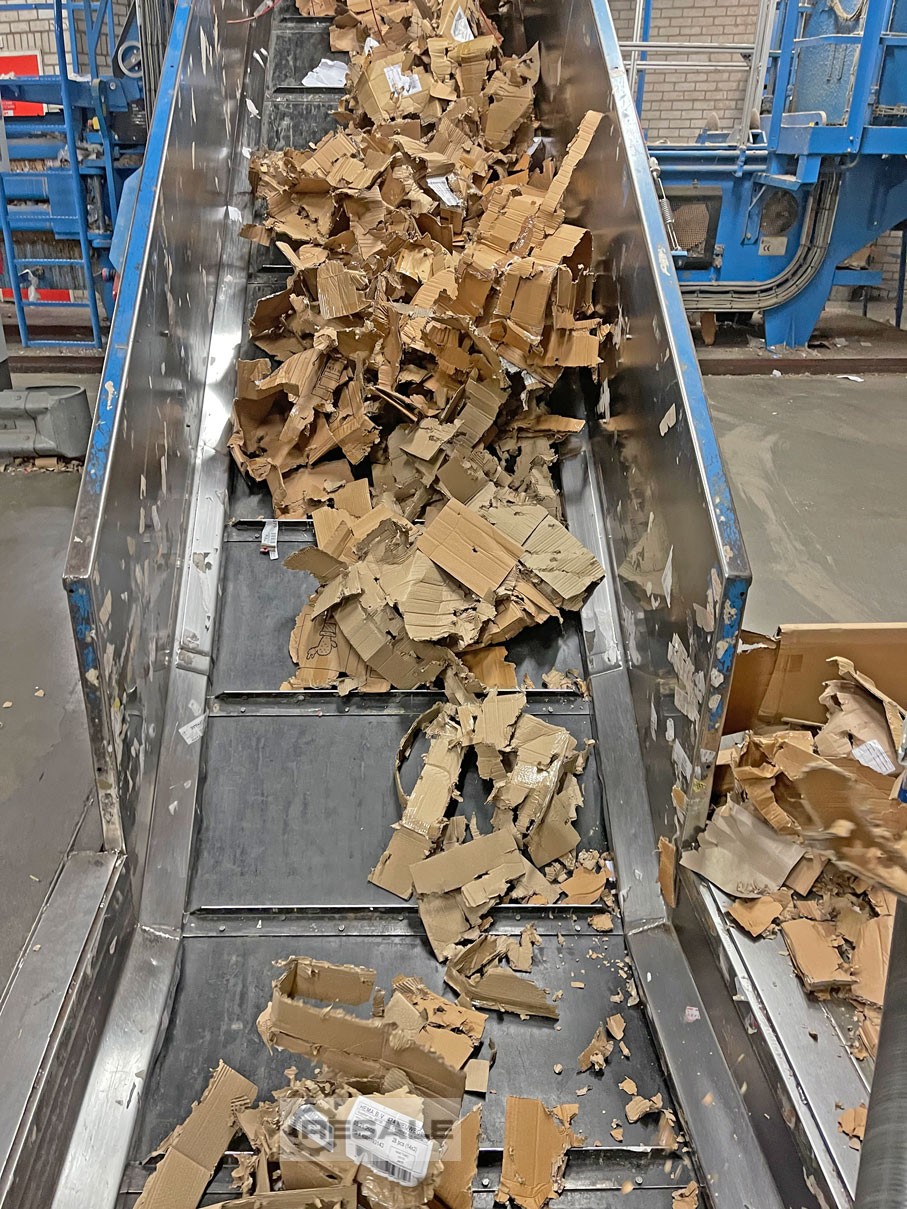

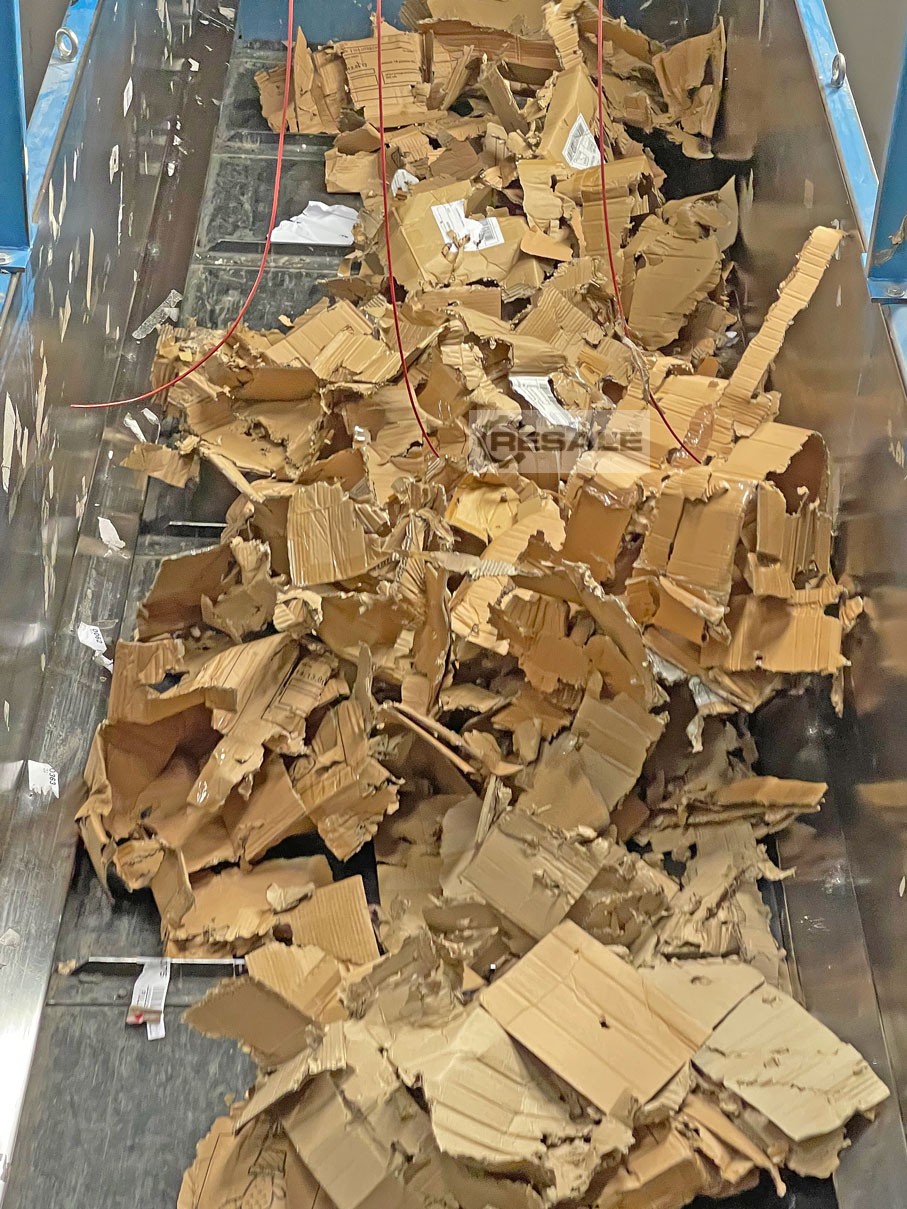

pre-shredded cartons were then transported over hundreds of meters to
the baler and pressed there.
Scope of delivery:
2 pieces Presto cardboard shredder (2-shaft shredder) type PZA
Remarks:
The cardboard shredders were an elementary part of the disposal line
and were well maintained to ensure high availability of the returns
department. The machines are in good condition and ready for immediate
use. The price is per piece exw. in our warehouse in Siddeburen, the
Netherlands.
The documentation (operating instructions, CE declaration,

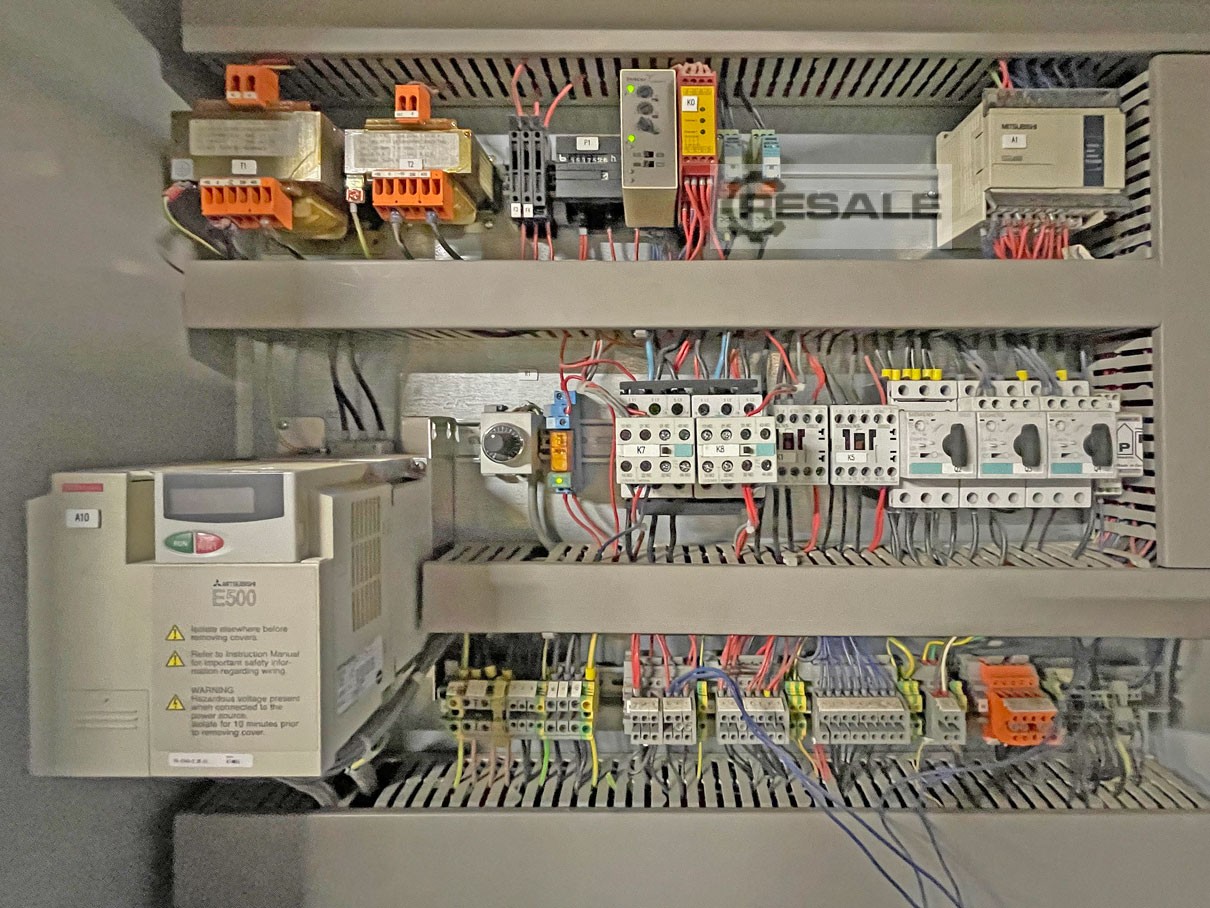

electrical/hydraulic circuit diagram) is complete. An inspection is
possible by appointment. We assume no liability for the technical
information or any errors.
