Sistemi di trasporto senza conducente SAFELOG AGV M4

3 pieces of driverless transport systems, SAFELOG. AGV M4 – used - :

Price per piece: 12.500.-€ (net)!

Manufacturer: SAFELOG GmbH
Type: AGV M4
Year of Make: 2021

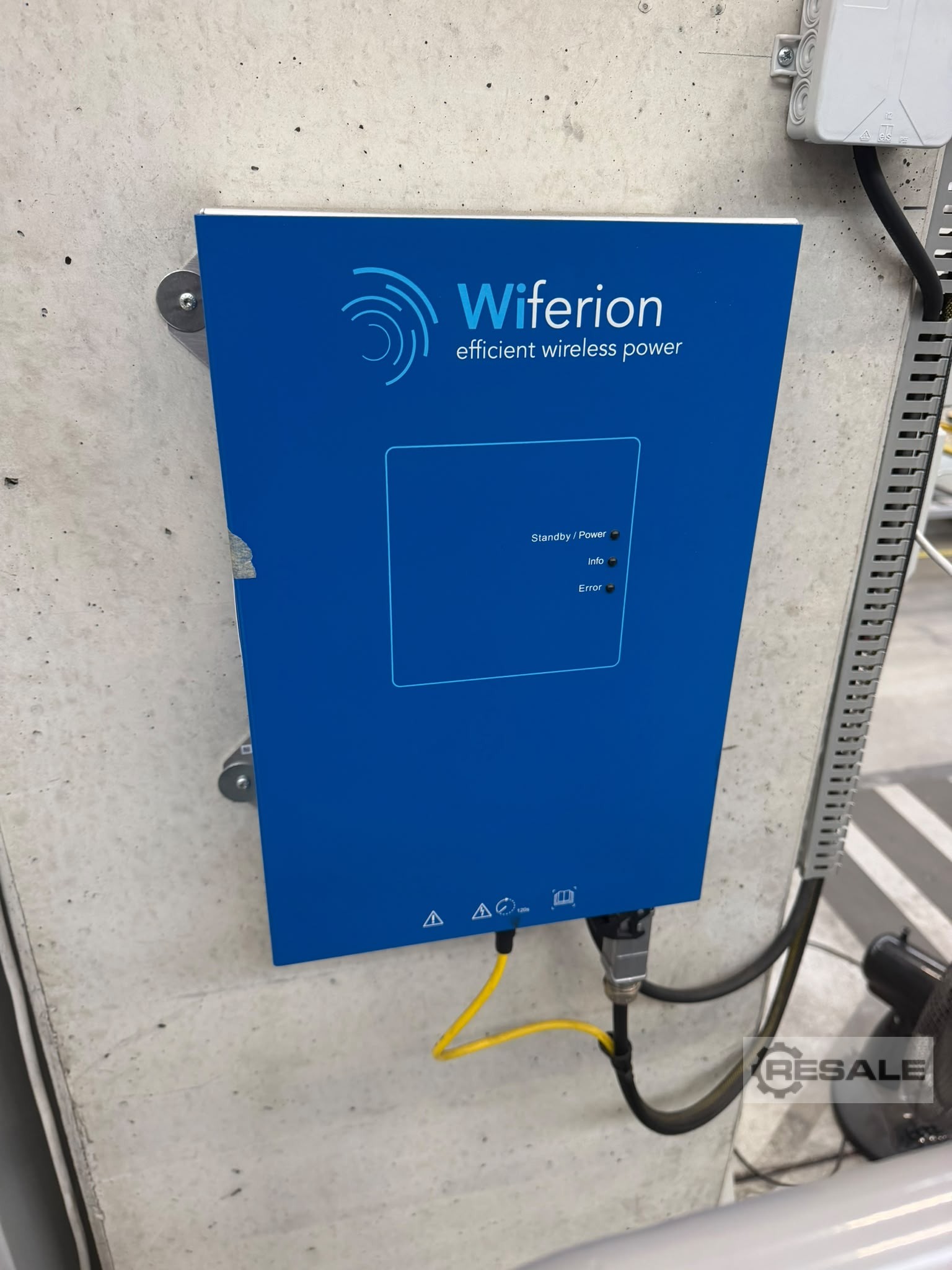

Incl. inductive charging point and wireless station
Manufacturer data:
Forward and reverse travel possible

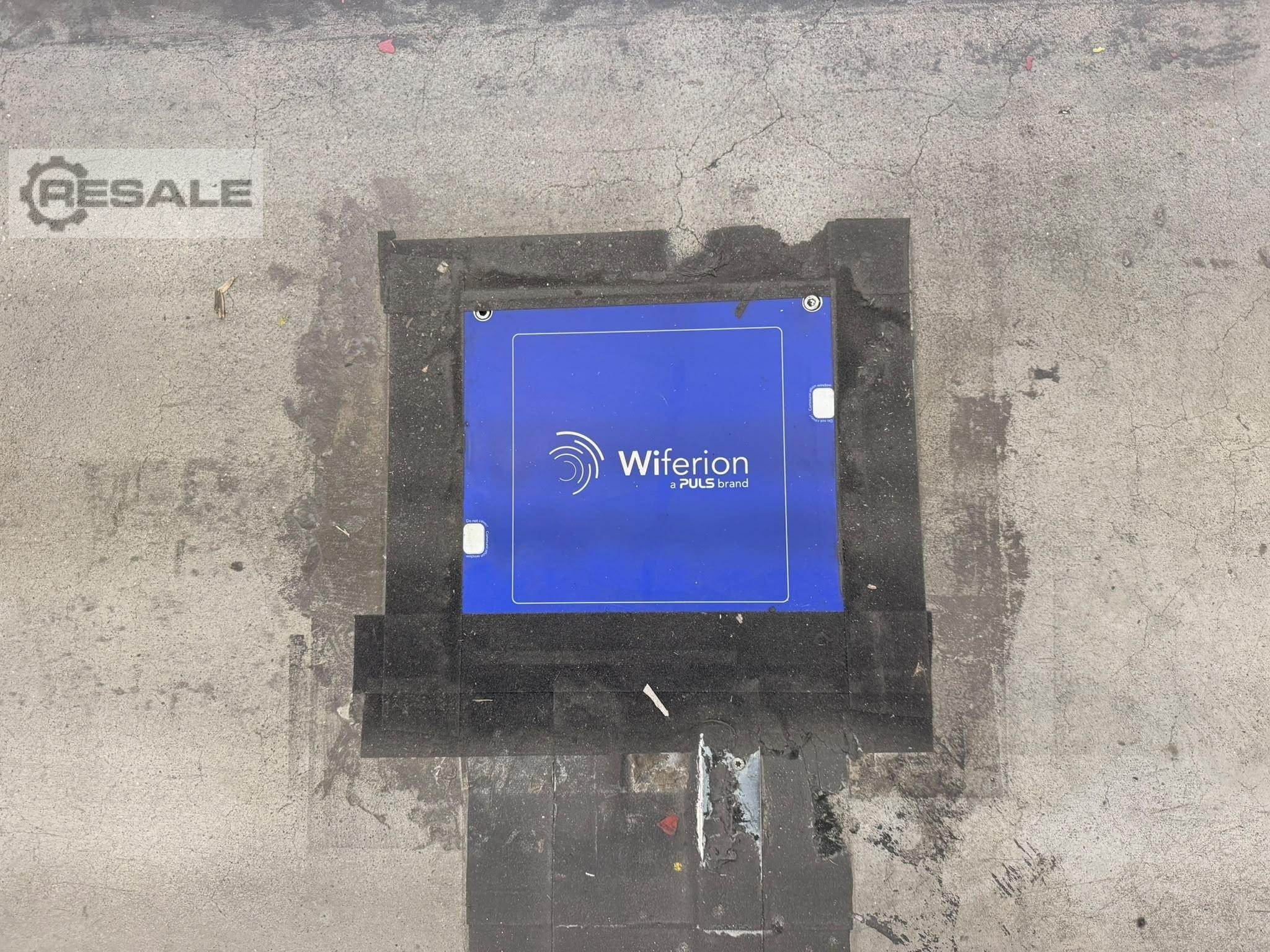

Wear-free charging in the process using an inductive charging system
Scalable battery capacity from LiFePo4 batteries to adapt to
Process Requirements
Low-profile design with a height of only 220 mm — ideal for driving under

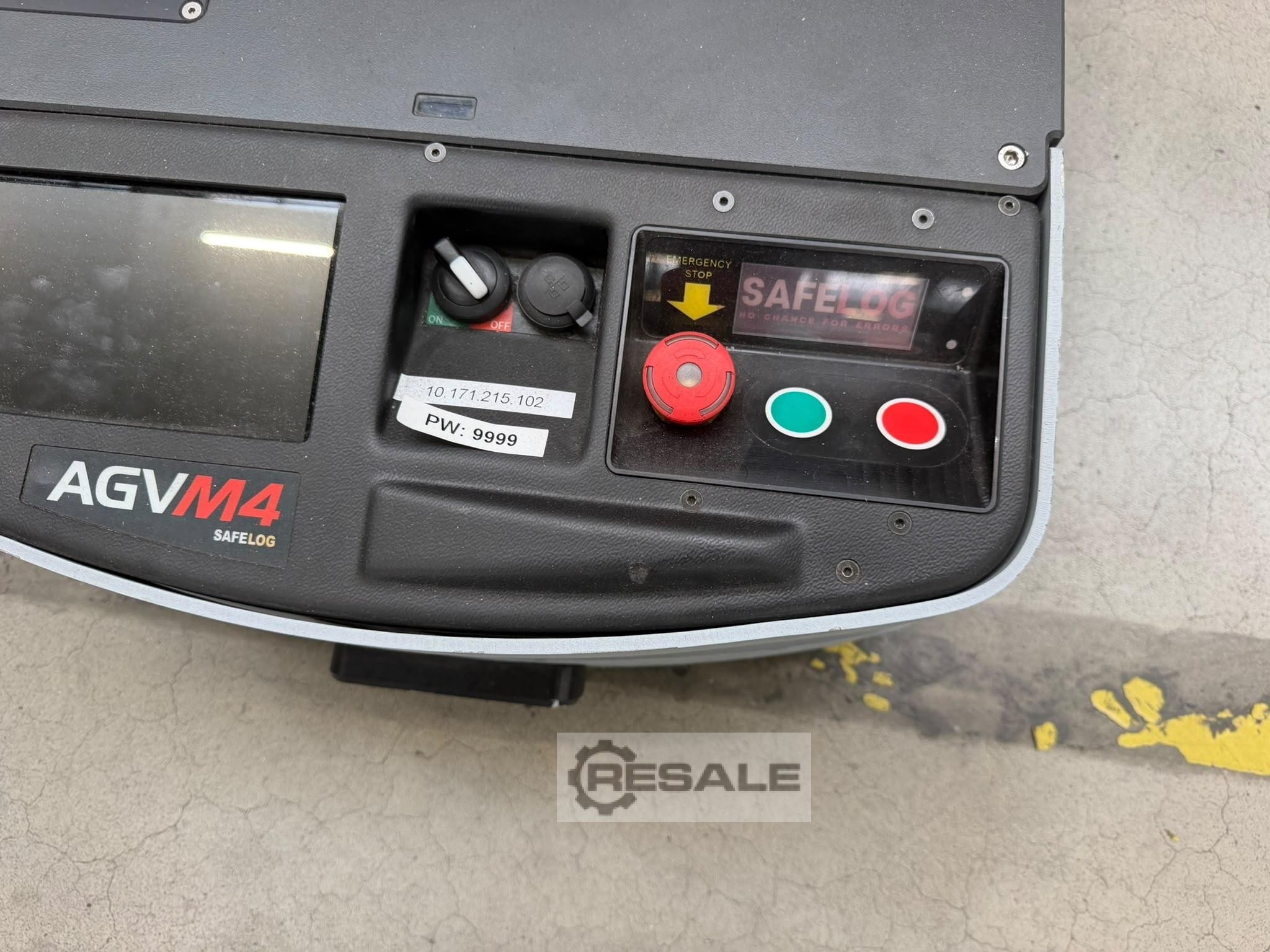

7" touch display for easy handling
Agent-based control for communication between AGVs and their environment
Electric lifting pin for automatic pick-up and drop-off of trailers
up to 1.5 t
Travel speeds from 0.02 m/s to 1.6 m/s

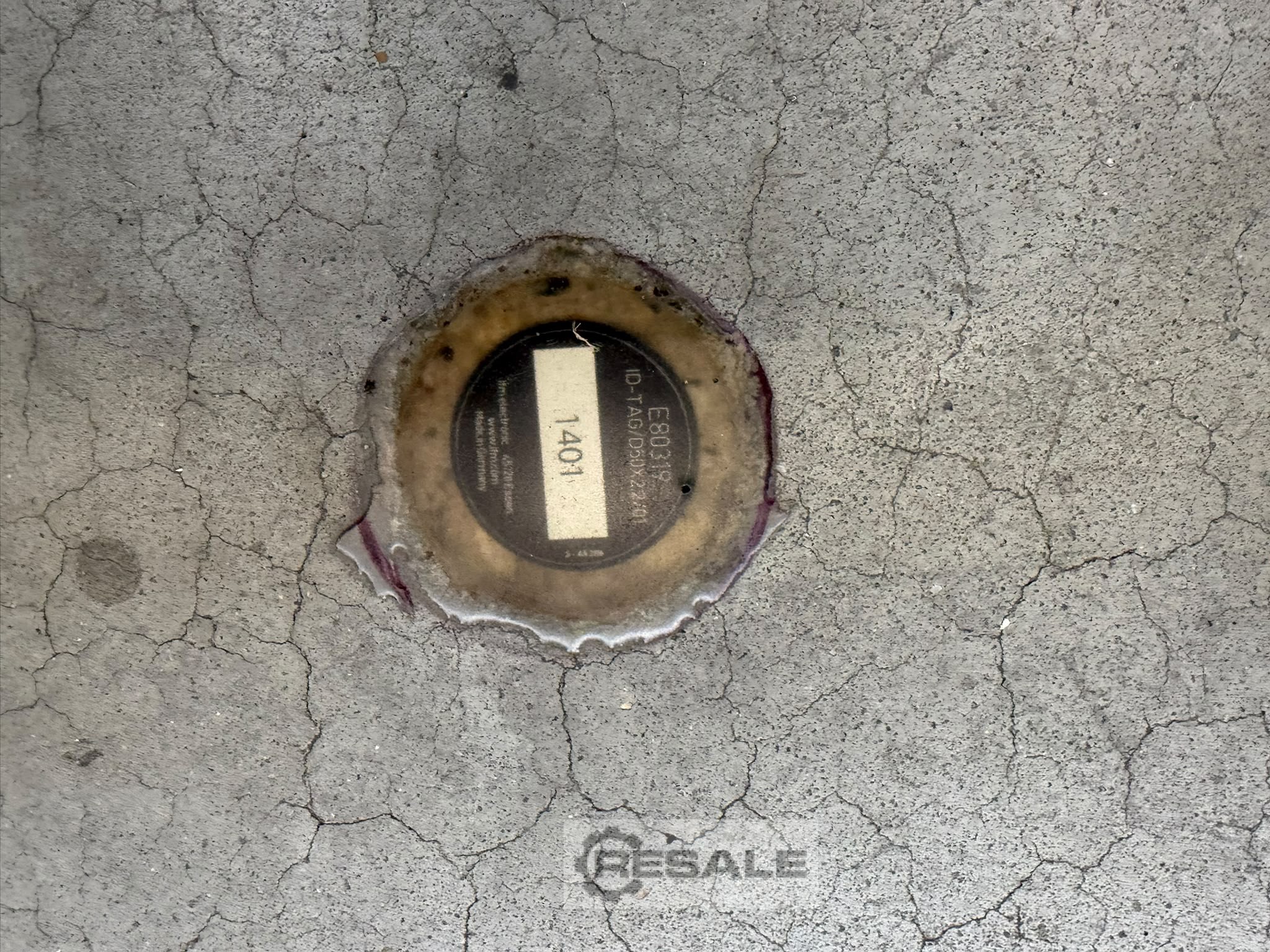

Hybrid navigation of magnetic track, contour navigation, camera navigation and odometry
Safety laser scanner in every direction of travel
Technical data
Description SAFELOG AGV M4
Item number 106148
Electrical data
Operating voltage AGV [V] 24 DC
Charging time with inductive charging system (at 1 / 2 / 3 / 4 batteries) [min] 30 / 40 / 60 / 80
Capacity (at 1 / 2 / 3 / 4 batteries) [Ah] 21 / 42 / 63 / 84
The establishment
Temperature range [°C] 5 - 35
Positioning accuracy [mm] +/- 5
Min. Curve Radius [m] 1
Maximum speed (with trailer/without trailer) [m/s] 1.0 / 1.6
Continuous travel time without load (with 1 / 2 / 3 / 4 batteries) [h] 4 / 8 / 12 / 16
Mechanical data
Housing Material: Steel

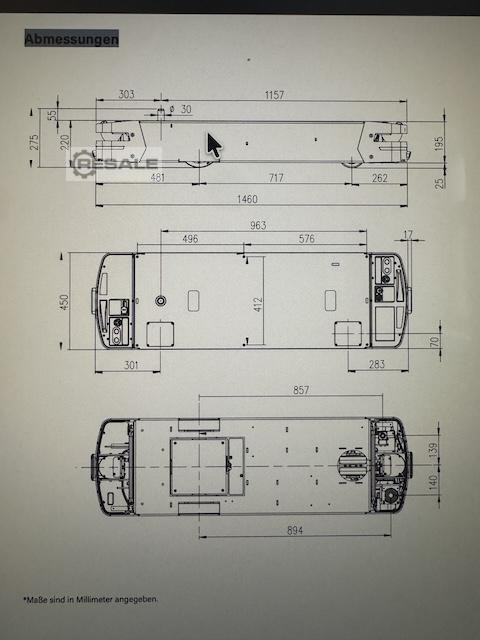

Dimensions (L / W / H) [mm] 1460 / 450 / 220
Weight AGV [kg] 235
Max. payload AGV (topload) [kg] 200
Max. towing weight (trailer) [kg] 1500
Condition: good
Available: immediately
Location: Erfurt area, later Frankenberg camp / Saxony
seller offer No. resale 169913352
