Torni CNC SMEC PL 45LY
macchine per lavorazione dei metalli / torni / Torni CNC
Basic machine data Used CNC Lathe from SMEC (SAMSUNG) Make: SMEC (SAMSUNG) Type: PL 45LY Year of Make: 2014 Condition: Mint Control: Name: FANUC OI-TD FANUC Manual Guide (dialog program) Travels: x-travel: 350 mm // y-travel: +/- 60 mm (120 mm) // z-travel: 2250 mm Technical data: • C-axis • ...
Fabbricante: SMEC
Modello:PL 45LY
Tipo di macchina: Torni CNC
Numero di articolo: 169333839
Quantità: 1
Data: 15.04.2026
Anno di fabbricazione: 2014
Luogo:
Germania
83123 Amerang
Prezzo:
Macchina in azione:No
Basic machine data

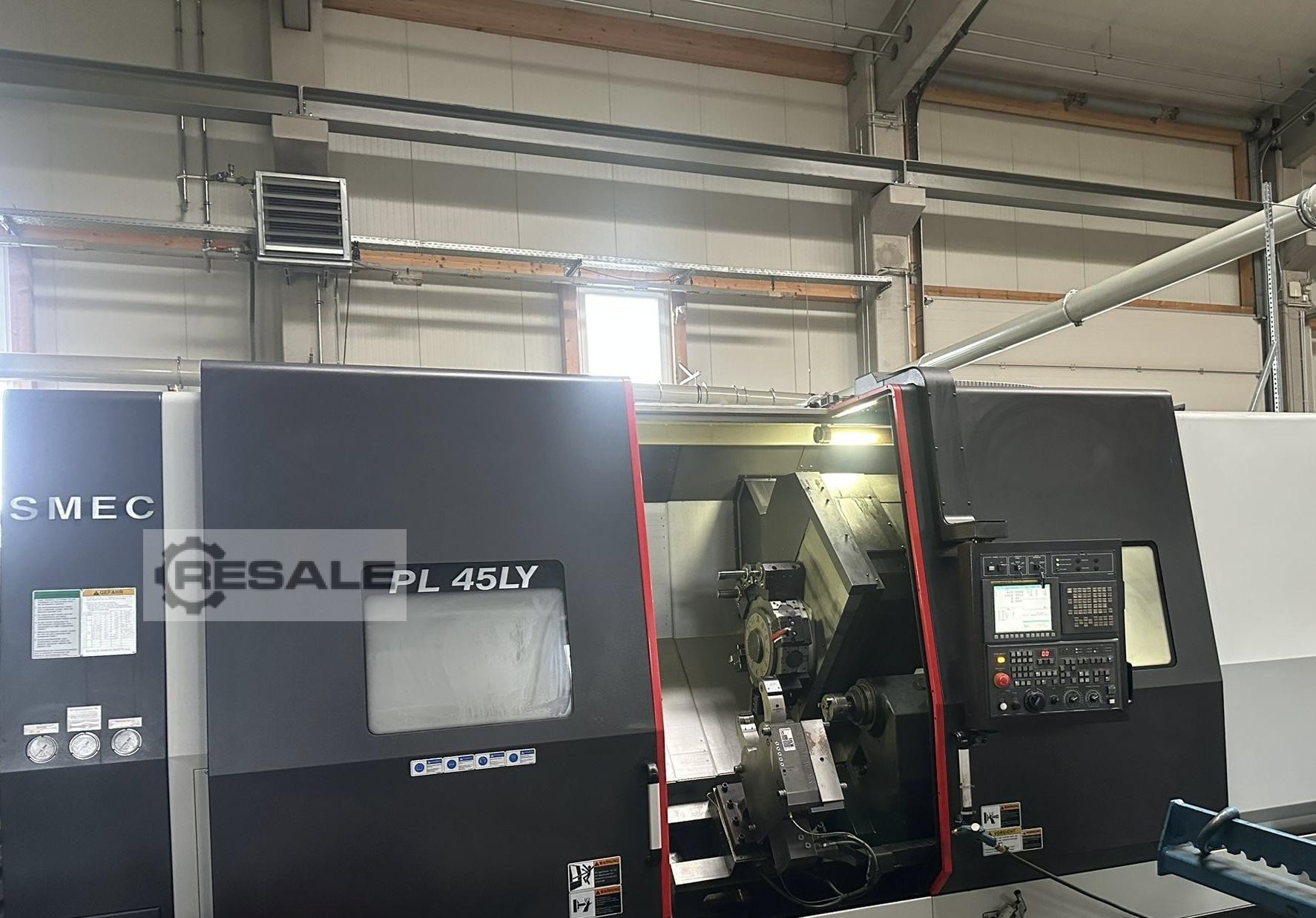

Used CNC Lathe from SMEC (SAMSUNG)
Make: SMEC (SAMSUNG)
Type: PL 45LY
Year of Make: 2014
Condition: Mint
Control:

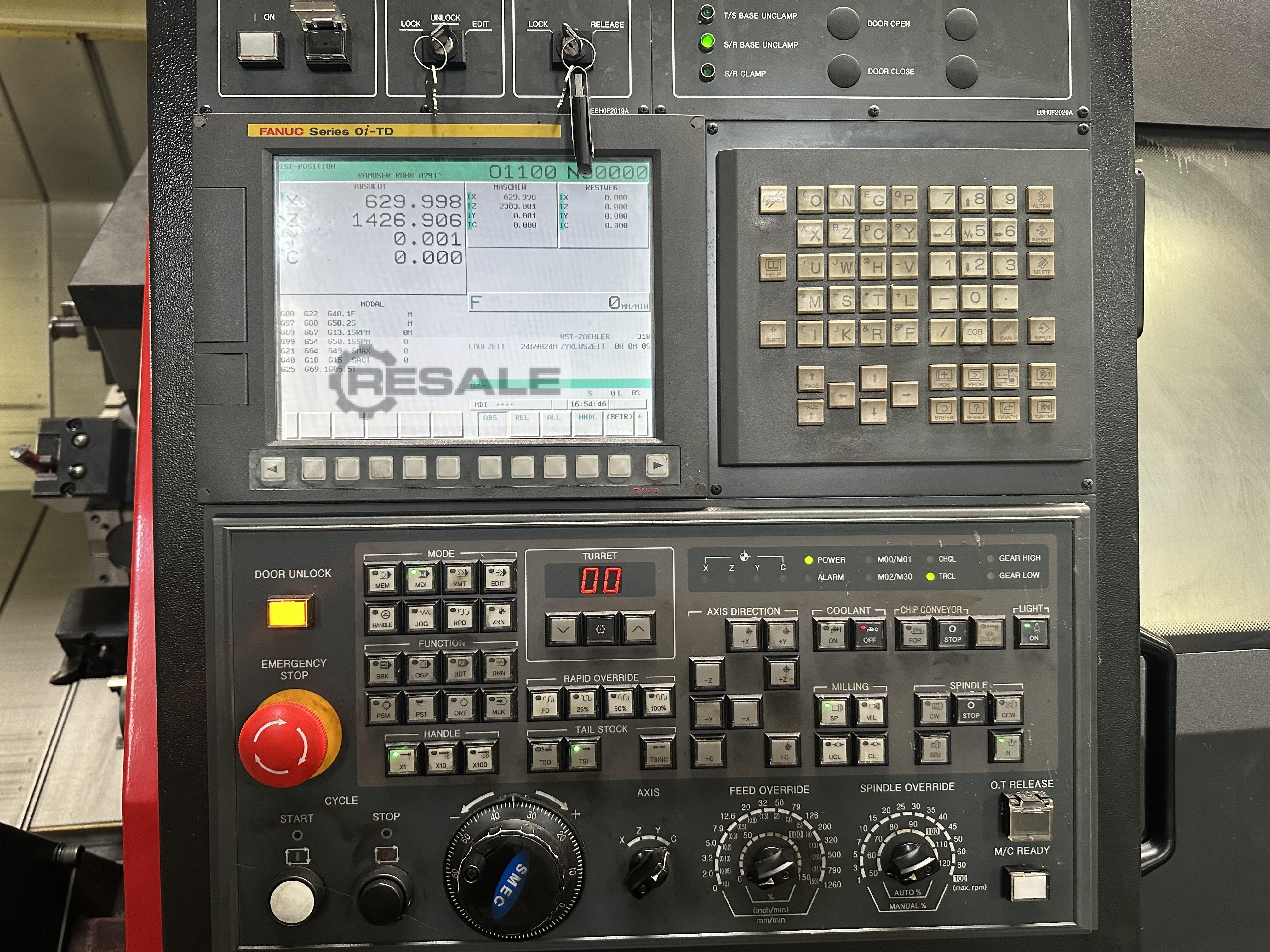

Name: FANUC OI-TD
FANUC Manual Guide (dialog program)
Travels:
x-travel: 350 mm // y-travel: +/- 60 mm (120 mm) // z-travel: 2250 mm
Technical data:
• C-axis
• Max. speed: 2500 rpm
• Swing diameter over bed: 775 mm
• Max. turning diameter: 690 mm
• Max. turning length: 2255 mm
• Hydraulic 3-jaw chuck: 450 mm
• Rapid traverse: x = 20 m // z = 18 m
• 12 tool positions
• BMT75 interface
• Bar passage: 118 mm
• Hydraulic tailstock (programmable)
• Hydraulic bezel SMW 30-245 mm
• High-pressure coolant pump up to 30 bar
• Chip conveyor
• Man. Tool Measurement Arm
• Signal light
• Tool package included with machine
Incl. 4 driven tools
2 x Axial
2 x Radial
The machine is in mint condition.
Machine has only 2469 PGM hours
Prior sale is reserved. No liability is assumed for the technical information provided here. The legal provisions apply.
