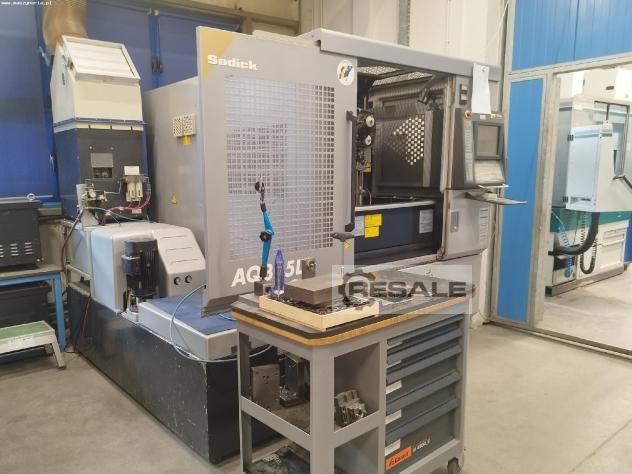

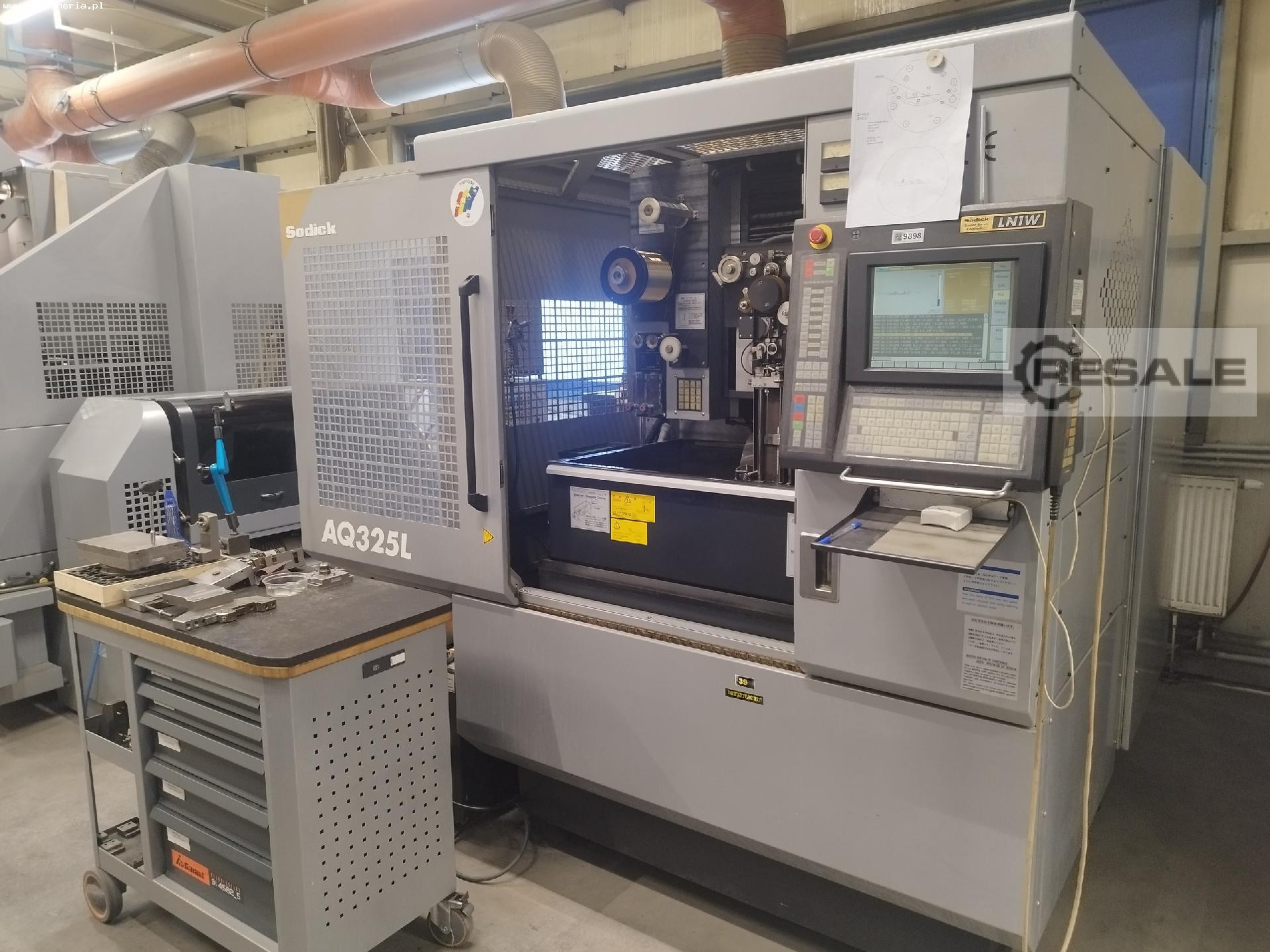

Eroditrici SODICK AQ325L

SODICK AQ325L wire EDM was built in 2002 in Japan by Sodick Co., Ltd. The machine, distinguished by its exceptional precision and reliability, is an excellent choice for the production of parts with complex geometries, i.e. dies, punches and tools. The electrical erosion technology used in the machining process enables difficult shapes to be achieved in even the hardest materials. This method also minimises or completely eliminates the need for other secondary processes, such as polishing.

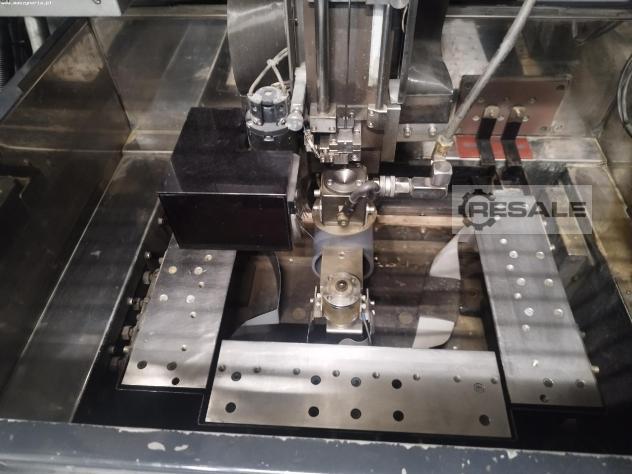

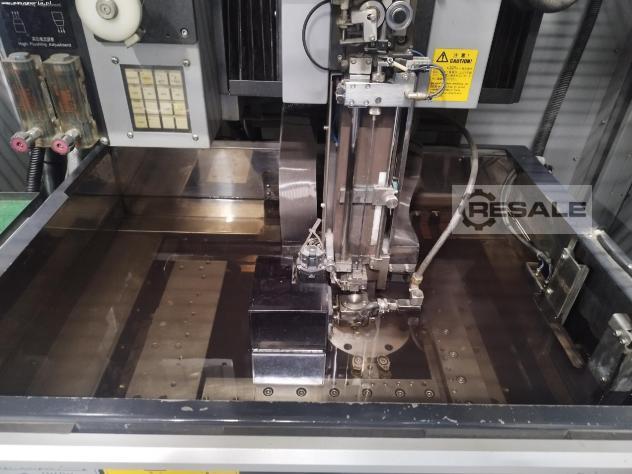

The SODICK AQ325L is designed for machining workpieces with a maximum weight of 450 kg. The machining process is performed in a dielectric-filled work tank using a wire with a maximum diameter of 0.30 mm. The workhead moves in five axes X,Y,Z,U,V with feeds of 350 mm, 250 mm, 220 mm, 80 mm and 80 mm respectively. The use of a dielectric increases the surface quality and dimensional accuracy of the workpieces. The adjustable wire tension, combined with the high operating speed, reduces overall cycle time while maintaining high production efficiency.

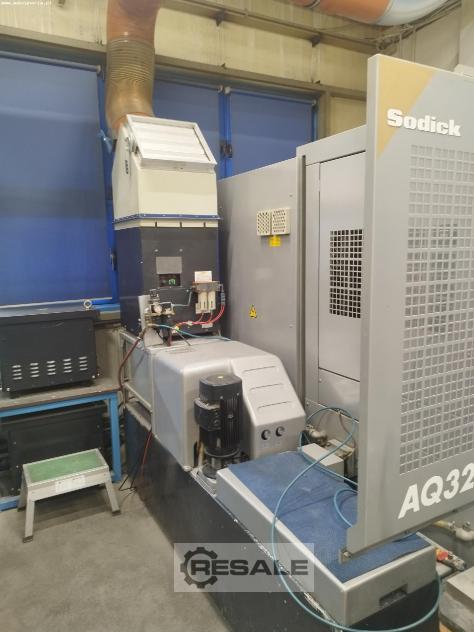

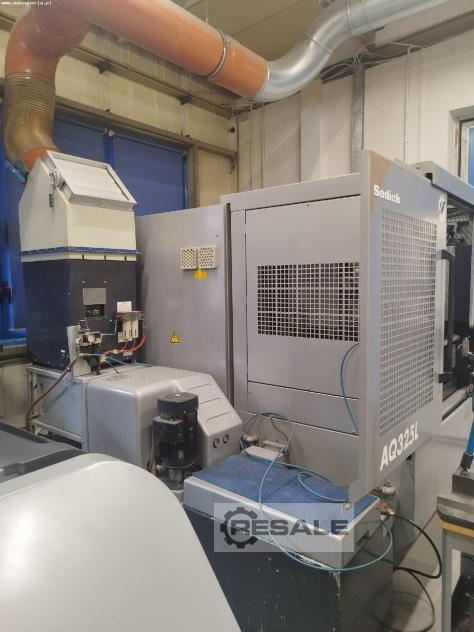

The machine design is distinguished by its exceptional stability and compact dimensions. This facilitates daily operation and the preparation of workpieces for machining. The AQ325L wire EDM is equipped with an integrated dielectric system with a capacity of 530 litres, a deioniser and a filtration system based on replaceable paper filters. The total weight of the machine is 2800 kg.

Technical specifications of the SODICK AQ325L wire EDM
General data

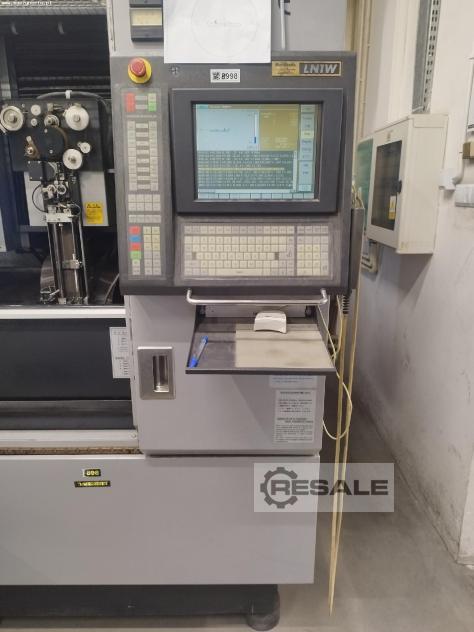

- controller: SODICK LN1W
- number of axes: 5 (X,Y,Z,U,V)
- feed in the X/Y/Z axis: 350/250/220 mm
- feed in the U/V axis: 80/80 mm
- work table dimensions (L x W): 600 x 400 mm
- work tank internal dimensions (L x W): 895 x 650 mm
- maximum workpiece weight (not submerged): 450 kg
- maximum workpiece weight (submerged): 300 kg
- maximum workpiece height (not submerged): 220 mm
- maximum workpiece height (submerged): 200 mm
- cutting angle: 20°/80 mm
- maximum wire diameter: 0.30 mm
- minimum wire diameter: 0.15 mm
- maximum wire speed: 250 mm/s

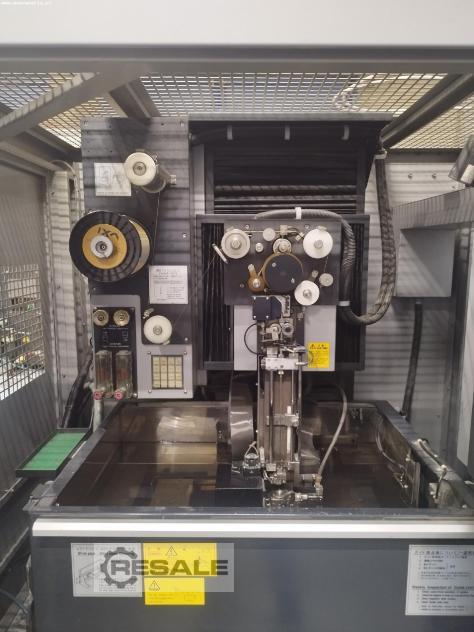

- maximum wire spool weight: 6 kg
- wire tension: 300-2300 G
- distance from floor to work table surface: 965 mm
- dimensions (L x W x H): 1650 x 1900 x 2040 mm
- weight of the SODICK AQ 325L machine: 2800 kg

Dielectric tank
- capacity: 530 l
- deioniser: 10 l
- external dimensions (L x W x H): 550 x 2200 x 1770 mm
- empty tank weight: 230 kg

Filtration system
- replaceable paper filters (2 pcs.)
- layout / positioning from drawing
- overall dimensions (L x W): 3000 x 3500 mm
- power supply: AC 3x 220 V; 50/60 Hz
