Macchina da macinare STUDER S22 CNC

CNC CYLINDRICAL GRINDING MACHINE

Fritz Studer AG — Model S22 CNC

Hours in picture

MACHINE IDENTITY

Machine type CNC Cylindrical Grinding Machine

Manufacturer Fritz Studer AG

Model S22 CNC

Serie 004

Serial No. 040.0004

Year of manufacture 2009

Machine base Granitan® S103 mineral casting

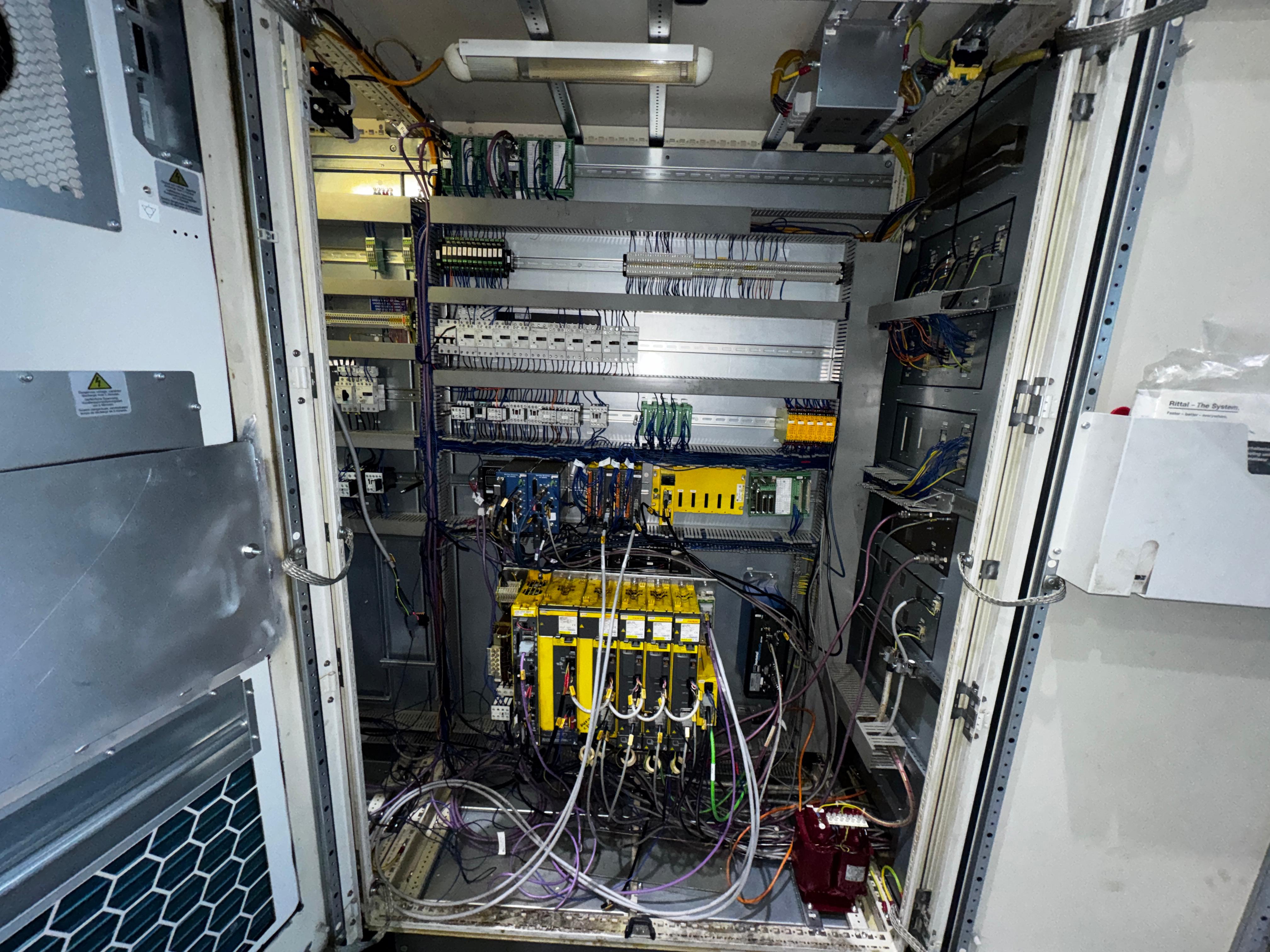

Control system FANUC 31i-A CNC

Configuration Fixed straight wheelhead (OD grinding)

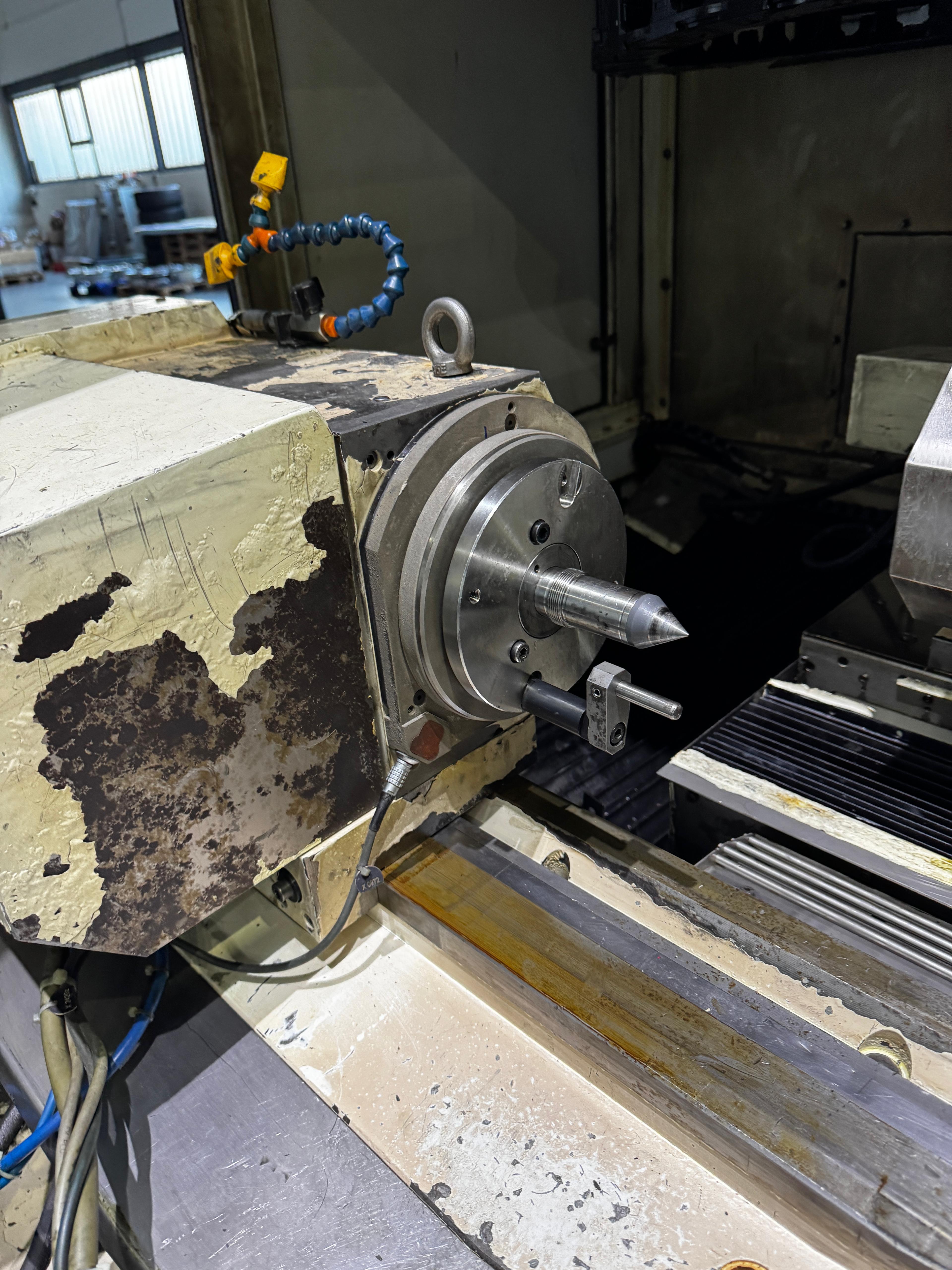

WORKPIECE DIMENSIONS

Distance between centers 650 mm (25.6")

Center height 175 mm (6.9")

Max. workpiece weight 150 kg (330 lbs)

Max. workpiece length 700 mm

Max. workpiece diameter 449 mm

GRINDING WHEEL

Grinding wheel diameter 610 mm

Grinding wheel width 160 mm

Grinding wheel speed Up to 3,200 rpm

Spindle power 15 kW (20.5 hp)

Wheelhead type Fixed straight

HSG peripheral speed Up to 140 m/s (optional)

AXIS TRAVEL & DYNAMICS

X-axis travel 310 mm

X-axis max. speed 15,000 mm/min

Z-axis travel 850 mm

Z-axis max. speed 30,000 mm/min

C-axis Full rotation capability for workhead

GUIDEWAY SYSTEM

X-axis (cross slide) Anti-friction guideways with ball-screw

Z-axis (longitudinal) Patented surface structure with ball-screw linear drive

SOFTWARE & CONTROL

Programming interface StuderWIN with FANUC 31i-A

Grinding software StuderGRIND

Automation interfaces Standard interfaces for loaders and peripherals

Automation Automatic loading system with FANUC robot integration

INCLUDED EQUIPMENT

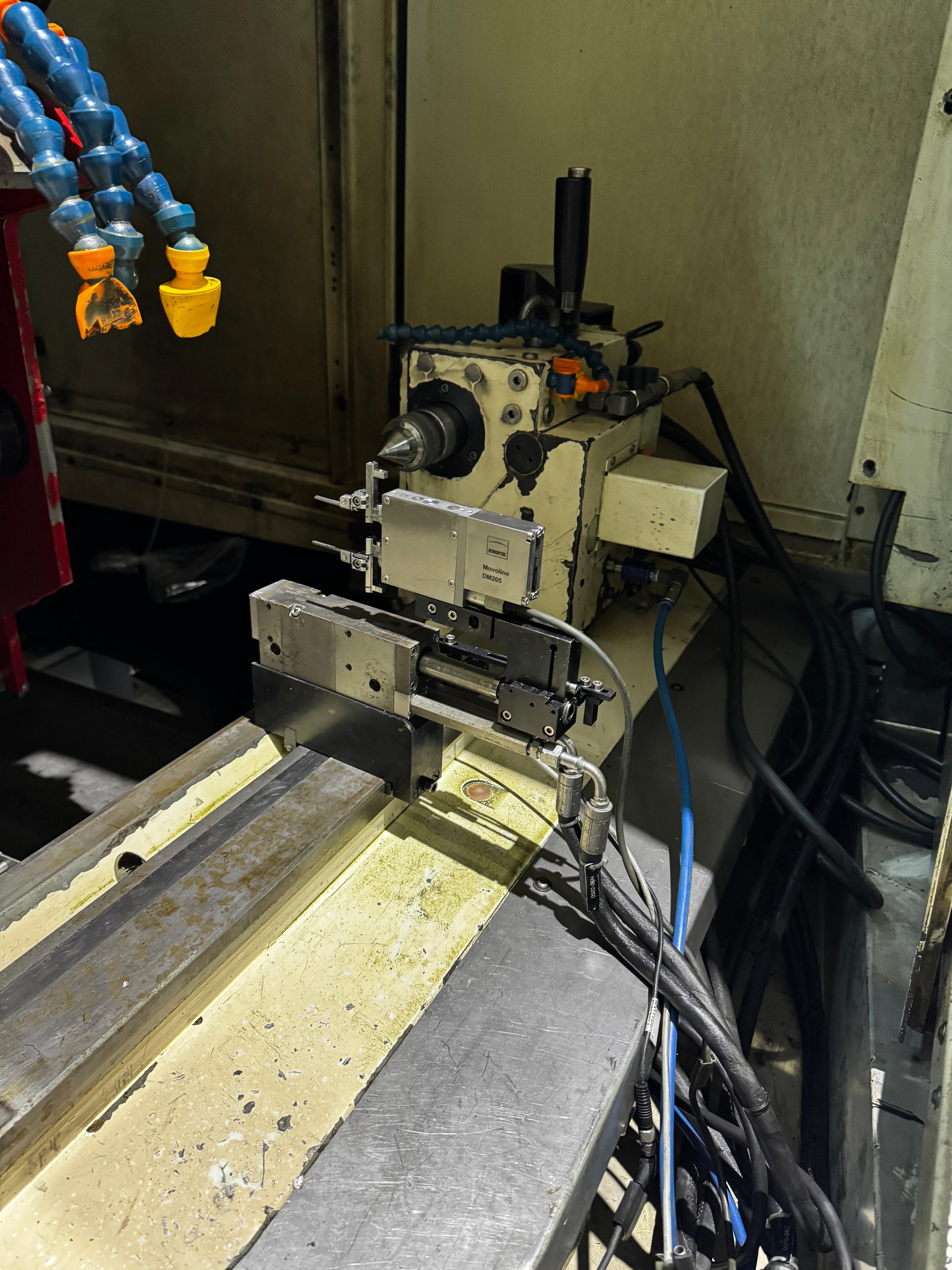

Dressing Rotary dresser

Measurement Heidenhain scales

Fixturing Various clamping fixtures
seller offer No. resale 8726327
