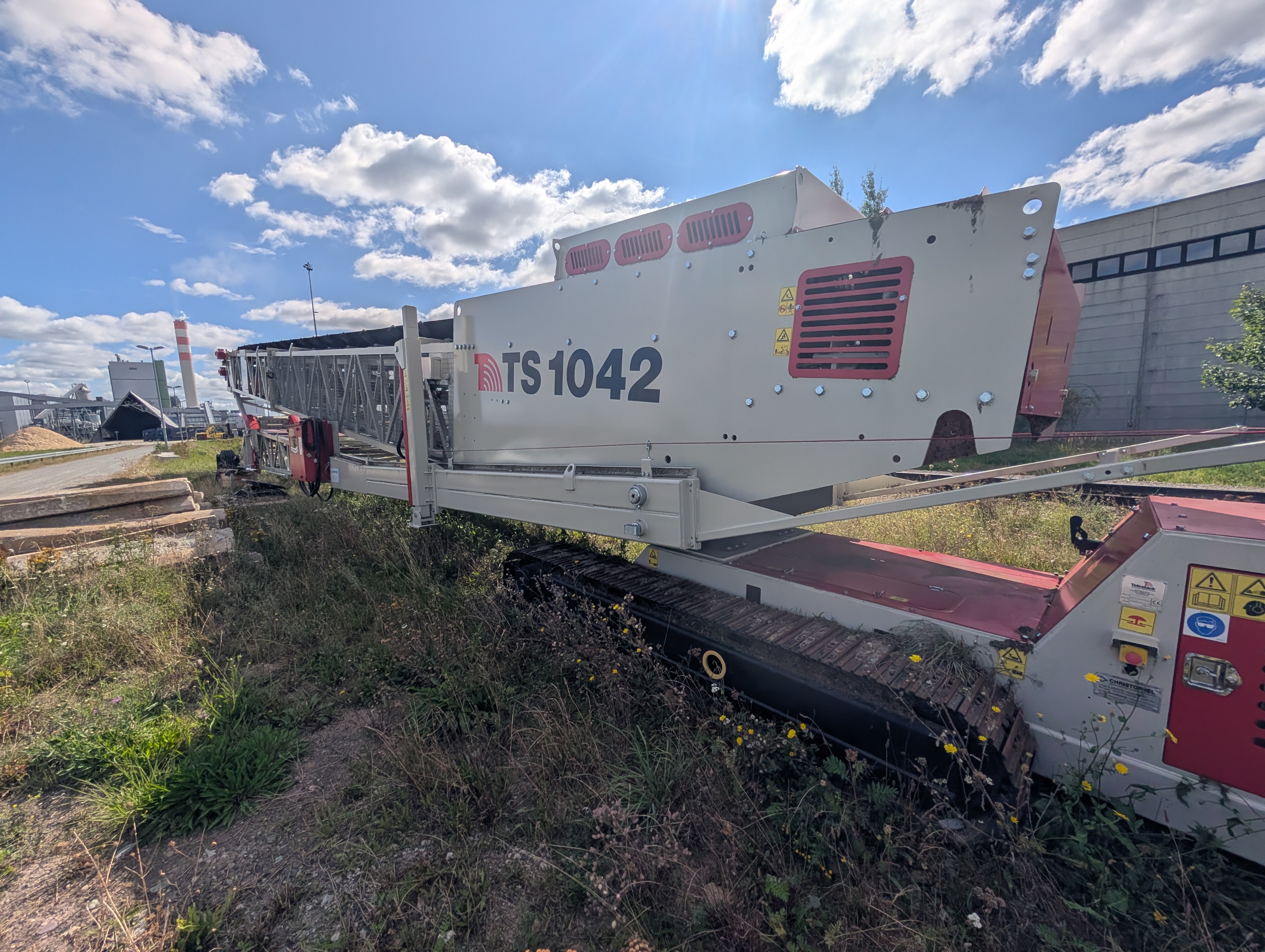

Movimentazione dei materiali TELESTACK TS 1042

Manufacturer: Telestack

Model: TS 1042

Condition - Like new. Its been barely used.

Hours - 61 hours only

Task:

- Material: Wood chips
- Max. Feed Piece Size: 0-80 mm, max. 100 mm
- Max. Bulk Density: Approx. 0.4 t/m³, max. 0.5 t/m³
- Average Capacity: Approx. 225 t/h, max. 250 t/h
- Moisture Content: 20%
- Description of Use: Stockpiling of wood chips in storage boxes

Technical Specifications:

- Receiving Box: Designed for material transfer from screening, crushing, or belt systems
- Pick-up Height: Approx. 3,000 mm (depends on the conveying angle)
- Max. Feed Grain: 100 mm
- Height Adjustment: Hydraulic height adjustment and telescopic device from the control panel
- Belt Length: Up to approx. 42,720 mm
- Max. Discharge Height: Up to approx. 14,520 mm
- Belt Specifications:
- Smooth belt, 1050 mm wide
- Three-layer EP400 4:2

Electric Drive System:

- Main Belt: 18.5 KW
- Telescopic Belt: 2 x 5.5 KW
- Telescopic Drive: 1.1 KW
- Electro-hydraulic Power Pack: 5.5 KW
- Control Cabinet: Includes connection for all electrical consumers and on-site locking to the feed belt

Performance & Storage:

- Transport Capacity: Max. 250 t/h at a bulk density of 0.4-0.5 t/m³
- Storage Capacity: Approx. 4,024 – 57,365 m³ (0-270 degrees)

Dimensions & Weight:

- Minimum Overall Dimensions (fully telescoped and lowered):
- Length: Approx. 27,780 mm
- Width: Approx. 3,700 mm
- Height: Approx. 5,540 mm
- Swiveling & Telescoping: Controlled via control cabinet
- Weight: Approx. 25,700 kg

Attached are two photos of the feed opening. We used the conveyor belt without a large hopper. We fed this conveyor belt from an upstream conveyor belt, as you can see in the photo.

The external dimensions of the existing hopper are approx. 155 cm wide x 195 cm long. The lower hopper dimensions at the outlet are approx. 65 cm wide x 150 cm long.

Since the existing hopper is bolted in place (see picture), you can certainly install a custom-fit hopper or modify the existing one.

Capacity and technical data: TELESTACK TS 1042

Material: Wood chips

Max. feed size: 0-80 mm, max. 100 mm

Max. bulk density: approx. 0.4 t/m³, max. 0.5 t/m³

Average output: approx. 225 t/h, max. 250 t/h

Moisture content: 20%

Application description: Stockpiling wood chips in storage boxes

Receiving hopper for material transfer from a screening, crushing, or conveyor system,

intake height approx. 3,000 mm, depending on the conveyor angle,

max. feed grain size 100 mm,

hydraulic height adjustment and telescopic device from the control panel,

belt length up to approx. 42,720 mm,

max. discharge height up to approx. 14,520 mm,

smooth belt 1050 mm wide, three-layer EP400 4:2,

electric drive: 18.5 kW main belt, 2 x 5.5 kW telescopic belt,

1.1 kW telescopic drive, 5.5 kW electrohydraulic power pack,

control cabinet with connection for all electrical consumers and on-site interlock to the feed belt,

transport capacity: max. 250 t/h with a bulk density of 0.4-0.5 t/h,

storage capacity approx. 4,024 – 57,365 m³ (0-270 degrees),

Minimum overall dimensions,

fully retracted and lowered: length approx. 27,780 mm, width approx. 3,700 mm, height 5,540 mm,

swiveling and telescoping via control cabinet,

weight approx. 25,700 kg
