Forno per l'asciugatura del legno TROCKENKAMMER LAUBER /MUHLBOCK Drying Chamber
macchine per lavorazione del legno / altre macchine per lavorazione del legno
We are offering for sale 3 Drying Chambers manufactured by Trockenkammer Lauber /Mühlböck Industrial drying chamber system with 3 chambers. Each chamber has a gross stack volume of 162 m³. Hot water heating with 780 kW heating capacity per chamber, operating at 95 °C flow temperature. Water ...
Fabbricante: TROCKENKAMMER LAUBER /MUHLBOCK
Modello:Drying Chamber
Tipo di macchina: Forno per l'asciugatura del legno
Numero di articolo: 168535228
Quantità: 1
Data: 12.08.2026
Anno di fabbricazione: 2012
Luogo: Dortmund, Germany
Prezzo:
Seller-item-No.:8353848

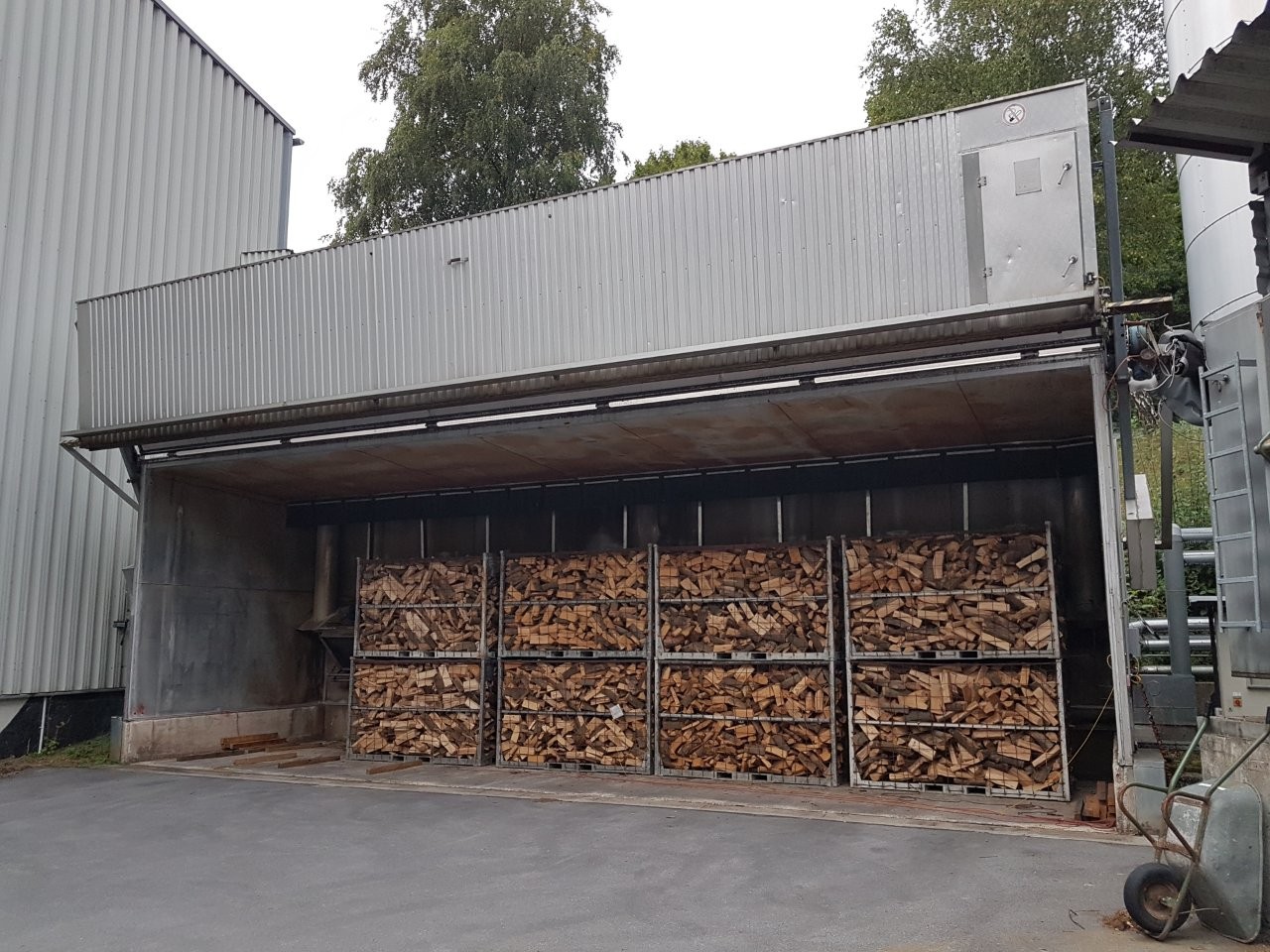

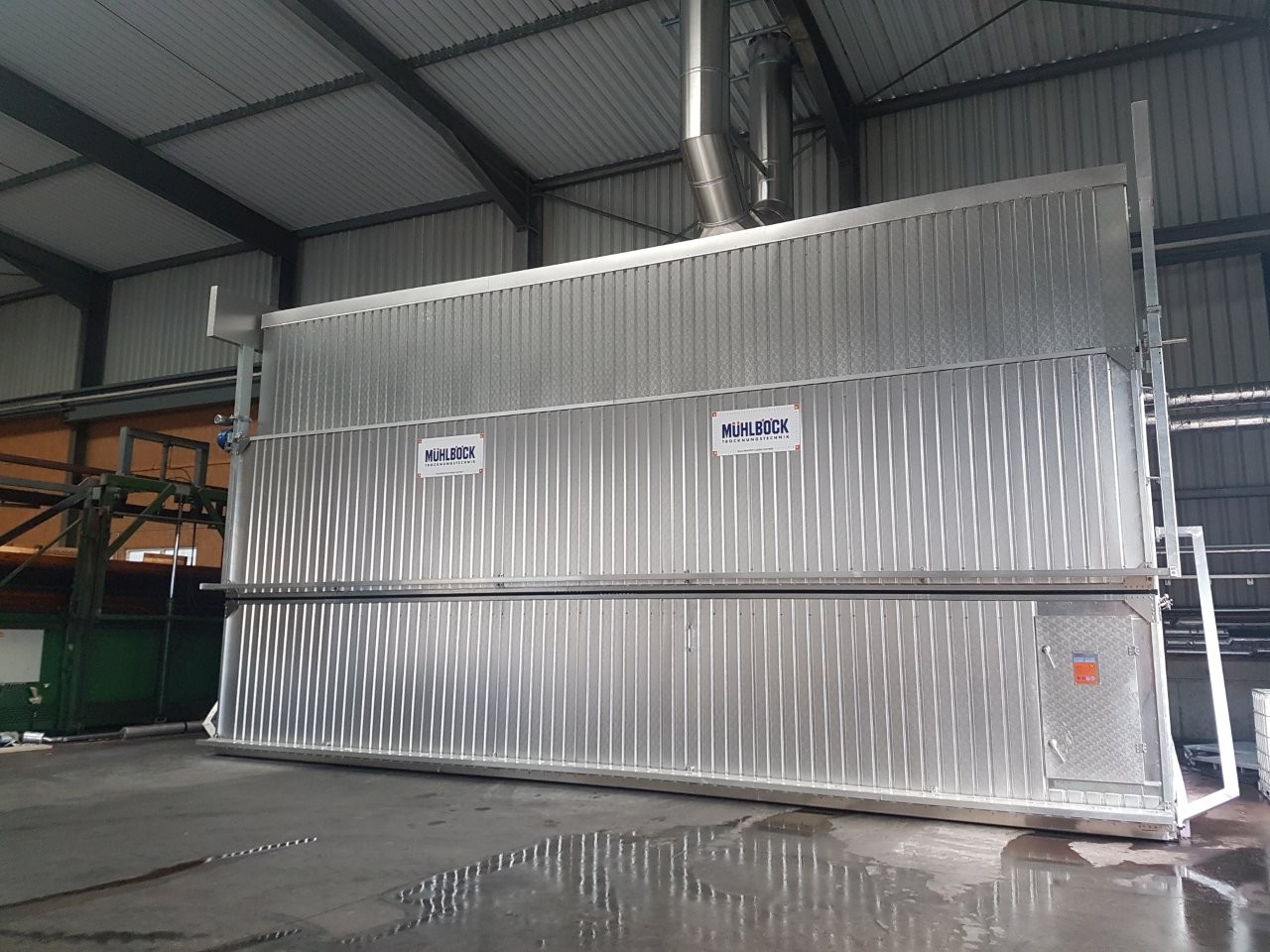

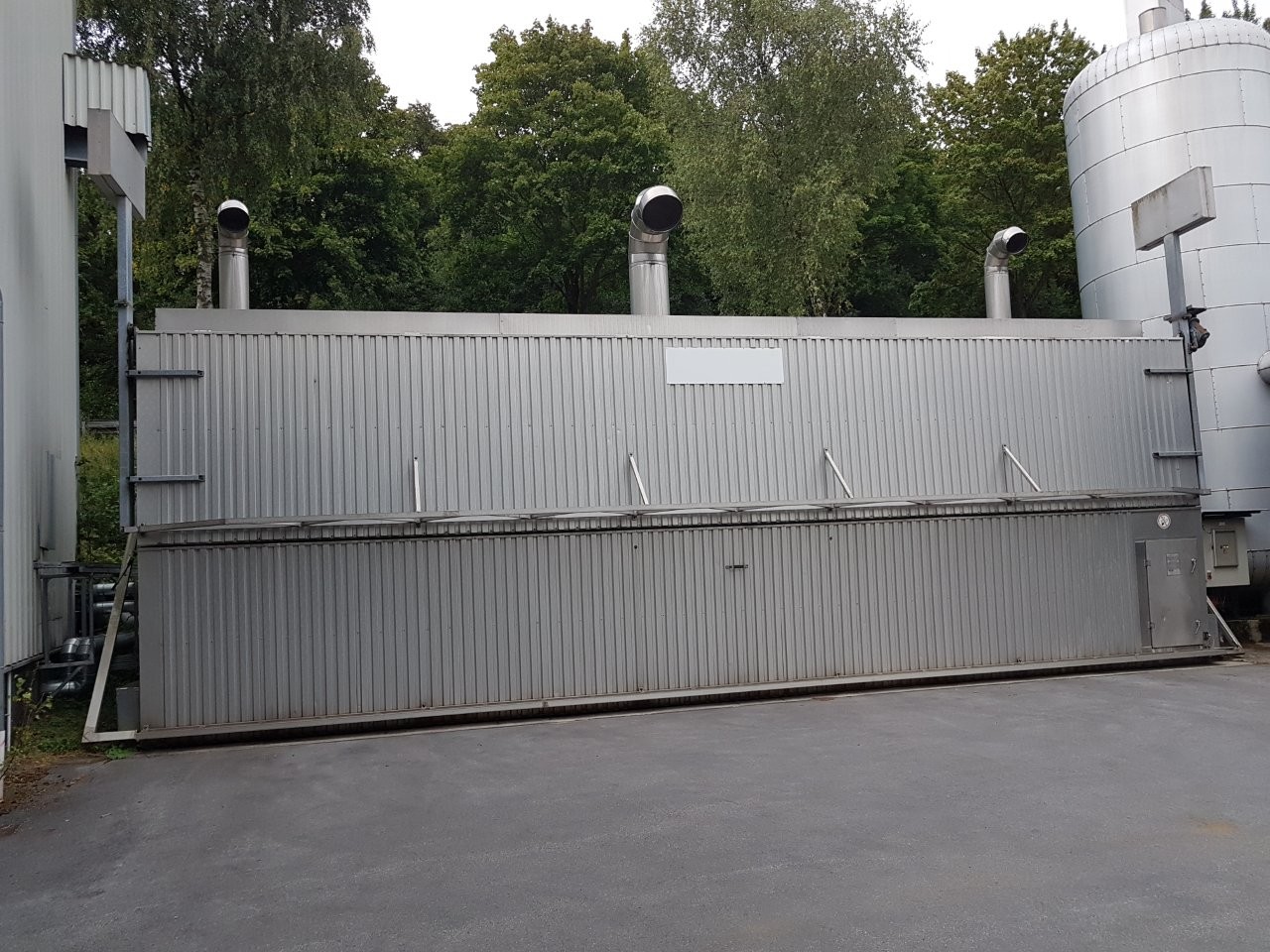

We are offering for sale 3 Drying Chambers manufactured by
Trockenkammer Lauber /Mühlböck
Industrial drying chamber system with 3 chambers. Each chamber has a gross stack volume of 162 m³. Hot water heating with 780 kW heating capacity per chamber, operating at 95 °C flow temperature. Water flow rate 45 m³/h, DN100 connections. Equipped with circulation and exhaust/fresh air fans. Suitable for high-capacity industrial drying applications..
Chamber 1
Manufacturer: Trockenkammer Lauber /Mühlböck Wood Drying System
Model: ZLSM 2120-3120-1252-11-0606-5.0
Year of Manufacture: 2012
Type of Machine : Wood Drying System
Heating capacity : 410 kW
Maximum flow temperature : 95 °C
Water flow rate : 24 m³/h
Pressure loss : 3 mWS
Electrical supply voltage: 230 / 400 V
Installed electrical power : 28 kW
Fans : 7 units, 3.0 kW each
Chamber 2
Manufacturer: Trockenkammer Lauber /Mühlböck
Year of Manufacture: 2004
Type of Machine : Wood Drying System
Chamber 3
Manufacturer:
Model: ZLSM3150-3120-1072-11-1306-6
Year of Manufacture: 2019
Type of Machine : Wood Drying System
Rated output (heating capacity): 780 kW
Water temperature: 95 °C
Water flow rate: 45 m³/h
Water pressure loss: 3 m WS
Power supply voltage: 230/400 V
Connected electrical load: 32 kW
Fans: 6 × 3.0 kW
Fan type: WRG-1306
WRG fan motors: 2 × 4.0 kW
Technical data per chamber
Heating system: hot water heating
Heating capacity: 67,080 kcal/h / 780 kW
Flow temperature: 95.0 °C
Water flow rate: 45 m³/h
Pressure loss: 3.0 m WS / 0.3 bar
Water connections
Flow connection: DN 100, PN 10
Return connection: DN 100, PN 10
Spray system
Medium: water
Water temperature: > +4 °C
Max pressure: 6.0 bar
Water consumption: 105 l/h
Connection: R 1/2 inch
Fans
Circulation air fans: 6 units, 3.0 kW, 400 V, 50 Hz
Exhaust / fresh air fans: 2 units, 4.0 kW, 400 V, 50 Hz
Number of chambers: 3
Stack dimensions per chamber
Stack length: 2 × 5.00 m + 0.56 m
Stack depth: 3 × 1.50 m + 2 × 0.10 m
Stack height: 3 × 1.20 m + 3 × 0.10 m
Gross stack volume: 162 m³
Find more here - .ucymachines/
Contact us at - sales@ucymachines
