Fresatrice a portale CNC WALDRICH-COBURG MC 2500

x-travel: 9000 mm
y-travel: 4350 mm
z-travel: 1250 mm

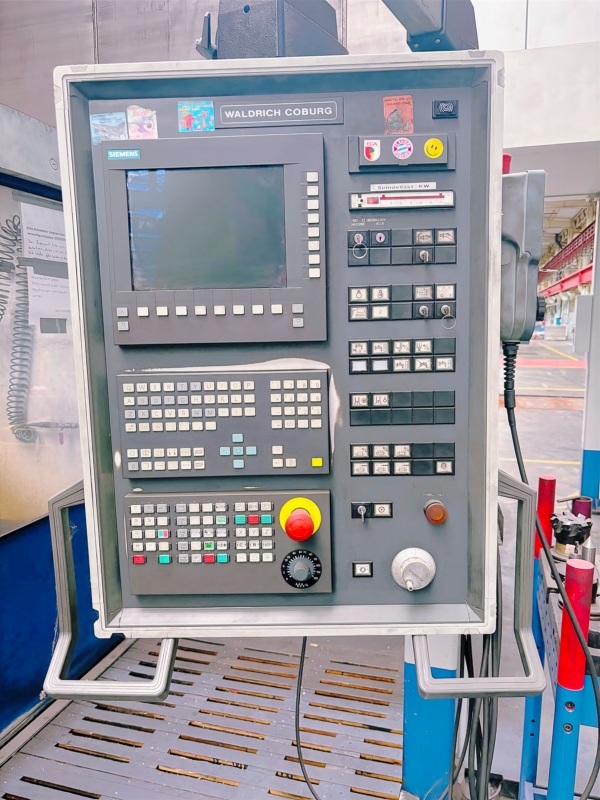

Control: Siemens 840D
table-size: 3500x2000 mm
workpiece weight - double table: 40 to
workpiece weight - single table: 20 to
feeds x-axis: 1-10000 mm/min
rapid motion - x-axis: 30000 mm/min
feeds y-axis: 1-10000 mm/min
rapid traverse y-axis: 30000 mm/min
feeds z-axis: 1-10000 mm/min
rapid travel z-direction: 20000 mm/min
milling and drilling device: M3-63KW / FW1250
max. torque on the milling spindle: 3300 Nm
power capacity - milling spindle: 63 kW
turning speed - milling spindle: 5000 U/min
c-axis: 360 Grad
positive location each: C-Achse 0,001 von 0-360 G Grad
tool taper: Iso 50

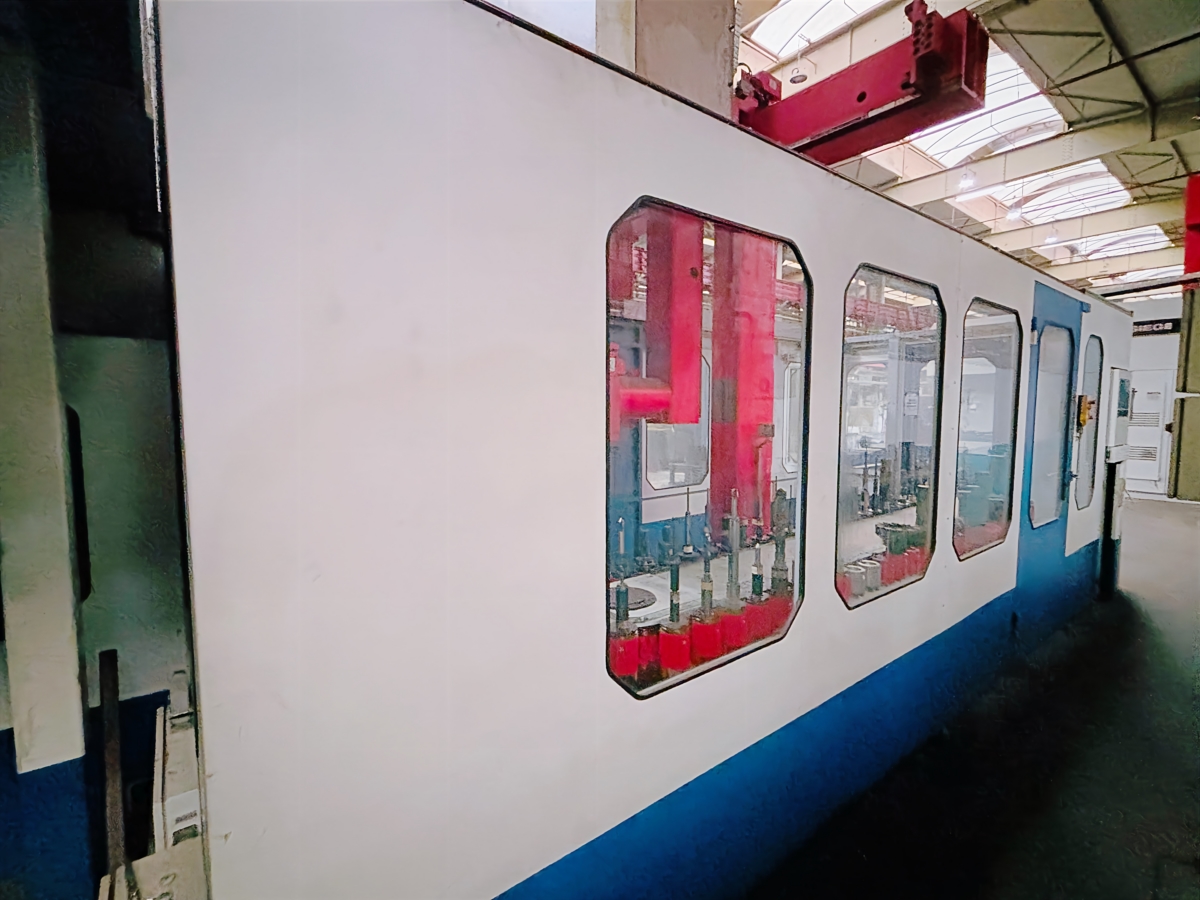

tool changer:
numbers of tools in magazin: 60
weight of tools max.: 50 kg
diameter of tools max.: 360 mm
tool length - max.: 600 mm
internal coolant system feed:

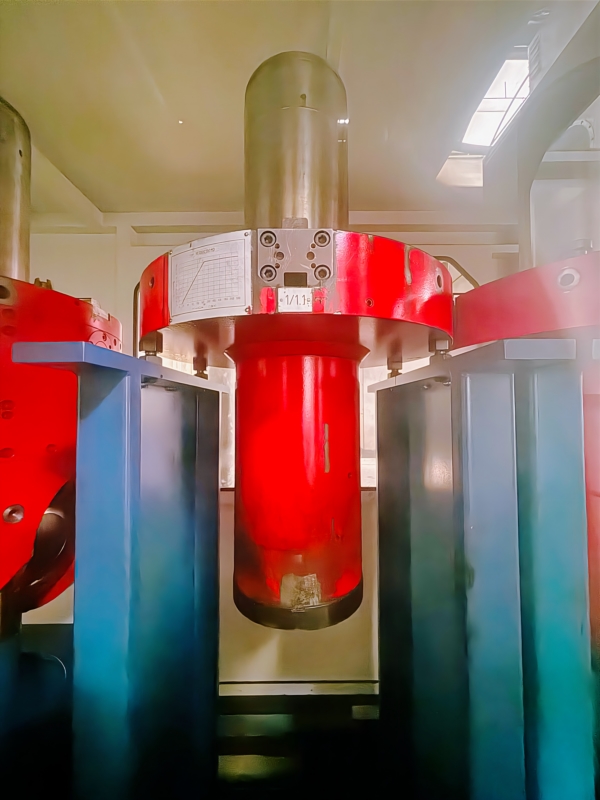

angular milling head: HSD 70 C 650 M3
angular milling head - universal: GSC 120 C 450 M3
vertical spindle unit: VS 36 C 650 M3
vertical spindle unit: VS 330 C
distance between columns: 2500 mm
internal coolant system feed:
total power requirement: kW
weight of the machine ca.: 140 t
dimensions of the machine ca.: 22x11x6 m
