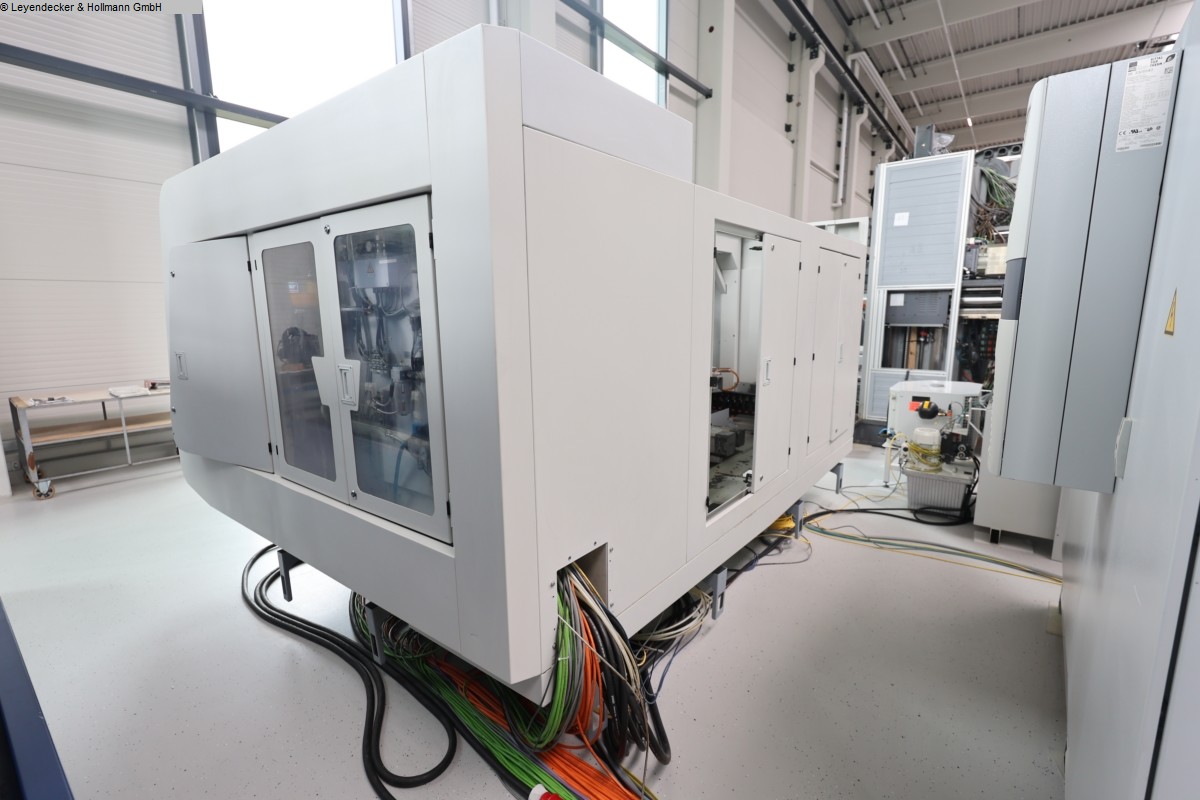

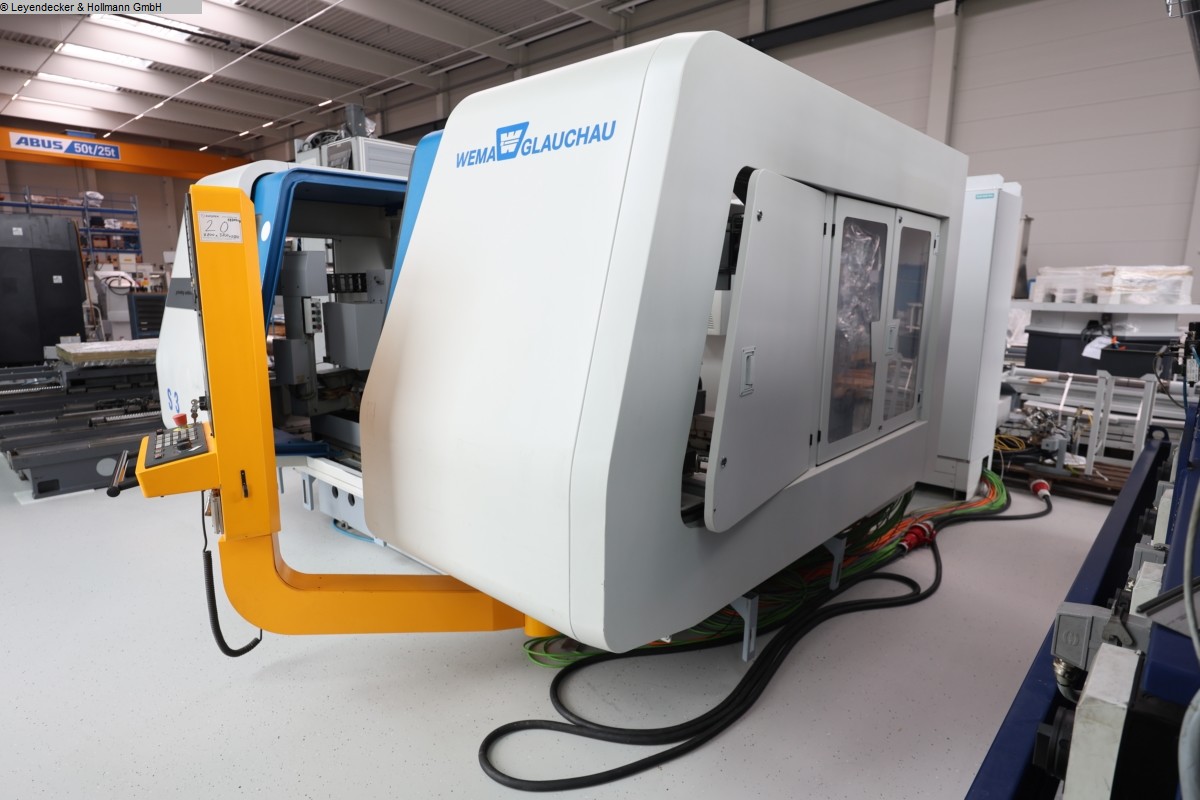

Rettificatrici universali WEMA GLAUCHAU SU 3-R

Internal grinding machine:
grinding diameter: 300 mm
grinding depth: 300 mm
Travel distance - Z1: 470 mm
Travel distance - X1: 200 mm
Tilt angle - B2: 1/1000 °
power capacity: 3,5 kW
External and face grinding unit (Z2/X2):
Travel distance - Z2: 470 mm
Travel distance - X2: 325 mm
Drive power – External grinding spindles: 16,5 kW
: 120 mm
grinding diameter - cylindrical: 400 mm
sanding belt length: 400 mm
grinding wheel size: Ø 500 x 50 x Ø 127 mm
Workpiece spindle unit:
Travel distance - U: 470 mm
Tilt angle – B1 with longitudinal adjustment: -1/+12 °
Tilt angle - B1 with workpiece spindle unit: -20/+30 °
Manual longitudinal adjustment of the workpiece sp: 470 mm
Drive power – workpiece spindle: 3,8 kW
turning speeds: 1-895 U/min
Load capacity - Spindle head: 200 kg
Centre height above the swing bridge: 200 mm
total power requirement: 47 kW
weight of the machine ca.: 10 t
dimensions of the machine ca.: 3,54 x 2,83 x 2,3 m
Accessories / Equipment:

- Pneumatic dressing wheel that extends into the working area
(mounted behind the workpiece spindle)
- Coolant system with paper belt filter
- Central lubrication
- Spindle cooling
- Documentation
