Presse eccentriche ZTS KOSICE LEK 160

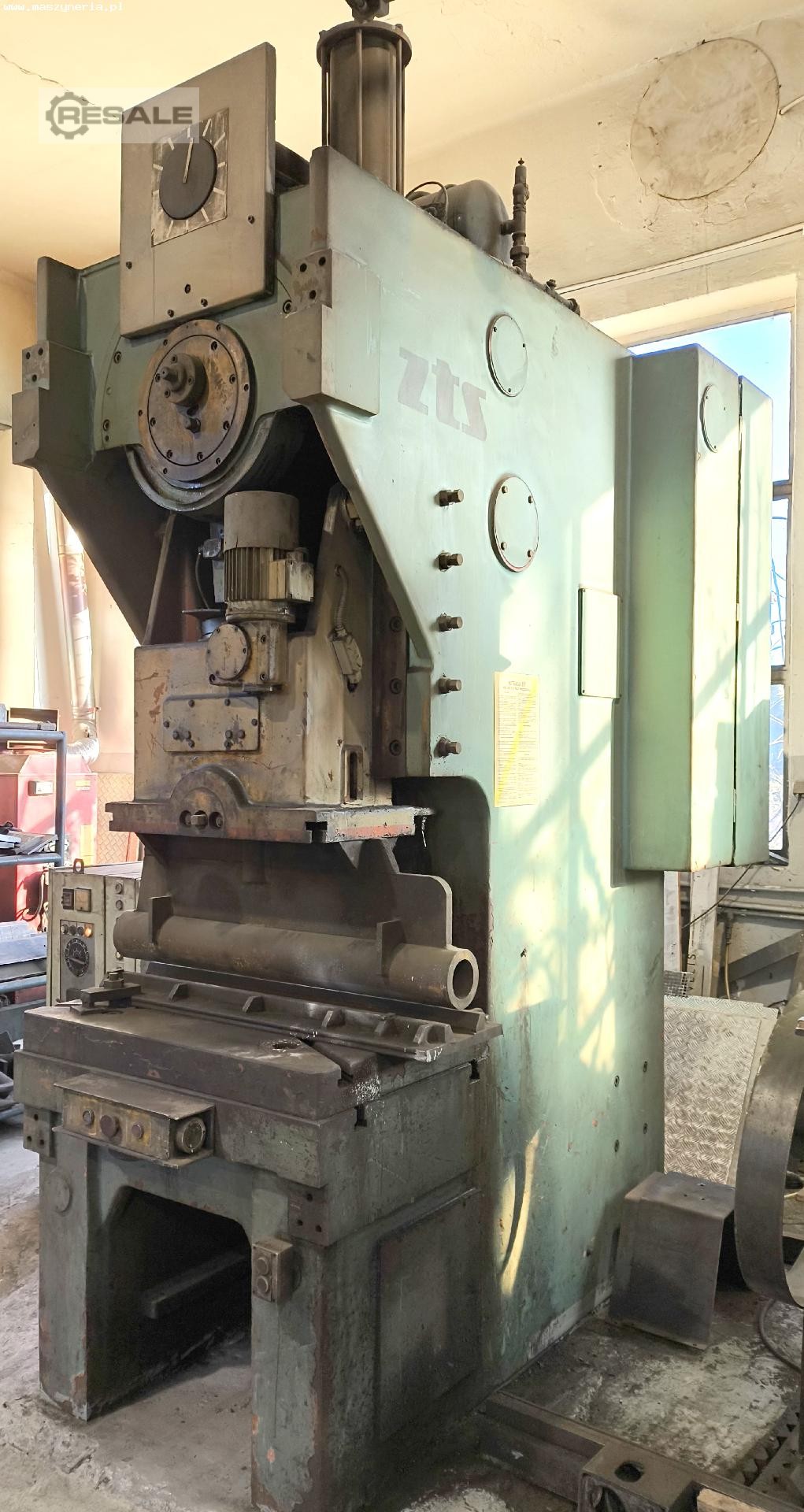

ZTS KOSICE LEK 160 eccentric press was built in 1984 in Czechoslovakia by Závody Tažkého Strojárstva n.p. Košice. The machine is used in cold metal forming. It is capable of performing operations such as precise punching, stamping and bending. All these machining processes are performed with a high press force of 160 tonnes, which, combined with a very dynamic slider, guarantees the best machining results. The slider makes between 32 and 50 strokes per minute and its stroke is adjustable in the range from 25 mm to 160 mm. The ZTS KOSICE LEK 160 is also distinguished by its very rigid C-shaped design, which offers excellent process stability during even the most intensive challenges. The work table with a length of 1000 mm and a width of 740 mm enables mounting of both larger workpieces and tools. All this makes the offered LEK 160 eccentric press an excellent choice for the production of parts with high repeatability and excellent precision. The total weight of the machine is approximately 12800 kg.

Technical specifications of the ZTS KOSICE LEK 160 press
- maximum press force: 160 t
- work table dimensions (L x W): 1000 x 740 mm
- maximum slider stroke: 160 mm
- minimum slider stroke: 25 mm
- slider adjustment: 100 mm
- number of slider strokes (automatic mode): 50/min
- number of slider strokes (single mode): 32/min
- slider dimensions (L x W): 710 x 425 mm
- maximum distance from slider to work table surface (slider in lower position): 455 mm
- reach: 355 mm
- intermediate plate thickness: 100 mm
- air pressure: 0.6 Pa
- air consumption per stroke: 36 dm3
- electric motor power: 11 kW
- dimensions (L x W x H): 2400 x 1380 x 3350 mm
- weight of the ZTS LEK 160 machine: approx. 12.8 t
