9 NILES SIMMONS macchina utilizzata in vendita

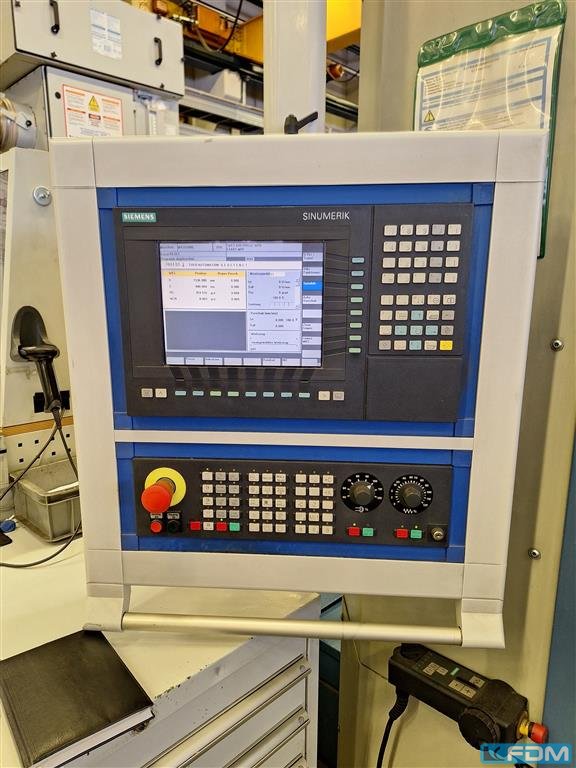

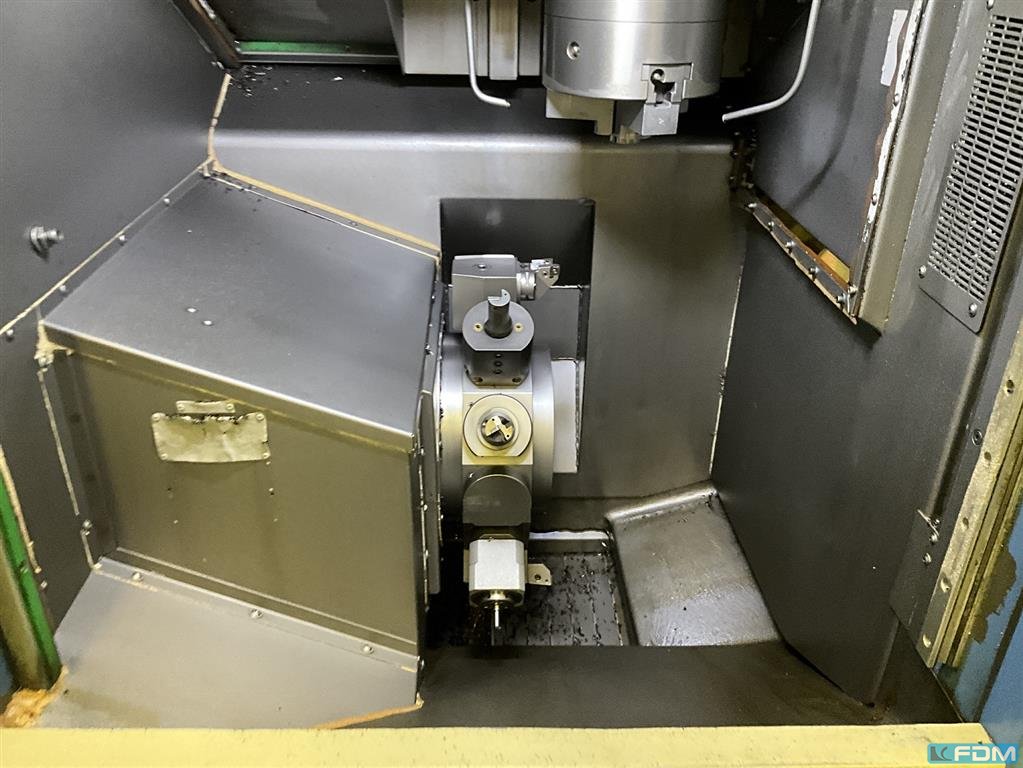

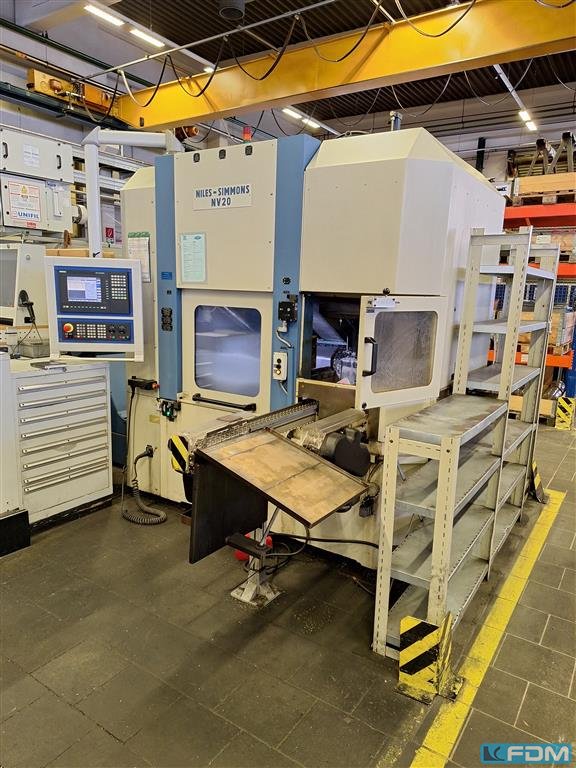

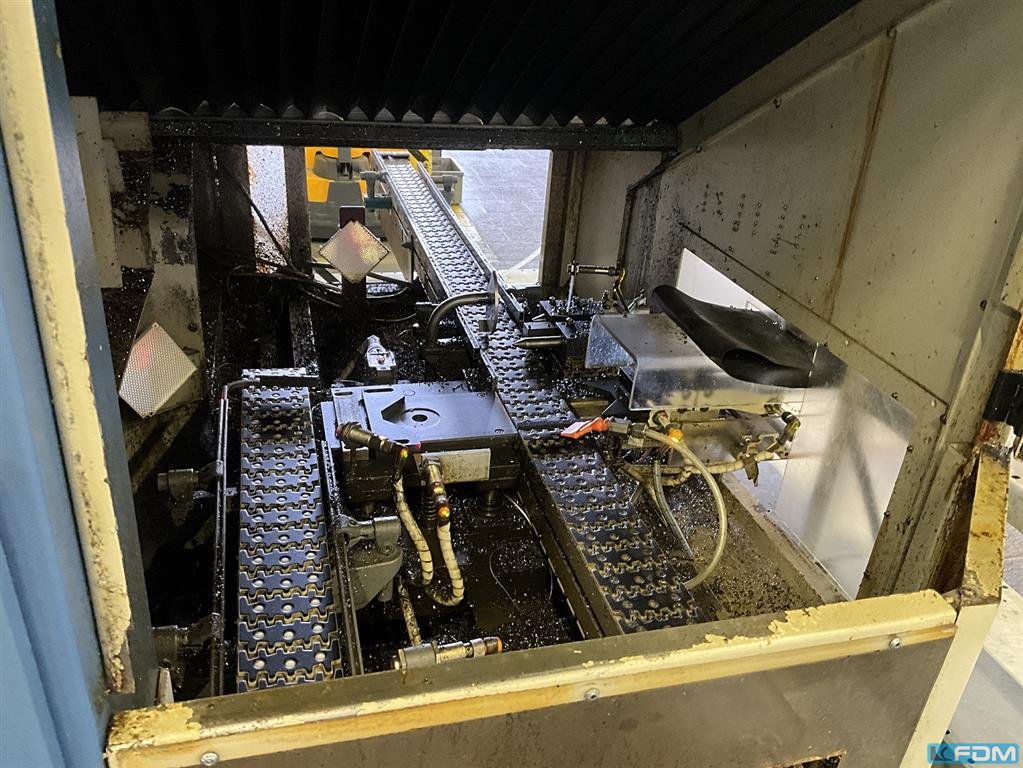

turning diameter:300 mm swing diameter:350 mm turning height:275 mm x-axis:925 mm z-axis:250 mm clamping chuck diameter:200 mm Feed speed:30 m/min. total power requirement:45 kW weight of the machine ca.:7 t Machine was used just from time to time in the last years - very good condition! with CNC SIEMENS 840 D 12-station turret head with driven toolings workpiece in and out conveyor belt coolantattachment and chip conveyor diverse accessories

turning diameter: 270 mm turning length: 630 mm control: SIN840D swing over bed: 400 mm swing diameter over slide rest: 220 mm longitudinal slide -travel: 745 mm cross slide - travel: 200 mm turning speeds: 10 - 4.000 U/min power capacity at 100 % load: 15,00 kW spindle head DIN 55026 - Size: 6 spindle bore: 62 mm chucking diameter: max. 315 mm feed x-axis: 1 - 12.000 mm/min rapid traverse X-axis: 12,00 m/min Feed z- axis: 1 - 20.000 mm / min. rapid traverse Z-axis: 20,00 m/min tailstock quill taper MT: 3 quill stroke: 112 mm quill pressure: 10,00 kN tool turret with 12 work positions: tool taper DIN 69880: Ø 30 mm Tool drive speed max.: 4.000 1/min total power requirement: 37,00 kW weight of the machine ca.: 4,00 t dimensions of the machine ca.: 4,00 x 2,75 x 2,30 m With SIEMENS SINUMERIK 840D control system, turret with driven tools, C-Axis, tailstock, chip conveyor, various tool hol ...

turning length: 4.500 mm greates pass round over bed: 810 - 760 mm swing diameter over slide rest: 740 mm control: SIEMENS - 840 C max. turning diameter: 800 mm turning diameter over slide: 740 mm travel -x2 axis: 875 mm travel -z2 axis: 5.200 mm CNC Turning- and Milling Center | NILES-SIMMONS - N40 MCT 4500 equipped with a turret for driven tools as well as NC steady rest and tailstock. Additional equipment: - Centering points, - Jaw sets, - Clamping jaws, The machine is in a well-maintained condition and can be inspected at any time under power. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: N-40 | N 40 | N40MCT4500 | N40MCT The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning length: 1.300 mm spindle diameter: 120 mm spindle bore: 38 mm control: SIEMENS - 840 D numbers of positions in the tool changer: 12 tool taper: VDI 30 CNC Turning- and Milling Center | NILES-SIMMONS - N10 equipped with Y-axis, turret for driven tools, steady rest, and tailstock. The machine is in well-maintained condition. For further technical details, please refer to the attached offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: N-10 | N 10 | N10/2 | N10-2 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning length: 3.000 mm greates pass round over bed: 810 - 760 mm swing diameter over slide rest: 740 mm control: SIEMENS - 840 C max. turning diameter: 800 mm turning diameter over slide: 740 mm travel -x2 axis: 875 mm travel -z2 axis: 3.700 mm CNC Turning- and Milling Center | NILES-SIMMONS - N40 MC / 3000 equipped with a well as travelling lynette and tailstock. Additional equipment: - Centering points, - Jaw sets, - Clamping jaws, The machine is in a well-maintained condition and can be inspected at any time under power. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: N-40 | N 40 | N40MC3000 | N40MC The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

GC: 2007 Controllo Siemens ... Sinumerik 840 D Diametro massimo del pezzo ... 2500 millimetri Diametro del tavolo ... 2240 millimetri Altezza massima del pezzo ... 1250 millimetri Asse Z ... 1000 millimetri Peso massimo del pezzo ... 10000 kg Potenza del motore principale ... 55kW L x P x A 7000x4400x5500mm Peso della macchina ... 37900kg La macchina è in buone condizioni. Maggiori informazioni su richiesta.

turning length: 2500 mm control: Sinumerik 840 D spindle head: A 11 tool numbers: 48 swing diameter over bed slide: 750 mm swing over bed: 780 mm c-axis: 0,1-30 1/min diameter of quill: 160 mm taper bore: MK 5 tool length - max.: 500 mm weight of tools max.: 15 kg weight of the machine ca.: 27 t dimensions of the machine ca.: 8,4 x 4,0 x 2,5 m Technical details: Nominal turning length: 2,500 mm Swing diameter over bed slide: 750 mm Swing diameter over bed: 780 mm Working height: 1,300 mm Spindle head to DIN 55026: A 11 Bore through: 123 mm Diameter in front bearing: 200 mm Oriented spindle stop: 0-359 degrees Drive power at 100/60 % duty cycle: 37/45 kW Total speed range: 10-2,500 1/min Number of speed ranges: 2 Speed range I: 10-775 1/min Speed range II: 20-2,500 1/min Max. torque at 60 % duty cycle: 2,500 rpm. Torque at 60 % ED: 2,083 Nm (up to 186 rpm) The data for this ad was crea ...

Con due moduli di lavorazione, asse X: da -50 a 725 mm, asse Y: da -200 a 300/ da -250 a 250 mm, traslazione rapida X-, Y-, asse Z: 18/12/30 m/min, lunghezze di tornitura: 1500/2000/2500/3200/4000/4500/6500 mm, diametro di rotazione: 780/ 880 mm, foro mandrino di tornitura: 92/123 mm, gamma di velocità del mandrino principale: 0-3000/0-3000/2000/min, max. Velocità dell'unità di tornitura/fresatura: 5000/6000/10000/min, lunghezza massima dell'utensile: 900/600/1000/300/900 mm, corsa del cannotto: 160/170 mm, carico collegato: 102 kVA, sistema di controllo: SINUMERIK ONE / SINUMERIK 840D sl, controllo del sistema di azionamento: SINAMICS S120, peso: 17 t. È possibile effettuare un'ispezione in loco.

turning diameter: . mm turning length: 2000 mm control: Siemens 840 D sl mainspindle: turning speed max.: 3800 1/min mainspindle: torque max.: 1200 Nm tailstock:: diameter of quill: 140 mm center point: MK6 quill power: 5 - 30 kN feed rate Z-axis: 0,1 - 30000 mm/min rapid traverse Z-axis: 40 m/min feed rate X-axis: 0,1 - 18000 mm/min rapid traverse X-axis: 25 m/min total power requirement: 125 kW weight of the machine ca.: 20 t The machine can still be inspected under power at the production plant. The condition of the machine is good, the accuracy during turning operation is very good. The milling drive is not functional. A quotation from Niles for the repair of the milling drive is available on request. Including hydraulic steady rest. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
