67 REISHAUER macchina utilizzata in vendita

Macchina per il collaudo degli ingranaggi REISHAUER AM

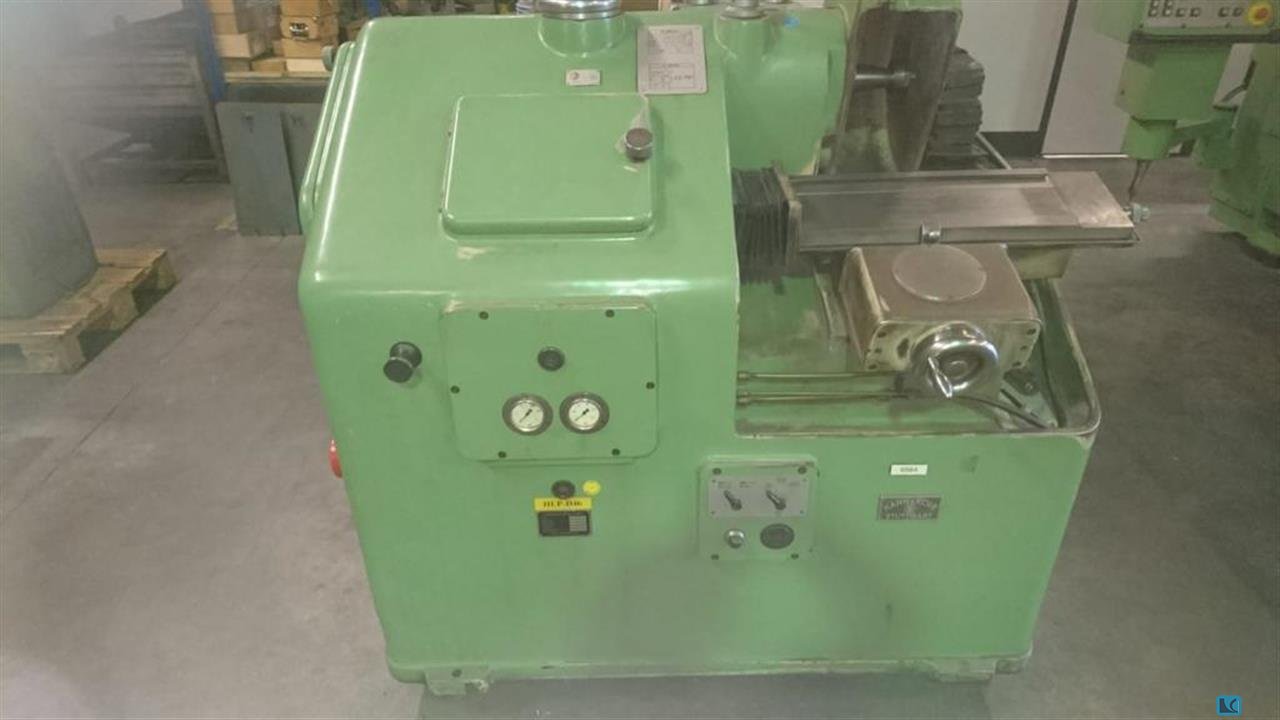

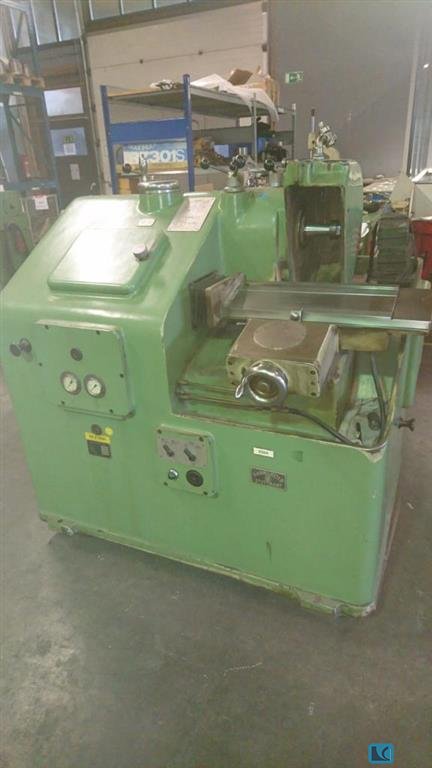

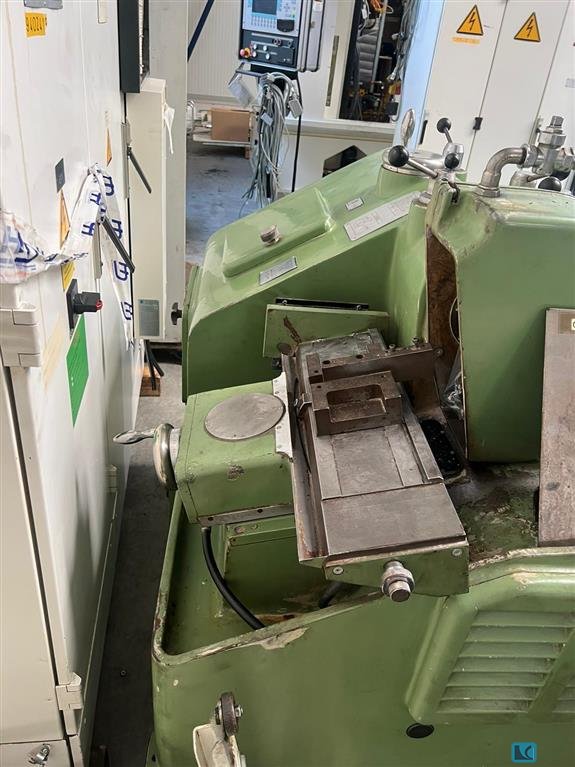

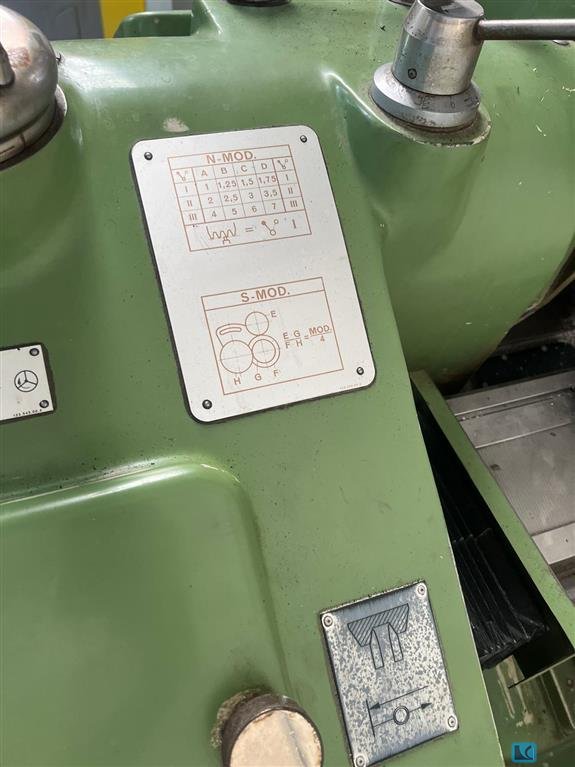

Smerigliatrice per ingranaggi REISHAUER OZA con cambio ingranaggi.

Key data: 360 mm

Reishauer modello RZ362A rettifica per ingranaggi CNC Diametro massimo della ruota: 14,17" Modulo massimo: 0,275" Modulo minimo: 0,0039" Corsa della diapositiva: 6,88 " Angolo massimo dell'elica: ± 45 Numero massimo di denti: 600 Numero minimo di denti: 6 Peso massimo del pezzo: 132 libbre. Larghezza mola: 4,09 " Diametro della mola: 11,02" - 13,77" Velocità della vite senza fine durante la macinazione: 1100 - 2330 giri/min Velocità della vite senza fine durante la profilatura: 50 - 95 giri/min Avanzamento per giro del pezzo: 0 – 0,133" Velocità di alimentazione della vite senza fine di macinazione: fino a 99,9 mm/min / 3,93 IPM Peso approssimativo: 14.553 libbre. DOTATE: Controlli CNC Reishauer. Dittel MBA2000 Controllore di bilanciamento. Elbaron R12D Raccoglitore di Nebbie. Generatore di motori Kato. Unità idraulica indipendente. Sistema pompa-coppa de ...

max. module:7 weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg without filter

total power requirement:36 kW Available from approximately week 15 of 2026 A well-maintained gear grinding machine including: Automation Promot, year of manufacture 2012 Filtration system Hoffmann YOM 2012

grinding wheel diameter:400 mm total power requirement:3 kW weight of the machine ca.:1,5 t dimensions of the machine ca.:1,5 x 1,4 x 1,3 m Dressing Grinder for gears REISHAUER AM max. width of grinding wheel 104 mm max. dia. of grinding wheel 400 mm max. module 7 min. module 0,5 pressure angle 10 - 30 ° grinding worm dia. 270 - 400 mm width of grinding worm 62/84/104 mm grinding worm turning speeds: at profiling 18/35/70 U/min electrics - voltage/frequency 380 / 50 V/Hz long. movement of crowning device 156 mm

Dressing diameter: Planing width: min. module: for Reishauer RZ150

max. wheel diameter: 400 mm gear width: 250 mm max. module: 8 min. module: 0,2 dist. between centers: 640 mm spindle turning speed range: 4010 U/min number of teeth: 5 - 999 max.helical angle: +/- 45 ° root circle diameter: 10 mm slide stroke: Z-Achse 300 mm workpiece weight: 300 kg clamping length max.: 700 mm clamping length min.: 60 mm pressure angle: 14 - 30 ° Control: Siemens 840D spindle motor: 10 kW total power requirement: - kW weight of the machine ca.: 16 t dimensions of the machine ca.: 3,3 x 2,7 x 2,5 m Gear grinding machine designed for small and large series production with: - Siemens Sinumerik 840 D CNC control - Tailstock - Balancing device - Oil mist extraction - Complete cladding - Double Spindle Dresser - Hoffmann filter system, type HSF 150 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 360 mm gear width: 180 mm max. module: 7 min. module: 0,5 Control: Reishauer 0: max. 180 mm tooth width: max. 180 mm min. number of teeth: 10 max. number of teeth: 600 max.helical angle: 45 ° max. workpiece weight: 60,0 kg grinding wheel width: 84 / 104 mm grinding wheel diameter: 280 / 350 mm Spindle Speed: 1.100 - 1.900 min/-1 grinding spindle turning speeds at profiling: 52 - 95 min/-1 total power requirement: 24 kVA weight of the machine ca.: 5,0 t dimensions of the machine ca.: 5,0 x 8,0 x 3,0 m - CNC Control Reishauer - CNC Dressing Unit - Exhauster - Coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

End mill, end mill, cutter, shell cutter -Manufacturer: Reishauer, end mill with longitudinal groove, 2 pieces -Type: 75 x 75H Sp 5000 KHSS-E 75x75x27 -Hole: Ø 27 mm -Cutting material: HSS-E -Price/Fee: complete -Transport dimensions: 150/75/H75 mm -Weight: 2.9 kg

Key bar chuck, power chuck, three-jaw chuck, three-jaw lathe chuck -Manufacturer: Reishauer, wedge bar chuck Chuck size: Ø 165 mm -Recess mounting: Ø 268 mm -Bolt circle: Ø 140 mm -Through hole: Ø 40 mm -Dimension: Ø 165 x 120 mm -Weight: 11.7 kg

Wedge bar chuck, power chuck, three-jaw chuck, three-jaw lathe chuck -Mouth size: Ø 290 mm -Recess inlet: Ø 268 mm -Bolt circle: Ø 168 mm -Mounting hole: Ø 21/31 mm -Mounting hole spacing: 148 mm -Through hole: Ø 70 mm -Weight: 43.5 kg

È disponibile una macchina per la levigatura a filettatura e viti senza fine Reishauer AG. Lunghezza di rettifica: 450mm, lunghezza di serraggio: 700mm, diametro massimo di levigatura: 200mm, massimo piombo: 80mm, peso massimo del pezzo: 100g, angolo di avanzamento massimo: +/-25, diametro della ruota abrasiva: 275mm/350mm, velocità: 1850rpm. Dimensioni della macchina X/Y/Z: circa 2600mm/1800mm/1600mm, peso: circa 3400kg. Inclusi centrifughe per olio, cappa, estrazione per nebbia d'olio e vari accessori. Dokumentation vorhanden. Un'ispezione in loco è possibile.

A gear flank grinding machine Reishauer, completely overhauled by Burri Werkzeugmaschinen, is available. Grinding spindle speed: 3500rpm, cutting speed: 63m/s, max. gear diameter: 360mm, module range: 0.1-7, number of teeth: 6-600, max. workpiece height: 160mm, max. helix angle: +/-45°, max. workpiece weight: approx. 60kg. Min. wheel root circle diameter: 250mm, grinding wheel dimensions X/Y/Z: 350mm/104mm/160mm, grinding worm diameter range: 270mm-350mm, max. grinding width: 175mm, max. workpiece speed: 800rpm. Includes profiling devices, balancing device, structure-borne noise contact control, compact filter system, cooling unit, cooling water recooler, robot automation, and transport trolleys. Documentation available. An on-site inspection is possible.

capacità litri: 120 lPressione di alimentazione: 218 barCapacità del refrigerante: - lelettrico - Tensione/frequenza: 380 / 50 V/Hzpompa del filtro: 150 kW Potenza totale richiesta: 14 kVA Peso della macchina ca.: 1,5 tAF-Filtro automatico a prerivestimento con raffreddamento a flusso di ritorno dell'olio di rettifica e del fluido idraulicoI dati di questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.

: Reishauer DS / zum läppen weight of the machine ca.: 200 kg : Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 330 mm gear width: 180 mm max. module: 7 min. module: 0,5 total power requirement: 12 kW weight of the machine ca.: 7500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

workpiece diameter: 240 mm centre distance: 0 mm honing length max.: 500 mm max. module: 5 total power requirement: 12 kW weight of the machine ca.: 5000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 0 mm gear width: 120 mm max. module: 3 min. module: 1 total power requirement: 20 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: m : : : : : : 5 machines in stock, YOM: between 1986 and 1990 Gear Æ, min./max. 55 / 120 mm Gear Æ for shaft-formed parts 80 mm Module (pitch 25.4 - 8.5) 1 - 3 No. of teeth, min./max. 13 / 80 Pressure angle 14 - 30 ° Helix angle, max. 40 ° Workpiece clamping length 145 - 420 mm Grinding worm Æ 300 - 400 mm Grinding worm width 25 - 40 mm Grinding worm speeds, infinitely variable (35 m/s) 1,650 rpm Feed range 0.4 - 4 mm/rev Total electrical load 20 kW - 380 V - 50 Hz Weight 7,500 kg Accessories / Special Features REISHAUE ...

workpiece diameter: 460 mm threading length: 900 mm thread pitch: 100 mm total power requirement: 10 kW weight of the machine ca.: 8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Reishauer RZ 362A Costruito nel 1999 Accessori: 2x dispositivo di ravvivatura Fässler Mole diamantate Pietre per affilare Turbo separatore

larghezza massima della mola: 125 mm diametro / foro della mola: 275 / 300 mm Cono flangia: Reishauer Flangia del disco abrasivo per il tipo di macchina Reishauer RZ 362 A Per il montaggio di dischi abrasivi in ceramica per la rettifica del fianco dei denti - 125 mm di larghezza, dimensioni in base al tipo di macchina Reishauer RZ 362 A 27 pezzi disponibili, il prezzo è al pezzo

larghezza massima della mola: 125 mm diametro / foro della mola: 275 / 300 mm Cono flangia: Reishauer Flangia del disco abrasivo per il tipo di macchina Reishauer RZ 301 S Per il montaggio di dischi abrasivi in ceramica per la rettifica del fianco dei denti - 125 mm di larghezza, dimensioni in base al tipo di macchina Reishauer RZ 301 S 26 pezzi disponibili, il prezzo è al pezzo

larghezza massima della mola: 195 mm diametro / foro della mola: 75 mm Cono flangia: Reishauer Flangia del disco abrasivo per il tipo di macchina Reishauer RZ 400 Per il montaggio di dischi abrasivi in ceramica per la rettifica del fianco dei denti - 125 mm di larghezza, dimensioni in base al tipo di macchina Reishauer RZ 400 16 pezzi disponibili, il prezzo è al pezzo

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M4 EW20° 2GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M5,5 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M6 EW20° 5GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M4 EW20° 4GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M4,5 EW21,5° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M5 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
