24 SCHIESS macchina utilizzata in vendita

Dati tecnici dell'Alesatrice Schiess Froriep usata: CNC: Siemens 840 D Massima corsa trasversale asse X: 13.770 mm Massima corsa verticale asse Y: 5.000 mm Asse Z: 1.780 mm Asse W: 950 mm Asse V piano di appoggio rotante: 2.000 mm Dimensioni piano di appoggio rotante: 5.000 x 3.500 mm Dimensioni piano fisso: 7.500 x 4.300 mm Carico massimo ammesso sulla tavola: 120 ton Potenza del mandrino: 100 kW Numero giri del mandrino al minuto: 710 rpm

Numero di 1210059 Tipo di macchina Tavola rotante Realizzare SCHIESS Tipo 25/30 Tipo di controllo Via X (mm) 2.000 Dimensioni tavola (mm) 3.000 x 2.500 Tavolo girevole (gradi) 360 Informazione Carico massimo tavola 40 ton

diametro di tornitura: 220 mm copertura di tornitura: 200 mm controllo: Siemens Sinumerik potenza totale: kW peso della macchina ca.: t dimensioni della macchina ca.: m

lunghezza tavola: 3000 mm larghezza tabella: 2500 mm carico tabellare: 40 t potenza totale: kW peso della macchina ca.: t dimensioni della macchina ca.: m Numero di scorte 1210059 Tipo di tavola rotante della macchina Make SCHIESS Tipo 25/30 Tipo di controllo X-corsa (mm) 2.000 Dimensioni tabellare (mm) 3.000 x 2.500 Rotazione tabellabile (gradi) 360 Informazioni aggiuntive Max. carico da tavola 40 ton < /piccolo>

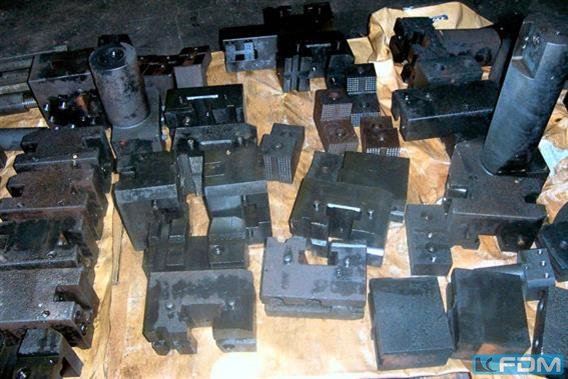

pitch taper:50 Aufnahme Detailed price on request depense on version and nos. ca. 500 - 1500 EUR + VAT /piece Diverse toolholders matching SCHIESS-VTL´s with SK 50 taper and T-slot clamping design! Diverse fixed boring bars in different dia. and length. Diverse boring bar adapter plates to adapt different boring bars. Diverse normal toolholders for toolshank 40 mm in version left or right

faceplate diameter:2500 mm swing diameter:2500 mm swing diameter:2500 mm turning height:2500 mm turning speed range - faceplate:1,8 - 140 U/min workpiece weight max.:15.000 kg feeds: 0,03 - 6,3 mm/U rapid speed:2 m/min cross rail adjustment:2150 mm max. ram stroke:1500 mm power capacity:55 kW weight of the machine ca.:32 t dimensions of the machine ca.:4,1 x 7,6 x 6,0 m 1 turret head 1 RAM head

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

faceplate diameter: 2500 mm Thickness: 240 mm T-slot - distance: 175 mm total power requirement: . kW weight of the machine ca.: . kg dimensions of the machine ca.: . m Optional with 4 jaws €3750 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

faceplate diameter: 2500 mm Thickness: 240 mm T-slot - distance: 175 mm total power requirement: . kW weight of the machine ca.: . kg dimensions of the machine ca.: . m Optional with 4 jaws €3750 With bed from Schiess KZ 250 Optionally, a Schiess KZ 250 drive gear can be purchased for €9,500 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created ...

faceplate diameter: 2500 mm turning height: 1500 mm turning diameter over bed: 2700 mm turning speeds: 1,9 - 60 (16x) U/min voltage: 380 V total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

faceplate diameter: 2950 mm swing diameter: 3200 mm turning height: 3500 mm table load: 20 t feed range: 3000 mm/min main drive motor: 70 kW milling drive: 16,1 kW Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC-control FAGOR 8070 C-axis with 360,000 positions Milling head Inspection under power in the factory possible. Machine location is Spain. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Diametro della placca frontale: 5500 mm, diametro oscillazione: 6000 mm, altezza di rotazione: 4400 mm. Controllo: FAGOR 8055, regolazione trasversale delle rotaie: 3000 mmram: 1500 mm, peso del pezzo: 100 velocità della piastra frontale: 1 - 25 U/min, consumo totale di potenza: kWweight della macchina: circa dimensioni della macchina: m Adattamento nel 2015 con controllo CNC FAGOR 8055. I dati per questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.

spindle diameter: 160 mm x-travel: 10500 mm y-travel: 4000 mm spindle taper: ISO 50 z-travel: 950 mm turning speeds: 3,15-1000 U/min transmission ratio: 4 spindle power: 58 kW Support sleeve: 340x400 mm w-travel: 900 mm Feed: x 0,12-9600 mm/U Feed: y/z/w 0,1-5600 mm/U Plate area: 39,5 m² Plate: 5400x3500 mm Plate: 5900x3500 mm T-slot - distance: 365 mm T-slots: 35/75 mm Thickness of the plate: 360 Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or ...

diametro del frontalino: 5500 mmdiametro dell'oscillazione: 6000 mmaltezza di tornitura: 4400 mmvelocità di tornitura: - U/minmotore di azionamento principale: - kWControl: FAGOR 8055 peso del pezzo max.: 100 corsa del tram per lato: 1500 mmtraversa - regolazione: 3000 mmpotenza totale richiesta: - kWpeso della macchina ca.: - tdimensioni della macchina ca.: - mdotato di:- Controllo CNC 8055- 1ram su traversaI dati di questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.

Controllo Siemens ... Sinumerik 840 D Diametro massimo del pezzo ... 3200 millimetri Diametro del giradischi ... 3000 millimetri Carico massimo della tavola... 14000kg Altezza massima del pezzo ... 2200 millimetri Asse Z ... 1155 millimetri Peso massimo del pezzo ... 14000 kg Potenza del motore principale ... 81 kW Superficie... DXŠXV 7200x6400x6600mm La macchina è in ottime condizioni,

faceplate diameter: 1600 mm swing diameter: 1800 mm turning height: 1500 mm control: Siemens chip conveyor: Tool changer: type: 840 D mm workpiece weight: 10000 kg slide adjustment: 1000 mm ram head dimension: 240x240 mm turning speeds: 250 U/min main drive: 45 kW Accessories and cabinets can be purchased optionally The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data fo ...

faceplate diameter: 1600 mm swing diameter: 2000 mm turning height: 1600 mm Control: Siemens Sinumerik 805 turning speeds: 1-250 U/min Table load: 12000 kg Control system manufacturer Siemens type Sinumerik 805 Accessories and cabinets can be purchased optionally The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solu ...

Ref. -No.: 10361 Manufacturer: SCHIESS Year of construction: 2023 Type of control: CNC Control: Siemens, Heidenhain, Fanuc - Configurable as required Storage location: Halberstadt Country of origin: Germany financing: nach Anfrage Support sleeve diameter: 130 mm X-Travel: 3000 mm Y-Travel: 2000 mm Z-Travel: 1600 mm Spindle stroke: 800 mm B-Axis: 360 ° W-Axis: 800 mm Spindle Taper: SK50 Max. Tool Weight: 25 kg Clamping Area: 1250 x 1250 (or configurable as required) mm T - groove width: 22 mm T - slot spacing: 160 mm Swivelling: Configurable as required ° Numbers Of Tools In Magazin: 40, 60, 120, 200, 240 Spindle Speed: 2900 RPM Max. Torque: 2500 Nm Drive Capacity - Spindle Motor: 41 kW

Ref. -No.: 10362 Manufacturer: SCHIESS Year of construction: 2023 Type of control: CNC Control: Siemens - Heidenhain - Fanuc (configurable) Storage location: Halberstadt Country of origin: Germany financing: nach Anfrage Spindle Speed Max.: 3500 RPM Pallet diameter: 1600 mm Max. machining diameter: 2000 mm Number of claw boxes: 4 pc Clamping force per claw box: 55 kN Number of radial T-slots: 8 Max. speed for turning: 140 min-1 Max. speed for milling: 5 min-1 Max. torque for turning: 27000 Nm Max holding power: 36 kN positioning speed: 3000 mm Adjustment from center to right: 850 mm Shift from center to right (head and tool change): 2750 mm Adjustment from center to left: 850 mm Max feed rate: 2000 mm / min Max rapid traverse speed: 20000 mm / min Max. Feed force: 30 kN cross-section: 280 x 240 mm Max. cutting force when turning: 36 kN Max Spindle Torque: 1200 Nm Pressure: 6 bar Air requ ...

TORNIO CNC SCHIESS STC 460 3 assi con Fanuc OI TC Anno 2005 Torretta 12 Posizione VDI 30 Contropunta Trasportatore di trucioli Oscillazione massima sopra il letto : 520 mm Lunghezza massima di tornitura : 550 mm

4 pz. pulegge a fune per contrappeso di un FB 225

Viaggio Asse X 9.500 mm Asse Y 4.100 mm Asse z 950 mm Asse W 900 mm Velocità del mandrino principale (infinitamente regolabile): 3,15 - 1000 giri/min Potenza del motore del mandrino 58 kW Velocità di alimentazione (regolabile all'infinito): Asse X 0,1 - 9600 mm/min Asse Y 0,1 - 5600 mm/min Asse z 0,1 - 5600 mm/min Asse W 0,1 - 5600 mm/min Accessori: Campo piastra: 6 x 4 m (asse B e V a controllo CNC) Tabella: 2 x 2 m (asse B e V a controllo CNC)

Key data: 4000 mm, 5000 mm

Indicazioni Comando SIEMENS SINUMERIK 840 Dsl Dimensioni principali e corse Diametro piastra frontale 4.000 mm Diametro circonferenziale (max) 5.000 mm Altezza del pezzo (max.) 5.000 mm Altezza totale della macchina 9.250 mm Peso massimo del pezzo 80.000 kg Base tavolo Y Spostamento tavola orizzontale 2.500 mm Asticella Regolazione verticale della traversa 3.200 mm in 50 passi Supporto traversa (destra) Supporto regolazione orizzontale - 2740 + 2740 mm Spostamento verticale del cursore dello scalpello 1.800 mm Sezione trasversale del cursore scalpello 250x210 mm Supporto laterale (destro) Supporto regolazione verticale -25 + 2170 mm Spostamento orizzontale del cursore dello scalpello 1.000 mm Sezione trasversale del cursore scalpello 250x210 mm Diametro di tornitura max./min. 4.500/2.500 millimetri Trasmissione principale: Potenza moto ...

Indicazioni Controllo Siemens Sinumerik 840 Dsl Dimensioni principali e corse Diametro piastra frontale 3.500 mm Diametro circonferenziale (max.) 4.000 mm Altezza del pezzo (max.) 3.000 mm Altezza totale della macchina 7.250 mm Peso massimo del pezzo 50.000 kg Base tavolo Y Spostamento tavola orizzontale 2.000 mm Asticella Regolazione verticale della traversa 1.500 mm in 50 passi Supporto traversa (destra) Supporto regolazione orizzontale -25 + 2170 mm Spostamento verticale della slitta dello scalpello 1.800 mm Sezione trasversale della slitta scalpello 250x210 mm Stazioni utensili Supporto traversa (sinistra) Supporto regolazione orizzontale -25 + 2170 mm Spostamento verticale della slitta dello scalpello 1.800 mm Sezione trasversale della slitta scalpello 250x210 mm Cambio utensile Trasmissione principale: Potenza motore pri ...
